AS BELL EX Explosion Proof Fire Alarm Bell
- Category: Fire Alarm >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (62262886158):
Product Overview
Description
Description

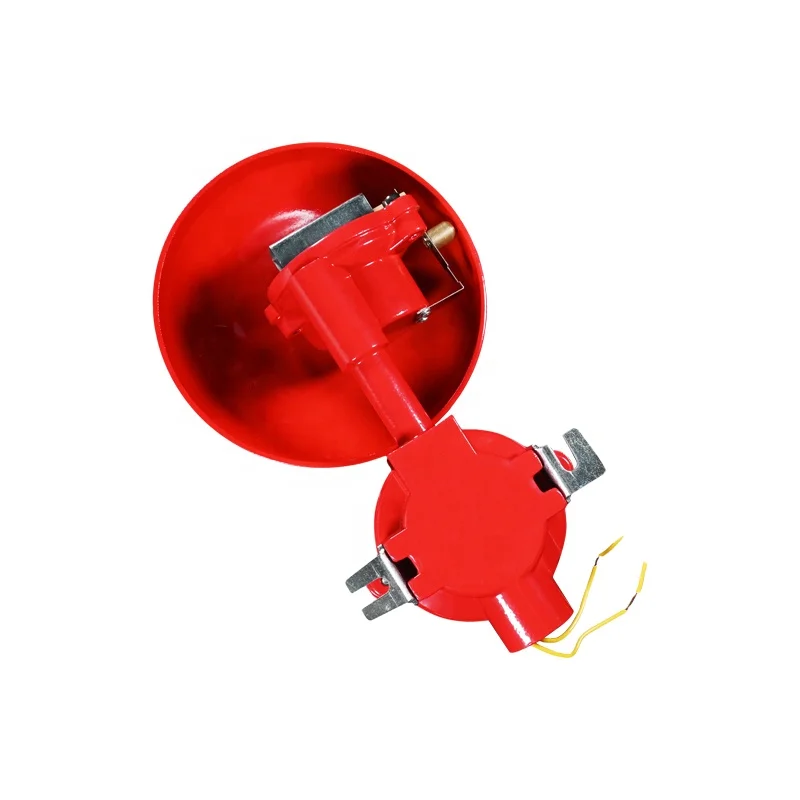

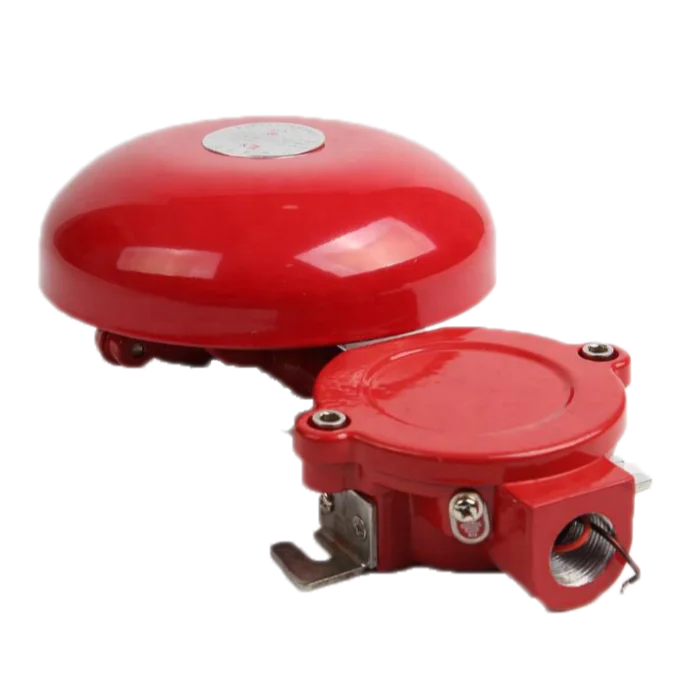

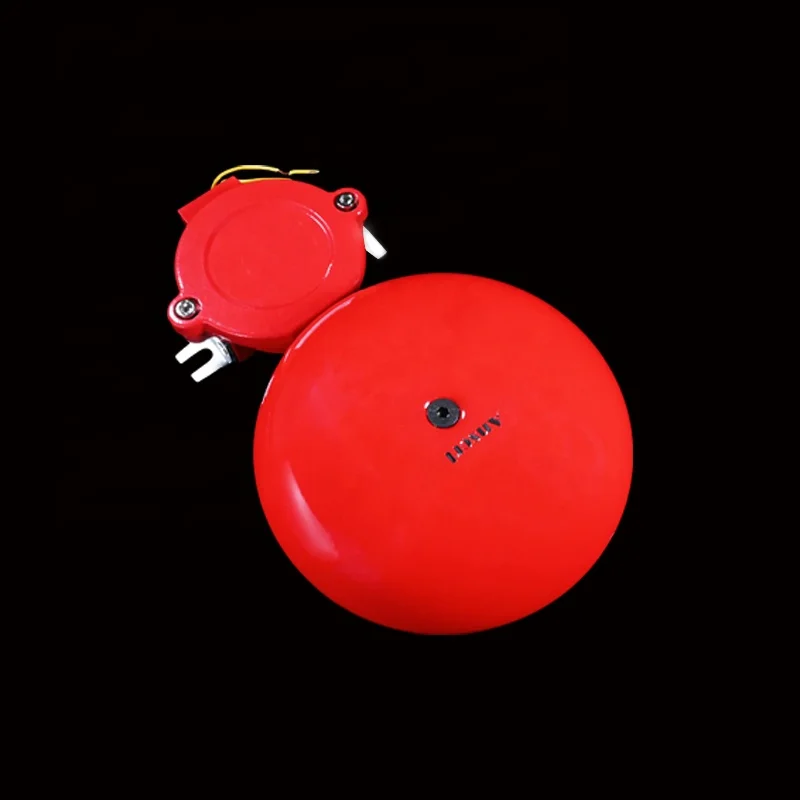

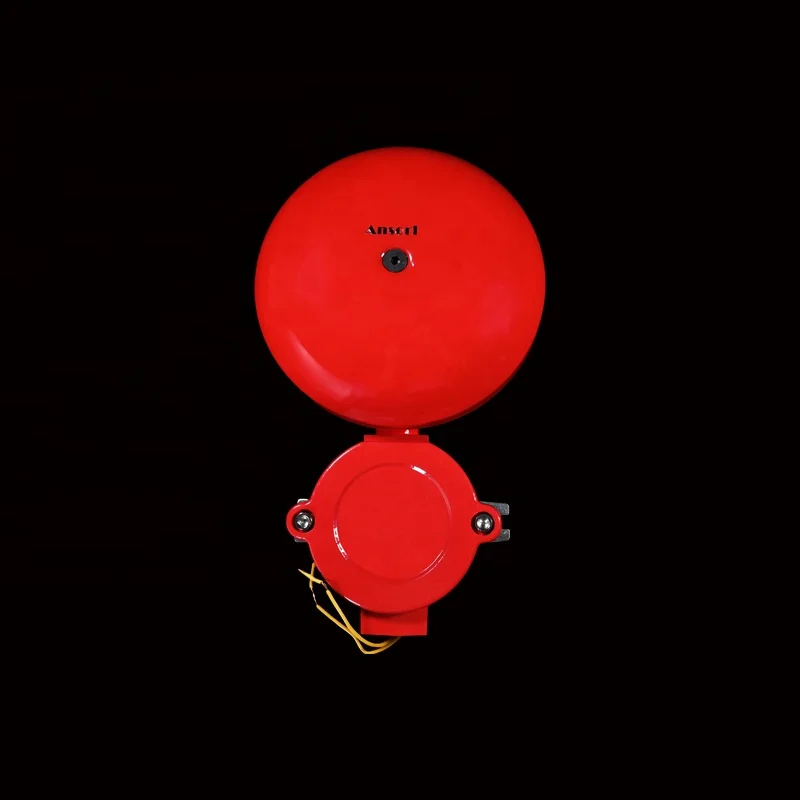

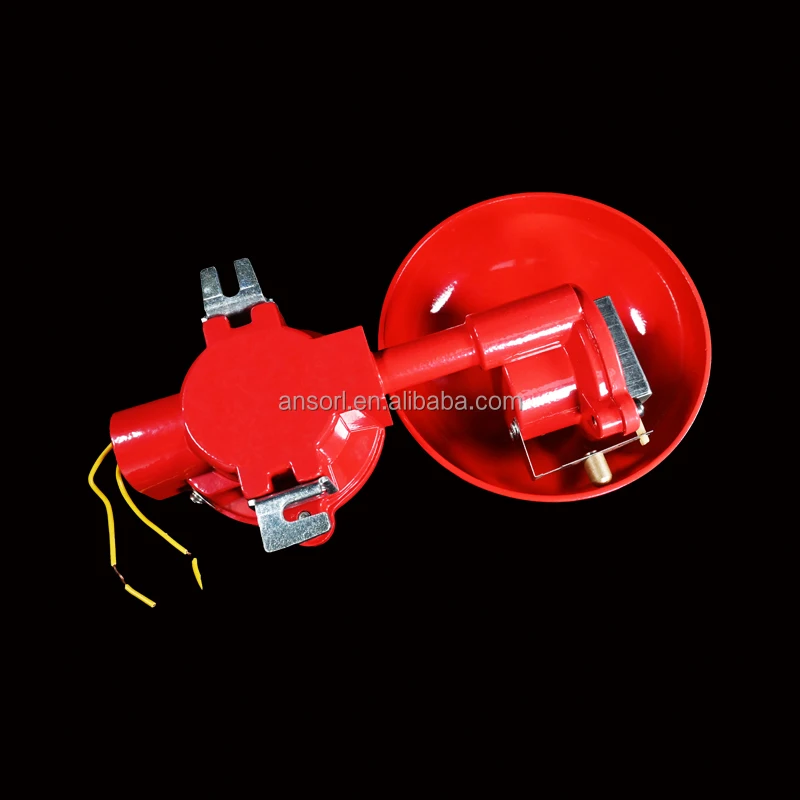

AS-BELL-EX Explosion Proof Fire Alarm Bell
AS-BELL-EX explosion-proof fire alarm bell is a conventional type device with relay output, it’s compatible with most of fire alarm control panels in the market.
AS-BELL-EX explosion-proof fire alarm siren is an essential device of fire alarm system. When there is a fire, the control panel receives alarm signal from fire detector or manual call point, then the panel sends a start signal to the bell, which will give an audible alarm.
AS-BELL-EX explosion-proof fire alarm bell complies with GB3836-2010 standards for explosion proof performance. The explosion-proof fire alarm bell is applicable to Zone 1 and zone 2, containing the hazardous area of clas II B an II C T6 temperature explosive gas atmosphere.
Parameters
Product Name | Explosion Proof Fire Alarm Bell | ||||
Model No. | AS-BELL-EX | ||||
Type | Explosion Proof | ||||
Power Supply 1 | 24VDC (standard) | ||||
Power Supply 2 | AC220V (customized) | ||||
Alarm Current | ≤35mA | ||||
Sound Intensity | ≤100dB | ||||
Material | Cast aluminum alloy | ||||
Explosion Proof mark | Exd (ib) II CT6 | ||||
The Ambient Temperature | -10° C ~ +55° C | ||||
Relative Humidity | ≤95% (non-condensing) | ||||
Pictures
Related Products
ANSORL TECHNOLOGY LIMITED: fire alarm detector series | ||
AS-E301-UV | Explosion-Proof Ultraviolet Flame Detector | |
AS-E301-IR2 | Explosion-Proof Dual-wavelength Infrared Flame Detector | |
AS-E501-IR3 | Explosion-Proof Triple-Wavelength Infrared Flame Detector | |
AS-E501-UV/IR2 | Explosion-Proof Combined Ultraviolet and Infrared Flame Detector | |
AS-SD801EX | Explosion-proof Smoke Detector | |
AS-HD802EX | Explosion-proof Heat Detector | |
AS-SHD803EX | Explosion-proof Smoke and Heat Combined Detector | |
AS-BD103EX | Explosion-proof Infrared Beam Smoke Detector | |
AS-MCP01EX | Explosion-proof Manual Call Point | |
AS-SG01EX | Explosion-proof Strobe Sounder | |
AS-BELL-EX | Explosion-proof Alarm Bell | |
AS-SIREN-EX | Explosion-proof Fire Alarm Siren | |
AS-SPKR-EX | Explosion-proof Horn Speaker | |
