Description

Characteristic and usage

This production line adopt the special precise hot melt glue system .This machine is specialize in sticking on panel and multiplier board, it is suitable for produce high-glossy , panel ,cabinet ,furniture door, honeycomb board and foam board sticking .etc .

Laminating material:

Ø High-gloss PVC film & PVC film

Ø Acrylic sheet , PVC sheet , HPL sheet

Ø Aluminum foil , PE foil , PET foil

Ø Paper

Base panel material:

Ø MDF board , chip board , gypsum board

Ø HPL , PVC foam board

Ø Aluminum panel , Steel panel

Ø Plywood



Glue type:

Ø PUR hotmelt glue

Usage:

Ø Furniture , Door panel , kitchen cabinet, concert hall, new building material, high grade decoration, hotels flooring



Packing:

Ø Foam packing with bubble wrapper

Ø Wooden packing ( extra charges )



Terms & conditions:

Ø 30% advance payment when the time of confirm order & rest 70% by TT after production before loading the container.

Ø 4 weeks to 6 weeks for production after receiving deposit.

Ø Validity of quotation within 30 days from above mention date.

Ø The machine voltage is 380 V , 50 Hz & 3P.

Ø Machine warranty period is 1 year , 6 months for electric parts & 3 months for easy broken parts like Silicon roller, glue Pipe

Ø For installation of machine, we send one engineer & one translator. The air ticket ,visa cost, hotel & food expenses are taken care of by buyer side. also the salary of per person & per day is $100 USD.

Ø Safety is first priority is taken care of by buyers during the visiting for installation.

Specification details

Feeding conveyor:

Ø The body of conveyor is made of 60*200 aluminum profile with rubber. The roller is 1350mm using 8 type belt to feed & run. Each group of conveyor using the reducer of RV 63-7.5 with 0.25KW motor. Every group of rollers controlled by separate frequency.

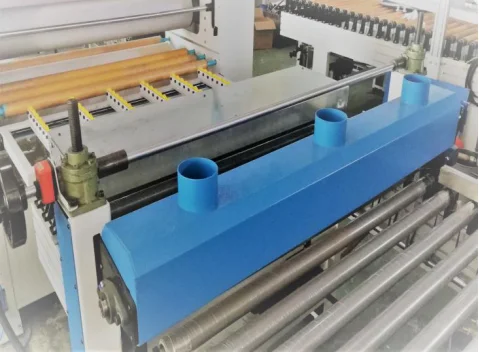

Dust cleaner:

Brush roller dust cleaner to clean the surface of board.Reducer motor is RV40-7.5 and the motor power is 0.37kw. It is necessary to clean the dust before proceed to the laminating.



Pre heating oven system:

Pre heating board by infrared lamps. The oven made with the 9 pcs of infrared lamps, each infrared lamp is 1kw. In the winter the surface of board is cold , so when the hot PUR glue spread on the cold surface its turn in to the water drops it cause have ripples or bubbles after laminating process.to avoid this problem need environment and room temperature need maintained during the laminating process.





Glue spreader machine :

Glue spreader machine inner width is 1510mm, glue roller and glue steel roller effective width is 1400mm, the bottom roller effective width is 1350, the bottom roller narrow than the glue rollers is prevent when sticking material less than 1mm , rollers will not be touch,drive motor is 0.75kw.



Diameter of glue roller : 240mm, rubber is imported silicone material, high temperature resistant,drive motor is 2.2kw.

Steel roller diameter: 190. Stainless steel roller, per square centimeter with 100 prism, better control the amount of glue, the minimum amount of glue can reach 20g/ square meters,drive motor is 0.75kw.

Each roller have their independent motor to drive and the other side of roller have bearing rotation to drive smooth rotate of roller.



Glue roller and the glue roller are through shaft, roller body structure is double bladder seamless steel roller, unilateral bladder wall thickness 12mm, the outer bladder wall thickness of 16mm (without the using three sets of roller, three sets of rollers is prevent deformation when used rollers after long time); double bladder can guide the oil circulation, to ensure temperature always reaches the melting point of glue when manufacturing . in the panel of glue spreader,have digital meter to adjust the thickness & another meter is the gap between silicon roller and Hot steel roller to transfer heat .

  IMPORTANT NOTE FOR PUR GLUE SPREDER:-



As the PUR glue need the high quality environment, also the temperature need high and workshop need clean and constant temperature, we also suggest customer to make a air-condition compartment for glue spread machine. And the glue spread machine must have the door to cover it so that can keep it clean and the temperature. It is better to make air-condition house for glue machine.

Best condition of workshop: temperature: 20Humidity: 60%

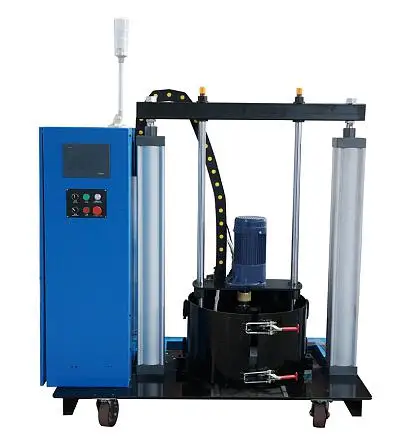

55 Gallon Glue melting system :

1)Glue barrel size :571mm

2)Glue pump power :0.75kw (there is a motor installed on glue barrel ,it drive gear glue pump , the power is 0.75kw.)

3)Heating power :18kw (There are 60 pcs heating lamps in glue pump ,it can make the glue melt ,the power is 0.3kw/ lamp )

4)Total power :18.75kw

5)Gear pump :15 g/r

6)Capacity of glue :0-35kg/h

7)Air pressure : 6 Bar (there are two air cylinder,model :SI-125*1000-S)

8)Motor speed :0.5-60r/min

9)Max platen stroke :1000mm

10)Working temperature :Normal -250℃

11)Temperature accuracy :±1℃

12)Overall dimension : 1510*850*1405mm

13)Weight :705kg .







Oil heating system :

As this machine is 24KW.the oil heating machine can keep the temperature of glue roller in high temperature. This machine transfer heating to the heat roller. The oil heating is adjustable as per the different weather type.

Automatic sheet feeder system :

This unit loading the acrylic sheet & HPL sheet. The machine load sheet by vacuum sucker .the power of this unit is 0.75 kw.

Laminating & Press system :

Roller size :240x1350mm( four rollers), Two groups rollers laminating ,the first one is rubber roller , the second one is stainless steel  roller ,drive motor 1.5kw .

using the air ex pander and tension controller to hold the roll material(paper , pvc ) 0.4T hoist and lifter to hold the roll material.

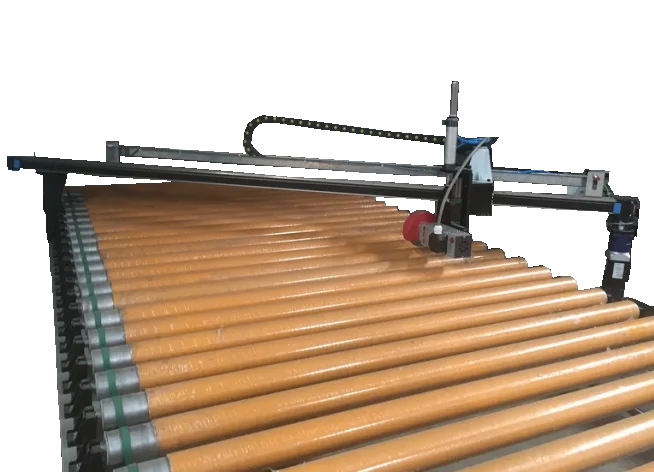

Serve track automatic cutter :

It adopted module tracking diagonal cut mode,cutting by 0.5kw HYSTER high-frequency motor ,the cutter diameter is 110 ,using this way to cut ,the distance between panel and panel must be keep less than 20mm .
