Classic Waterproof Shockproof Lithium Li Ion Down Tube 36V 48V 52V Dolphin ATLAS DA Ebike Battery Pack
- Category: >>>
- Supplier: Shenzhen Langyuyuan Technology Co. Ltd.
Share on (62263001060):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Classic Waterproof Shockproof Lithium Li Ion Down Tube 36V 48V 52V Dolphin ATLAS-DA Battery Pack for 8FUN Ebike Motor Kit
Product Name: | Customized ATLAS-DA Li ion Battery Packs |
Model NO.: | LYP-R001 |
Rated Voltage: | 36V/48V/52V |
Rated Capacity: | Customized 10~17.5Ah |
Waterproof Grade: | IP65 |

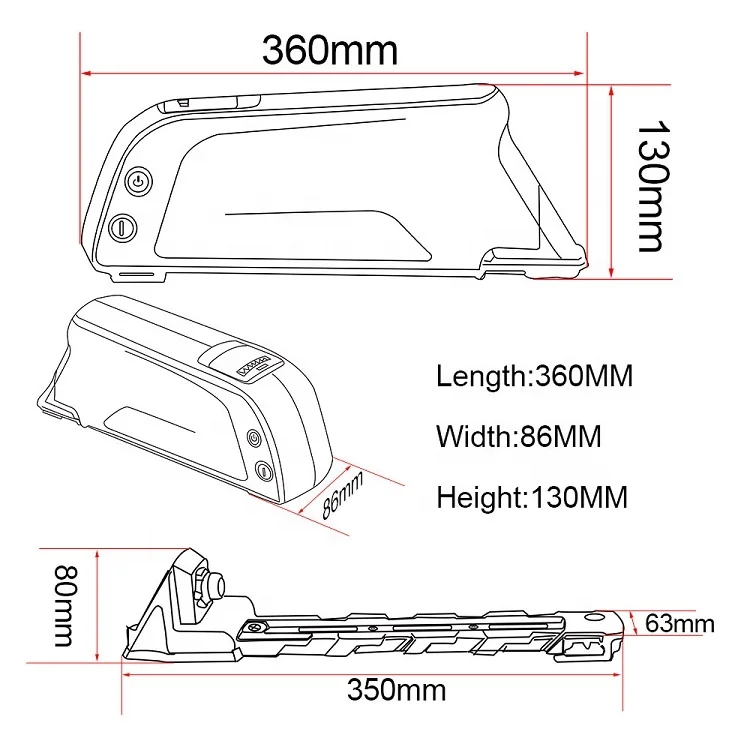

Size(mm): | 360*130*86mm |
Charger: | Standard 2A charger included (3A charger is optional, price will be little bit increase.) |
Max Charge Current: | 3A |
Max Discharge Current: | 20~30A |

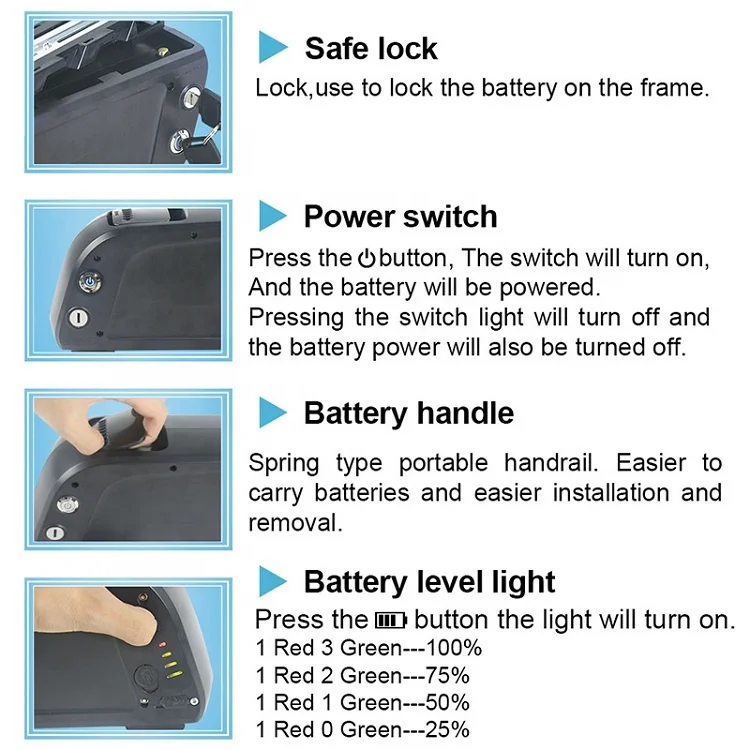

Features: | Indicator, DC Charge Port, 2 pins Discharge Port, Lock, USB Port, Power Switch |
Charging Method: | CC-CV |
Discharge Cut-off Voltage: | 28~39.2V |
Operating Temperature: | Charge: 0 to 45℃, Discharge: -20 to 60℃ |
Storage Temperature: | 1 year: -20~25℃ (1*); 3 months: -20~45℃ (1*); 1 month: -20~60℃ (1*). If the pack is kept as ex-factory status (50% of charge), the capacity recovery rate is more than 80% |
Warranty: | LangYu Power will be responsible for replacing/fixing the packs against defects or poor workmanship for 12months from the date of shipping. Any other problem caused by malfunction of the equipment or mix-use of the pack is not under this warranty. |
\t\t\t\t\t\t\t\t\tDetailed Image \t\t\t\t\t\t\t
Please Confirm:
1.Our standard is if your address is in UK/AU/EU/US, we will send you Charger with UK/AU/EU/US plug.
2. This battery w/ Small Anderson connector on the end of discharge cable.It can be fit to Bafang BBSHD motor kit.
3. You also could choose the one you need and remark it when you place the order.
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Delivery | ||
Delivry Time: | 3-5 working day after payment arrives. Finally, it is up to your quantity. | |
Delivery Method: | Battery is DG item, Special delivery method by Air (UPS, FedEx) or by Sea. | |
Air Shipment Time: | 1. To South American Market: 6-8 days. 2. To AU. Market: 6-8 days. 3. To EU. Market: 10-15 days. | |
Sea Shipment Time: | 1. To American Market: 15-20 days. 2. To AU. Market: 10-12 days. 3. To EU. Market: 30-45 days. | |
Recommend Products
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Shenzhen LangYu Power Technology Co., Ltd. (LYP).
LangYu Power,founded in Shenzhen in 2019,is an experienced and reputable exporter of Li-ion,Li-Polymenr,Ni-Cd and Ni-MH rechargeable battery packs and related products.
LangYu Power provides total energy solution for local and overseas OEM/ODM customers on all rechargeable battery packs of different chemistries.
LangYu Power offers a strong and reliable support of our after-sales service in Germany,Australia,U.S.A,These are the edges for our OEM/ODM business.
With strictest quality assurance policy,LangYu Power ensures offering high-quality battery products,with a focused goal of helping and reserving customers' request.
To conclude,LangYu Power is committed to offering innovative batteries that would provide profitable and value-added service of the highest quality to its customers.
To further enhance our quality services,LangYu Power now chooses the supplier who has CE, RoHS, MSDS, UN38.3, FCC, KC and buy Insurance for all of our products.
Afer-Sales Service Centre in Germany,Australia,U.S.A.!!!
We warmly welcome customers from all over the world to establish cooperation and create a bright future with us together.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1.What type of this electric bike battery?
It is li ion battery,Chemical is Li(NiCoMn)O2.
2. What kind of cells used on this electric bicycle battery?
We use original A grade Samsung,Panasonic,Sanyo,LG and high quality Chinese cells, all can be customized as your requests.
3. Do your e-bike battery come with charger?
Yes. All of our e-bike batteries come with standard 2A charger. If you need fast charger please contact with us.
4. Do your electric bike batteries come with BMS?
Yes, All our batteries with SEIKO IC BMS which can protect the battery avoid short circuit, Overcharged, Overdischarge and Overcurrent.
5. What's your delivery time?
Electric bike battery will be sent out within 5 working days after confirmed order, shipping time will take about 6-15days to your address by air.
6. How long the quality warranty you can provide?
We provide 1 year warranty for all of our electric bike batteries.
7. What is the difference between li ion battery,NI-MH battery and Lead acid battery?
Ebike Li-ion battery have longer cycle life,normal cyclelife is 800-1000times, and also with light weight, small size, No memory effect, Nontoxic, environmental friendly.
Proper Use and Handling of Lithium Ion Packs
See before using lithium-ion packs.
Supplied by Shenzhen LangYu Power Technology Co., Ltd.
This document has been prepared to describe the appropriate cautions and prohibitions, which the customer should take or employ when the customer uses
and handles the lithium ion pack to be manufactured and supplied by LangYu Power, in order to obtain optimum performance and safety
and handles the lithium ion pack to be manufactured and supplied by LangYu Power, in order to obtain optimum performance and safety
1. Charging
1.1 Charging current
Charging current should be less than maximum charge current specified in the product specification.
Charging current should be less than maximum charge current specified in the product specification.
1.2 Charging voltage
Charging should be done by voltage less than that specified in the product specification.
Charging should be done by voltage less than that specified in the product specification.
1.3 Charging time
Continuous charging under appropriate voltage does not cause any loss of haracteristics. However, the charge timer is recommended to be installed from a safety consideration, which shuts off further charging at time specified in the product specification.
Continuous charging under appropriate voltage does not cause any loss of haracteristics. However, the charge timer is recommended to be installed from a safety consideration, which shuts off further charging at time specified in the product specification.
1.4 Charging temperature
The cell should be charged within a range of specified temperatures in the product specification.
2. Discharging
2.1.Discharging.
The cell should be discharged at less than maximum discharge current specified in the product specification
2.2 Discharging temperature
The pack should be discharged within a range of temperatures specified in the product specification. Otherwise, it may cause loss of characteristics.
2.3 Over-discharging
The system should equip with a device to prevent further discharging exceeding discharging cut-off voltage specified in the product specification.(over-discharging) Over-discharging may cause loss of performance, characteristics of
battery function. May occur by self-discharge if the battery is left for a very long time without any use. The charger should equip with a device to detect pack voltage and to determine recharging procedures
battery function. May occur by self-discharge if the battery is left for a very long time without any use. The charger should equip with a device to detect pack voltage and to determine recharging procedures
3. Storage
3.1 Storage conditions
The cell should be stored within a range of temperatures specified in the product specification. Otherwise, it may cause loss of characteristics, leakage and/or rust
3.2 Long-term storage
The pack should be used within a short period after charging because long-term storage may cause loss of capacity by self-discharging. If long-term storage is necessary, the pack should be stored at lowervoltage within a range specified in the product specification, because storage at higher voltage may cause loss of characteristics.
4. Cycle life
4.1 Cycle life Performance
The battery pack can be charged/discharged repeatedly up to times specified in the produce specification with a certain level of capacity also specified in the product specification.
4.2 Cycle life may be determined by conditions of charging, discharging, operating temperature and/or storage.
