Charcoal powder briquette extruding machine is mainly used to use the screw extrusion principle to process charcoal powder mixed with a certain proportion of liquid binder into different bar shapes and size with certain strength.

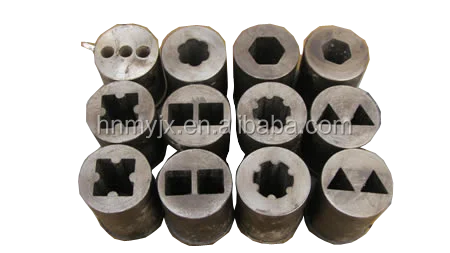

We provide customize shape and size service.
Model
Power
Capacity
Final Shape
Cutter and conveyor
Machine color
MBJ140
11KW
Charcoal:500-800kg/h Coal:1000-2000kg/h
Support custom
Support custom
Support custom
MBJ180
22KW
Charcoal:1000-1500kg/h
Coal: 2000-3000kg/h
Support custom
Support custom
Support custom
Machine Features
1.Stable Performance:Adopting advanced components in pneumatic parts ,electric parts and operation parts. 2.High capacity:Charcoal:500-800kg/h, coal 1000-2000kg/h
3.Easy operation:High pressure double crank to control the die opening and closing.
4.Low cost:Factory sell directly.
5.Perfect Final Charcoal Briquettes
Raw Material
Biomass material such as: sawdust, wood shavings, wood wastes, branches, rice husk, peanut shell, coconut shell, begasse,sediment, cotton stem, corn stalk, corn cob, etc.
Besides,coal powder, coal dust, coke powder, brown coal powder, coal waste can be also used.

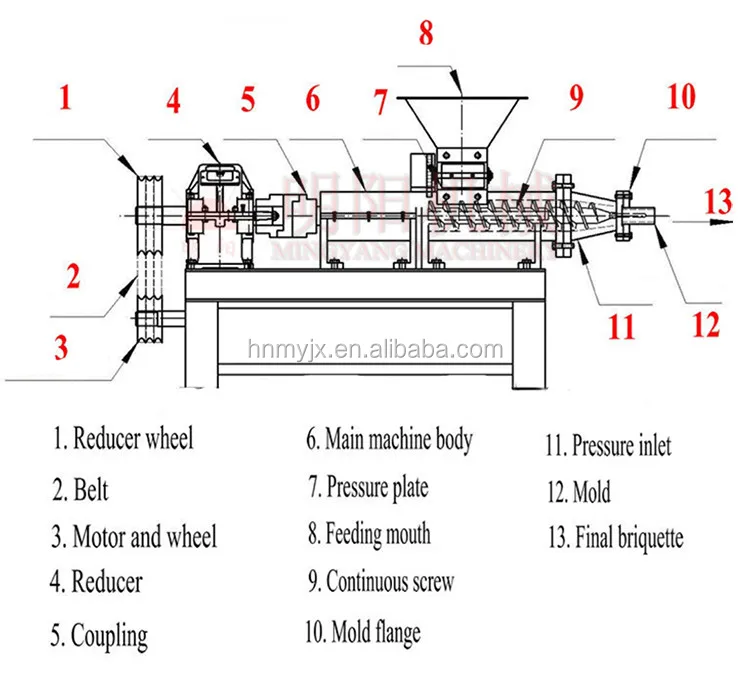

Working Process
1.The electric motor transfers the power to the transmission through triangle belt
2.Next,the output shaft on the transmission transfers the power to the propeller shaft
3.Then the propeller on the propeller shaft pushes the coal powder into the mould and out.
4.Finally,the ideal high pressure coal rod is generated.
Using Effects
Best Selling
Packing & Delivery
Company Introduction
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( wood carbonization machine, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6production line, more than 150 kinds of machines, awarded 10 patents in China.
