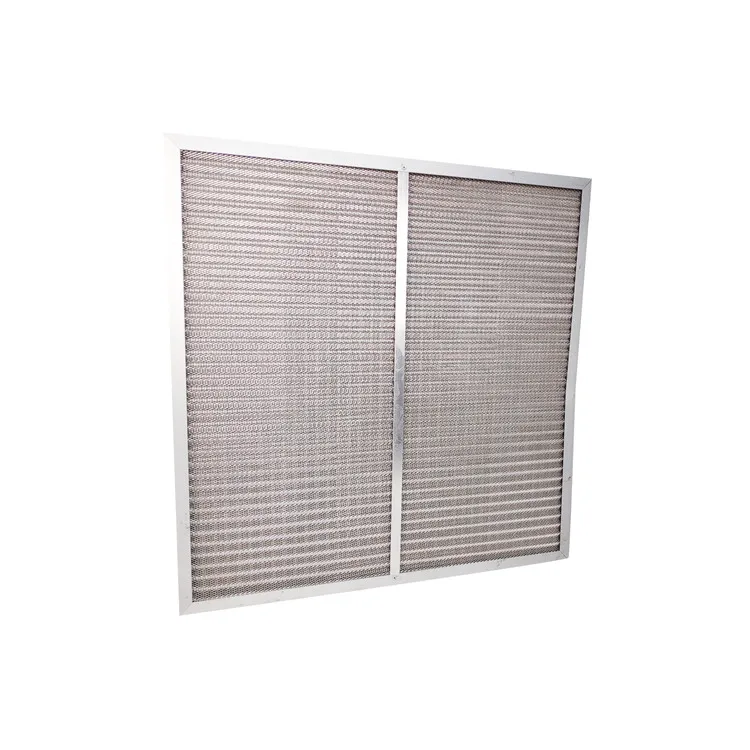

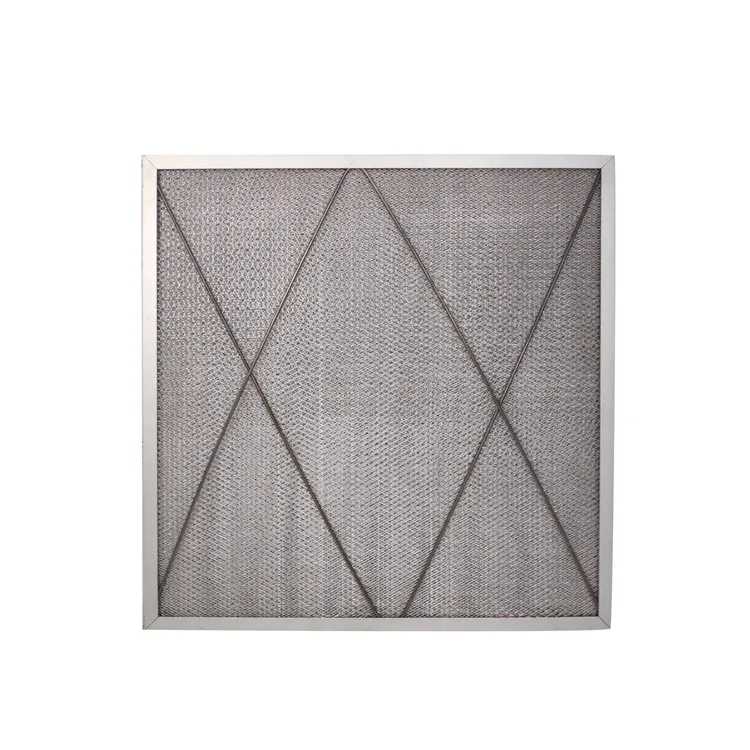

High Quality G3 G4 Washable Metal Mesh Filter With Aluminum Frame

Product Overview

Description





Metal washable air filter





Recommended applications



The main filtering structure of the metal mesh air filter is made of multi-layer aluminum foil or stainless steel mesh, the frame is also made of aluminum profile, which can withstand up to 300°C. Therefore, in addition to the pre-filter of the central air-conditioning system, the metal mesh air filter is also suitable for ventilation filtration in acidic or high environments.

Metal mesh air filters are widely used in semiconductor or circuit board production, pharmaceutical, chemical, food, electronics, heavy or precision industry, hospitals, research and other environments with high air quality standards.



Features

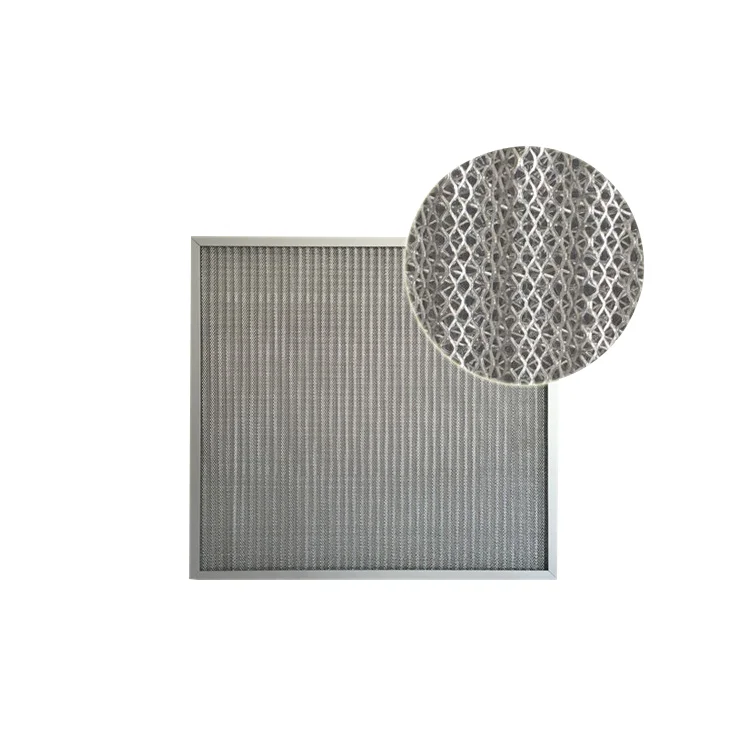

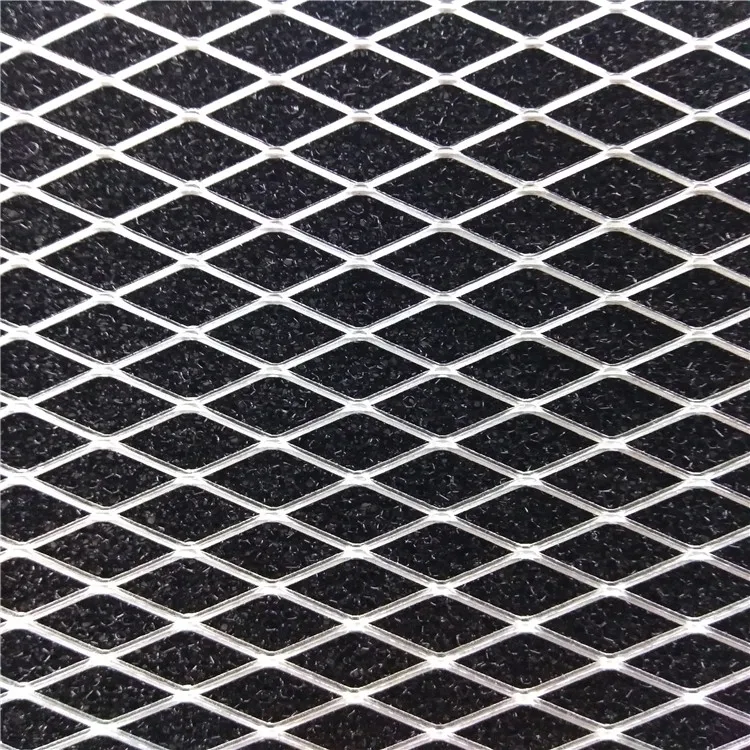

· Metal mesh air filters adopt multi-layer expanded aluminum foil mesh or stainless steel mesh and the metal mesh is pressed into undulations and intersect each other at appropriate angles, so that when the air passes through the filter, the flow direction is changed multiple times and the filtration efficiency is improved.

· Metal meshes are arranged from thick to fine according to density and pore size, thus increasing the dust collection capacity and filtration efficiency. The initial resistance is lower than 20Pa.

· Both aluminum mesh and stainless steel mesh are safe, strong and resistant to high temperatures and can be applied in high temperature environments up to 300°C.

· Full-metal filter media can be cleaned and reused and maintenance is easy. If used for long periods of time, the cost can be significantly reduced.

Optional specifications

Note: The following primary air filter size is the most common used. Youjie can also provide customized air filters according to your requirements.



Nominal Size(W×H×D) (inch)	Actual Size(W×H×D) (mm)	Rated Capacity (M3/H)	Pressure drop (Pa)
24"×24"×1"	595×595×25	1700	90
12"×24"×1"	295×595×25	3400
24"×24"×2"	595×595×46	3400	60
12"×24"×2"	295×595×46	3400
24"×24"×4"	595×595×96	3400	50
12"×24"×4"	295×595×96	3400













Q.What's your Delivery Time?

A:(1)generally the samples will be sent immediately by the air express in 5-7 days if the goods are in stock

   (2)Normally within 30 days,please confirm with us before order!



Q.What's the Payment Terms?

A:Usually,30% as deposit; 70% before shipment by T/T;



Q.Can you produce according to the samples?

A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q. What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q. Do you test all your goods before delivery?
A: Yes, we have 100% professional tested before delivery.

Q. How do you make our business long-term and good relationship?

A:We keep good quality and competitive price to ensure our customers benefit.



Q:Are you manufacturer or trading company?
A:We are a really factory and we have international advanced equipment, top product testing measures, quality certificated system and the modern lean production managing team, the goods are produced by strictly supervision and inspection.
