WINNSKY RF Circulator 3600MHz 4200MHz Drop in Broad Bandwidth CW/Right 100W FCR19D3 3600 4200MHz

Product Overview

Description

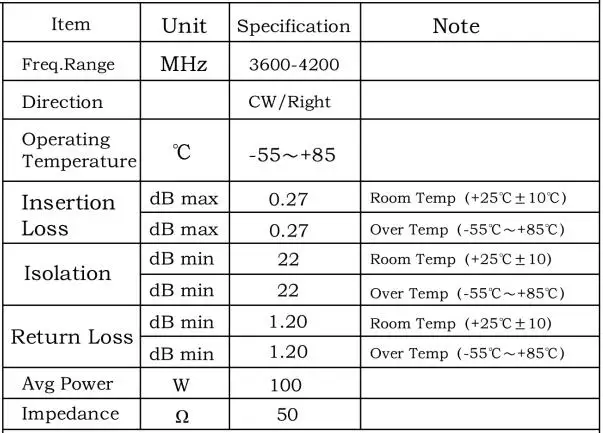

SPECIFICATION:

Model: FCR19D3 3600-4200MHz

Brand: WINNSKY

Frequency range: 3600MHz-4200MHz

Package: Drop-in

Minimum Isolation: 22dB

Maximum Insertion Loss: 0.27dB

Power: 100W

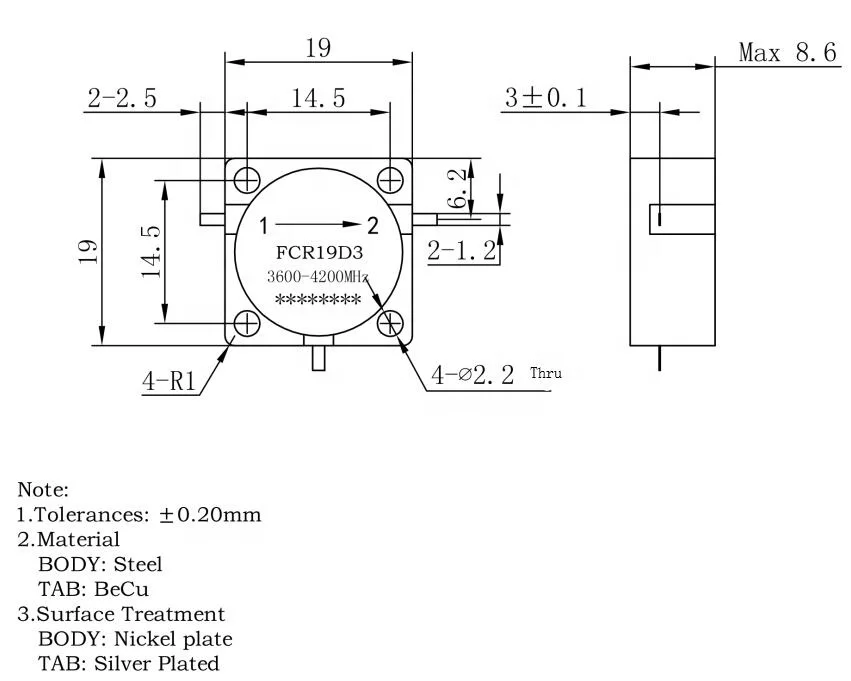

Dimension: 19*19*8.6mm

Operation Temperature: -55~85℃

Supply Ability: 10000PCS/Day, able to raise if needed.

Lead Time:  for regular models, 1-2 weeks;

for customized models, 3-4 weeks

Packing&Delivery:

High quality EPE, best protection for the products.

Special requirement regarding package is acceptable.





FEATURES:

OEM/ODM acceptable, customizing in frequency range, temperature, power capacity, direction, insertion loss, isolation, VSWR, dimension is available

Over 11 years’ experience in research, development and manufacturing

High performance, quality assured

Competitive price and reliable service

Compliant with military criteria

24-Hour real time support and service

Fast L/T and reliable transportation service



ABOUT WINNSKY:

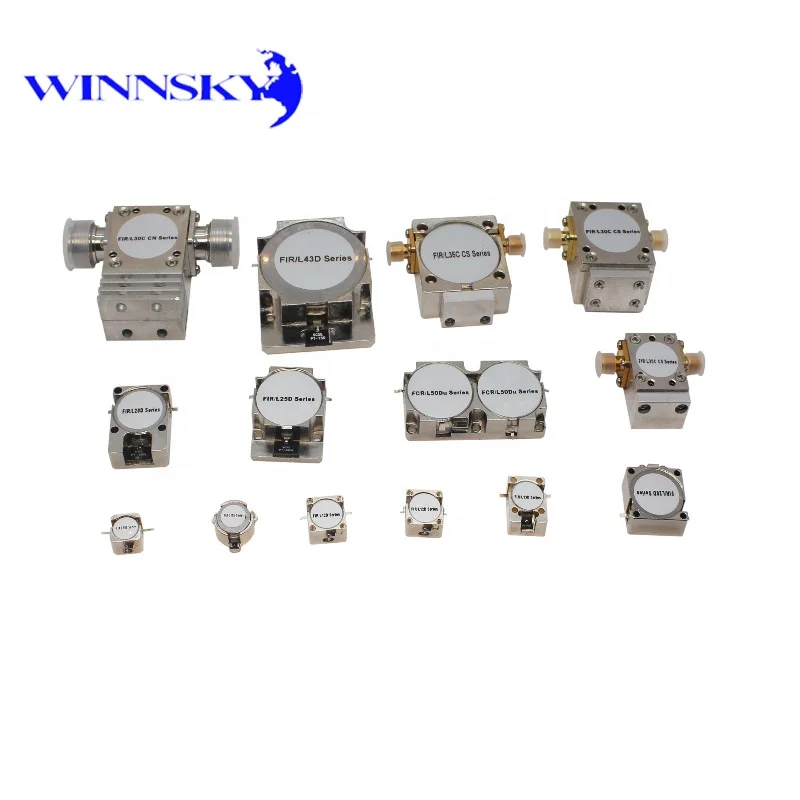

Winnsky is specialized in SAW components (SAW filter and SAW resonator), RF Circulator, RF isolator, Multiplexer, Antenna, Microwave and Milimeter wave group series product:

Filter Series:SAW Filter, Dielectrical Filter, Multi-layer Filter

Circulator Series: Drop-in Circulator,SMD Circulator, Duplexer Circulator, Microstrip circulator, Coaxial Circulator. Stripline Circulator

Isolator Series: Drop-in Isolator,SMD Isolator, Duplexer Isolator, Microstrip Isolator

Resonator Series: SAW Resonator,Dielectrical Resonator, Ceramic Resonator

Multiplexer series: SAW Duplexer, Dielectrical Duplexer, Multi-layer Duplexer, Triplexer,

Antenna series: Dielectrical Antenna, Multi-layer antenna

Microwave module series: Microwave and Milimeter Wave Series

Our products are widely used in cellular, 4G LTE, 5G Telecommunication, Bluetooth, GPS and Beidou (BDS) navigation, positioning, time service, wireless headphones, wireless microphone, Unlimited number, Electronic Warfare, telemetry, remote control, radar, Surveillance, IOV, NB-IoT.
