Multi functional waterproof film laminating machine for home textiles

HOT MELT PUR LAMINATING MACHINE CONCEPT:

In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.

The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wearresistant, oil resistant and aging resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.

When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, waterproof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment protection industry will be met.

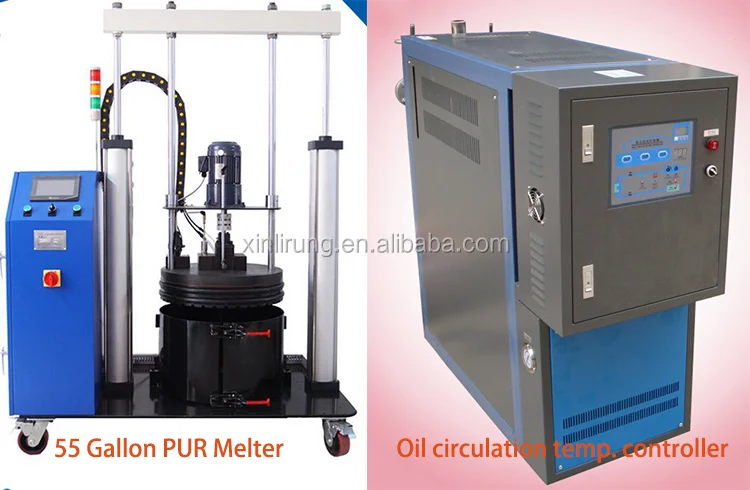

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain.

LAMINATING MATERIALS:

1.Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth,  Suede,etc.

2.Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.

3.Fabric+ Leather/Artificial Leather,etc.

4.Fabric + Nonwoven

5.Diving Fabric

6.Sponge/ Foam with Fabric/ Artificial Leather

7.Plastics

8.EVA+PVC

WIDELY USED IN:

This Oil Glue and Hot melt glue Laminating machine adopts hot melt glue to laminating two layers of material, such as:

fabric, leather, film, nonwoven, EVA, etc.

It is suitable for many industries, such as:

Automobile industry : car ceiling decoration material, laminated fabrics of door post and door panel,etc

Garment industry : outdoor sports ,camouflage clothes, fire and police clothing, medical clothing, protective clothing ,functional garments like bar ,wetsuit , thermal cloth,etc.

Shoe-making industry :shoe vamp, shoe pad ,shoe-making  materials.

Health care : medical and protective apparel,etc

Filter material : PTFE, PE film processing, for sewage and air filtration.

APPLICATION AND FEATURES:

1. Applied for gluing and laminating of hot melt glue onto textiles and nonwoven materials.

2. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.

3. It's of good adhesive property,flexibility,thermostability,non-cracking property at low temperature.

4. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.

5.  Famous brand motors and inverters can be installed for stable machine performance

6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.

7. Fabric and film openers also makes materials feed smoothly and flatly.

8. For 4-way stretch fabrics, special fabric transmission belt can be installed on the laminating machine.

9. Impregnability of temperature after PUR,lasting elasticity,wear-resistance,oil resistance and anti oxidation.

10. Low maintenance cost and less running noise.

11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE,PE and TPU, more materials which are waterproofing and insulated, waterproof and protective and oil-water filtering will even be invented.

Main Technical parameters:

NOTE: THIS MACHINE CAN BE USED FOR BOTH  OIL GLUE and HOT MELT GLUE!

A DOUBLE USE MACHINE!

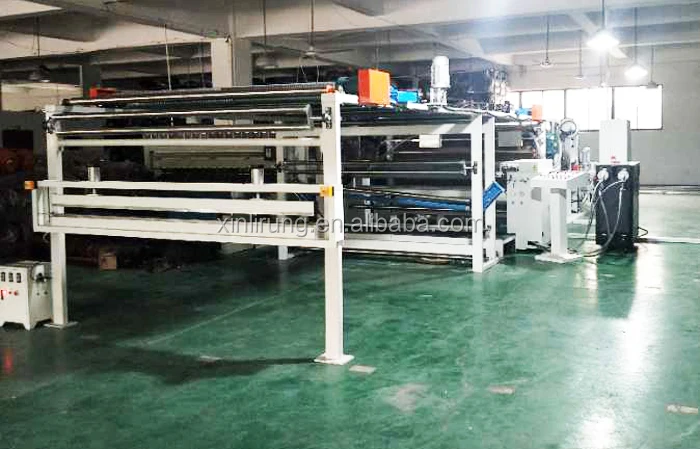

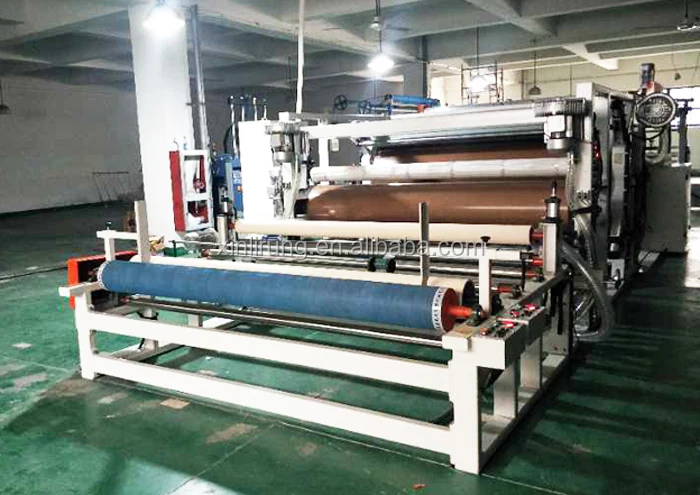

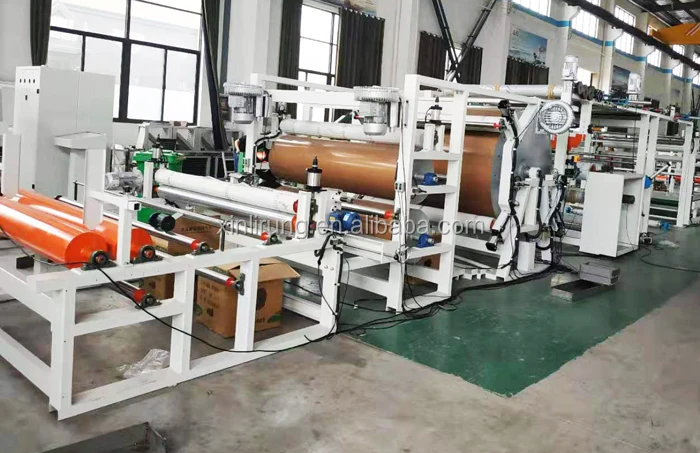

Machine Details:
