STEAM JACKETED KETTLE gas heating jacketed kettle jacket kettle with agitator mixer
- Category: >>>
- Supplier: Wenzhou Huashang Machinery Technology Co. Ltd.
Share on (62263207873):
Product Overview
Description
Product Description
Related products
Application

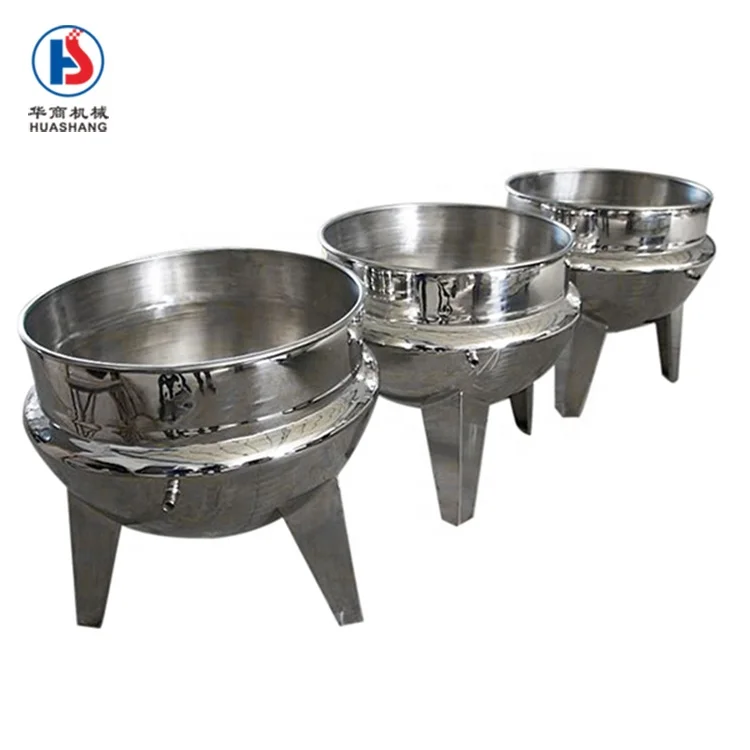

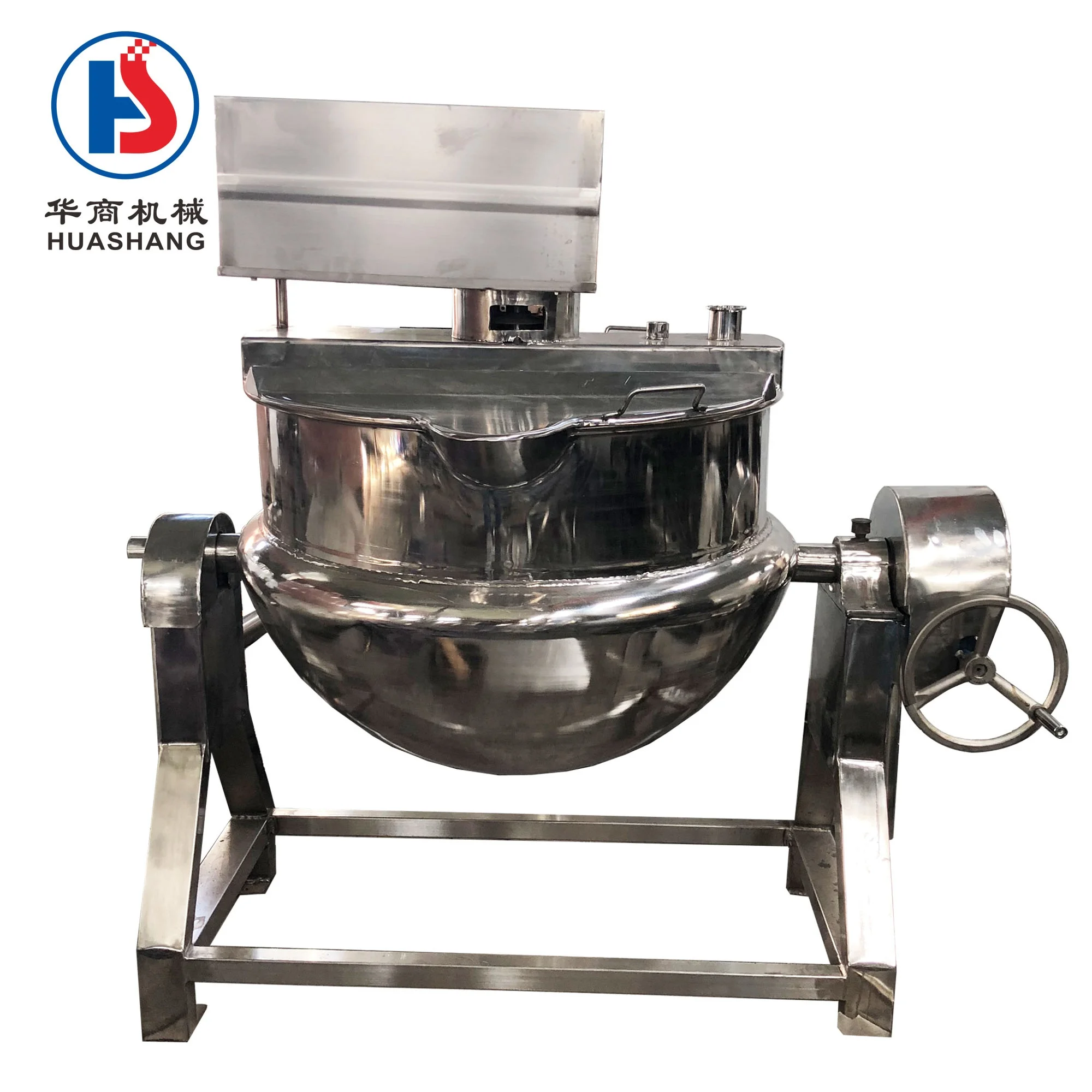

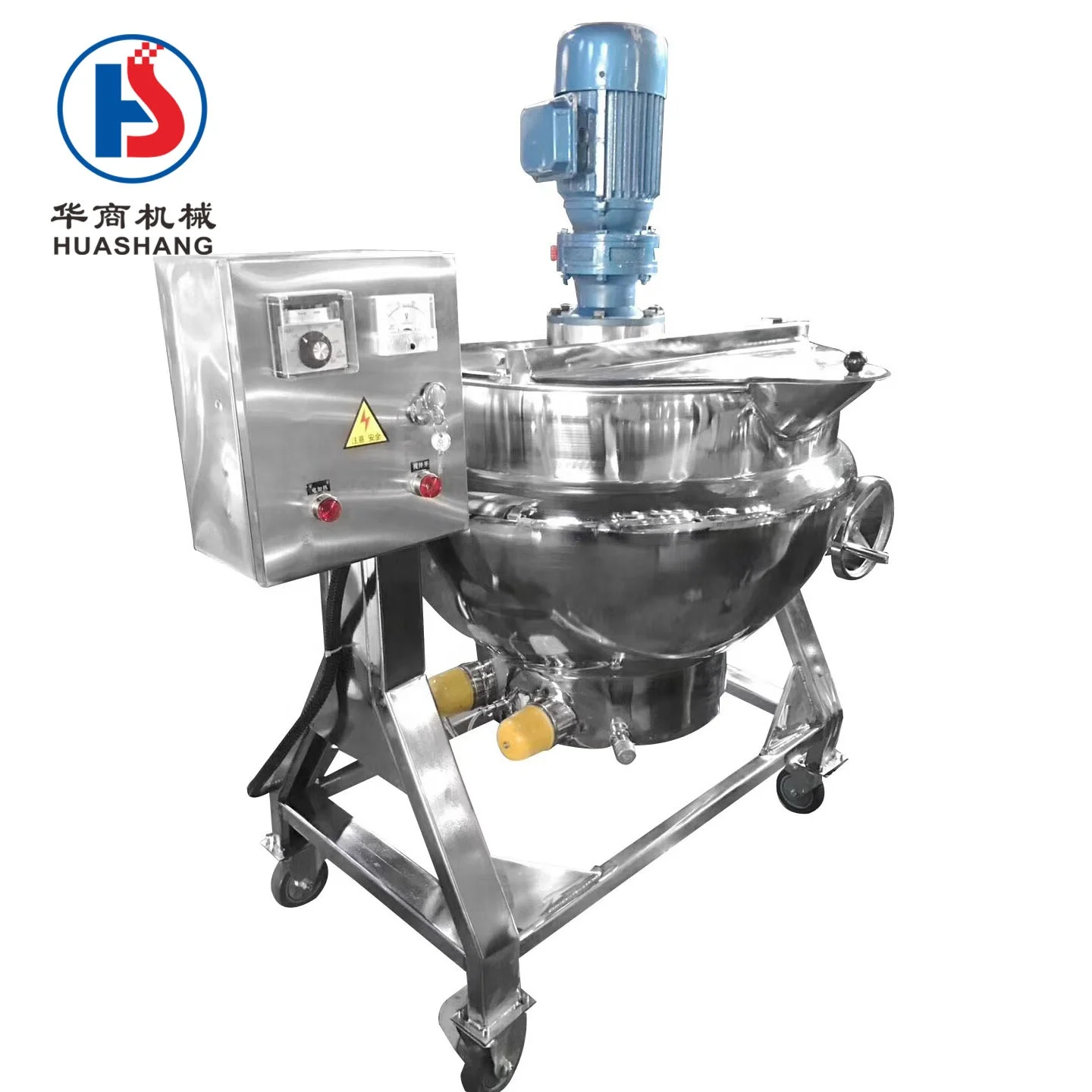

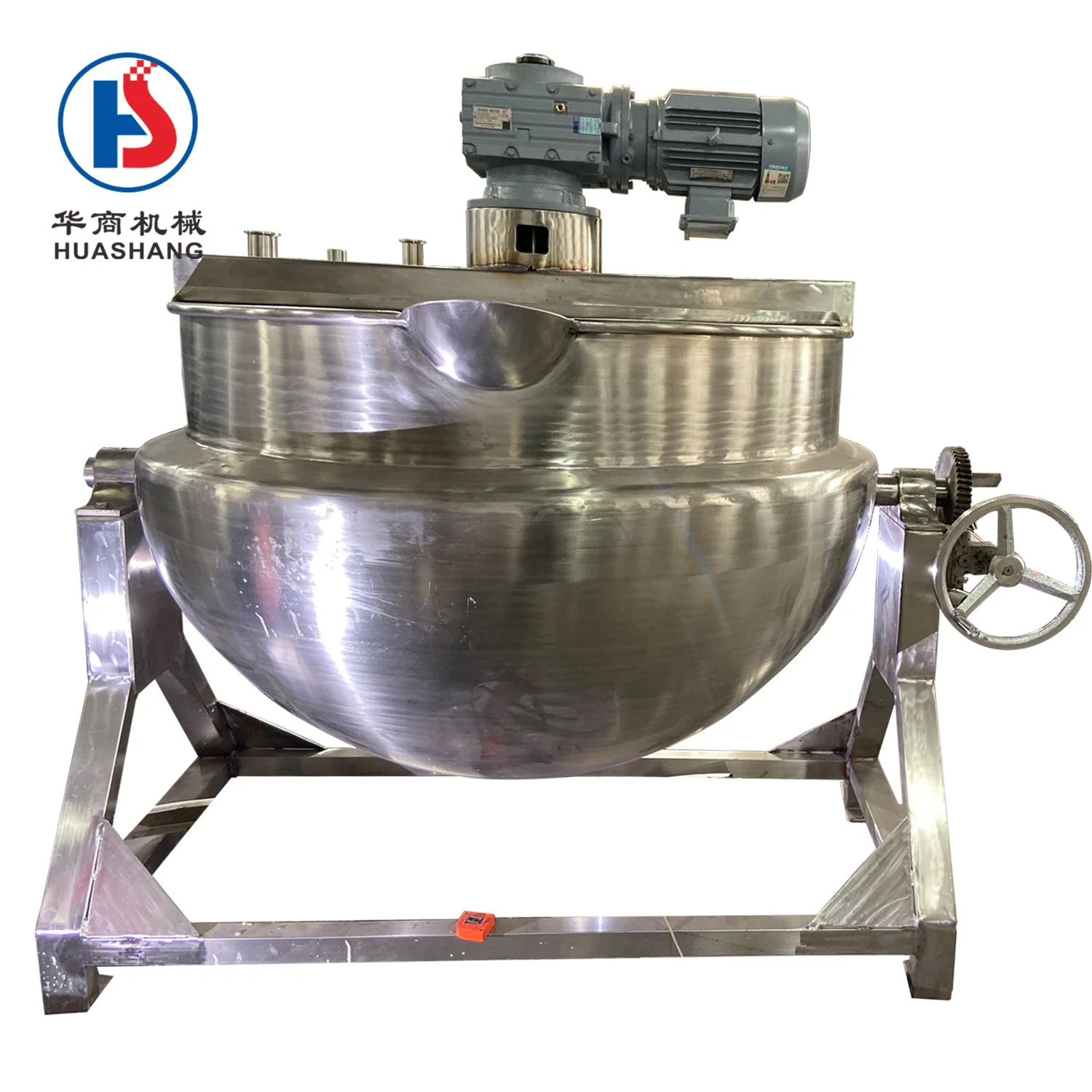

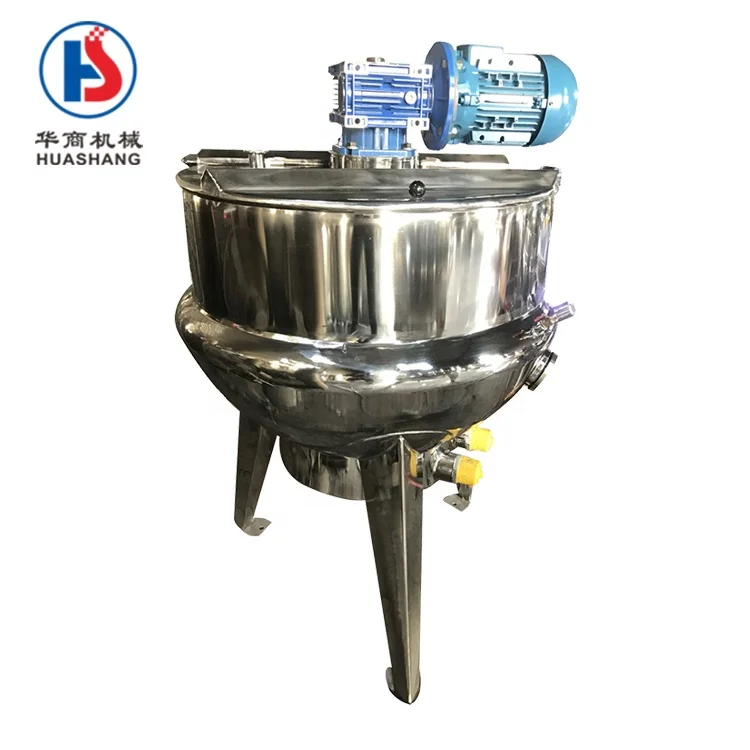

Huashang jacketed kettle is composed of kettle, bracket, turbine wheel and turbine etc. The kettle can revolve in 180°, The equipment is used for open concentration, mainly for decocting and concentration of liquids for industries of pharmaceutical industry, food industry. Widely used in candy, cakes, drinks, fruit juices, jams, preserves, dairy products and other canned food processing and brewing, wine, pharmaceuticals, household chemicals and other industries. Contact area of the equipment with materials is made of stainless steel SUS304, SS316L, which has perfect corrosion-proof performance, and is highly endurable according to GMP requirements. Blender also can be matched according to customer requirements.
| model | JK-50 | JK-100 | JK-200 | JK-300 | JK-400 | JK-500 | JK-600 | |
| power supply | 3phase 380V/220V 50/60HZ | |||||||
| capacity(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | |
| diameter(mm) | 550 | 700 | 800 | 900 | 1000 | 1150 | 1200 | |
| work temperature | 0-160℃ | |||||||
| vacuum degree(optional) | 0-06Mpa | |||||||
| mixer motor | 36RPM Constant 40-200RPM Adjustable | |||||||
| heaters(optional) | 1kw*3pcs | 4kw*3pcs | 6kw*3pcs | 8kw*3pcs | 8kw*3pcs | 8kw*3pcs | 9kw*3pcs | |
| power consuption(Kw) | 3.75 | 12.75 | 18.75 | 24.75 | 24.75 | 24.75 | 27.75 | |
| dimension | L(mm) | 930 | 1080 | 1180 | 1320 | 1540 | 1640 | 1700 |
| W(mm) | 580 | 725 | 865 | 970 | 1120 | 1170 | 1240 | |
| H(mm) | 820 | 870 | 915 | 960 | 1050 | 1110 | 1200 | |
| weight(Kg) | 90 | 105 | 135 | 155 | 190 | 255 |
265 | |
