22 pcs hss Groove keyway broach broaches set key tool Bushing Shim Set Metric System 12 30 HSS Keyway Tool knife for CNC Machine

Product Overview

Description

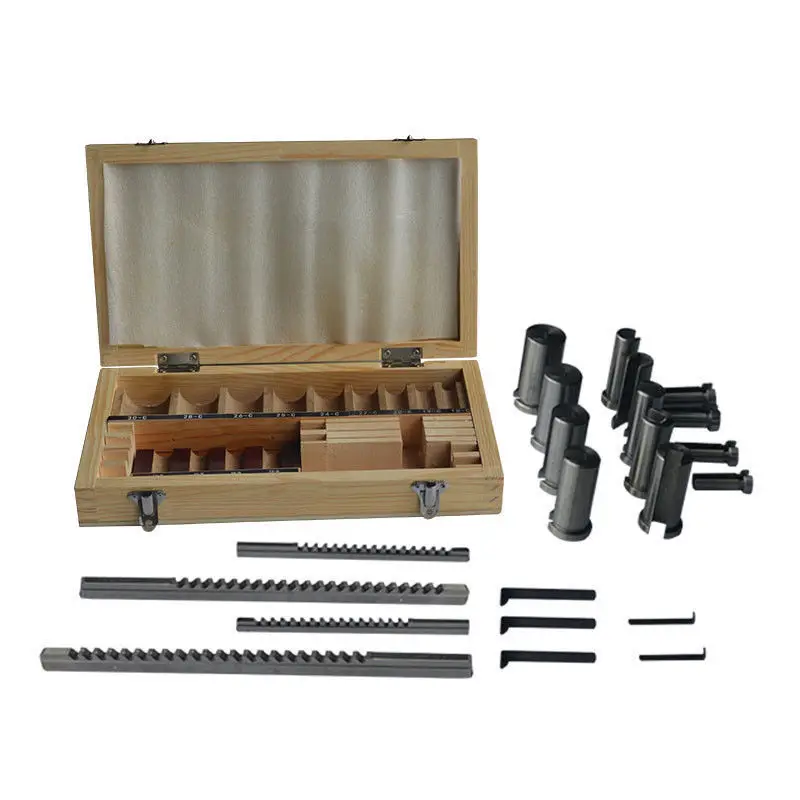

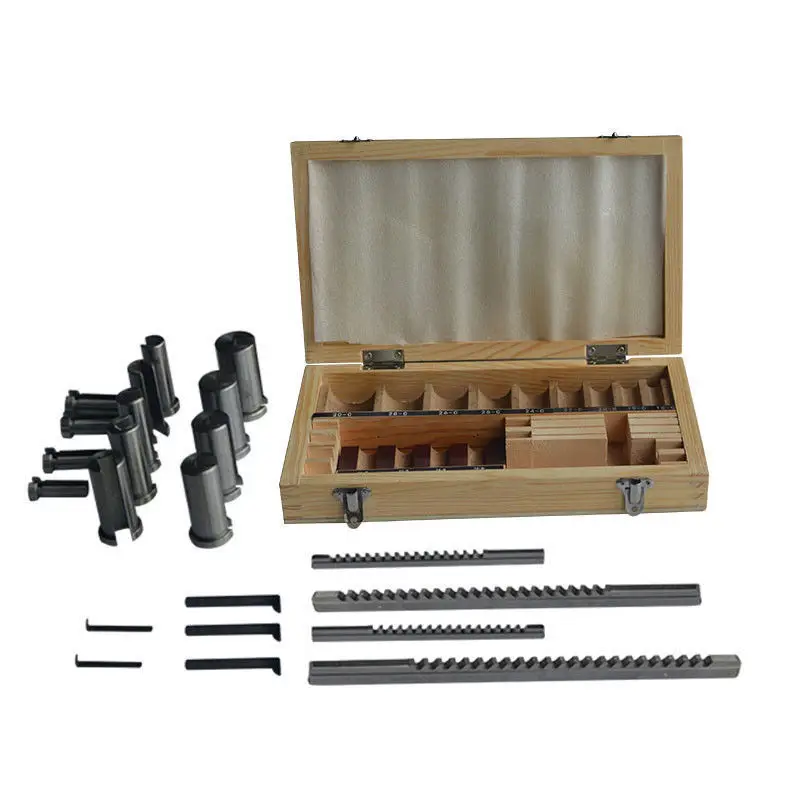

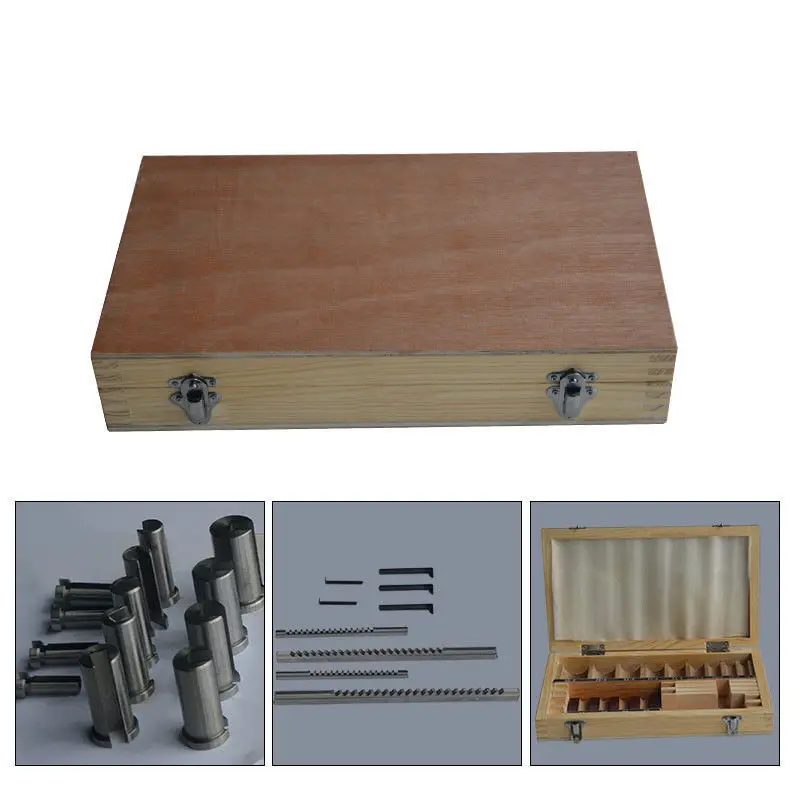

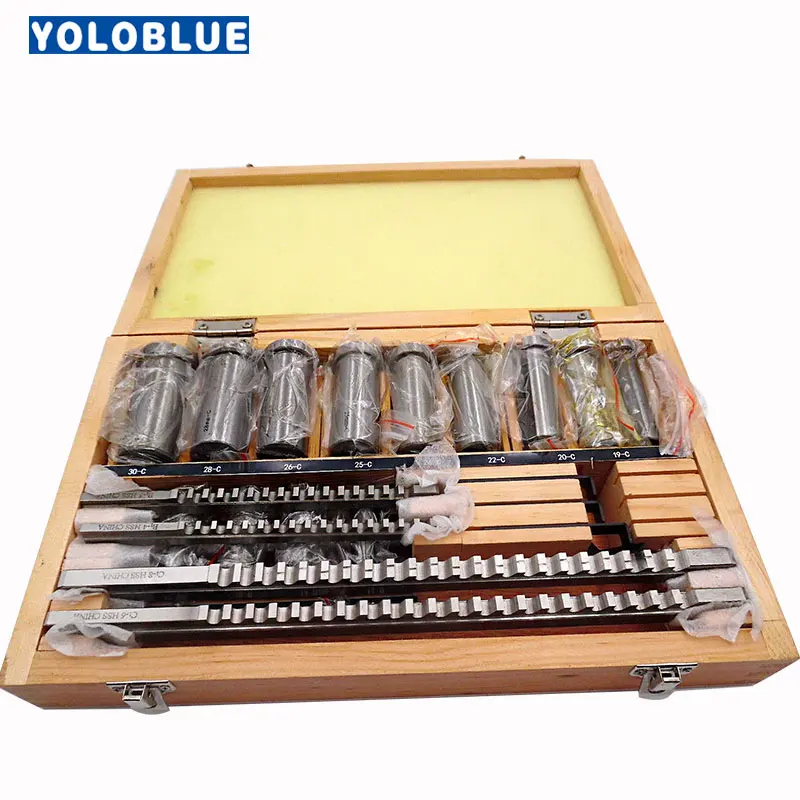

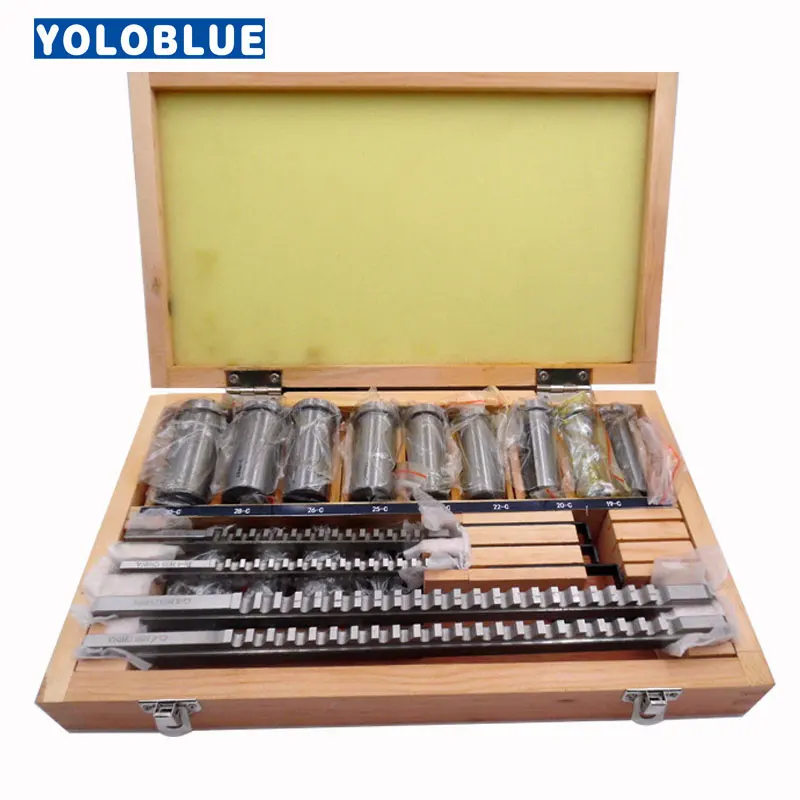

Product includes

• Broaches*4pcs
• Collared bushings*13pcs
• Shims*5pcs

Product description

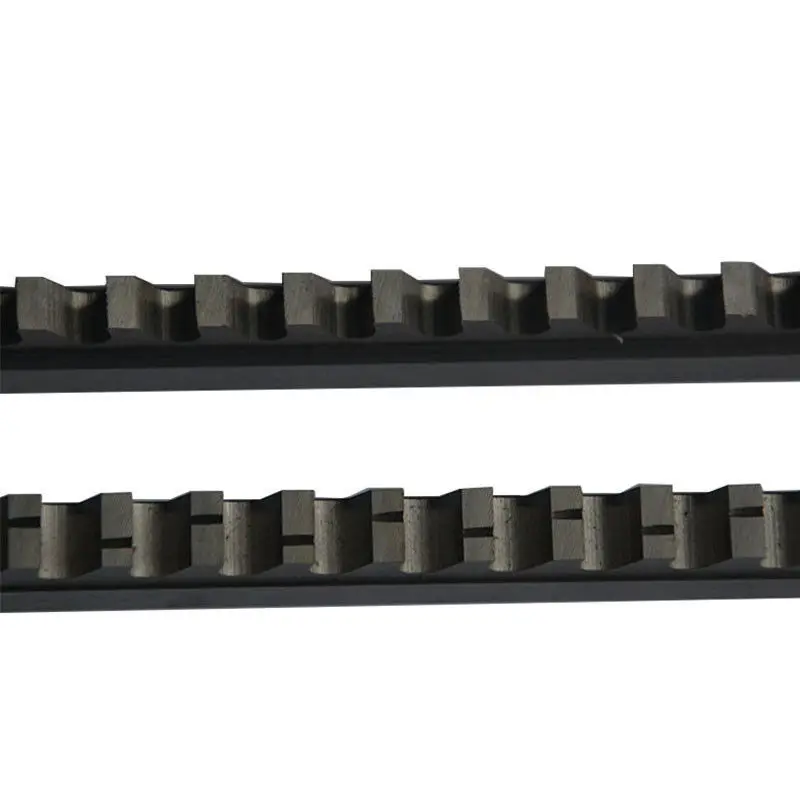

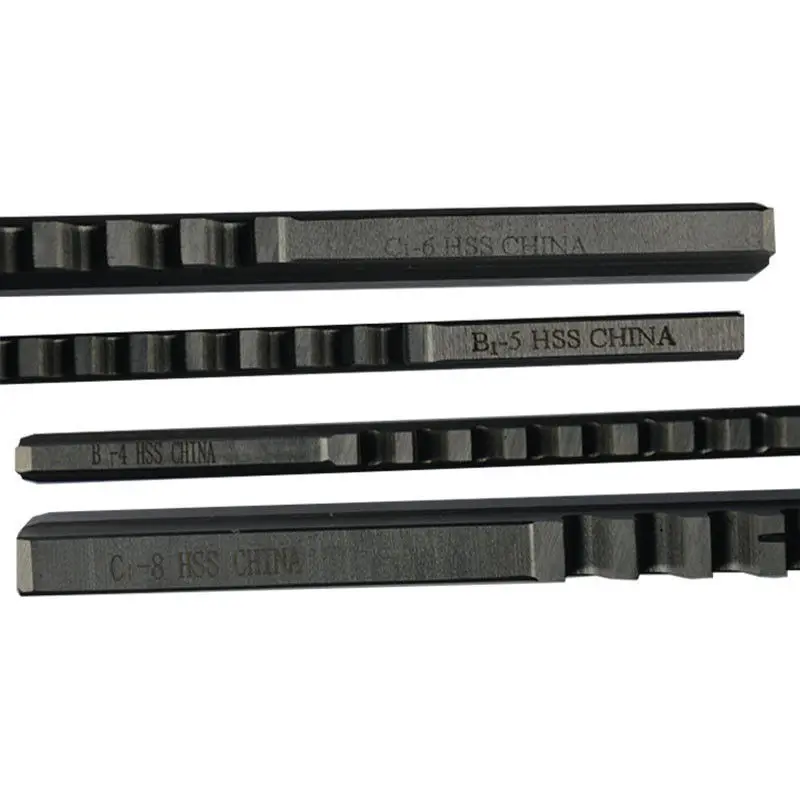

• 4 broaches: 4mm B1, 5mm B1, 6mm C, 8mm C
• 13 Collared bushings: B1-12,14,15,16,C-18,19,20,22,24,25,26,28,30
• 5 shims





Product features



• 4 broaches and 13 bushings = 26 keyway combinations
• All necessary shims





Broach Size	Style	Correction height(mm)	Leading height(mm)	Broach Dimensions*(mm)	Keyway  Width(mm)	Length of Cut * min.-max.
4mm	B1	10.8	9.66	6.45X171.5	b=4.01	19/64 - 1 11/16
5mm	B1	10.8	9.66	6.45X171.5	b=5.01	19/64 - 1 11/16
6mm	C1	16.64	15.02	9.64X298.5	b=6.01	25/64 - 2 1/2
8mm	C1	15.95	14.62	9.64X298.5	b=8.01	25/64 - 2 1/2

We provide One year warranty

Please note:

All of our products are shipped from China,We are not responsible for any custom duty or import tax fee , it is buyer’s responsibilit

If you have any questions,please feel free to contact with us.
