Calcium Carbonate Barite Powder Making Machine 400~2500 Mesh Ultrafine Ring Roller Mill

Application Area

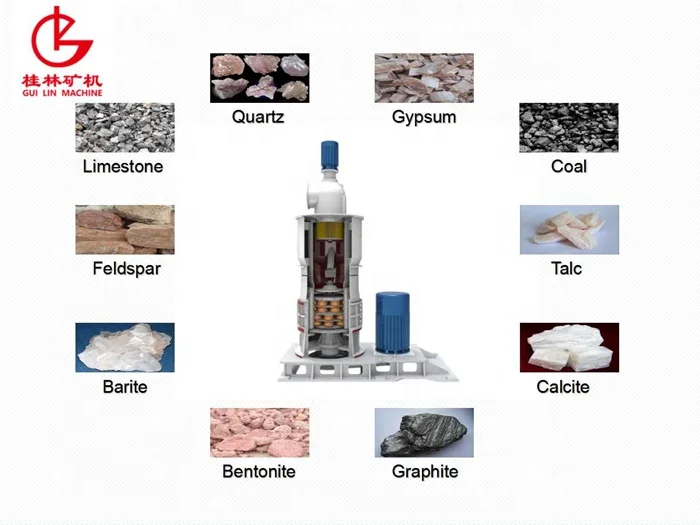

Mainly used in Carcium Carbonate, Mining, Metallurgy, Chemical Industry, Building Materials, Highway, Railway, Water Conservancy etc., suitable for processing hardness under seven levels, humidity under 10%, all kinds of inflammable and explosive mineral and rock.Such as calcite, limestone, marble, dolomite, talc, barite, kaolin, grammite, bentonite, feldspar, quartz, lime, graphite, silicon carbide, wollastonite, gypsum, bauxite, zircon sand, coal, manganese ore, phosphate rock, fly ash, slag, cement etc.. Below are some material in application:

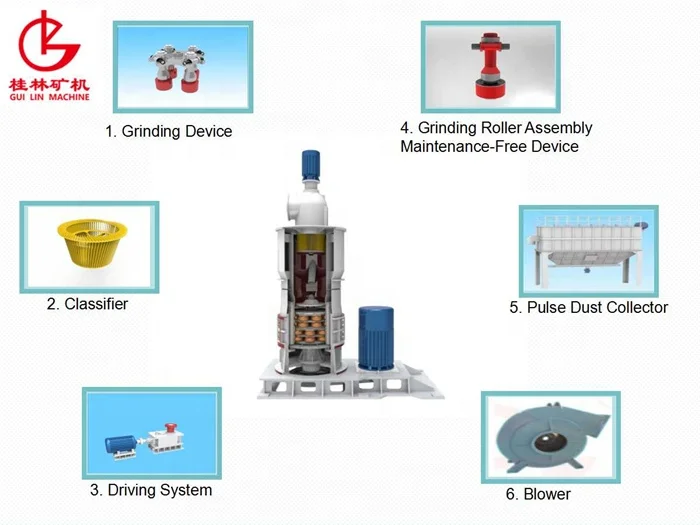

 Working Principle

 It crushes the material by striking, pressing and milling. Throw to the stator with centrifugal force suffered by grinding ring and turn impacting the wall of grinding ring. Material is smashed by impacting, pressing and pulverizing of the grinding ring, when it passes the gap between grinding ring and grinding loop. The grinding ring has two types of configuration, monolayer or multilayer. And its working face can also be curved surface. If more multilayer grinding ring, the working face of smashing is bigger and the smashing efficiency will be higher. More sufficient the smash is, better fineness the product will get. Recognized by domestic famous experts and scholars, this type of machine is the most advanced dry-type pulverizing equipment for super-powder of nonmetallic mine in our country .

>>Click Here to Get More Detail Information

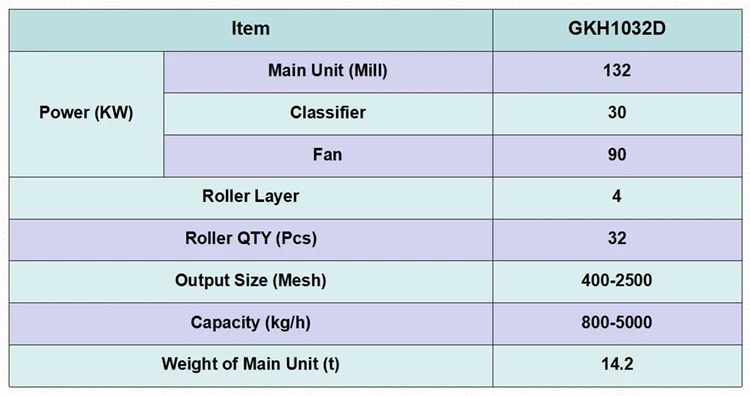

Main Technical Data

>>Click Here to Get More Detail Information

>>contact for order now !

Spare parts are placed and fixed orderly,then packed with wooden case. Equipment would be processed to be rustproof and moisture proof before delivery. All equipment would be transported to loading port by truck. Professional transporter will load the equipment into containers tightly , ensuring the goods withstand long distance transportation. Clients will be informed all process details, then clients call know how is going on with the goods.

Customer Case

GuiLin Mining Machiery Co., Ltd ,  had witnessed the development of China Pendulum Mill, along with the growing steps of 47 years experience. Our equipment has significant advantages such as high efficiency, large output, energy saving and environmental protection,stable operation, high product quality and so on.

Our company have many other R&D whole set of equipment, can freely adjust the mineral powder products between 400 and 2500 mesh. The main products for example SK series new Pendulum grinding mill, SKW micro powder mill, GKH new ultrafine ring roller mill, GKLM vertical roller mill and so on.

1. Please collect our product links and home page.

2. There are many different models for your choice !

3. Before ordering: Well-versed engineers offer professional advice and instruction for mill choosing, workshop and production line designing. Click here to get more detail information.

4. After sale: Techinician will be sent to client site for instructing the mill installation, and training client to run the machine, contact for order now !
