This machine is suitable for mixing dry powder material and particle in pharmaceutical, chemical, foodstuff, fodder, pottery and metallurgy and so on.

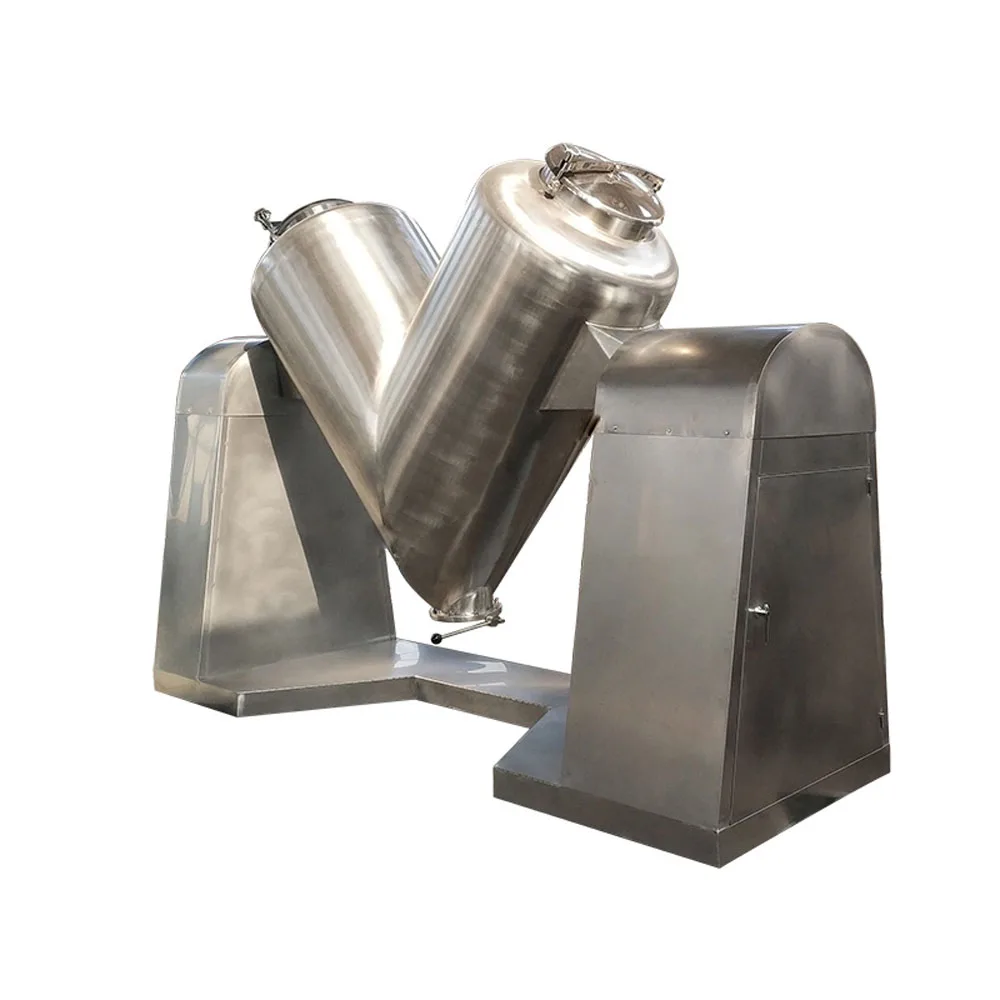

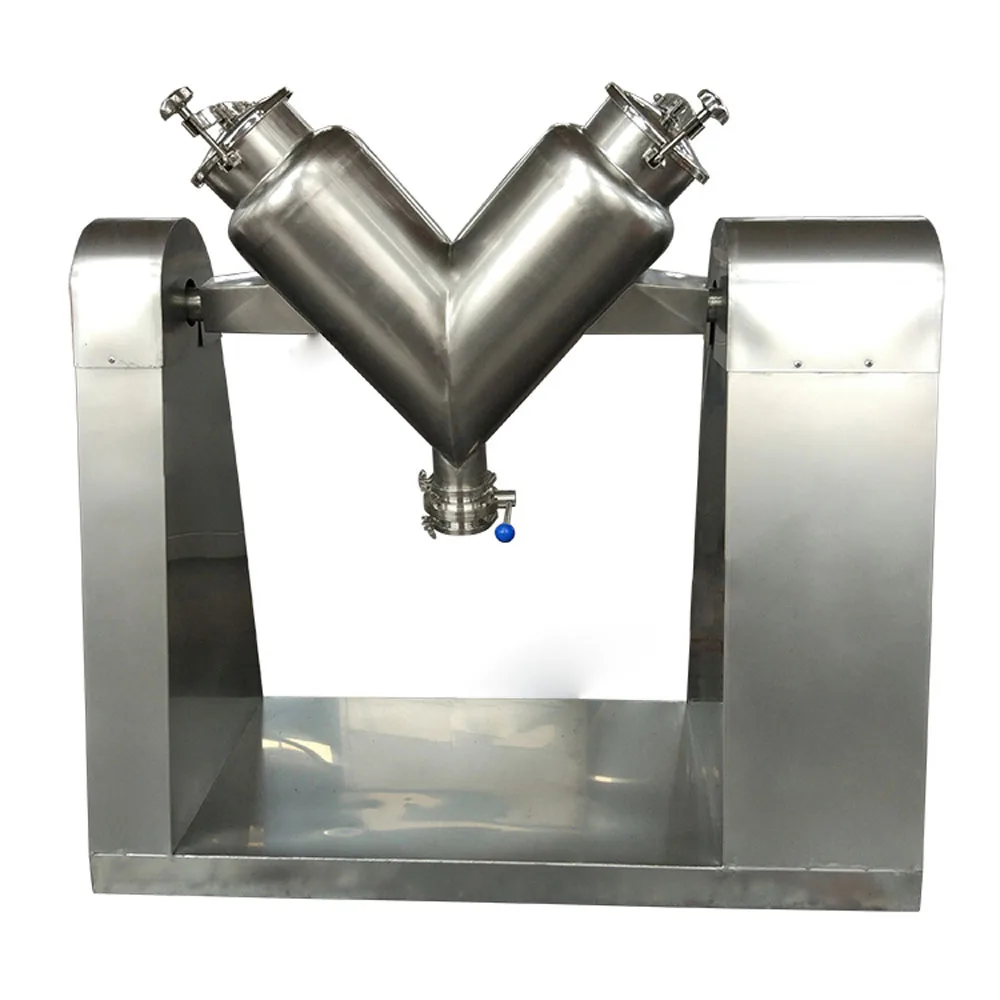

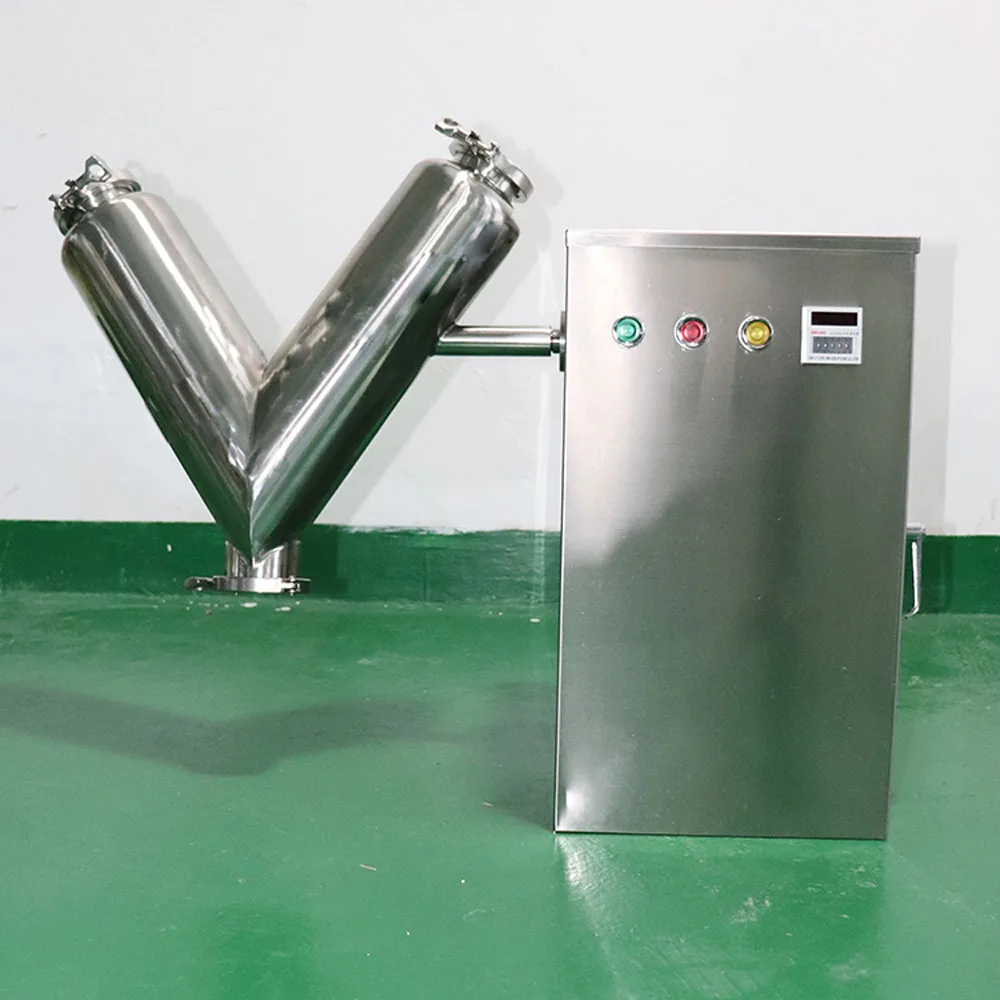

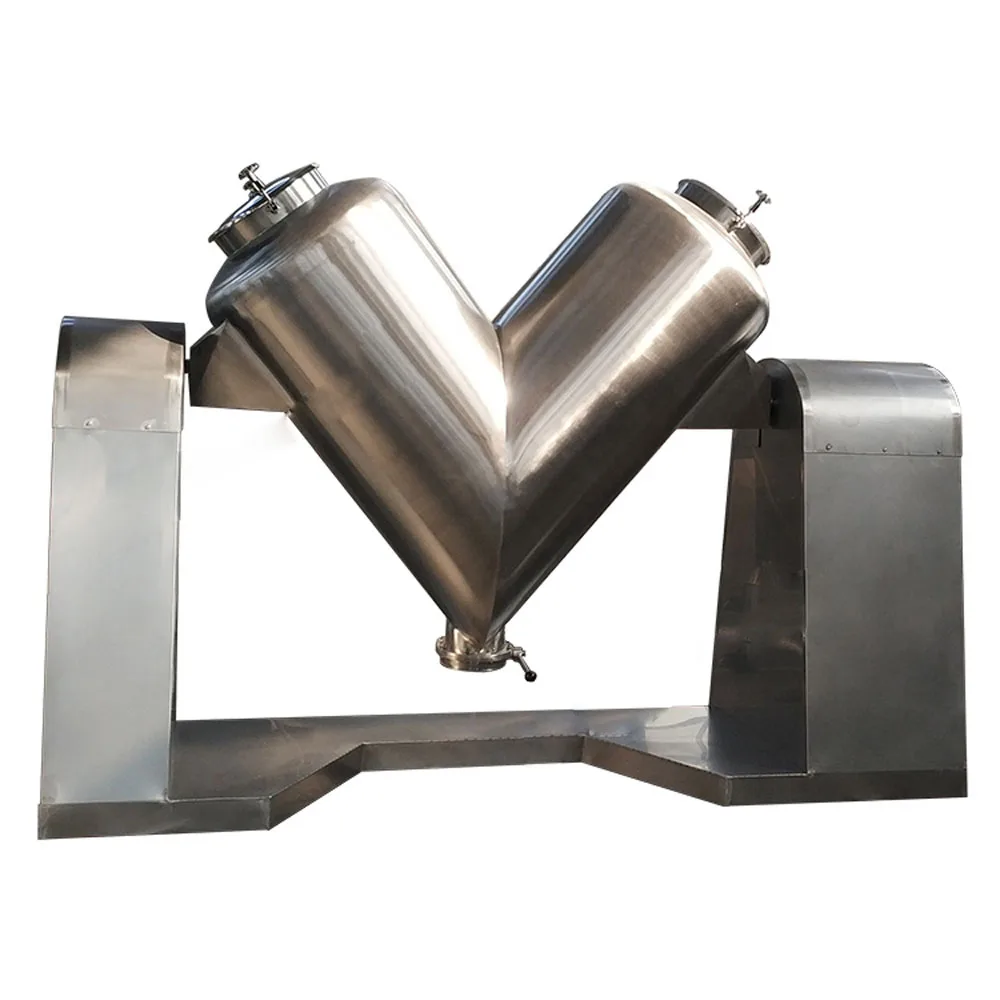

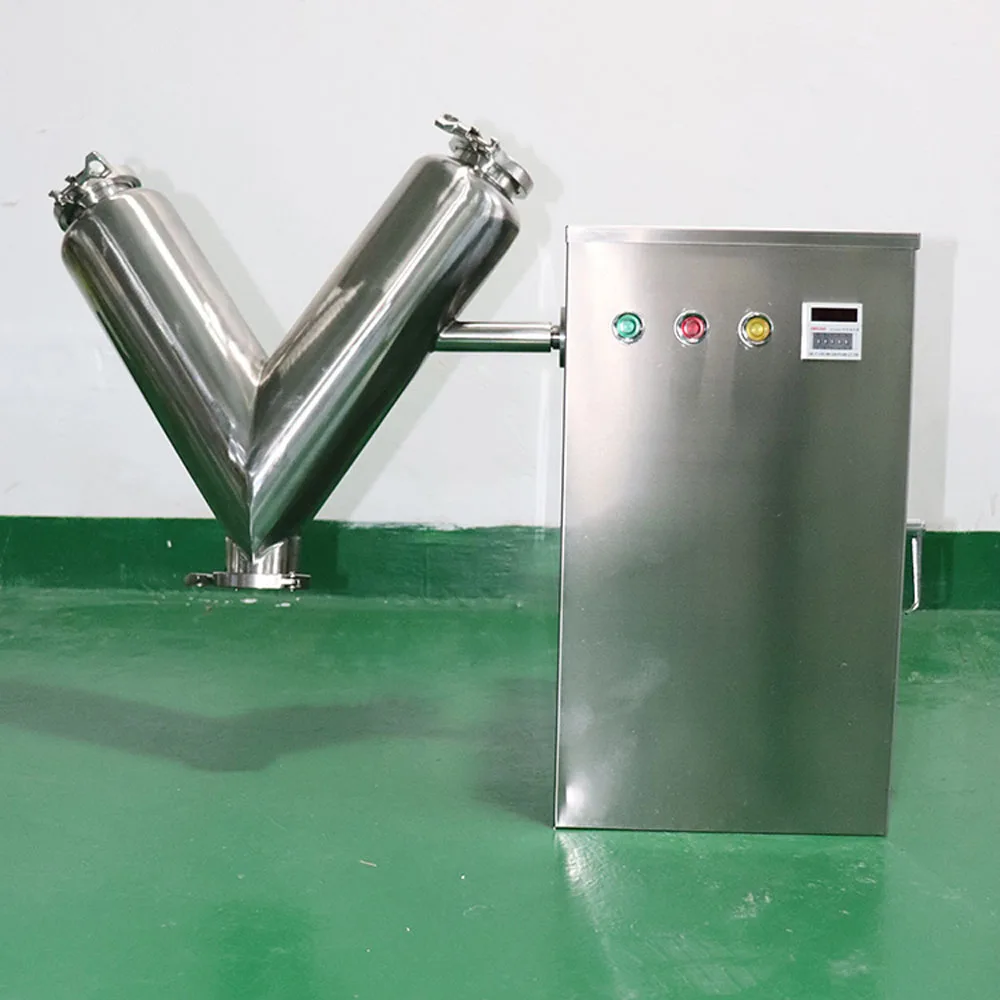

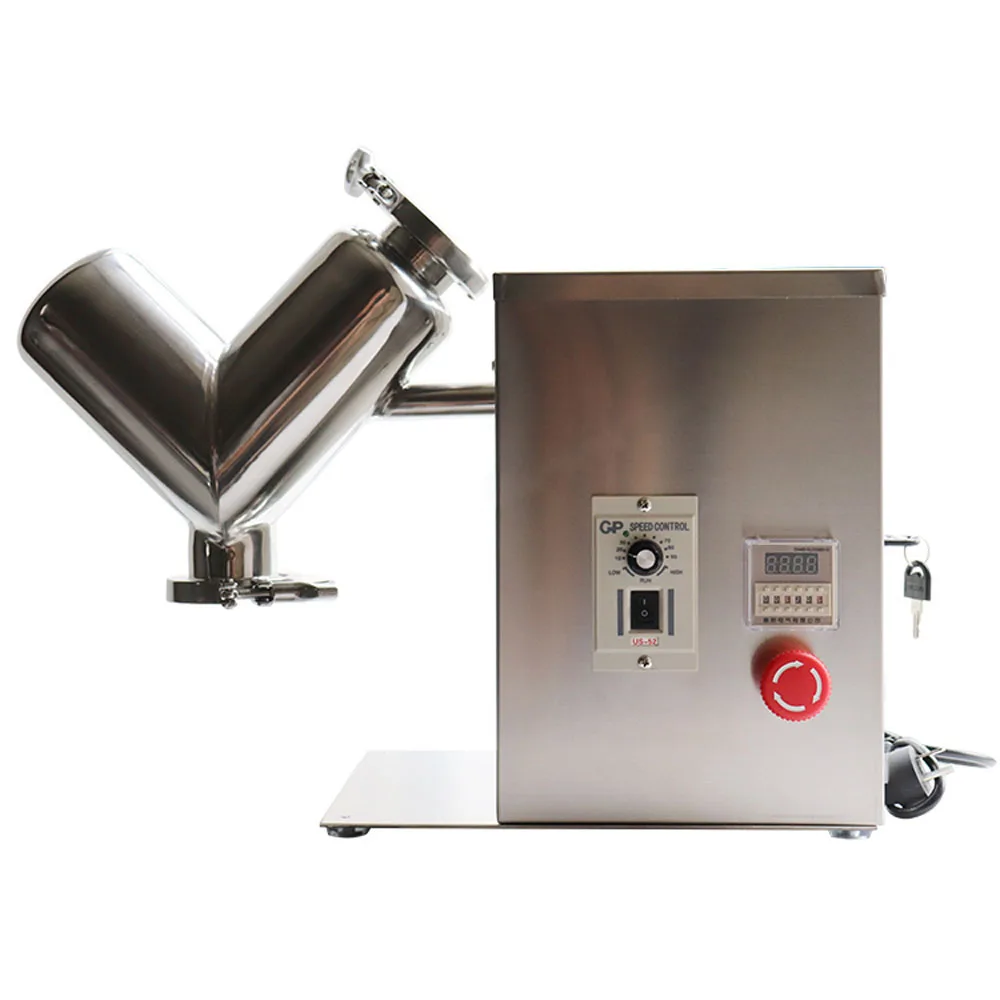

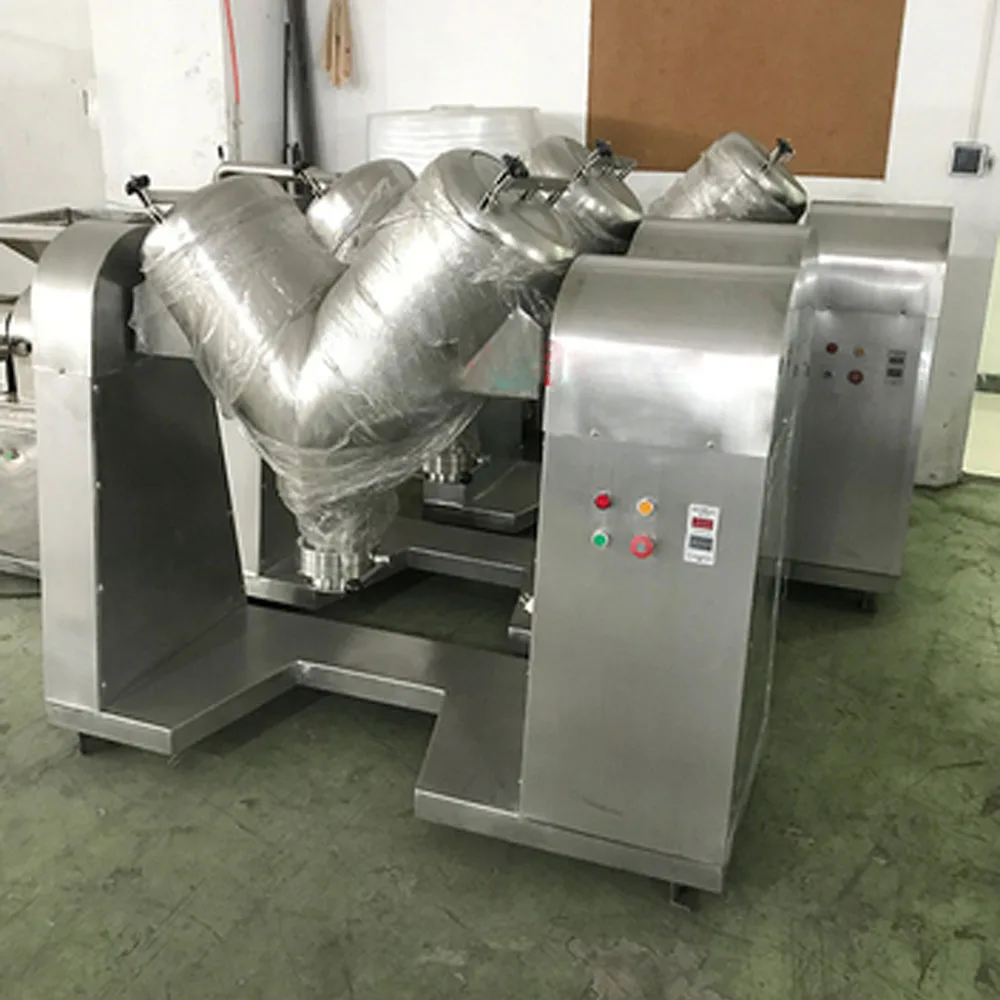

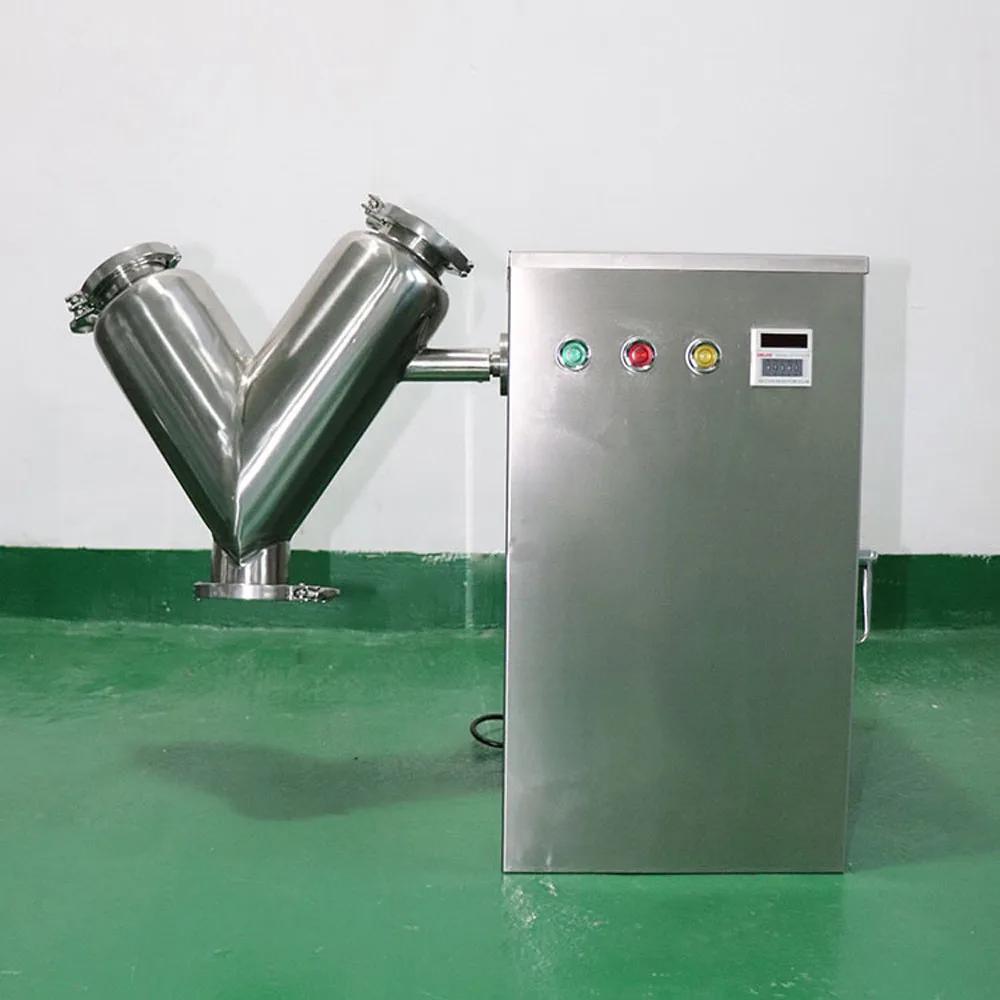

This machine adopts V type asymmetric material barrel to compound, having no dead angle, it can mix the materials evenly. It is with high efficiency, rational structure and easy operation.
The surface of machine and the parts that contacted with materials are made of stainless steel, the inboard wall is bright and easy to clean and wash.
Technical parameter
Model
Barrel volume
Optimum volume
Motor power
Mixing speed
Outline Dim.
Optimum loading quantity
VH-5
5L
2L
0.55kw
24r/min
560×270×560mm
1.4kg
VH-8
8L
3.2L
0.55kw
24r/min
660×300×630mm
2.24kg
VH-10
10L
4L
0.55kw
24r/min
900×380×900mm
3.2kg
VH-14
14L
5.6L
0.55kw
20 r/min
925*340*820mm
3.92kg
VH-20
20L
8 L
0.55kw
20 r/min
950×340×830mm
5.6kg
VH-30
30L
12L
0.55kw
20 r/min
986×340×855mm
8.4kg
Specifications :
This VH10 is wildly used in pharmaceutical, nutriceutical, chemical
Oblind angle in the VH, no accumulation of materials, high speedI-bar,
Efficient and short mixing time. The housing are made ofstainless steel.
The VH have elegant appearance the charging ofmaterials can be made either
By manual operation or through pneumaticvacuum system.
For discharging, rotating valves and rapid swivel headsare adopted.

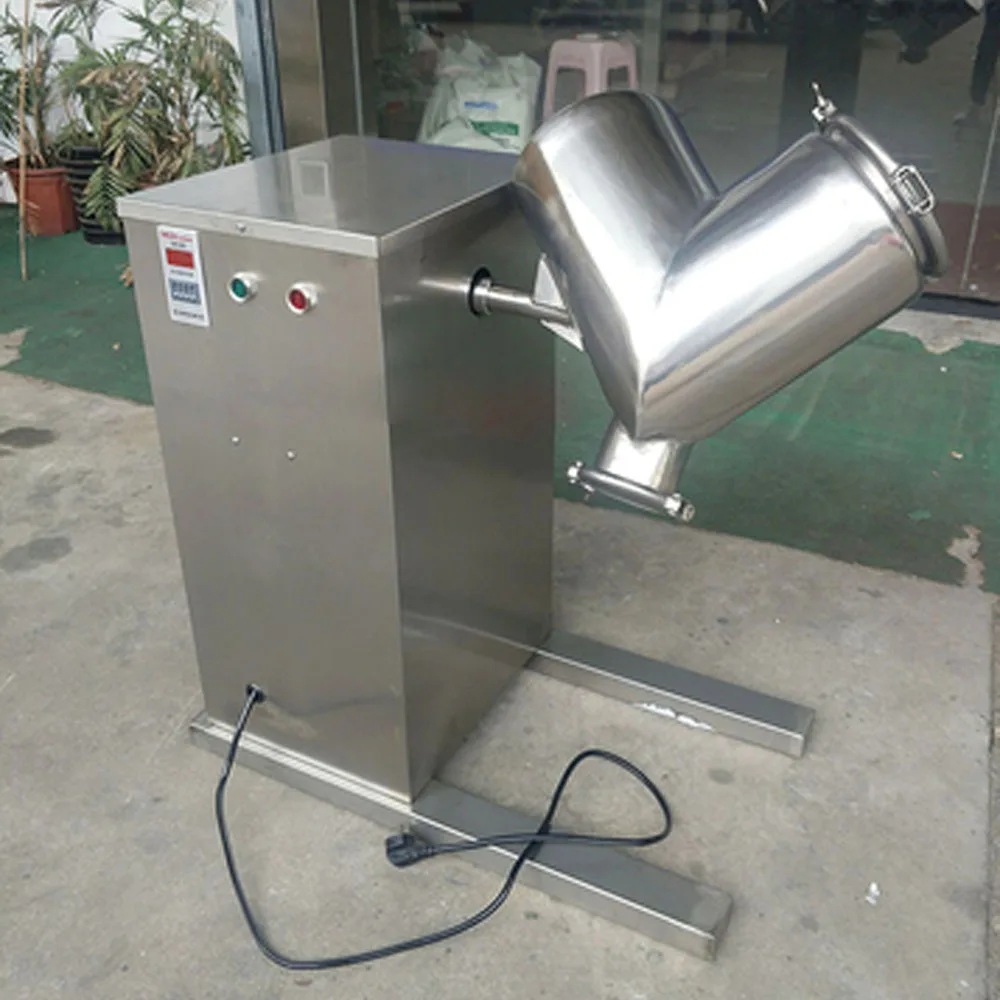

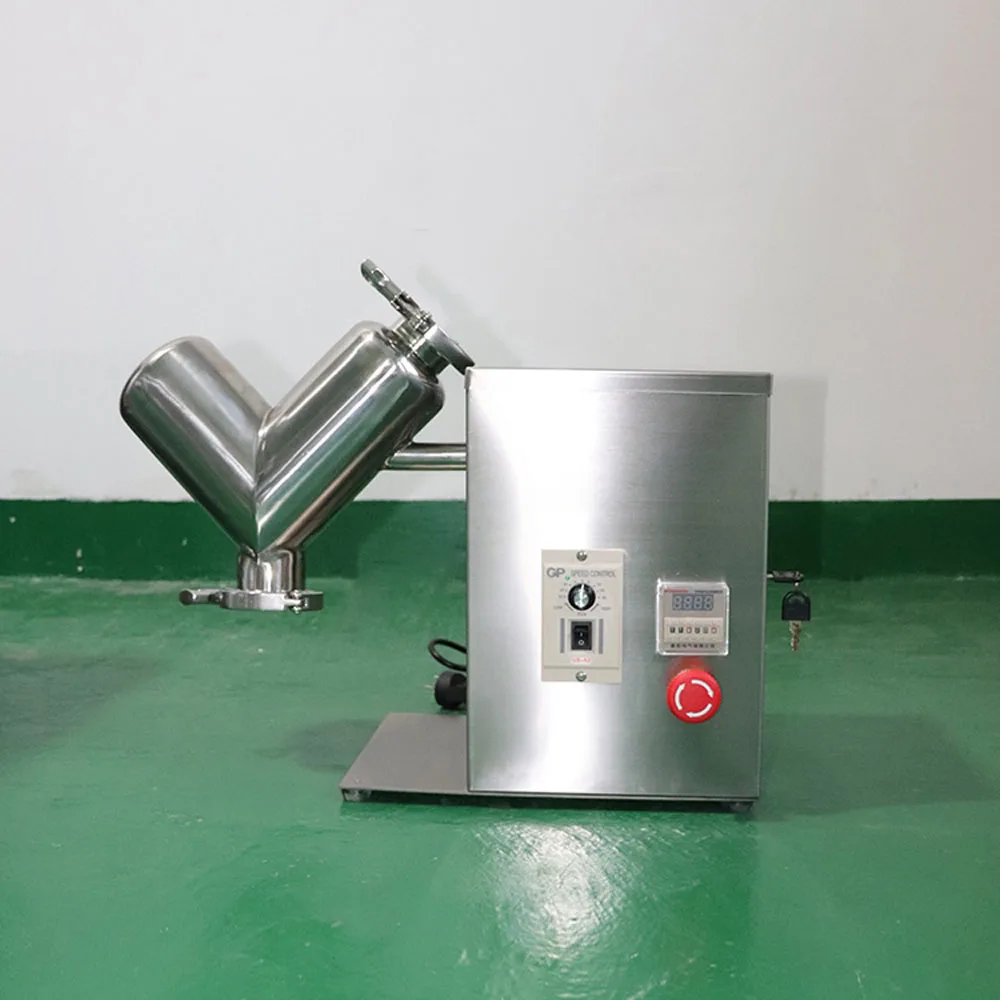

Available Single Arm VH Blenders (InterchangeableVH on lab models),

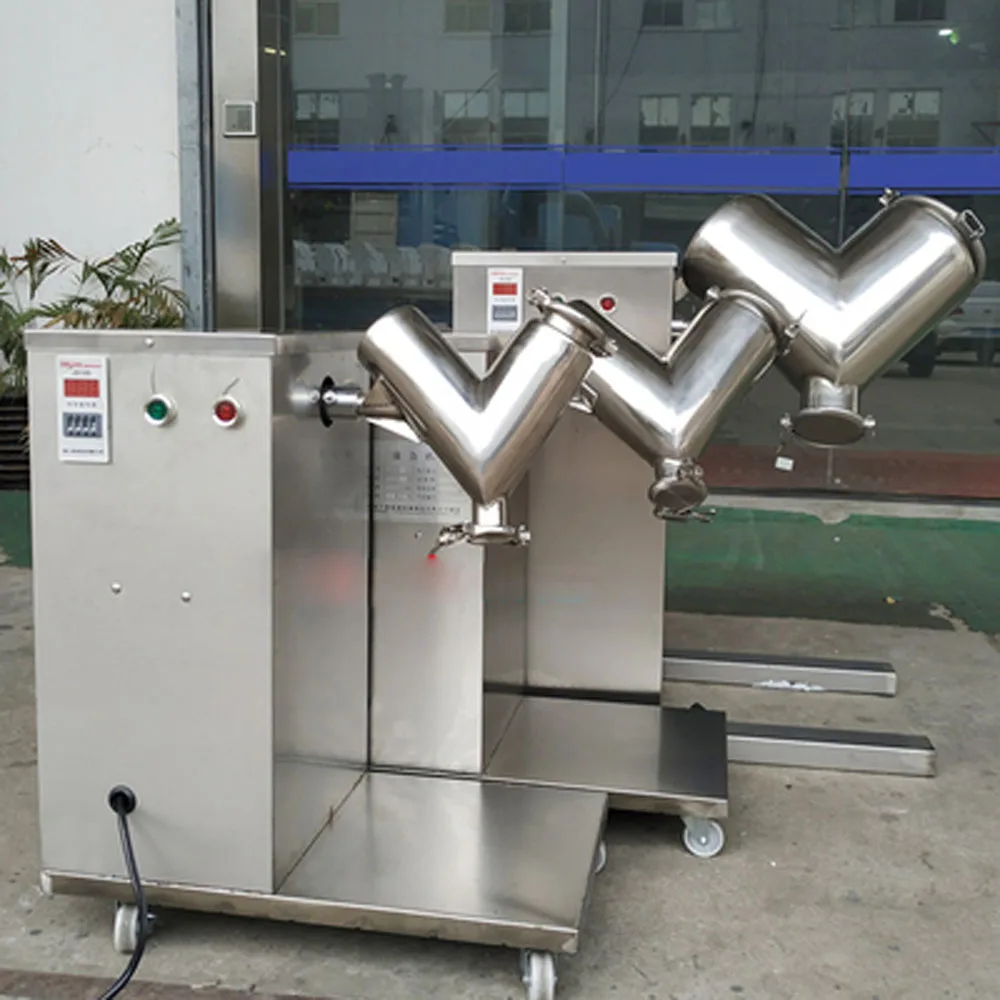

Ccustomize I-bar and also casters on laboratorymodels.
We offer both Cross Flow and Twin-Shell Formats of VH-Blendersfor different applications.
Notice :
1, The installation: mechanical plumb, install the machine'S feet, pad level, so that the mechanical energy operate freely.
2, Before use, plus fuel oil to the right place, and then into the traveling load operation, check all the fasteners no loose, normal electrical machinery is working properly and, if abnormal, refurbishment and commissioning.
3, Will be transferred to the above feed port, open the feed cover were feeding, feeding quantity must not exceed the specified volume, and then close the lid tightly charging, start the machine operated, the way such as abnormal, must stop to check.
4, After work or replacement of species must clean inside the hopper, outside rinse.
