Wifi Smart Home Zigbee Gateway for Smart Home Use

Product Overview

Description

Wifi Smart Home  Zigbee Gateway for Smart Home Use



Product Description



MAKE YOUR LIFE SINPLE AND WONDERFUL: With this WIFI IR SMART HOME HUB, you can make your old appliances smart without replacing them. When you work outside, you can also easily control your home devices.Replace your pile of remotes with ios and select Android devices.

Home Automation: Teach the hub your Good Morning, Goodbye, Goodnight, and other routines to automatically turn devices on or off throughout the day.

SMALL AND EASY TO USE: Simply plug in the device, download the “Fbee Inside” app on your smart phone and connect to the device you want to control. When you take it to travel, it doesn't take up much space



Specification

(1) Input Power voltage: AC100-240v~50/60Hz;
(2) Input current: 0.5A MAX
(3) Maximum input power: 6.5W
(4) Zigbee working frequency band: 2405M-2480MHZ
(5) Communication protocol standard: ZigBee 3.0
(6) ZigBee communication distance: > 200m
(7) Zigbee networking distance: > 100m
(8) Receiving sensitivity: -97 dBm
(9) Maximum transmit power of zigbee: 20dBm
(10) Networking: ZigBee Ad Hoc Network
(11) Wifi operating frequency band: single frequency 2.4G
(12) Communication protocol standard: 802.11b/g/n
(13) Transmission rate: 11b:1/2/5.5/11Mbps; 11g:6/9/12/18/24/36/48/54Mbps; 11n: up to 150 Mbps
(14) Wifi communication distance: > 100m
(15) Wifi networking distance: > 100m
(16) Wifi maximum power: 18dBm
(17) Working environment: - 25 ~+60℃
(18) Humidity: maximum 95% RH
(19) Dimension: 95mm*62mm*47mm

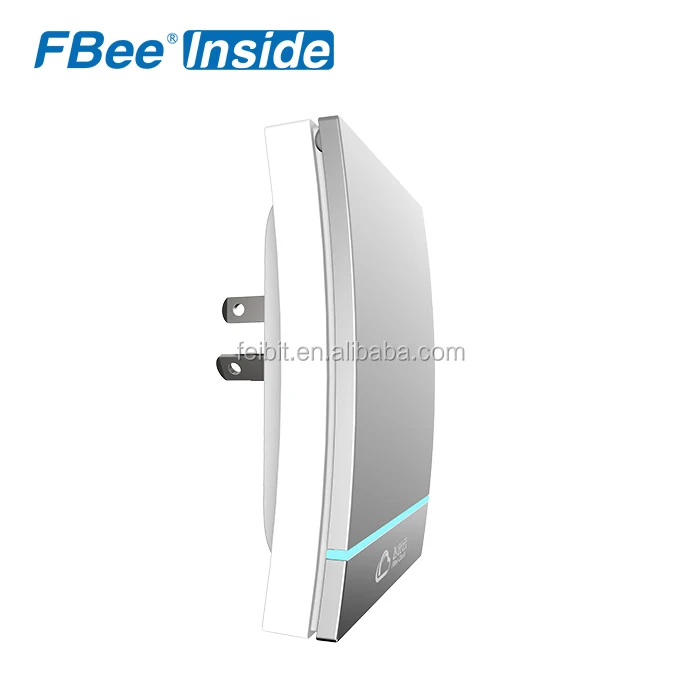

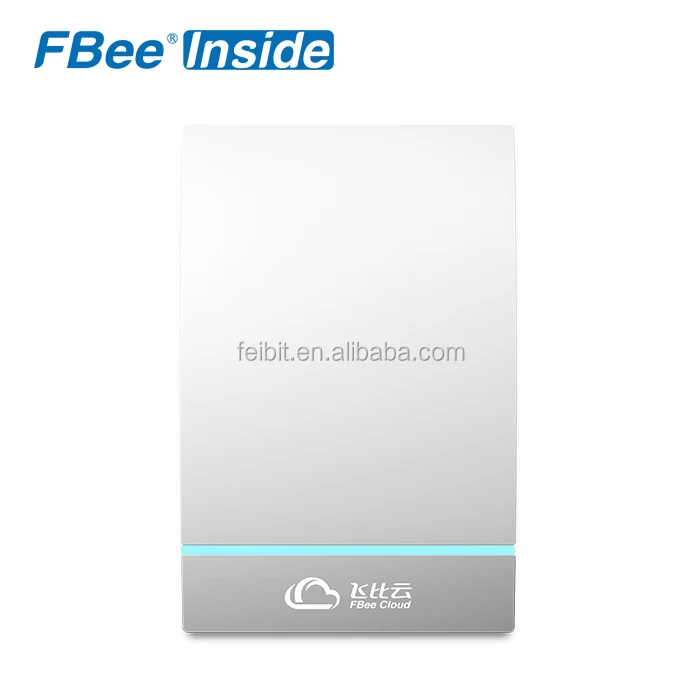

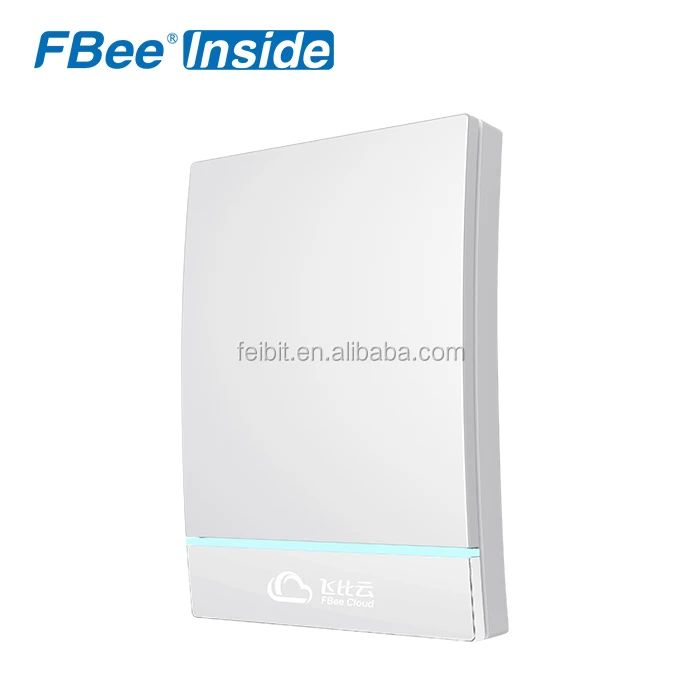

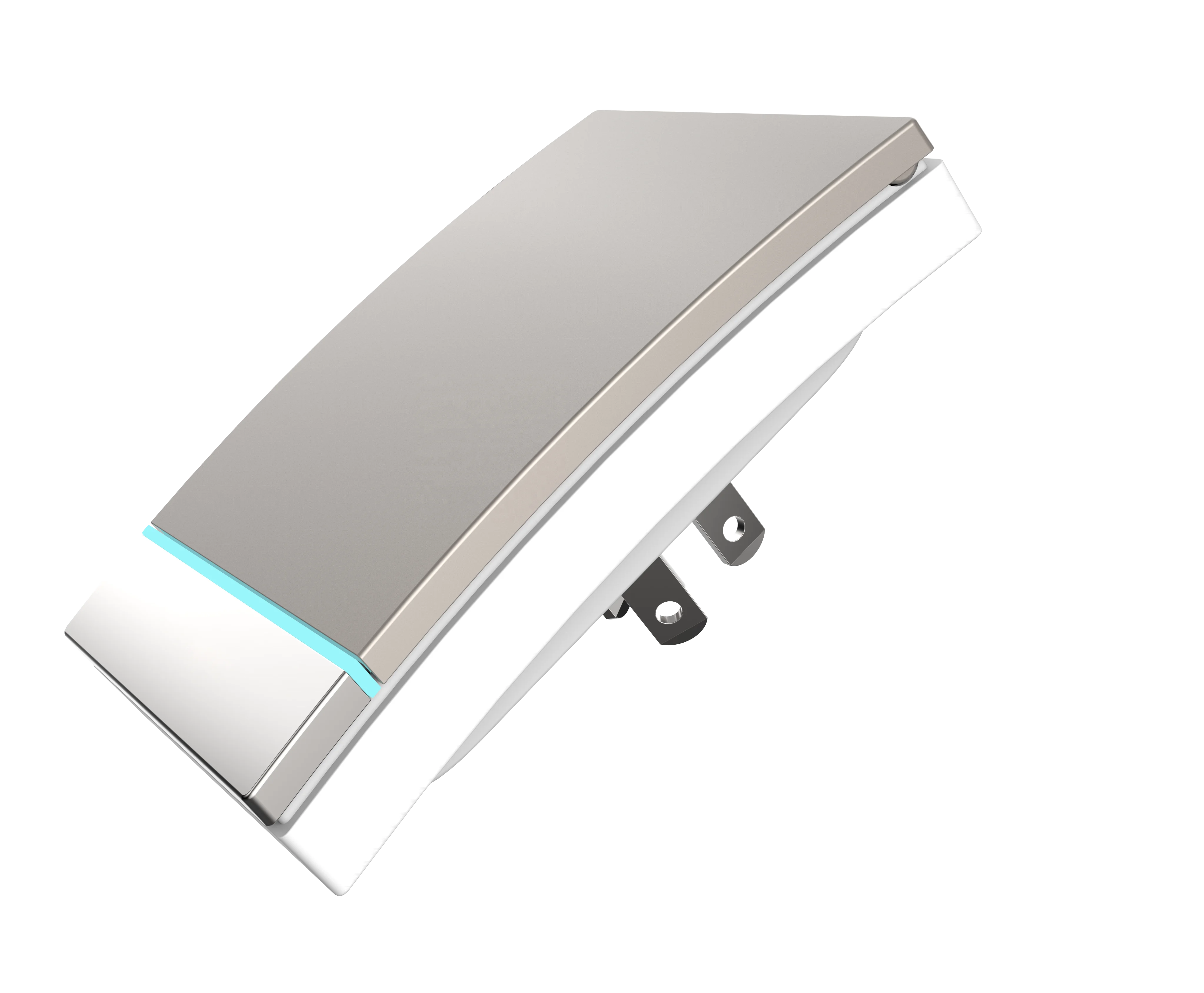

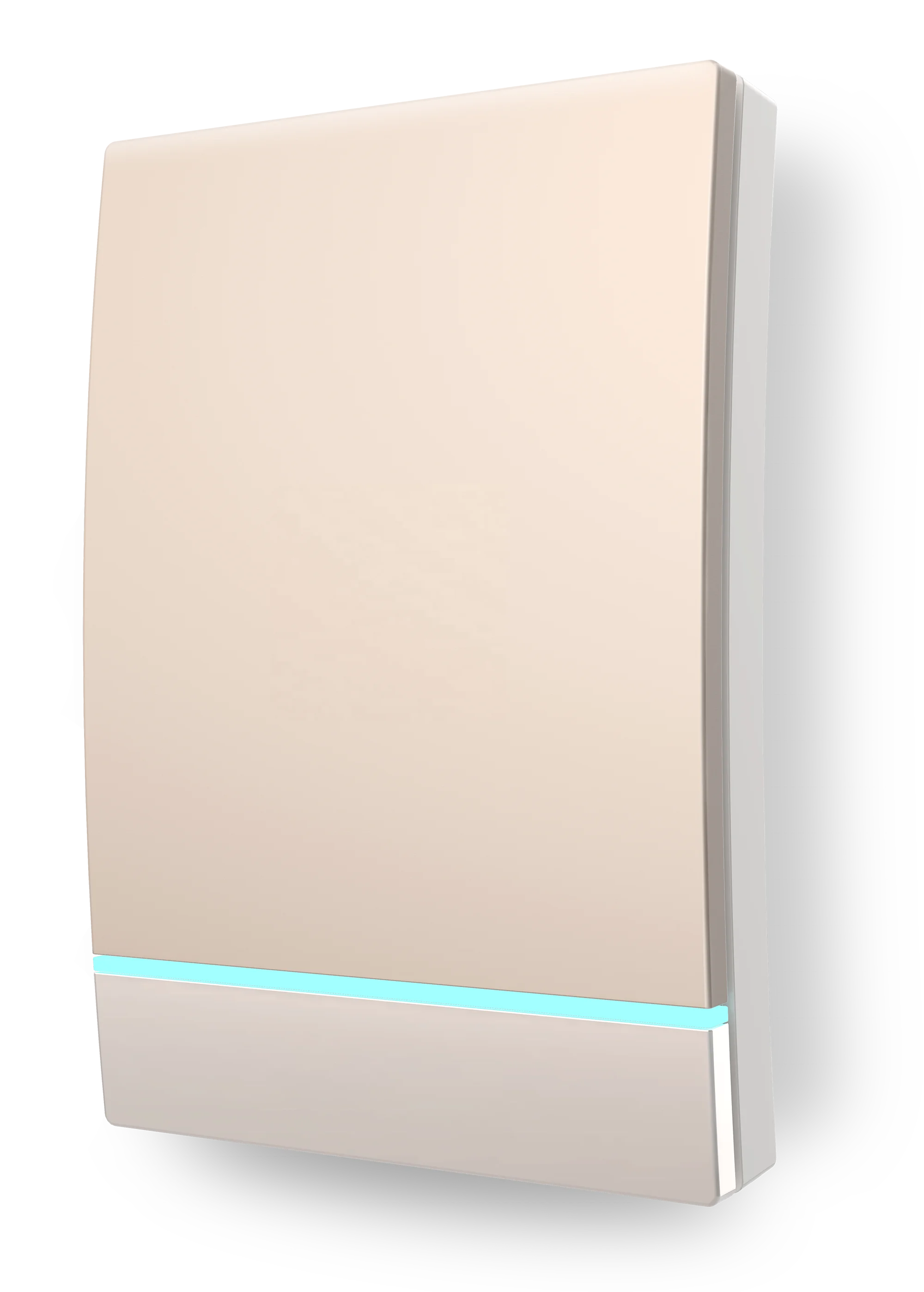

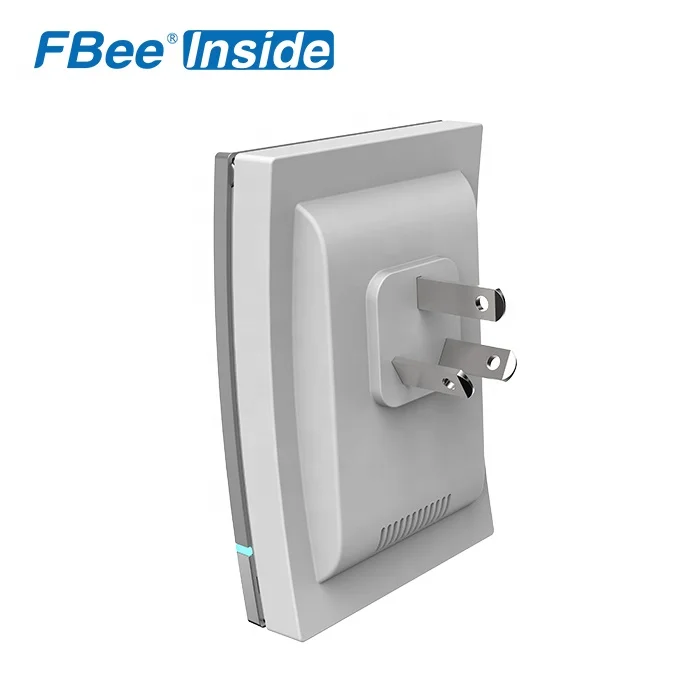

 Product Show



Trade Show

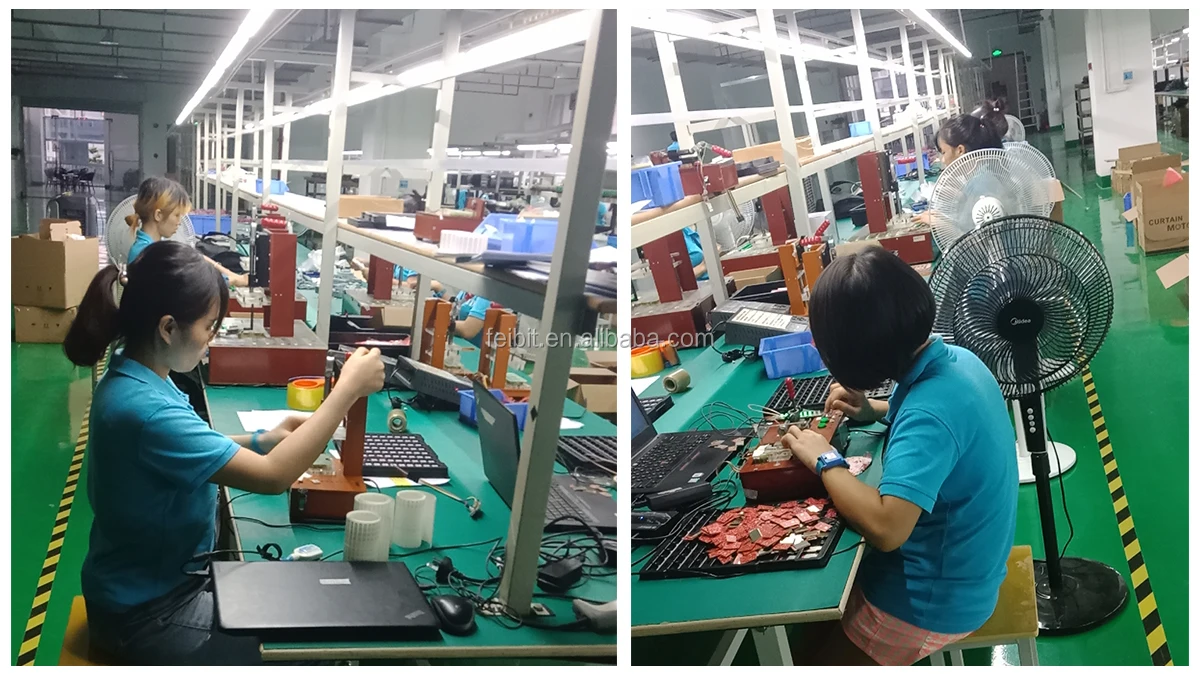

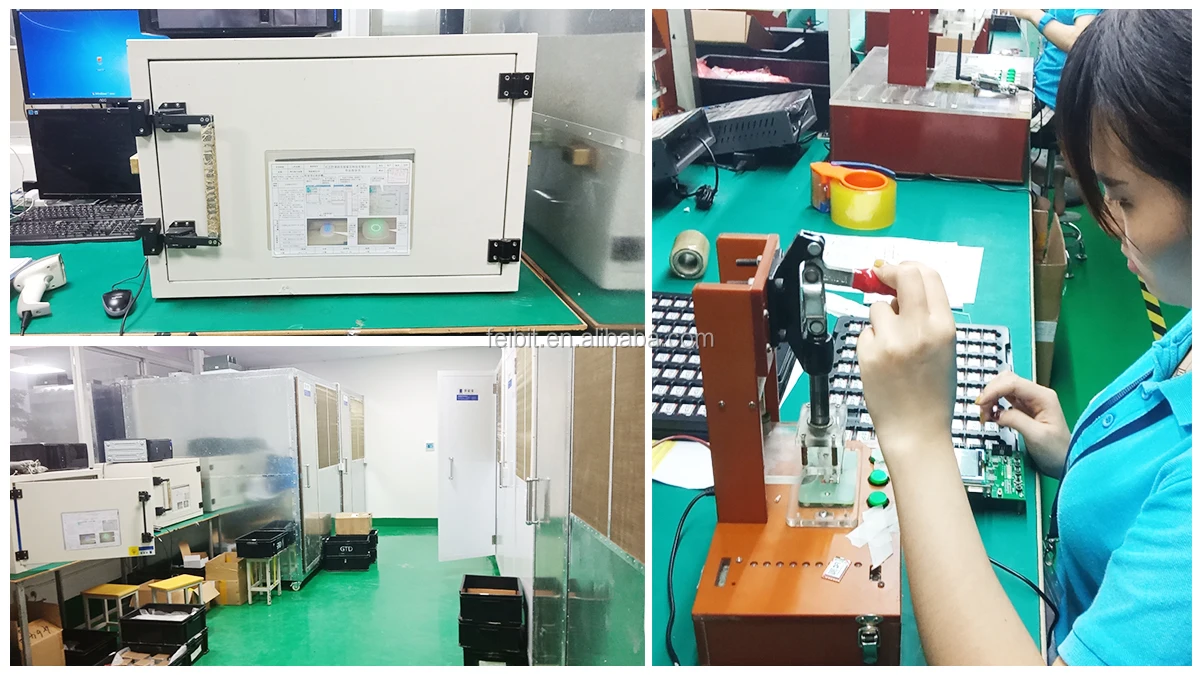

Factory & RD Team
