Product Overview
Description
Product Description

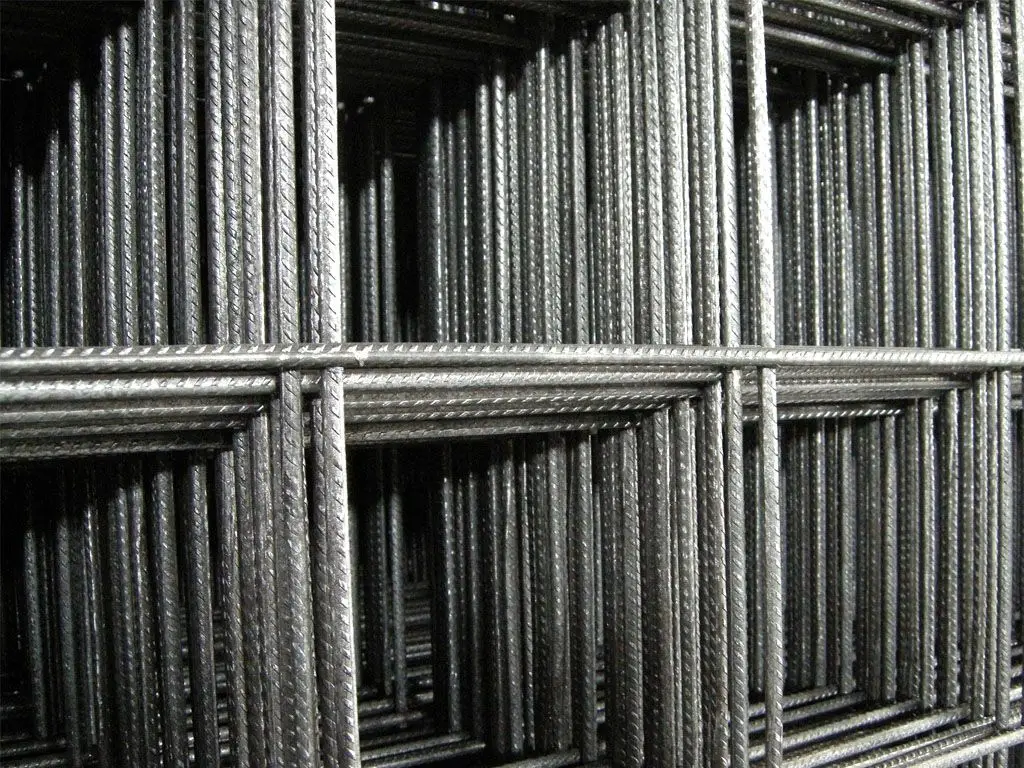

Rebar mesh welding machine
The steel mesh welding machine adopts modular structure design, which is more convenient for upgrading the functional structure, and provides convenience for satisfying different needs of customers in different periods. According to its structure, it is divided into vertical wire discharging frame, welding part, horizontal line blanking and drawing part, etc. It has the characteristics of novel structure, firm frame, easy operation and easy learning, and has high cost performance.
Wire diameter | 6-13mm | Welding method | Silicon controlled synchronous control |
Hole size | 150-300mm | Transformer power | 250-315KVA |
Mesh width | 3m | Machine size | 22000*5500*2100mm |
Wire feeding mode | Pre-straight and cutting | Machine weight | 16.0T |
Welding speed | 60-70times/min | Transformer | 160KVA×11 |
Welding spot | 21 | Motor | 11KW frequency conversion |
Voltage | 380V 3P 50HZ | Way of pressure | Mechanical pressure |

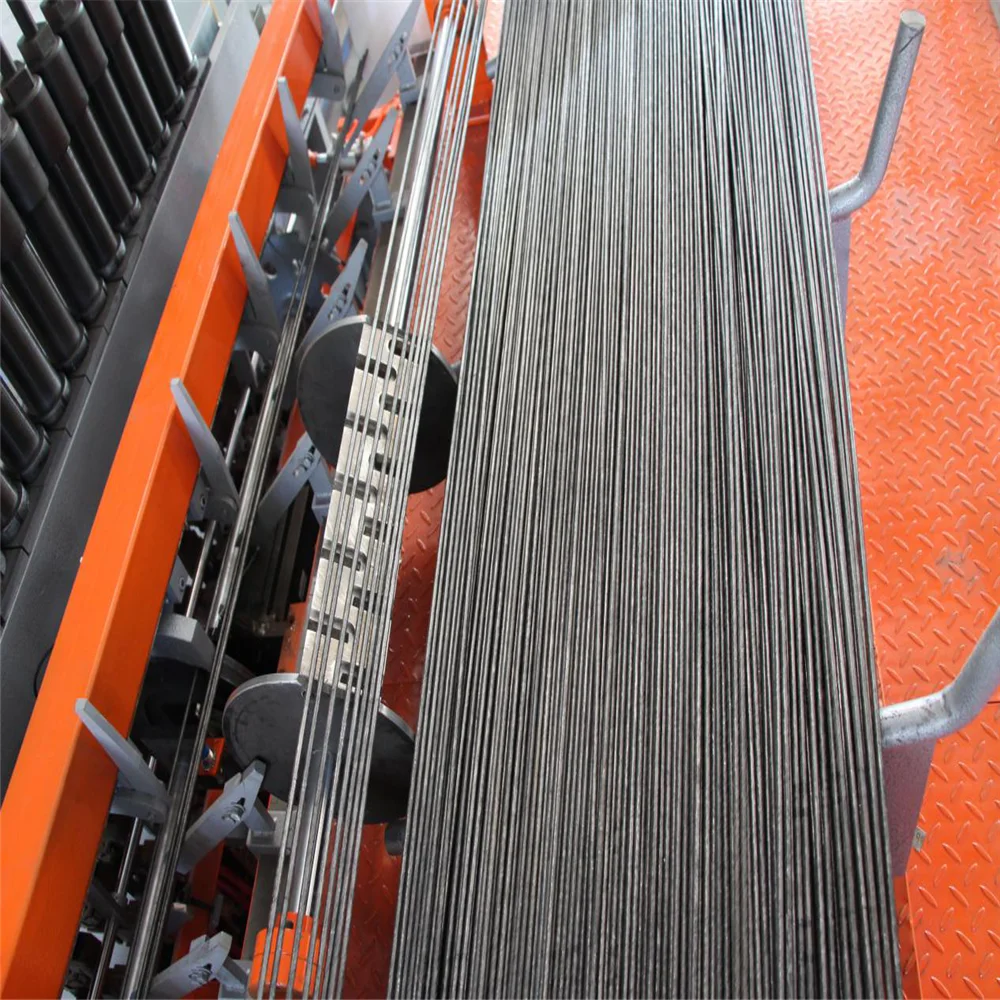

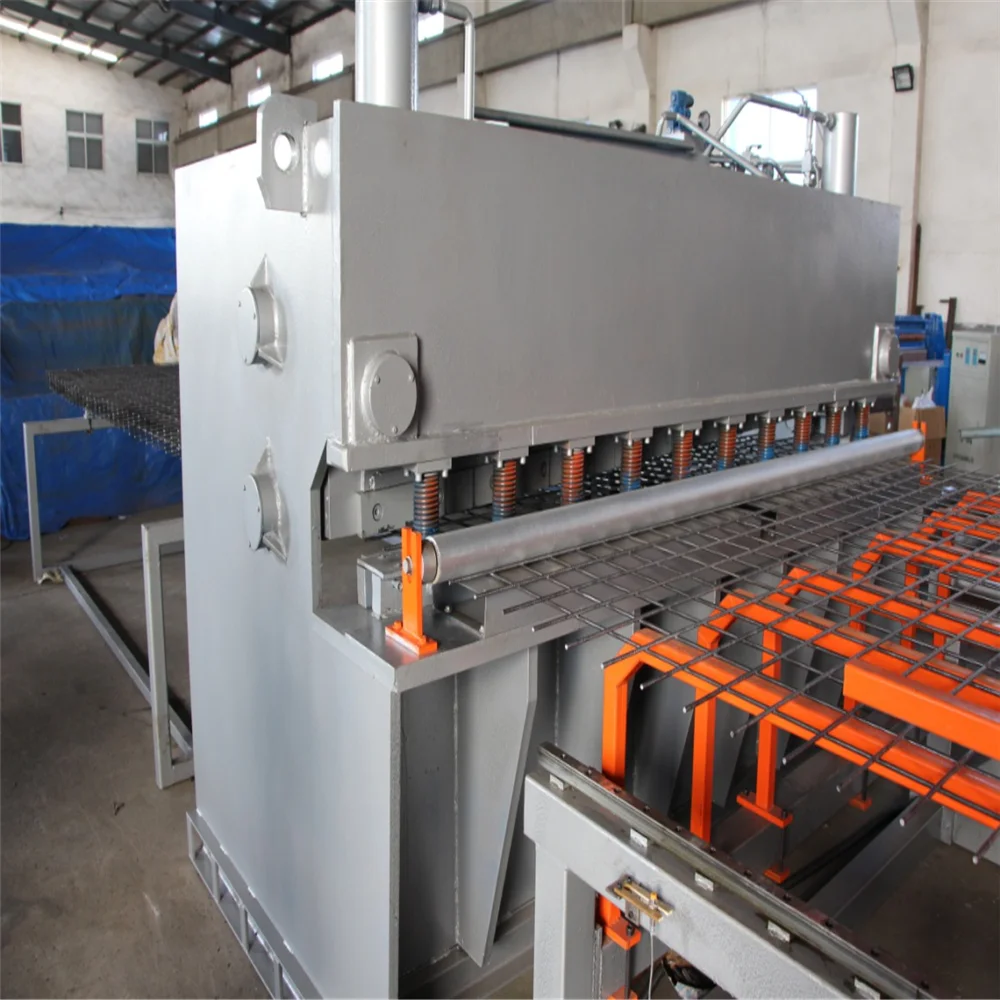

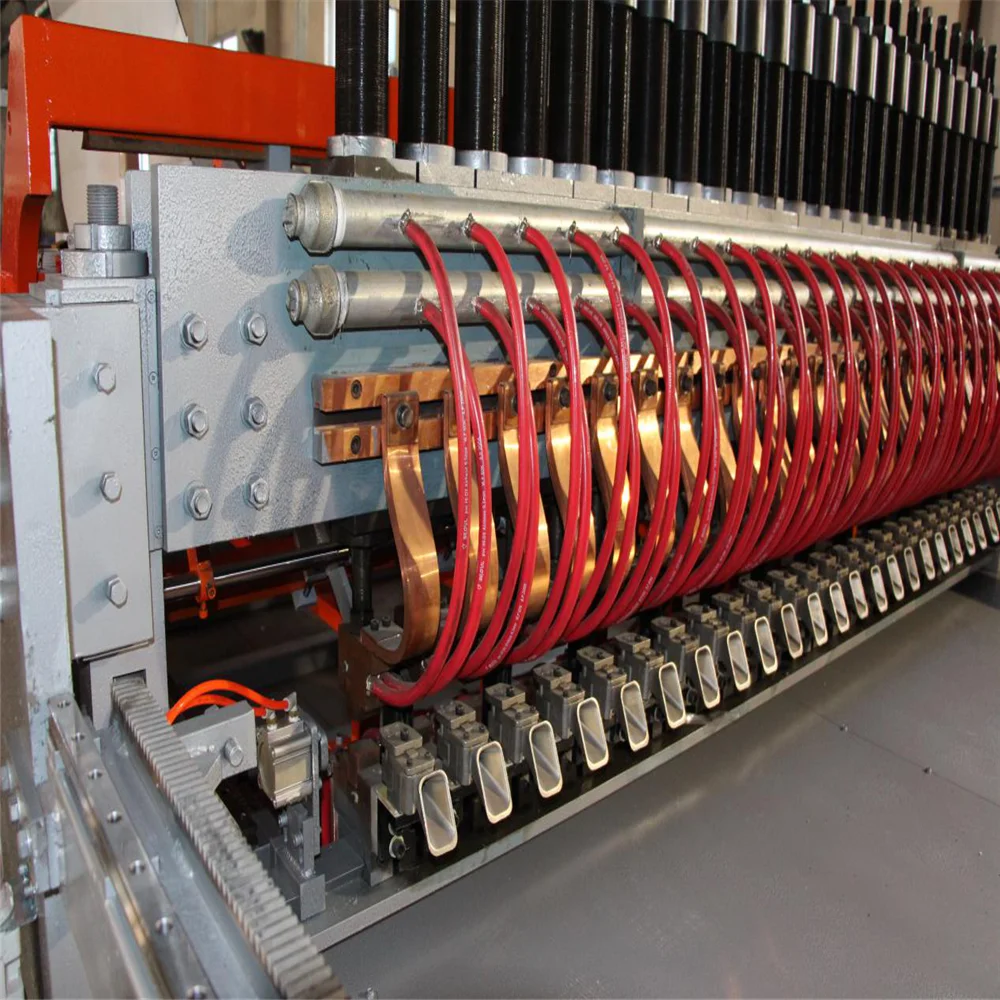

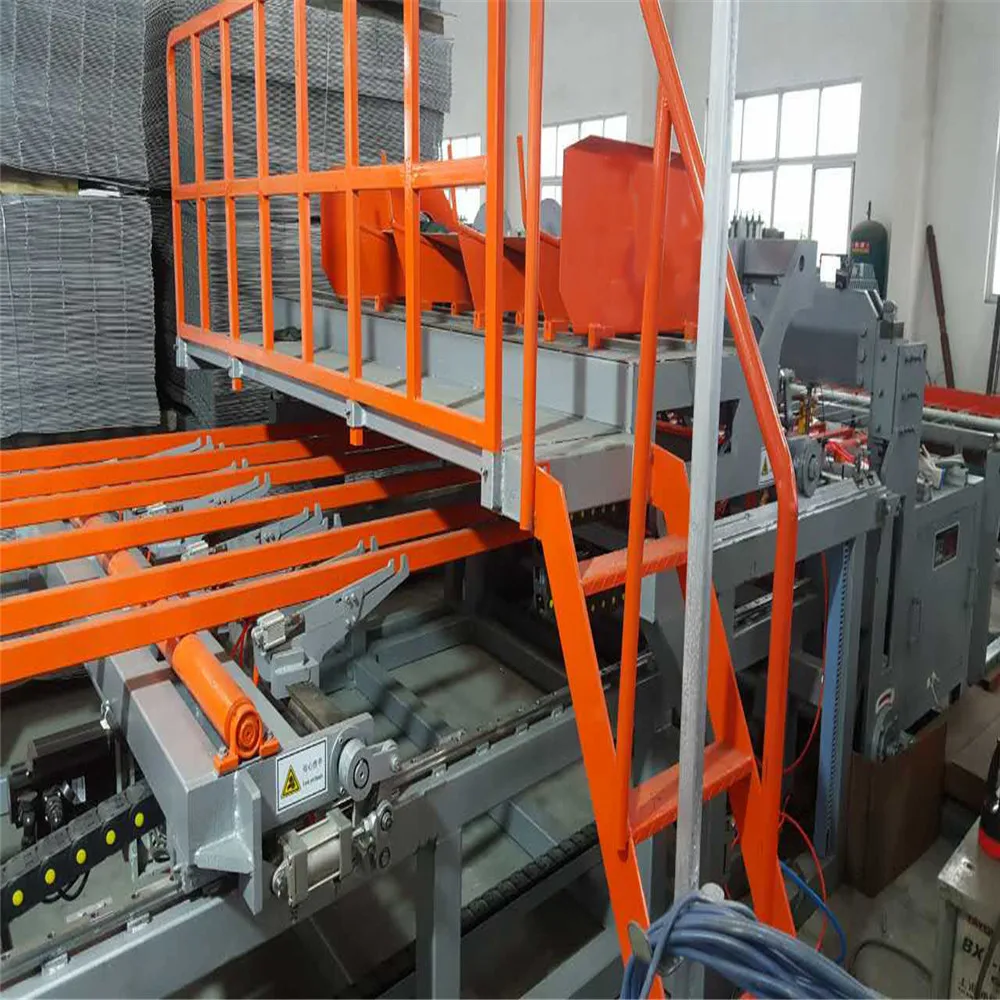

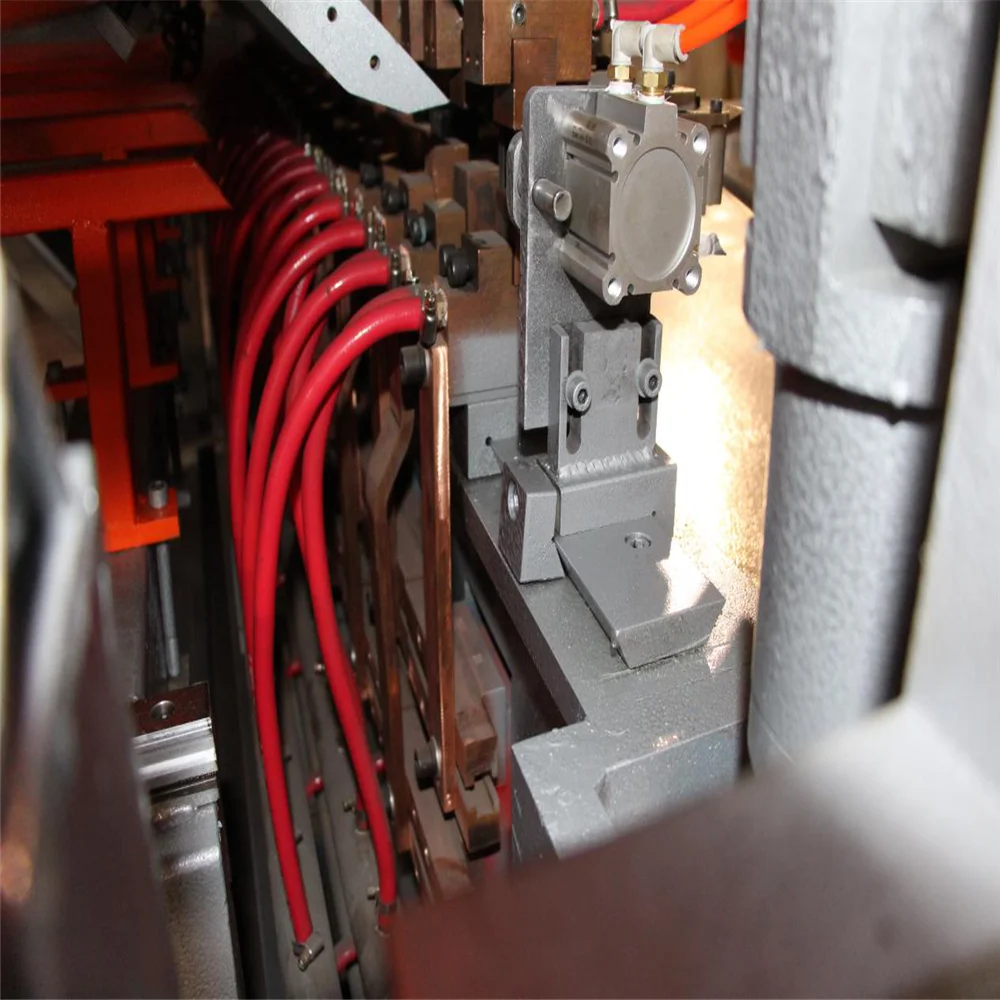

Detailed Images

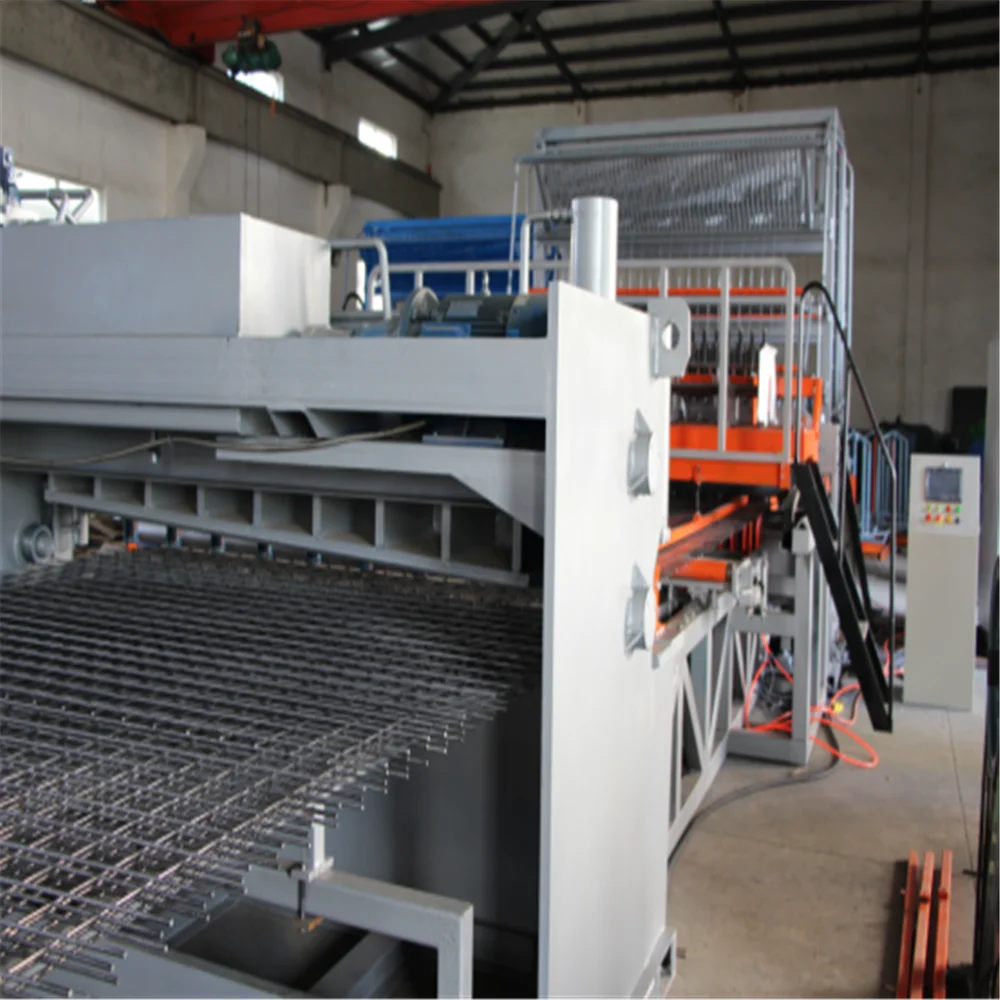

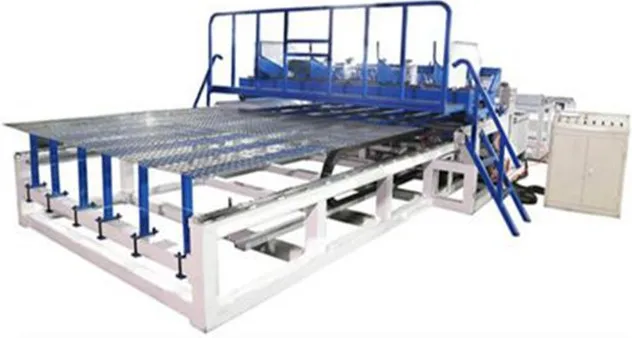

Semi-auto panel mesh welding machine
Wire mesh welding machine is professionally used to produce construction mesh, controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.
Wire diameter | 3-6mm | Voltage | 380V 3P 50HZ |
Hole size | 50-300mm | Maximum distance from outside transformer | 150m |
Width | 2.5m | Weight | 6.0ton |
Welding spot | 51pcs | Overall dimension | 6500×5000×1900mm |
Welding speed | 50-60times/mi | Welding method | Silicon controlled synchronous control |
Transformer | 150KVA*6 | Main motor | 5.5kw with frequency conversion |
Cross wire | pre-straightening and cutting | Line wire | pre-straightening and cutting |

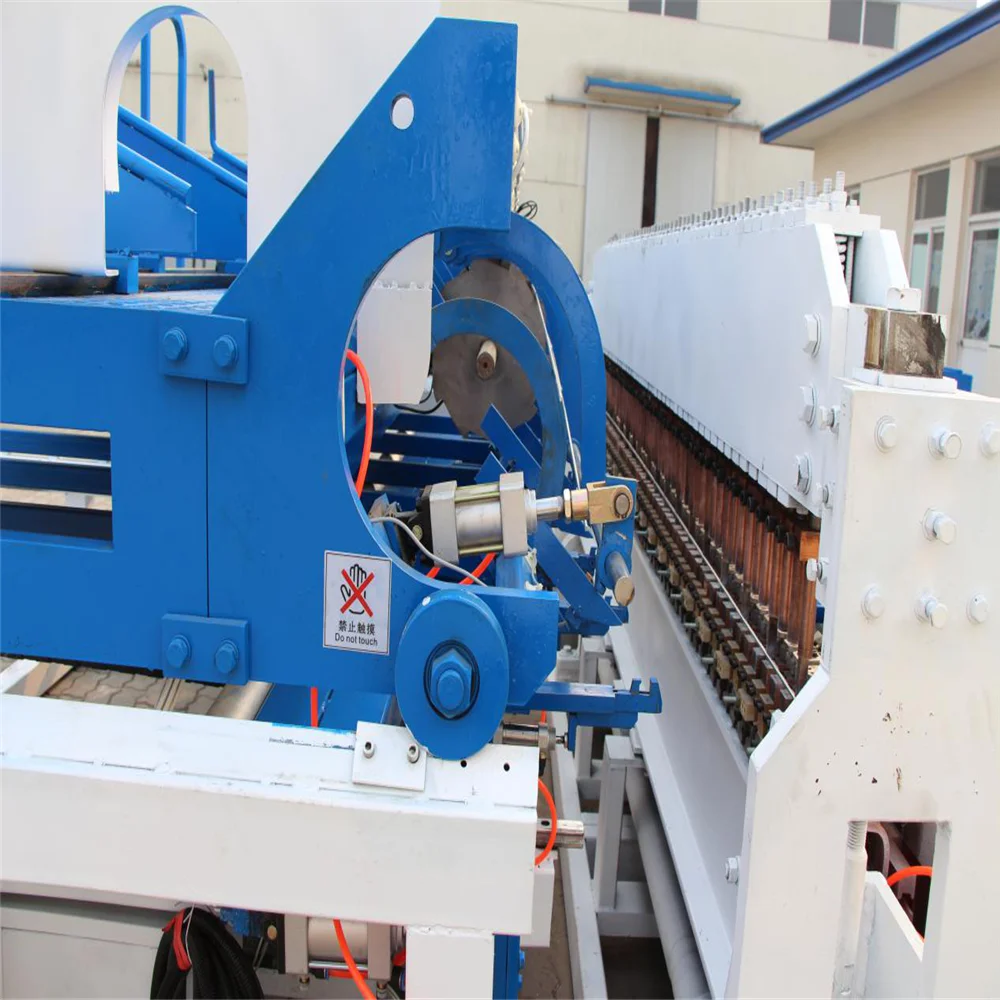

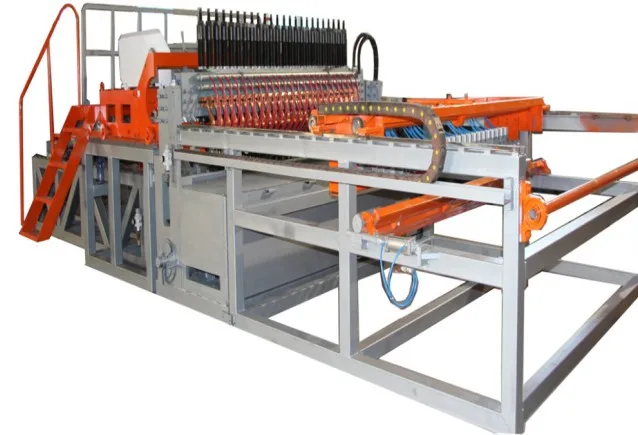

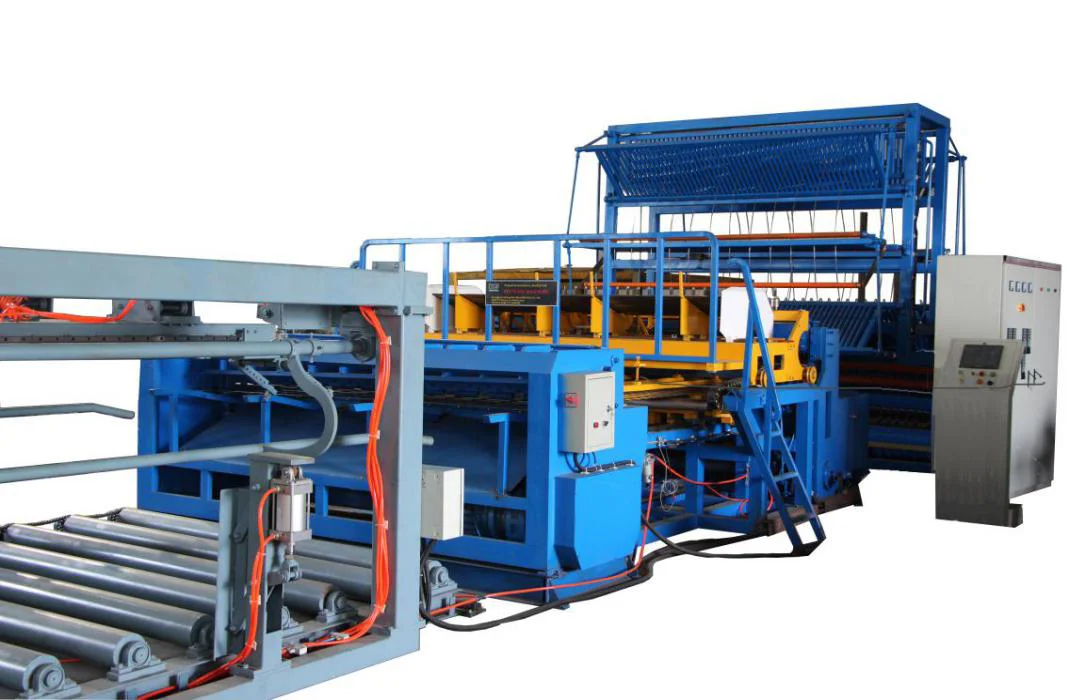

Automatic steel mesh welding machine
The automatic steel mesh welding machine adopts mechanical eccentric pressure, and the servo motor cooperates with the precision reducer to pull the net to realize the perfect combination of mechanical movement and servo numerical control system. The mesh adjustment is convenient, and the maintenance is simple and the running cost is low. The warp feeding adopts a large disc type hopper, the system automatically detects and automatically feeds into the hopper, thereby ensuring uniform tension of the servo pulling part. Large pay-off discs, storage materials are not easy to mess.
Wire diameter | 3-6mm | pressure method | Mechanical pressure |
Hole size | 100-300mm | wire feeding way | pre-straightening and cutting |
Mesh width | 3m | Main motor power | 5.5kw with frequency converison |
Welding spot | 30pcs | Weight approx | 20ton |
Welding way | silicone control synchronous control | Overall dimension approx | 30m*6m×3m |
Transformer capacity | 150-200KVA | Line wire adjustment mode | manual adjustment |
Welding speed | 60-70times/min | Voltage | 380V 3P 50HZ |
Related Products
Packing&Shipping
Wire mesh welding machine package with plastic film outside for main machine,wooden box or carton box for tools and small accessories,or as customer demand.
Exhibition & Customer
Company Introduction
Our Services & Strength
1.Test the machine before shipment
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer's factory for installation, debugging and training.
2.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
3.Within guarantee time, if any components are broken under normal condition, we can change for free.
4.We can send our best technician to buyer's factory for installation, debugging and training.
