China best Automatic H beam cnc plasma cutting machine for I beam/Angle iron/Bulb flat
- Category: >>>
- Supplier: Shandong Yomi Intelligent Science And Technology Co. Ltd.
Share on (62264059816):
Product Overview
Description
Product Description
Our Advantages
Independently developed software
Our software can directly docking CAD,TEKLA and other software, the use of nesting algorithm, compared with peers save 5%, 50% faster calculation

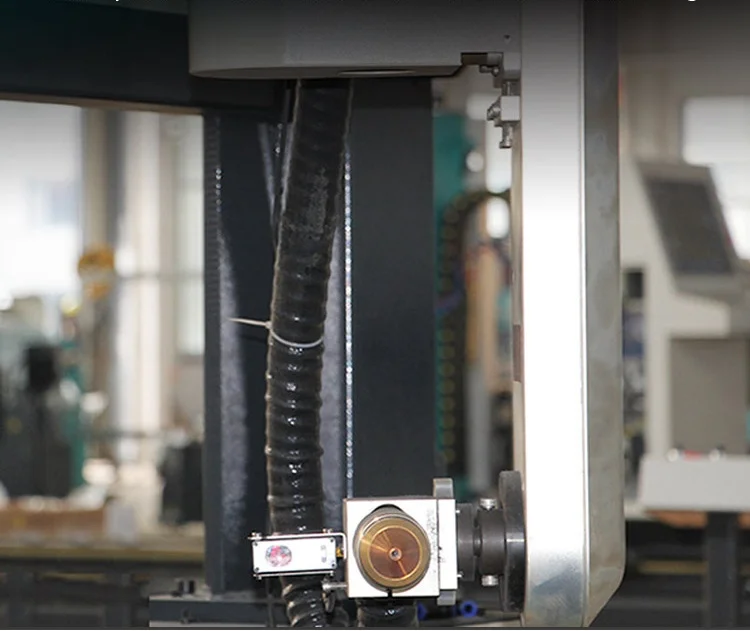

Independently developed C type mechanical arm
The 6-axis linkage operation is flexible and precise, and the production efficiency is 60% higher than the traditional，multi-position interconnection, unified code， batch cutting

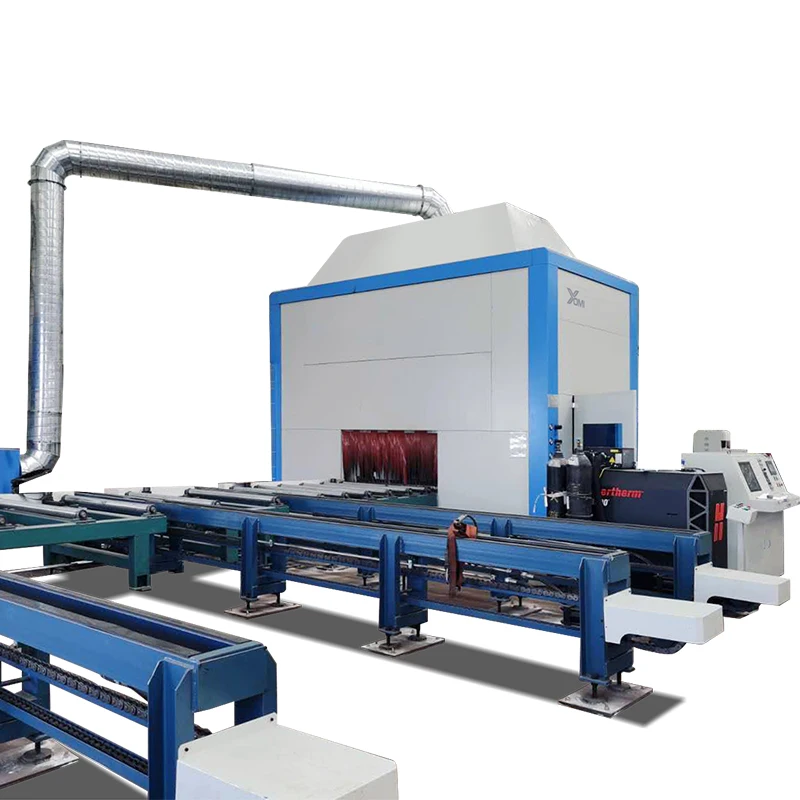

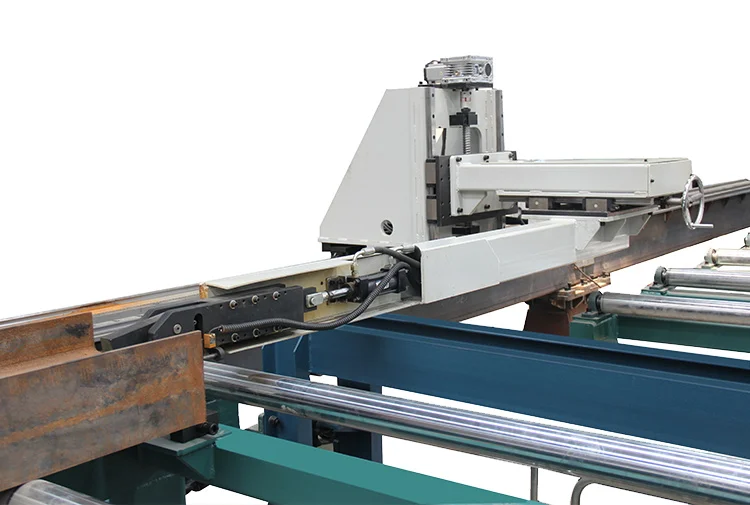

H beam cutting machine

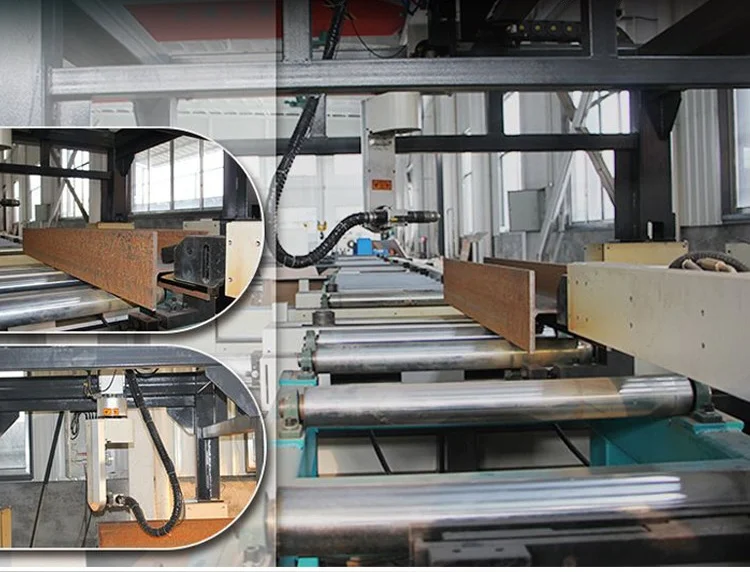

H Beam plasma cutting machine,it transports profiles to cutting station by conveying rollers, and it can cut H beam, I beam,channel steel, and angle steel

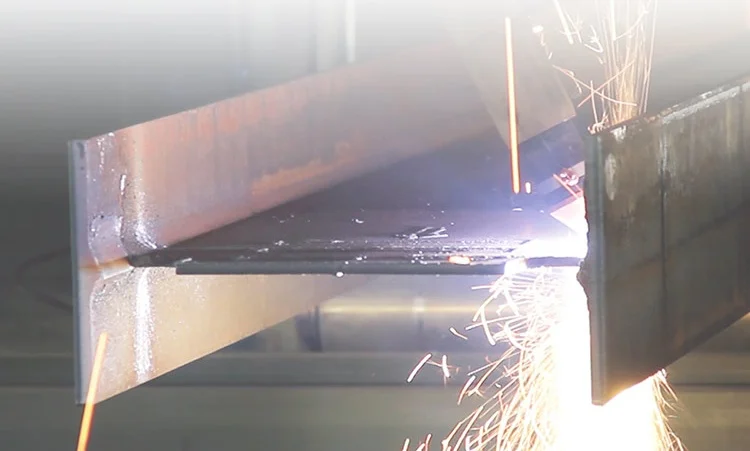

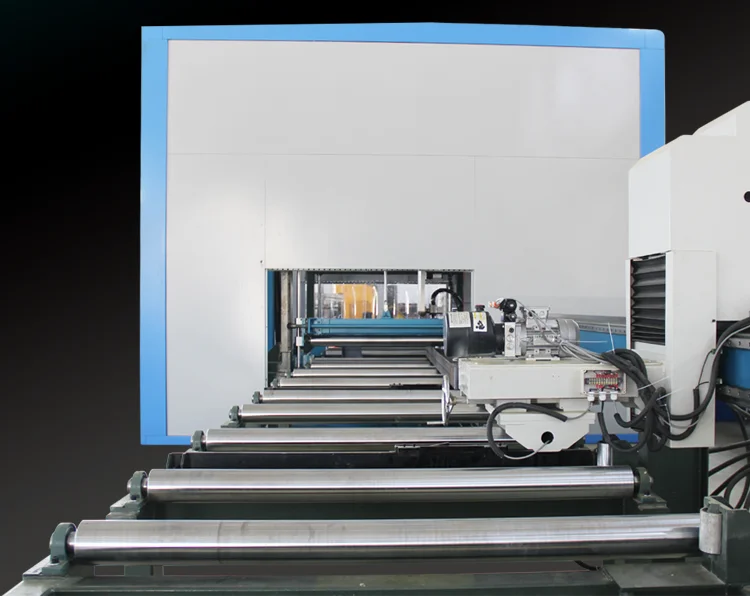

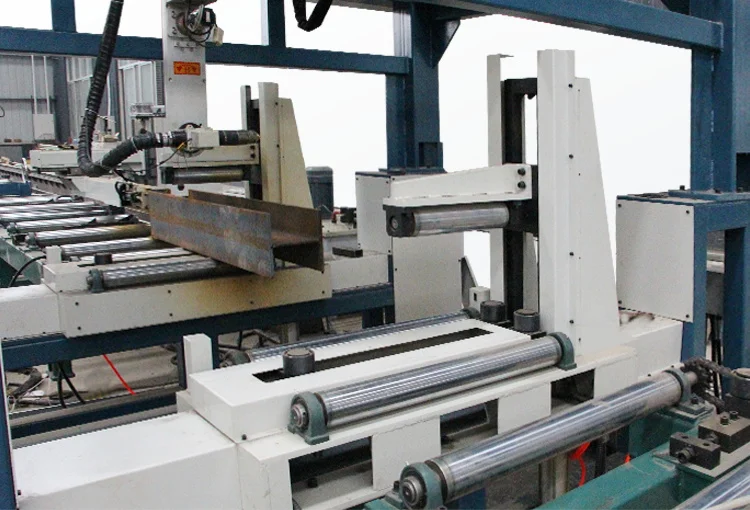

Cutting Station

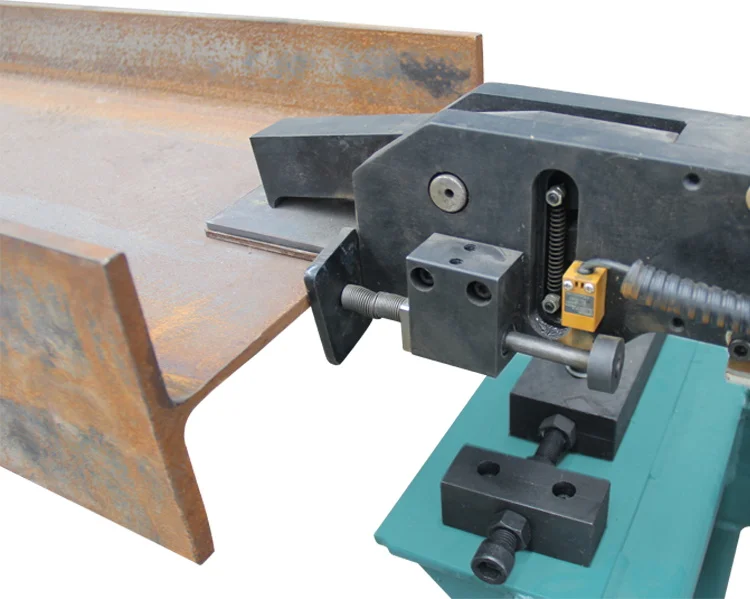

The profile material are conveyed to cutting station through the clamp feeding trolley.Multi-axis linkage to cut the profile, and then the finished product automatically output
Product Parameter
Model | H beam cutting Machine | |
H beam | 100-800mm | |
Effective cutting length | 12000mm | |
Cutting length deviation | ±1.5mm | |
Bevel cutting | ±45° | |
Workpiece cutting process | Cut any shape and cut hole in flange side and web side | |
Cutting method | Plasma and flame | |
Plasma power | Hypertherm | |
Flame cutting thickness | 6-60mm | |
Computer | Taiwan Advantech Industrial Computer | |
Driving motor | Servo motor | |
Software | Auto profile | |
Load | 5t | |
Weight and size | ||
Size | Can be customized according to your factory space | |
Shipping | Two 40ft containers | |
Weight | 17T | |
Working condition | ||
Working pressure of compressed gas | Above 7mpa | |
Require gas flow of plasma | 4500L/H | |
Working environment | Ventilation , no concussion | |
The acceptable temperature around | -20℃ -50℃ | |
Voltage | Machine :220/380V ,50/60HZ | |
Power wattage | 5KW | |
Types of gas | Plasma :Air , Flame :Oxygen+Acetylene /propane | |

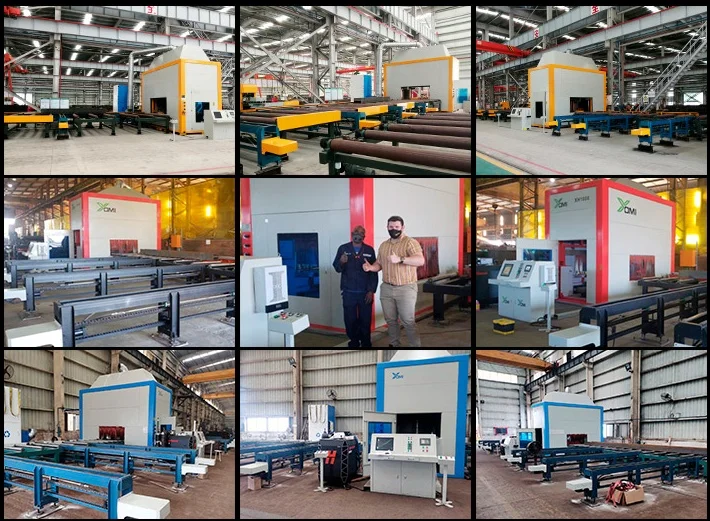

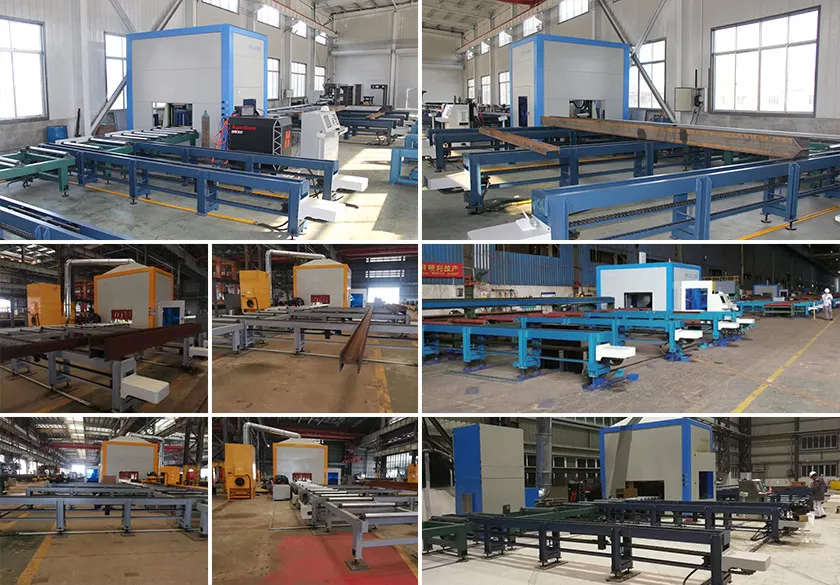

Customer Site Display
Company Profile
Shandong Yomi Intelligent Science and technology Co., Ltd is an Industrial Leader in the Cutting & Welding Field. We target to build the Integrated Supply Chain with High Quality Products at Competitive Prices and offer a complete After-Sales Service in the Local Market. We cater for all Steel Fabricators, Heavy Equipment Manufacturers as well as Small Workshops and Engineering Companies, etc. We have established overseas warehouses in South Africa. This is our first overseas warehouse. More warehouses will be established around the world. In addition to the warehouse, it is also equipped with local after-sales service personnel who have been trained in our factory. Inventory products + local services + integrated supply chain will be our main business method.
FAQ
1.Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3.What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4.What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5.What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6.What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3.What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4.What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5.What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6.What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
Any other questions, please click "Send Now"
