Full Duplex Receiver Wireless RF Transceiver Module 13 Channel Communication Tx Rx
- Category: >>>
- Supplier: Chengdu Ashining Technology Co. Ltd.
Share on (62264289606):
Product Overview
Description
Why Choose US
Welcome To Visit Ashining Store!
Ashining has more than 10 years experience in wireless communication and IoT industry. Company and products are certified by ISO9001,CE and ROHS. As professional manufacturer, we provide customization OEM ODM service. To satisfy your personal needs, we provide Free Sample and Low MOQ(10pcs) service as well.
Product Description

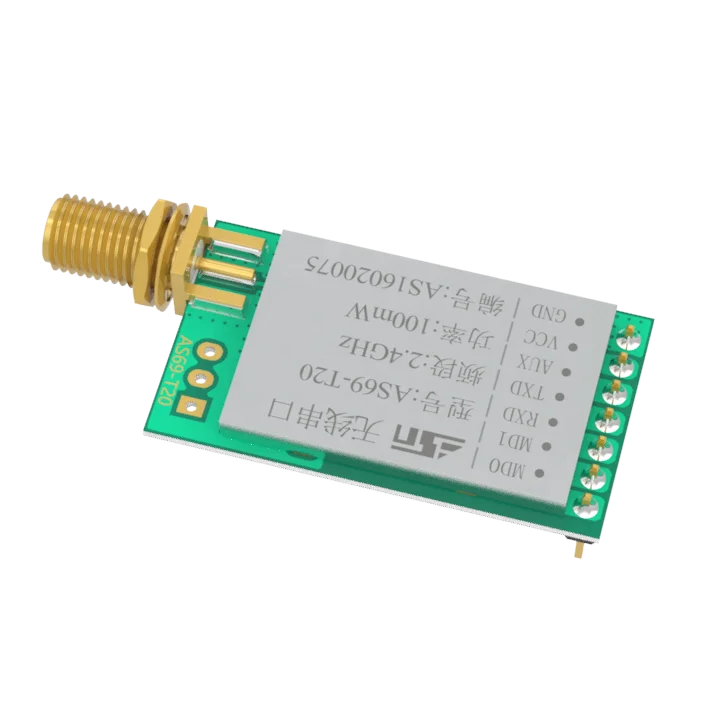

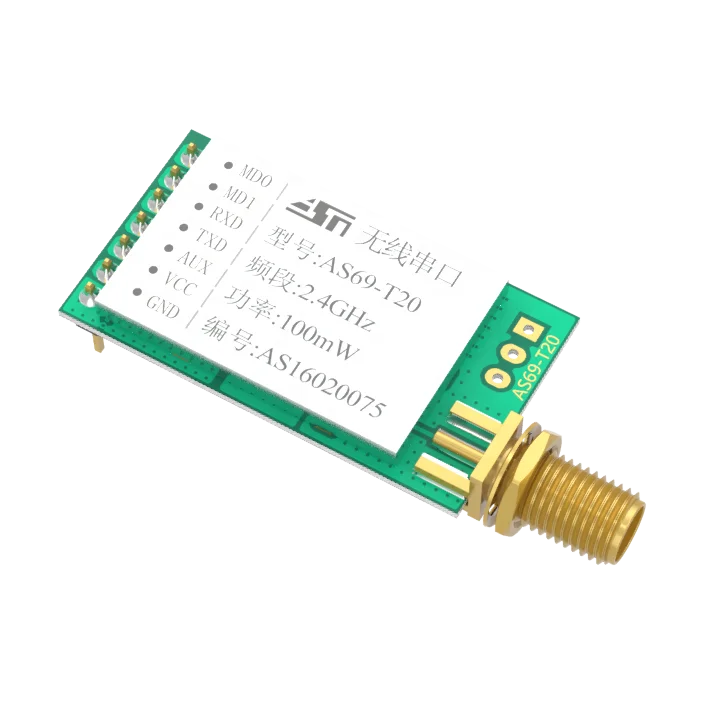

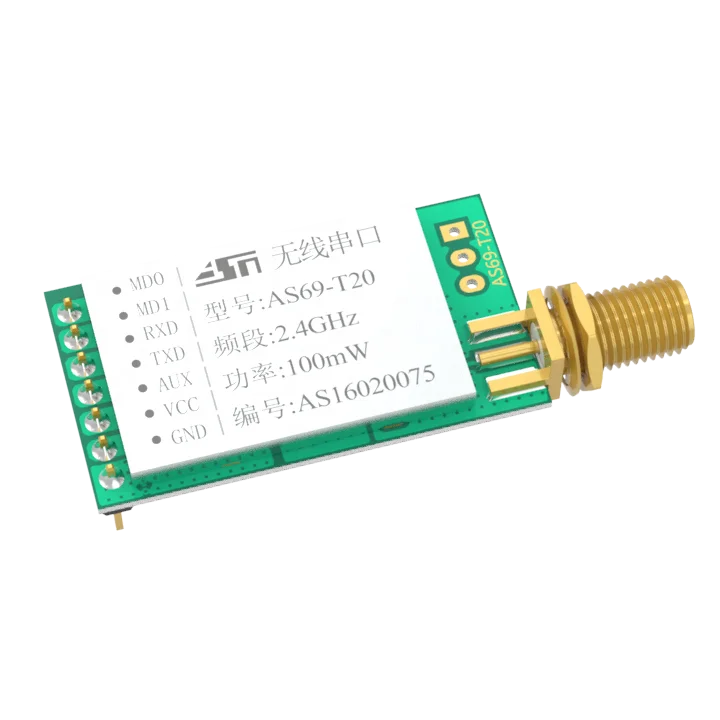

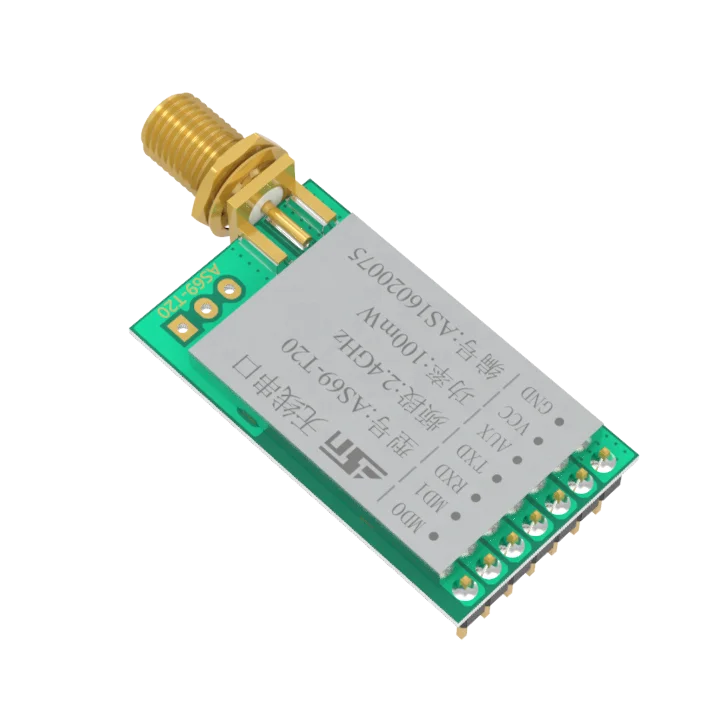

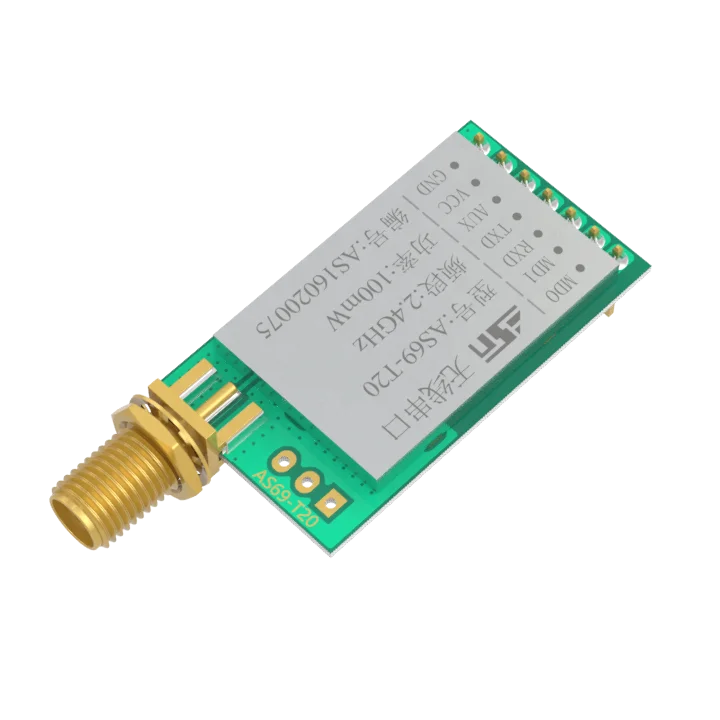

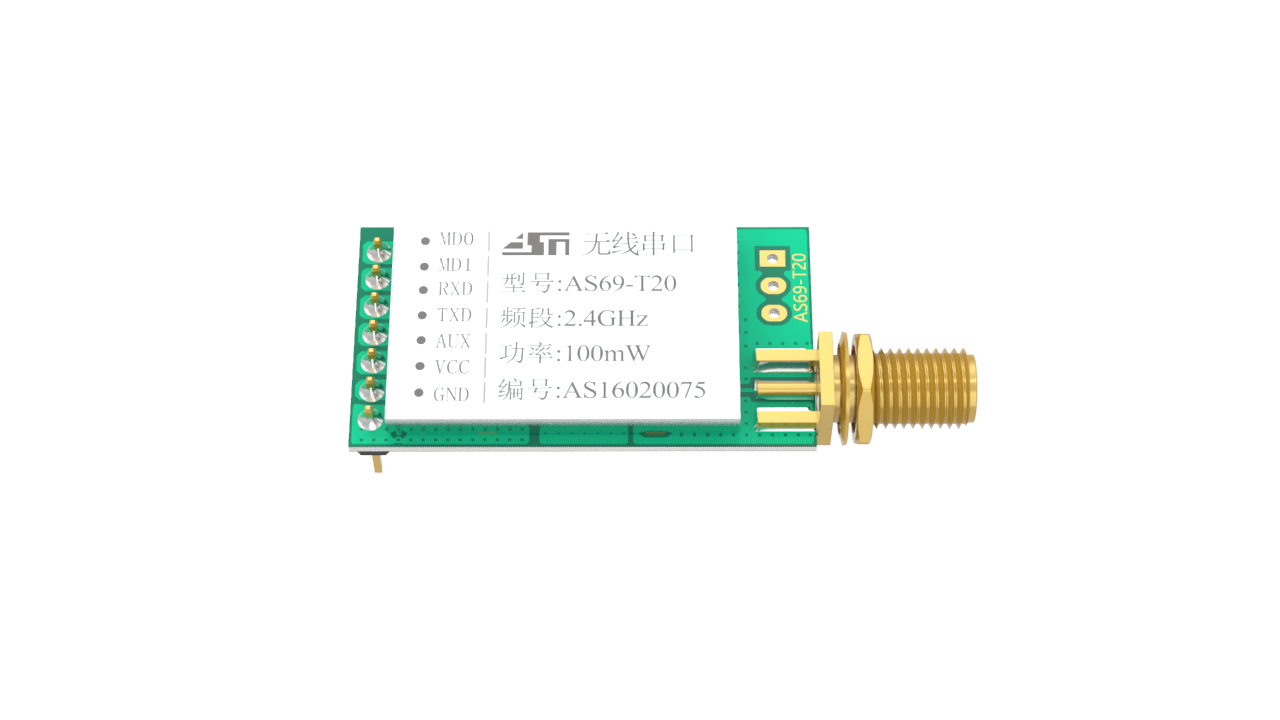

Full Duplex Receiver Wireless RF Transceiver Module 13 Channel Communication Tx Rx
AS69-T20 is a 100mW industrial wireless data transceiver with high stability, operates at 2.4GHz. The module is designed and developed using imported RF chip nRF24l01P, supports 8 baud rates 1200-115200bps. Wireless airspeed and baud rate are adaptive matching, it supports full-duplex transmission with unlimited packet length at various baud rates. The module has three operating states and can be freely switched at run time.
Electric Parameter
| No. | Parameter Name | Parameter values details |
|---|---|---|
| 1 | Module Size | 20 * 36mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 1 * 7 * 2.54 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 2.4G - 2.525GHz, 1MHz step by step, factory default: 2.4GHz |
| 6 | Supply Voltage | 2.0V-5.5VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.6V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 2100m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 250K air rate |
| 9 | Transmission power | Maximum 20dBm, about 100mW, 4levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate | 8 levels adjustable(1kbps,5kbps,10kbps,12kbps,15kbps,20kbps,25kbps,40kbps) |
| 11 | Sleep current | 3.8uA (MD1 =1, MD0 = 1) |
| 12 | Transmitting current | 206mA@100mW (voltage 5V) |
| 13 | Receiving current | 1mA (mode 0, mode 1), minimum about 30uA (mode 2 + 2s wake up) |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 17 | Receiving length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 18 | Module address | 65536 configurable addresses (easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI support | Built-in intelligent processing |
| 20 | Receiving sensitivity | -102dBm @ 250Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 21 | Antenna type | SMA antenna / Spring antenna |
| 22 | Operation temperature | -40℃ to +85℃ |
| 23 | Operation humidity | 10%-90% relative humidity, no condensation |
| 24 | Storage temperature | -40℃ to +125℃ |
