Высококачественный дешевый акселерометр xyz с программируемым датчиком ibeacon, оптом

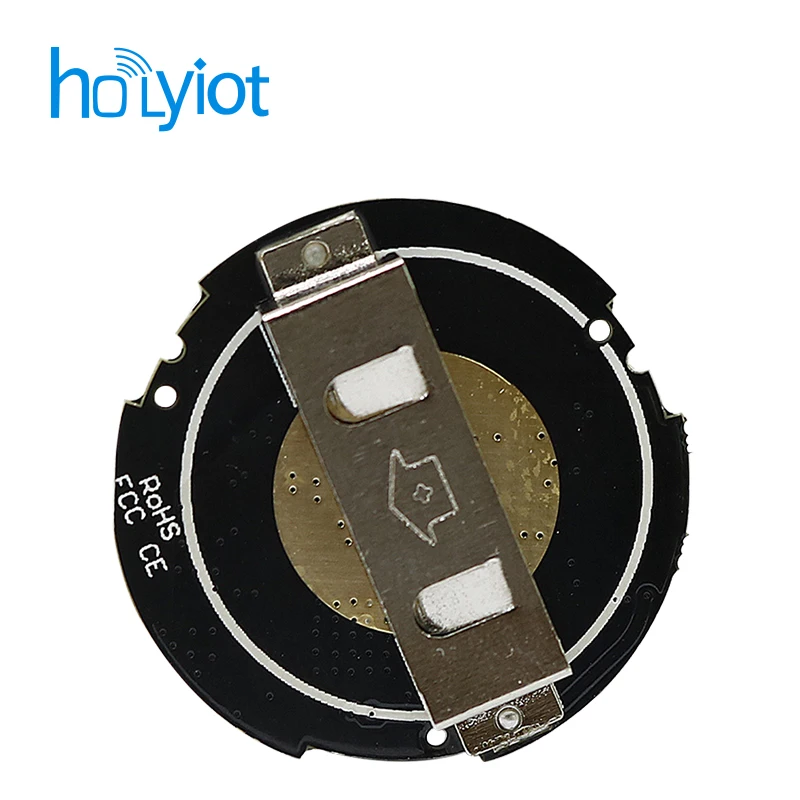

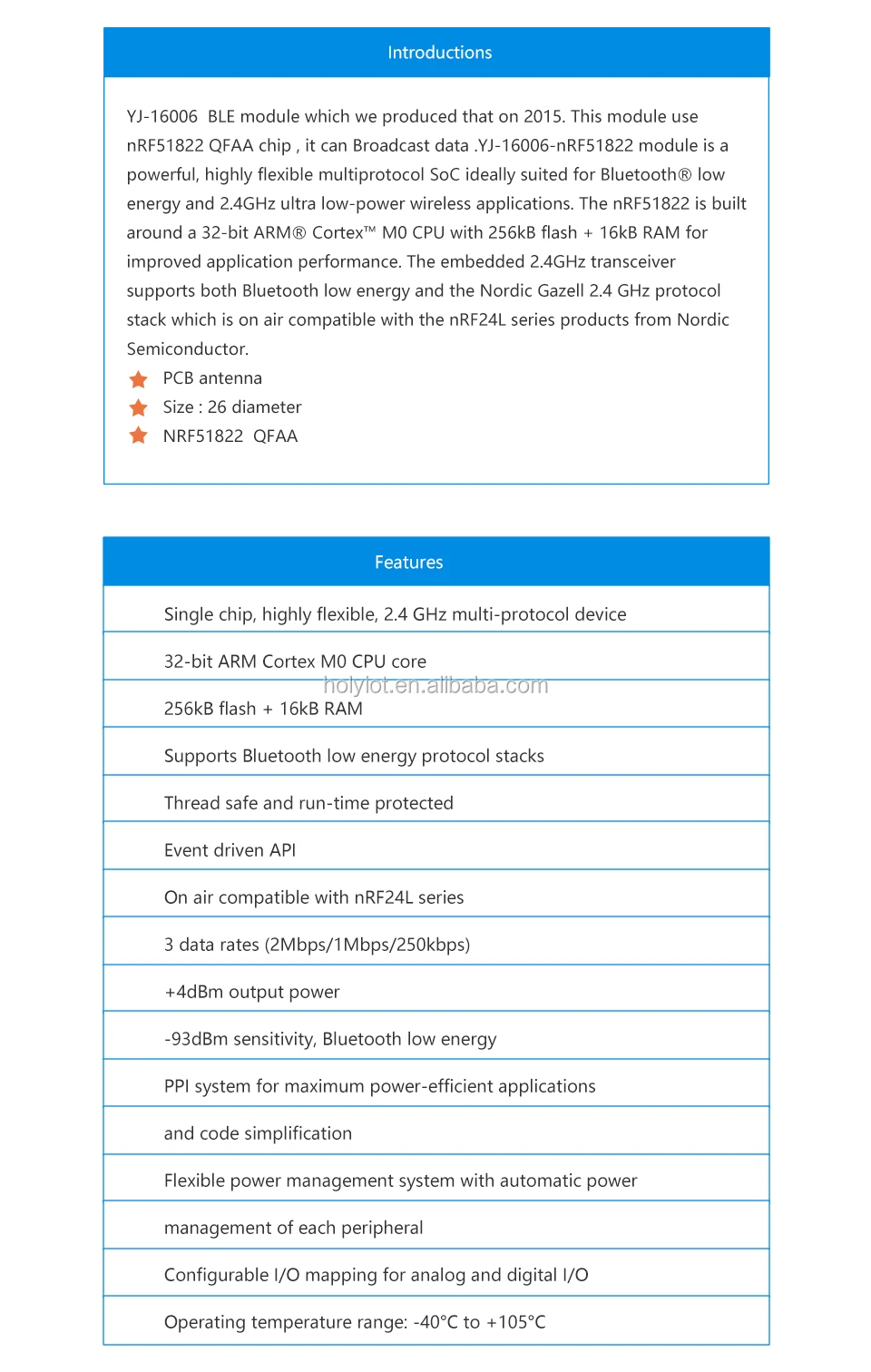

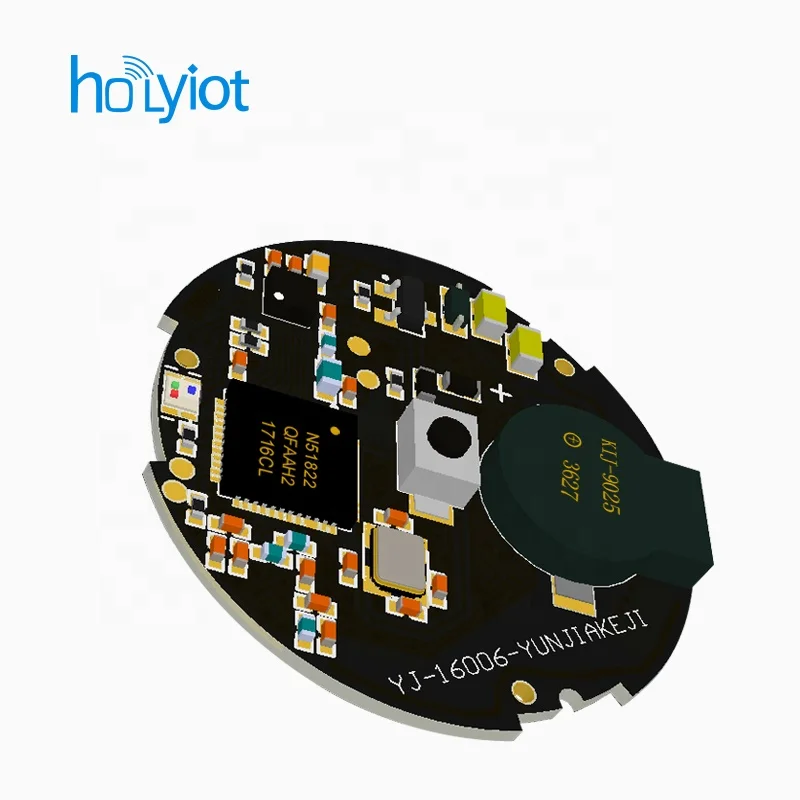

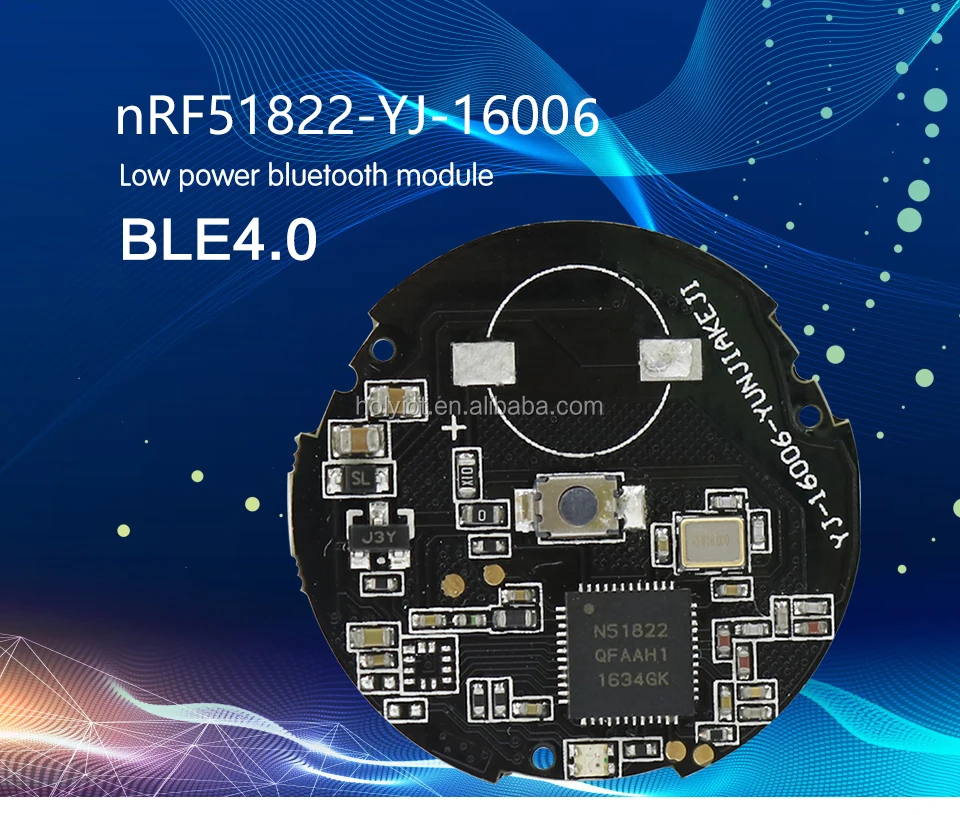

YJ-16006 BLE sensor module use nRF51822 QFAA chip , it can Broadcast data .YJ-16006-nRF51822 module is a powerful, highly flexible multiprotocol SoC ideally suited for Bluetooth® low energy and 2.4GHz ultra low-power wireless applications. The nRF51822 is built around a 32-bit ARM® Cortex™ M0 CPU with 256kB flash + 16kB RAM for improved application performance. The embedded 2.4GHz transceiver supports both Bluetooth low energy and the Nordic Gazell 2.4 GHz protocol stack which is on air compatible with the nRF24L series products from Nordic Semiconductor.

PCB antenna

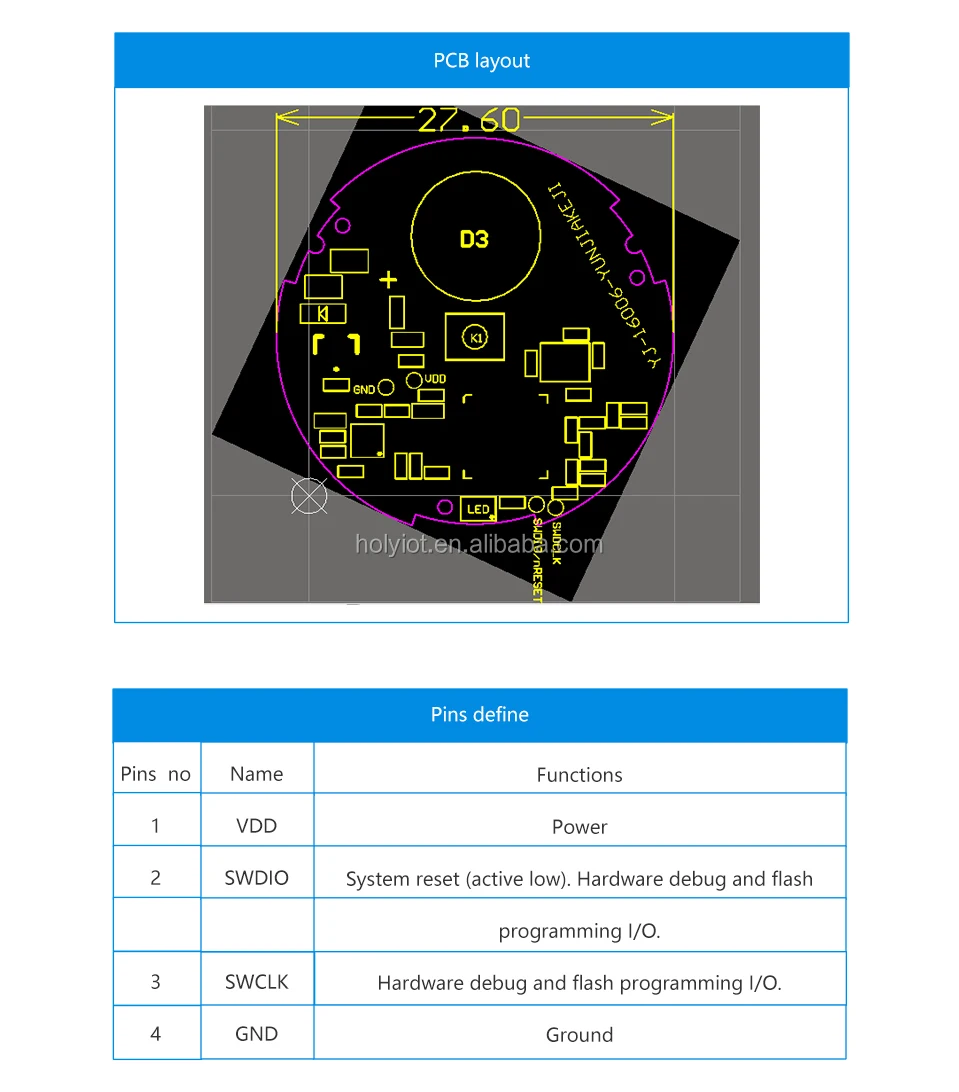

Size : 26 diameter

NRF51822 QFAA

Accelerometer sensor: Lis2dh12

Features :

Single chip, highly flexible, 2.4 GHz multi-protocol device

32-bit ARM Cortex M0 CPU core

256kB flash + 16kB RAM

Supports Bluetooth low energy protocol stacks

Thread safe and run-time protected

Event driven API

On air compatible with nRF24L series

3 data rates (2Mbps/1Mbps/250kbps)

+4dBm output power

-93dBm sensitivity, Bluetooth low energy

PPI system for maximum power-efficient applications and code simplification

Flexible power management system with automatic power management of each peripheral

Configurable I/O mapping for analog and digital I/O

Operating temperature range: -40°C to +105°C

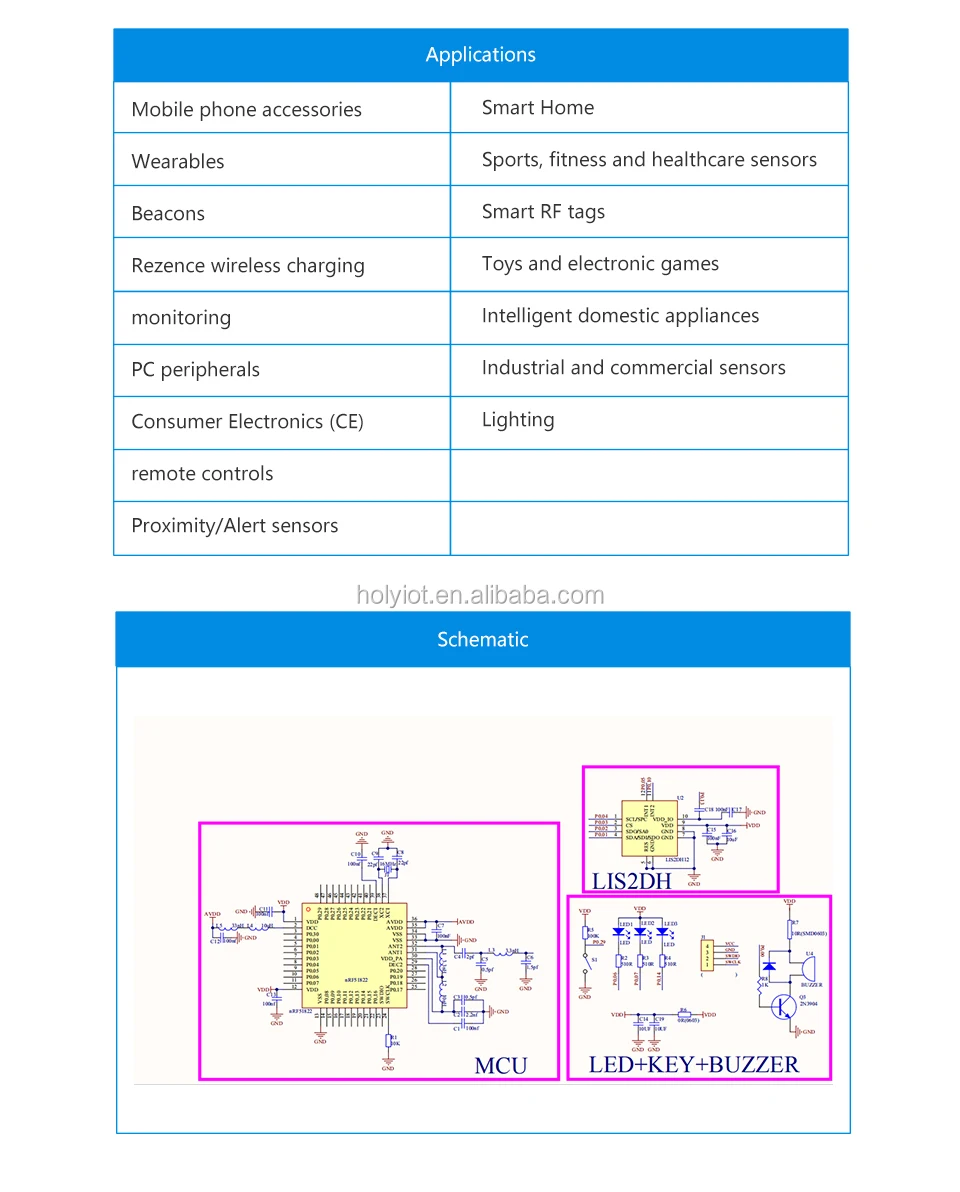

Applications :

Mobile phone accessories

Wearables

Beacons

Rezence wireless charging monitoring

PC peripherals

Consumer Electronics (CE) remote controls

Proximity/Alert sensors

Smart Home

Sports, fitness and healthcare sensors

Smart RF tags

Toys and electronic games

Intelligent domestic appliances

Industrial and commercial sensors

Lighting
