CZ0 150/20 150A double pole CZ0 Series DC electrical contactor magnetic
- Category: >>>
- Supplier: Zhejiang Weikesen Power Technology Co. Ltd.
Share on (62264573204):
Product Overview
Description

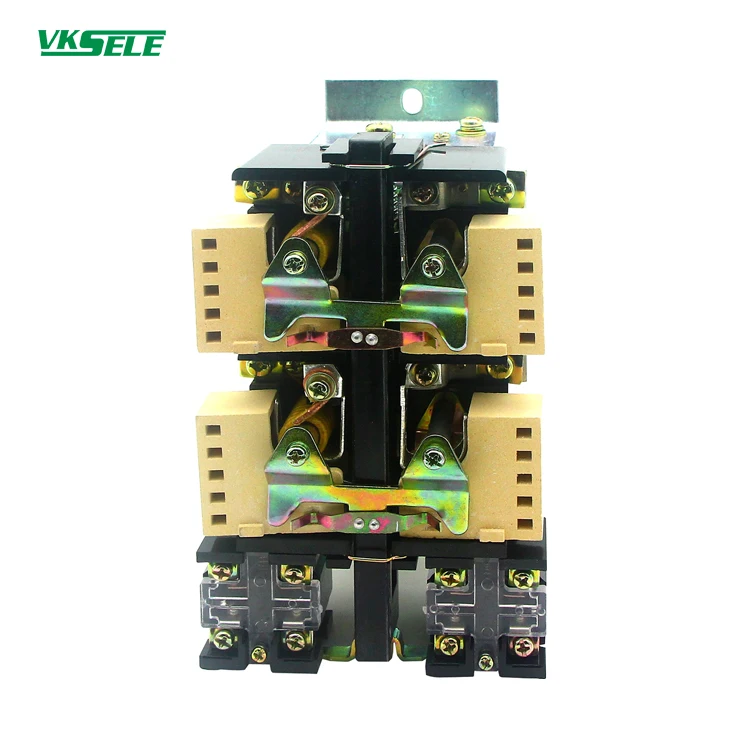

CZ0-150/20 150A double pole CZ0 Series DC electrical contactor magnetic
Product Description
Model Explanation:
Main Technical Parameter:
| Model | Pole | Main contact | Segmentation circuit(A) | Auxiliary contact | Arcing distance(mm) | ||
| NO | NC | NO | NC | ||||
| CZ0-40C | Double | 2 | — | 100 | — | — | 50 |
| CZ0-40CA | Double | 2 | — | 160 | 2 | 2 | 50 |
| CZ0-40/20 | Double | 2 | — | 160 | 2 | 2 | 50 |
| CZ0-40/02 | Double | — | 2 | 160 | 2 | 2 | 50 |
| CZ0-100/10 | Single | 1 | — | 400 | 2 | 2 | 70 |
| CZ0-100/01 | Single | — | 1 | 250 | 2 | 2 | 70 |
| CZ0-100/20 | Double | 2 | — | 400 | 2 | 2 | 70 |
| CZ0-150/10 | Single | 1 | — | 600 | 2 | 2 | 100 |
| CZ0-150/01 | Single | — | 1 | 375 | 2 | 2 | 100 |
| CZ0-150/20 | Double | 2 | — | 600 | 2 | 2 | 100 |

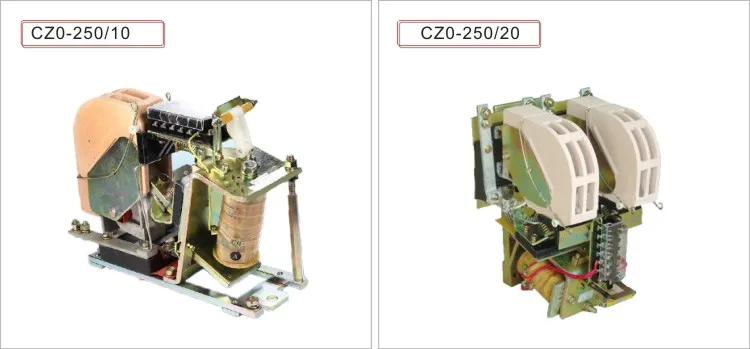

| CZ0-250/10 | Single | 1 | — | 1000 | 3 | 3 | 120 |
| CZ0-250/20 | Double | 2 | — | 1000 | 3 | 3 | 120 |
| CZ0-400/10 | Single | 1 | — | 1600 | 3 | 3 | 150 |
| CZ0-400/20 | Double | 2 | — | 1600 | 3 | 3 | 150 |
| CZ0-600/10 | Single | 1 | — | 2400 | 3 | 3 | 180 |

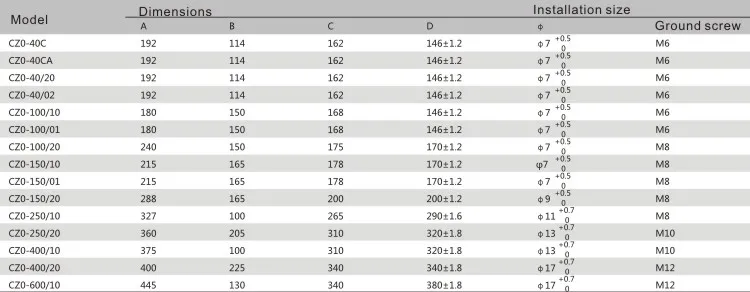

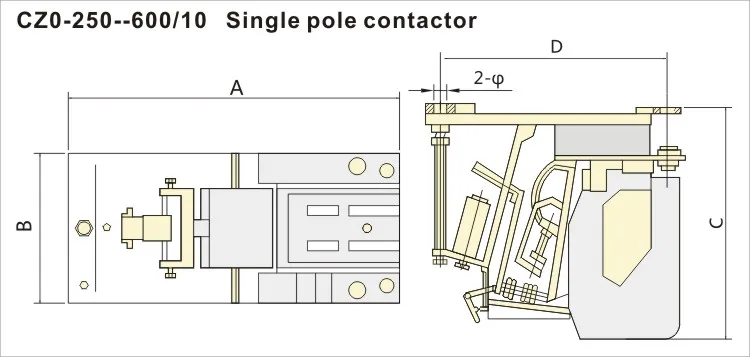

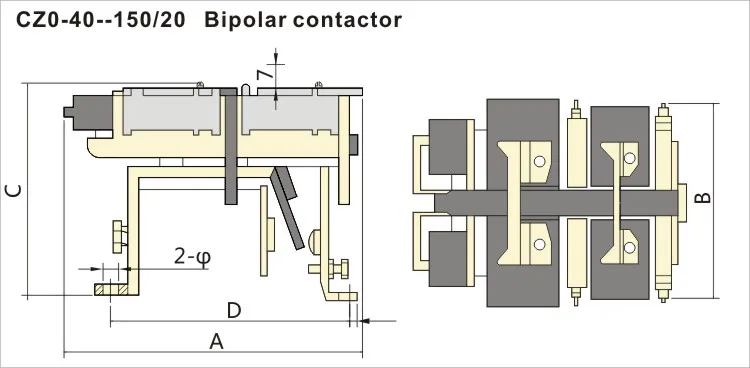

Dimensions:

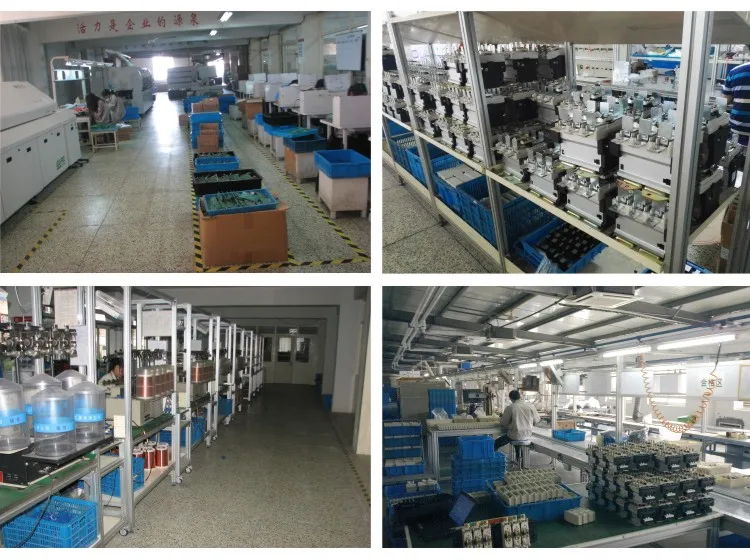

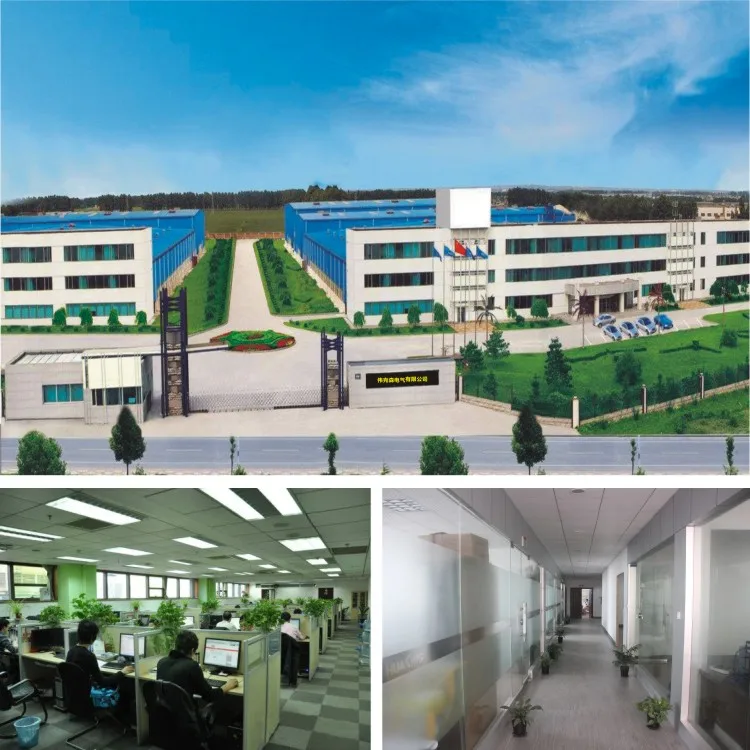

Company Information
