Compact Vacuum Mixer with Vibration Stage & Two Containers (150 & 500ml) for Battery Electrode Slurry Mixing
- Category: >>>
- Supplier: Xiamen Lith Machine Limited
Share on (62264858559):
Product Overview
Description
Product Description
Compact Vacuum Mixer with Vibration Stage & Two Containers (150 & 500ml) for Battery Electrode Slurry Mixing
Features
LITH-MSK-SFM-7 is designed to produce coating slurry by mixing the small batch of chemical and compound (500 ml Max., up to 30000mPa.s) under vacuum to remove gas bubble and protect the sample from oxidation. It has a built-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed @ 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab.
Specifications
Voltage Input | 1. Single Phase 110VAC or 220VAC ( please choose from product options bar ) 2. 220V AC Power plug is not included. |
Power | 150W |
Rotary Speed | 320 rpm |

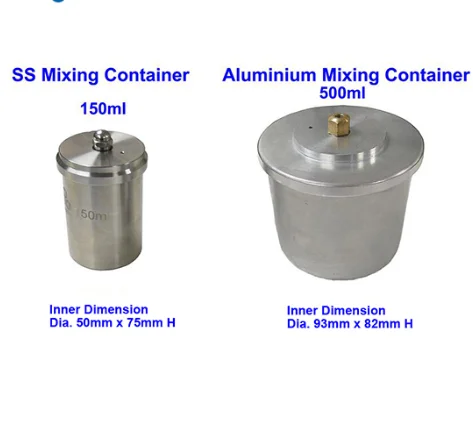

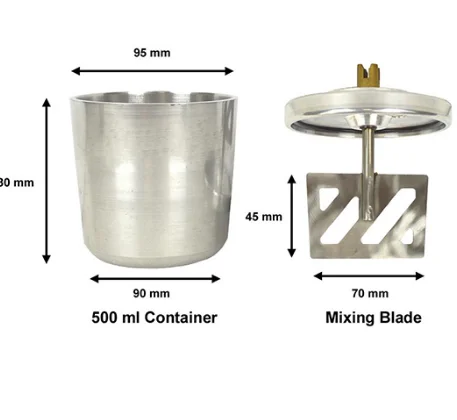

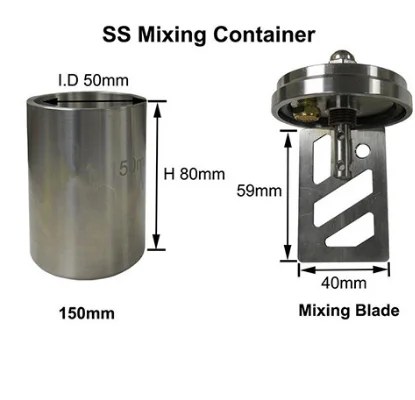

| 1. Two vacuum sealed containers are included. One 150ml stainless steel and one 500ml aluminum set. 2. Mixing blade is built-in to the top of the container. 3. Metal filter prevents solid particles from being sucked into the vacuum pump |
Option 30mL SS container is available at extra cost Option NEW Helical mixing blade 500ml Aluminum Tank Mixing Container is available at extra cost | |
Vacuum pump & Vacuum Level | 1. Built in single stage vacuum pump 2. Vacuum Level: -0.08~0.09 Mpa |
Mixing Time | 0~99 Minutes Adjustable |
Vibration Plate | Vibrating at 1000 Hz |
Dimensions | 13''L x 12''W x 21''H |
Shipping Dimensions | 16''L x 15''W x 24''H |
Net Weight | 70 lbs |
Compliance | CE certified |
Application Notes | The main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. |
Vacuum Oil Tank Refill | 1. Notice: Operating the mixer with insufficient oil will damage the pump. Check the oil level window on the right side of the machine. If there is less than half tank of oil, refill oil from the oil tank opening on the top of the machine. 2. Refill the tank to have oil level above half full indicated by the red dotted line in the picture to the left. |
Warranty | One year limited with lifetime support |
Product Images
Related Products
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
