Grain micro powder pulverizer Rice mill machine wheat flour mill
- Category: >>>
- Supplier: Wuxi Rela Pharma Machinery Co. Ltd.
Share on (62264897361):
Product Overview
Description
Product Description
Grain micro powder pulverizer Rice mill machine wheat flour mill
Application
RELAl FJ Dust-Collection Mill is a multifunctional fine powder grinde r with simple dust collection system. It can grind powder at 20-120mesh. It is widely application for chemical industry, foodstuff industry, etc. such as sugar, salt. crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean,coffee,etc.
Technical Parameters
Model | LFJ- 180 | LFJ- 20B | LFJ- 30B | LFJ- 40B | LFJ- 60B | LFJ- 80B | LFJ- 100B |
Capacity ( kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | 80-1200 | 150-2000 | 300-3000 |
Speed ( rpm) | 5500 | 5300 | 4500 | 3800 | 3000 | 2100 | 1600 |
Input size |
<10 | ||||||
Output size ( mm) |
12-120 | ||||||
Main Power ( KW ) | 2.2 | 4 | 5.5 | 7.5 | 22 | 30 | 45 |
Fan Power ( KW ) | 0.37 | 0.55 | 0.55 | 1.1 | 1.5 | 1.5 | 1.5 |
Dimension ( mm ) | L: 1000 W: 500 H :1300 | L: 1100 W: 600 H :1600 | L: 1300 W: 700 H :1700 | L: 1400 W: 750 H :1900 | L: 2000 W: 980 H :2000 | L: 2200 W: 1100 H :2400 | L: 2300 W: 1500 H :2600 |
Weight ( kg ) | 180 | 260 | 350 | 450 | 900 | 1300 | 1500 |

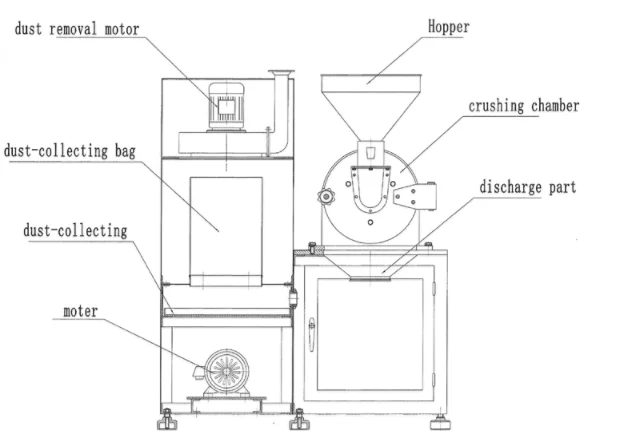

Working Principle

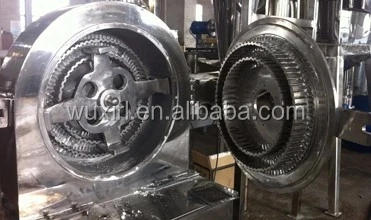

There are a discwit h several moving tools as a rotor and serrated liners as stator. The big raw material. being fed into the crushing chamber through a hopper, is sheared, cut. impacted into small size by the rotor and stator. The crushed product goes out automatically via a sieve and discharged from the outlet port. The super fine powder is collected by the filter pockets.So there is no dust fly during working. It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc.
Detailed Images
Company Information
WUXI RELA MACHINERY CO.,LTD,with more than 10 years experience,is focused on the powder solution,from the unit machine to the production line.Our main products are Pulverizer,Mixing Machine,Conveying Machine,Sifting Machine,Granulator,Dryer,etc.,which are application to foodstuff,food additives,chemical raw material,baking ingredients,etc.
'RELA' Machinery:
Refine Quality &Service:as quality and service is the basis of a company we are striving to improve our product quality and provide better service to our customers.
Efficiency makes benefit.
Learning and innovation is the way of success.
Attitude decides everything.
Certifications
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship
Packaging & Shipping
Packaging Details
-Pre-pack by Plastic Film
-Plywood Case
If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
FAQ
About Grain micro powder pulverizer Rice mill machine wheat flour mill:
1) What capacity you expect ? (kg/h)
2) What mesh or mm or micron(size) of the powder you want?
