Transmission Line Equipment Hydraulic Brake Wire Pulling Tensioner

Product Overview

Description

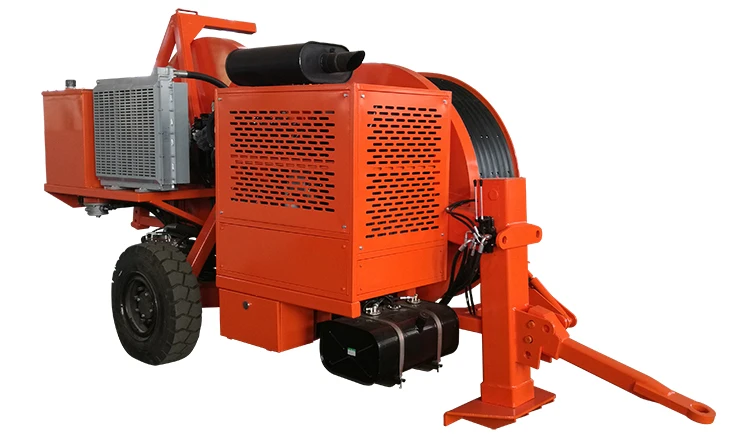

TY1x60 Transmission Line Equipment 77kw(103hp) Hydraulic Tensioner



The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.



Characteristics

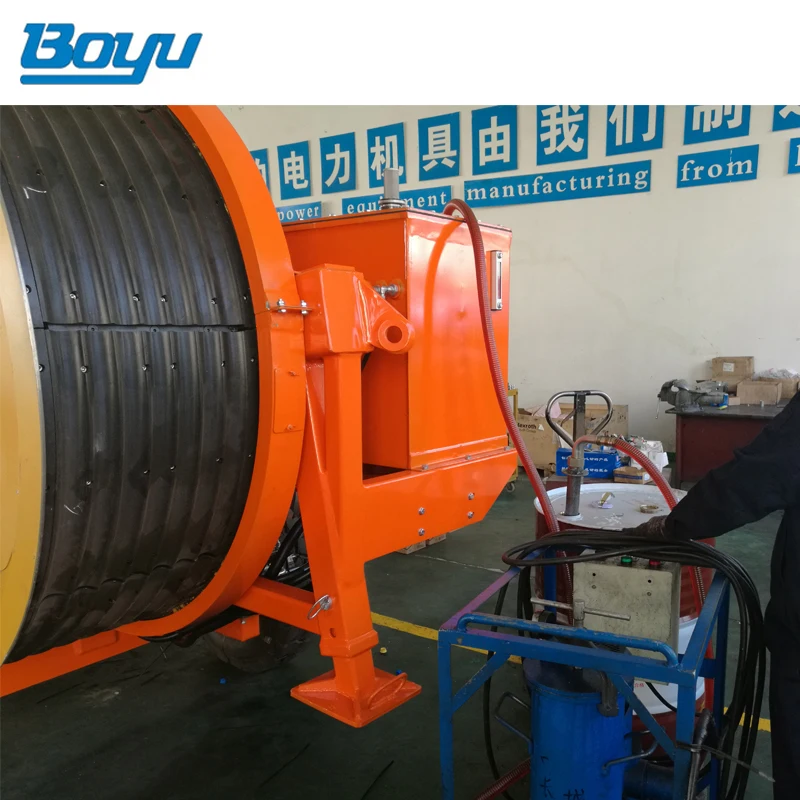

Bull-wheel diameter	1500mm
Max conductor diameter	40mm
Groove width	65mm
Groove number	6
Total weight	4800kg
Overall dimension (length*width*height)	4300×2050×2600mm
Performance
Max intermittent pull	70kN
Max continuous pull	60kN
Speed at max pull	2.5km/h
Max speed	5km/h
Pull at max speed	35kN
Max reverse pulling force	50kN
Max reverse pulling speed	5km/h



Main configuration

• Engine: Cummins

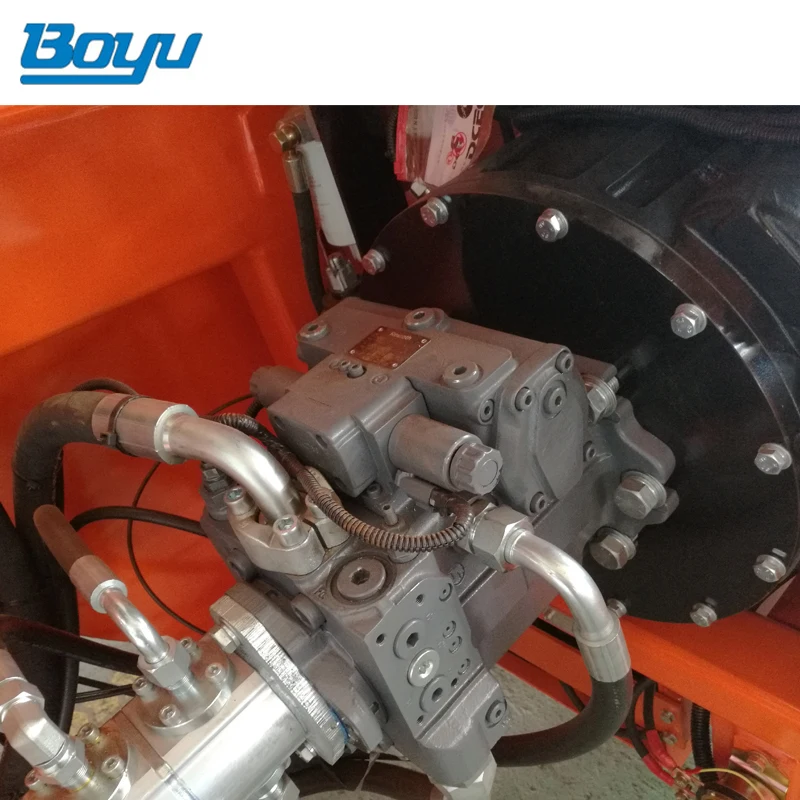

• Hydraulic pump: German Rexroth/Dnish Danfoss
• Main motor:German Rexroth/French Leduc
• Speed reducer: German Rexroth
• Hydraulic meter: German WIKA
• Operating handle: German Rexroth

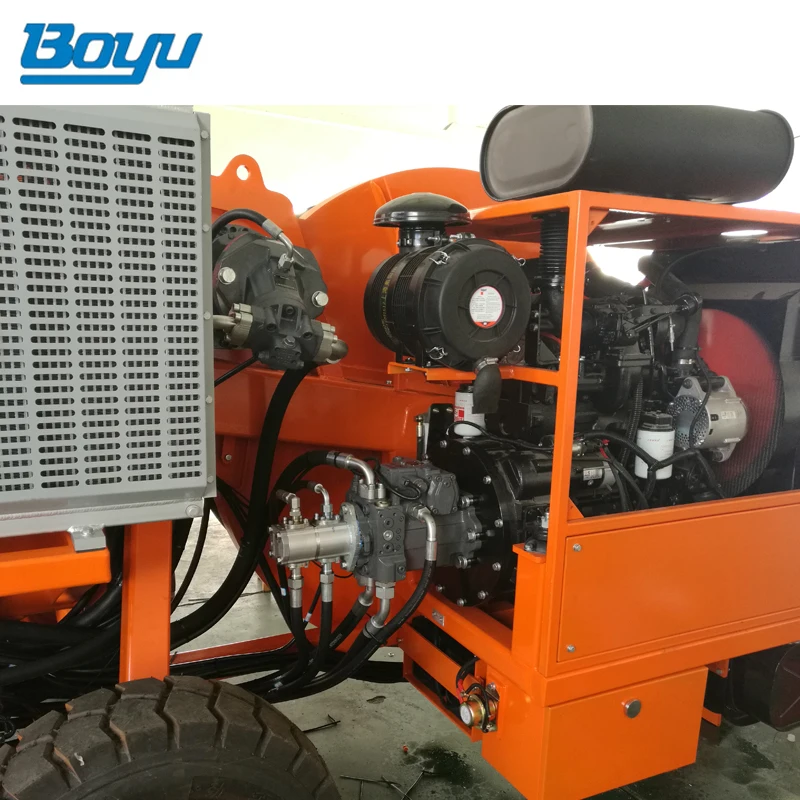

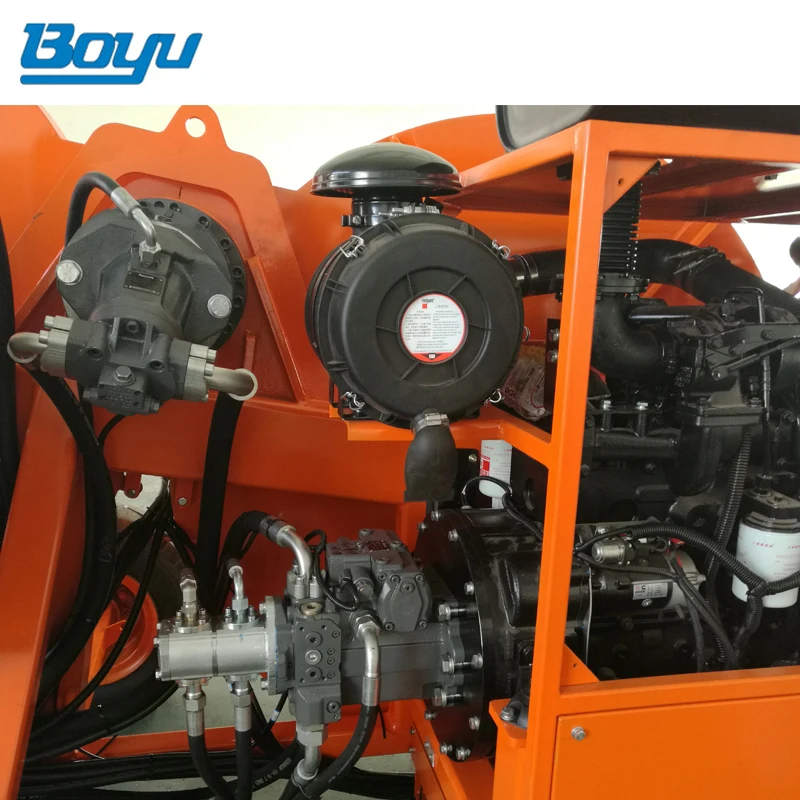

Engine

• Diesel: 77kw(103hp)
• Cooling system: water
• Electrical system: 24V



Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.



Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Electric meter counters
• Grounding connection point



Additional Devices

• Lighting system for the trailer
• Hydraulic rope clamp for reel change(extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h
• Extra shaft
• Digital speed and meter counter





Company

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Established in 1994, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
