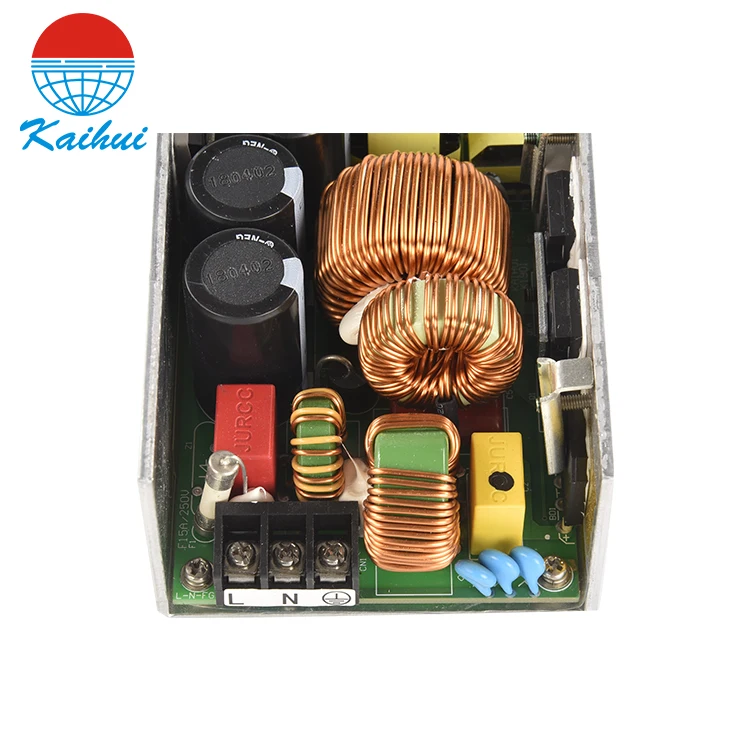

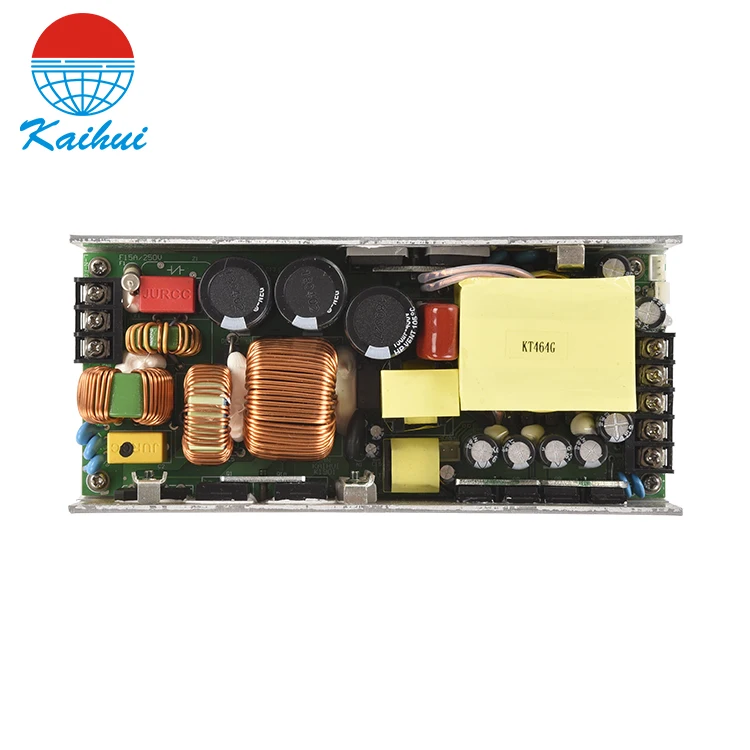

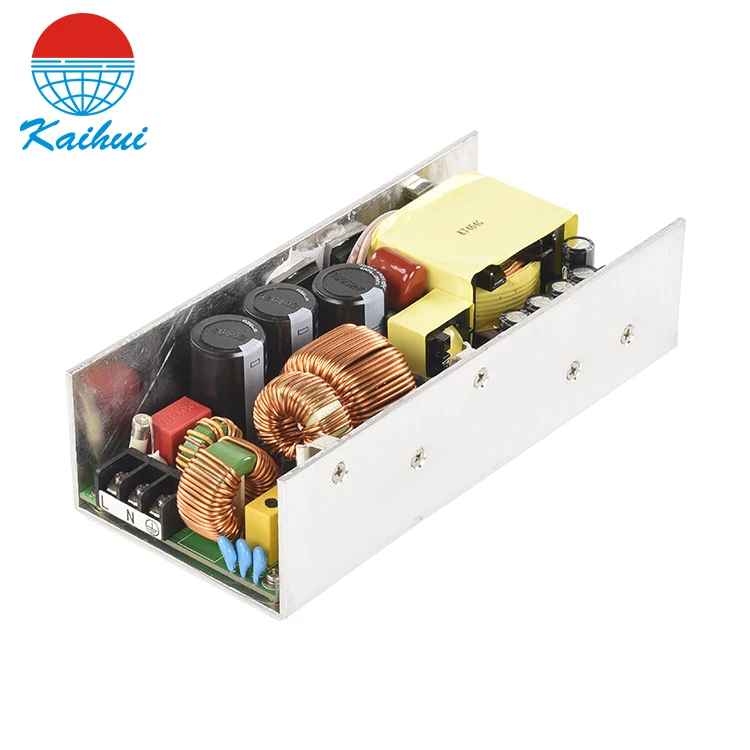

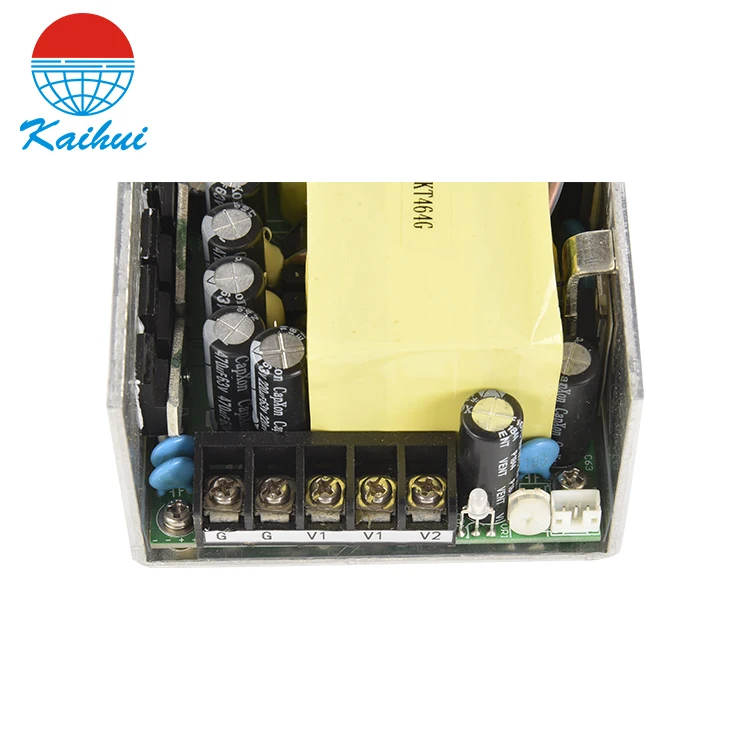

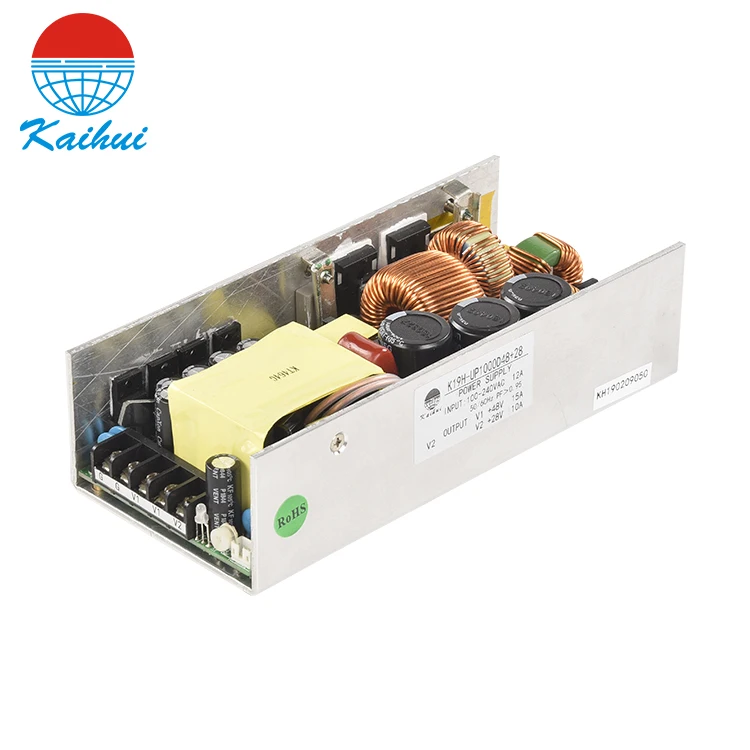

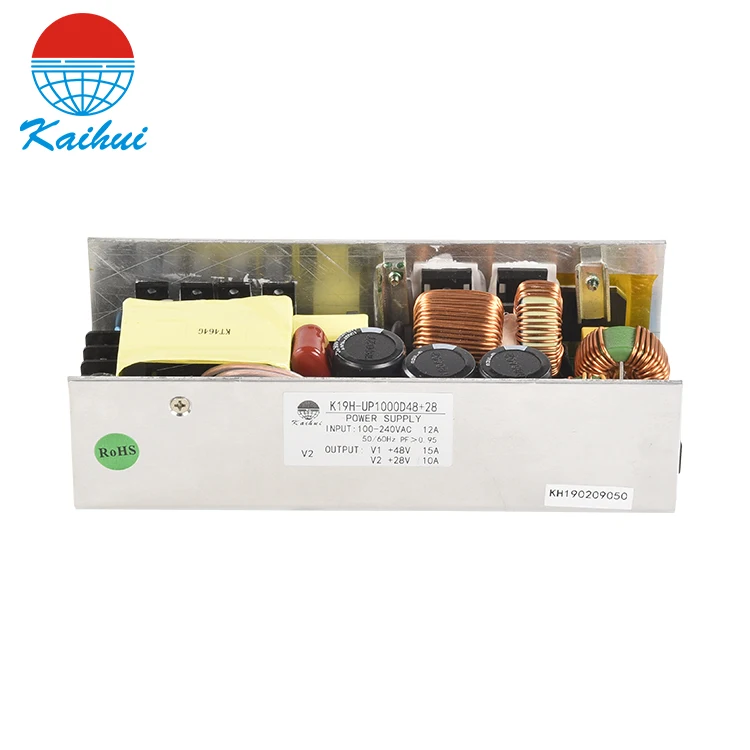

High reliability open frame smps 21a ac to dc 1kw 48 v power supply

1,Small size,high efficiency;

2,International universal full voltage input;

3,Built-in active PFC function;

4, Built in filter,low noise,high reliability;

5,Overload,short circuit,low-voltage,over-voltage,over-temperature etc. protection function

 parameter           Item No.

K19H-UP1000S12

K19H-UP1000S24

K19H-UP1000S36

K19H-UP1000S48

OUTPUT

DC Output Voltage

+36V

+48V

 Rated Current

Current Range

Rated power(10cfm fan)

Ripple

ADJ.output range

Output Accuracy

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Hold up time

1000ms, 30ms, 10ms/115VAC   500ms, 30ms, 20ms/230VAC

INPUT

Input Voltage range

Input current

12A/115V;6A/230V

Input frequency

50-60Hz

>0.9@220V,>0.95@110V

Efficiency

90%@230VAC

92%@230VAC

92%@230VAC

93%@230VAC

PROTECTION

105℃ Protection, Type:Shut down o/p voltage,Auto-recover after temperature down

ENVIRONMENT

Working Temp.,Humidity

-20~60 ℃,10~90% RH , No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH.

Temp.Coefficeent

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACHAXES

SAFETY&EMC

Safety standards

GB4943

I/P-O/P:1.5KV; I/P-FG:1.5KV;O/P-FG:0.5KV AC 1min

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

EN55022 CLASS A,EN61000-3-2

OTHER

Dimension

180*82*48MM

Weight

1.5Kg

1,  All parameter 230VAC input,rated load,environment temperature 25℃,measured under conditions of 70% humidity;

2, Accuracy:including set up tolerance,line regulation,Load regulation etc;

3, Ripple test:30cm long wire connect power supply and load, load end parallel 0.1u and 47u capacitor,the 20MHz oscilloscope was measured at the load end;

4,  Line regulation:at rated load conditions, the input voltage change from low to high measured;

5,Load regulation:the measured output   from 0-100% load changes measured;
