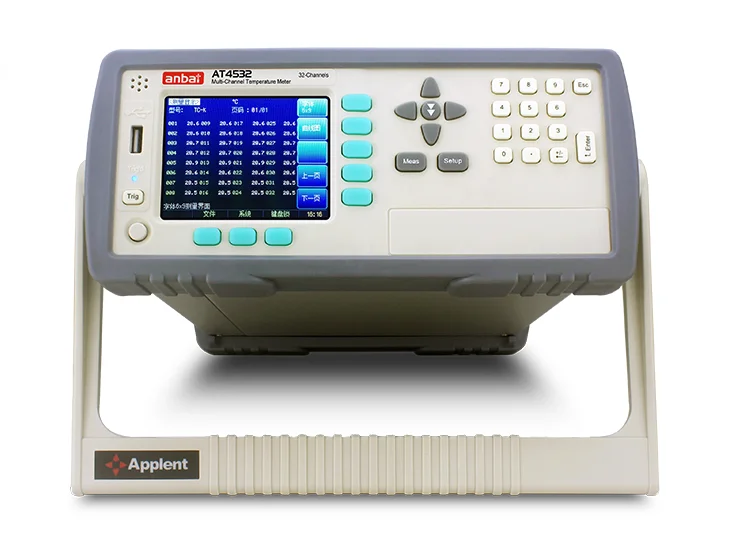

Applent Real time industry temperature monitoring ( 200~1300C) AT4516

 Key Features

1)     Channel : 2,4,8 ,16,24,32 channel for selection

2)     J/K/T/E/S/N/B/R thermocouple

3)     Temperature range: -200 ~1300C (depends on Graduation)

4)     Scan speed: 100ms , 500ms and 1s

5)     Comparator for each channel with alarm

6)     Mini-USB, charging & U disc interface

7)     Standard data collection software

8)     0.5C accuracy of cold junction compensation

10)  Couple detection function, Composite sampling

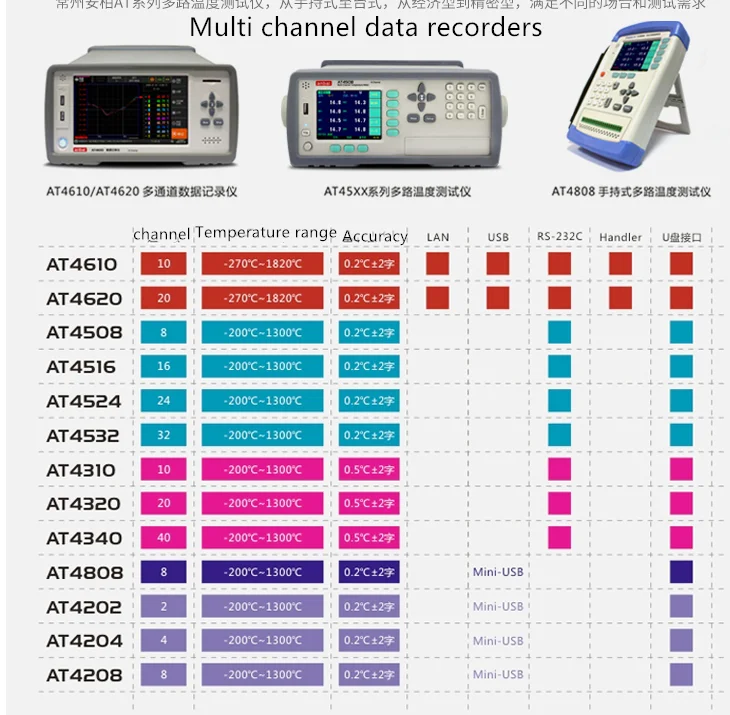

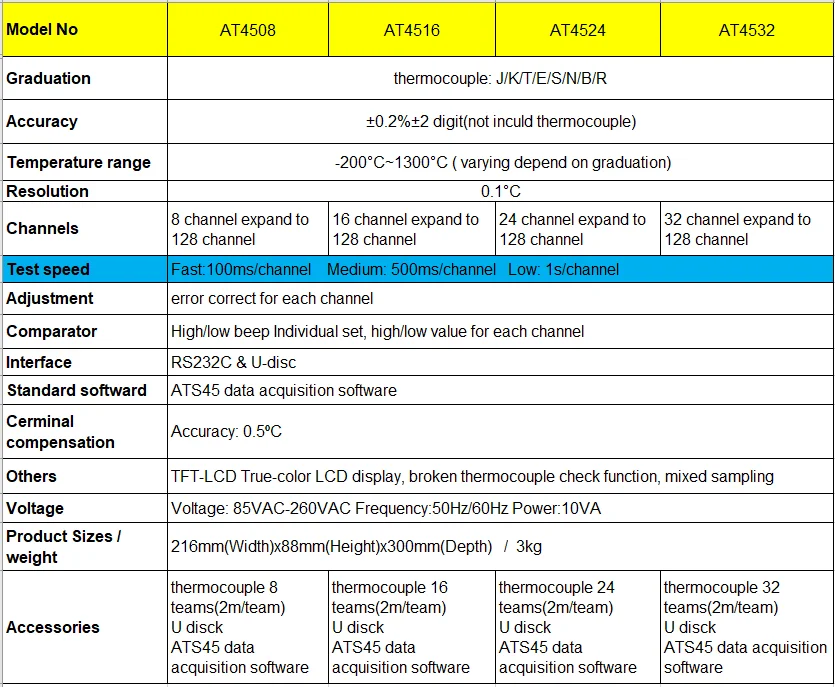

Parameters of each model of temperature data logger

Application

♦  Motor, Home Appliances, temperature controller, oven, transformer, LED, thermal protector, power supply, lighting etc multi point temperature test.

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.
