TECHNICAL DATA SHEET
Model | SV-B08W-1080P/5MP-HX | |
Video | CPU | Hi3516EV300/V200 |
Sensor | 1/2.8" SONY335 | |
Video resolution | Main stream: 2560x1920,2560x1440@15fps(50/60HZ) Sub stream: Q720P(800x600,640x480),QQ720(800x448,640x352@15fps | |
Video compression | H.265,H264 | |
Lens | 3.6mm | |
MIN. ILLUMINATION | 0.1Lux color, 0Lux night | |
View angle | 87° | |
Night vision | 18pcs IR Led Lights, night vision distance 10~20M | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | 8Kbps, 16bit | |
Audio input/output | Built-in MIC and speakers, support two way audio | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, | |
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet | |
Protocol | Support ONVIF 2.4(backward compatible) TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP | |

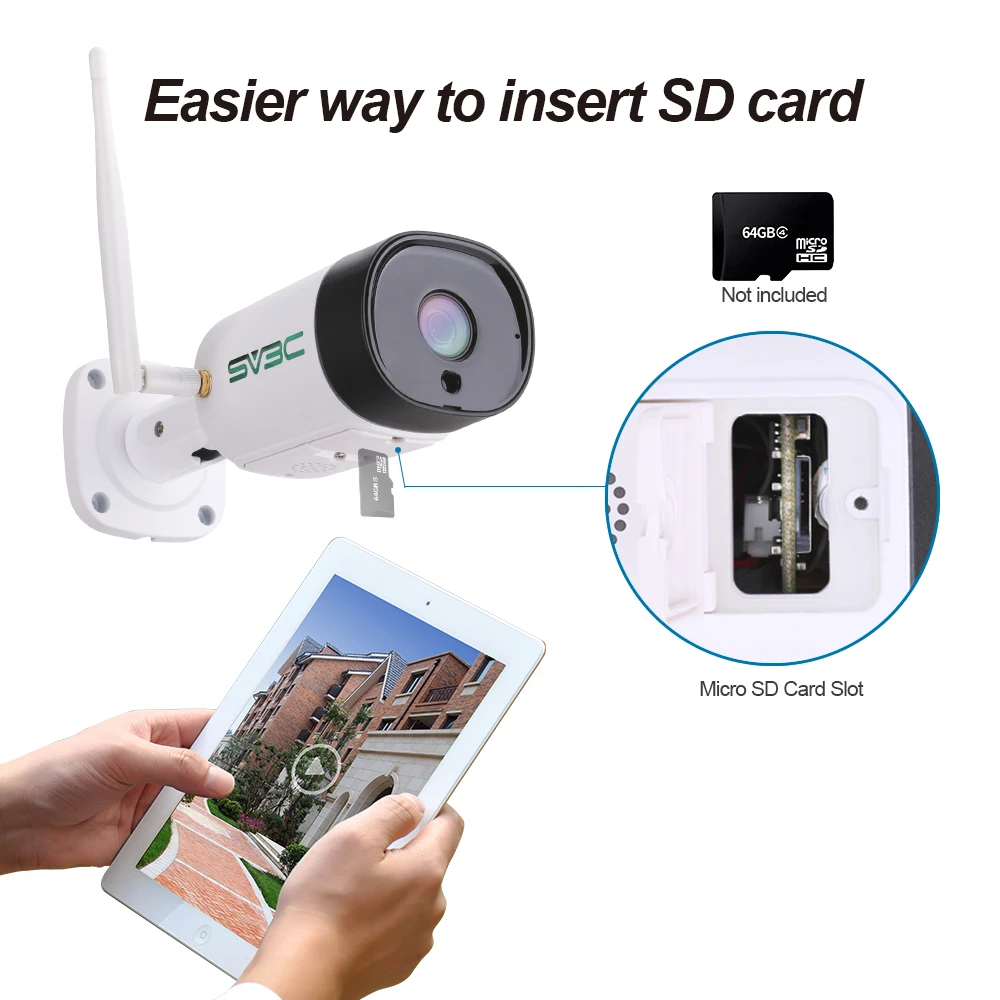

Storage | Micro SD card | Support up to 64G micro SD card |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |
Power | DC12V 1A | |
Operating environment | Environment -10℃~+50℃ | |
Shell material | ||

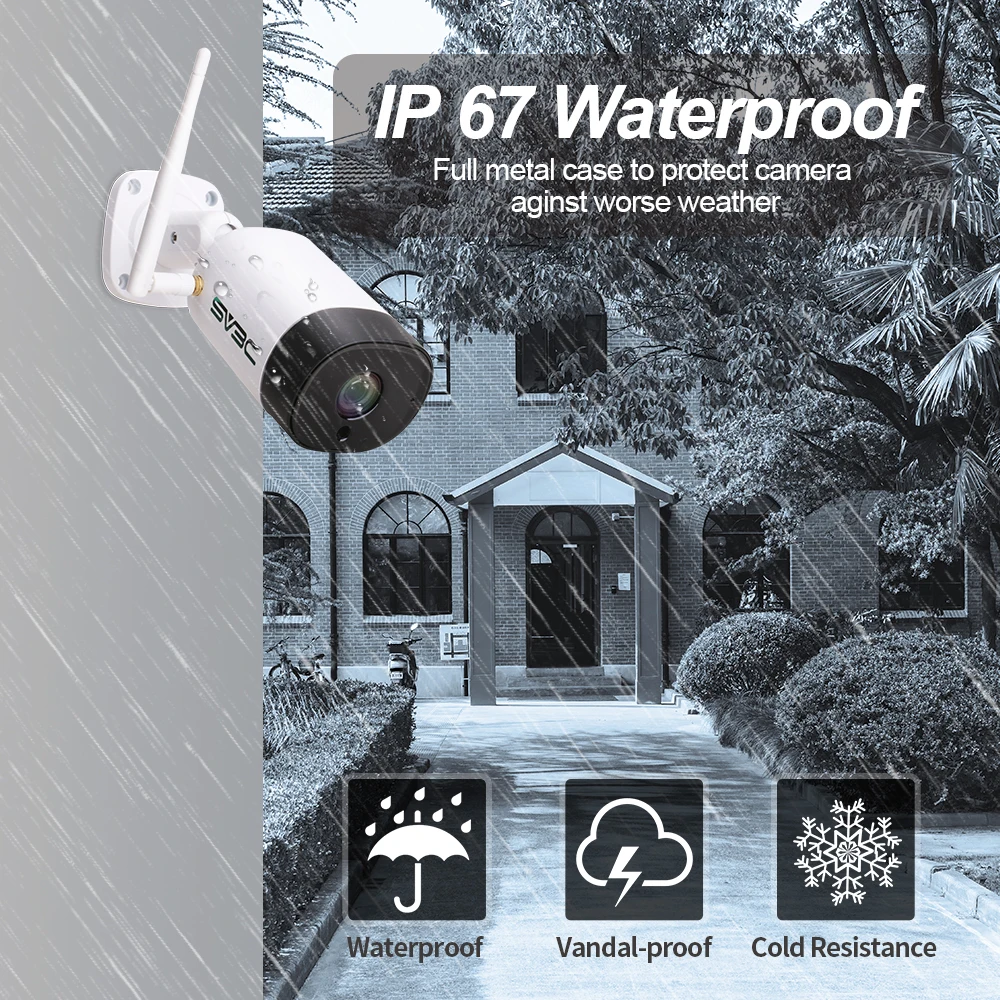

Waterproof level | IP67 | |
Product size | 18.7cm*7.2cm*6cm(L×W×H) | |
Product weight | 0.37kg | |
Package size | 22cm*12cm*10.5cm(L×W×H) | |
Package weight | 0.65kg | |
Reset button | Support | |
SV3C TECHNOLOGY LIMITED was found in 2013, which was specialized in intelligent and security home devices. It is a Hi-tech company which united with R&D, manufacture and marketing. The main products are professional POE IP Camera, Wireless IP Camera, household DIY Camera, accessories etc.
“SV3C” is the leading professional own brand on online business. It has distribution channels throughout America, Europe, Japan and Australia etc.
Certifications: CE, Rohs, FCC, IC-ISED, PSE, LVD, EMC, TELEC etc.

Q: Do you support OEM?
A: Of course, OEM is also our main business range.
Q: How is the delivery time?
A: According to the quantity, normally less than 1000pcs will send out by 5 -10 days.
Q: How can we be your distributor?
A: According to different area, product items and quantity to evaluate. Kindly contact us for detail negotiation.
Q: What about your technicial Support?
A: Firstly, we have perfect and detail instruction manual in different languages. Secondly, we have a technician team to provide technical support.
Q: Do you provide free samples?
A: Dear, our sample fee will return if order quantity is enough.
