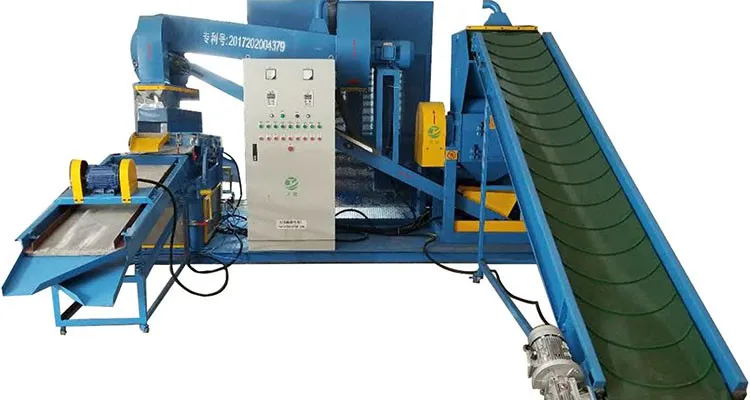

High efficiency Stripping drawing copper equipment / Scrap Copper Cable recycling machine for sale
- Category: Cable Manufacturing Equipment >>>
- Supplier: Wuxi Tengjian Machinery Manufacture Co. Ltd.
Share on (62265075192):
Product Overview
Description
Product Description
It is capable of processing various kinds of waste wires, such as automobile circuits, motorcycle circuits, electric scooters, as well as the wires of TV sets, washing machines, refrigerators, air conditioners, communication facilities, and computers, which are not suitable for processing in other wire stripping machines.
Main Features
(1)The machine is designed in an integrated style with a compact structure and requires no complicated installation. It can be started by simply connecting the power.
(2)It is easy to operate. Only one or two workers who conduct the feeding procedure is needed in the processing results in economical labor cost.
(3)The whole process of crushing, feeding, dust eliminating and separating is carried out automatically.
(4)With the advanced dust collection device and dry separation process, the separated products that can be sold directly.
(2)It is easy to operate. Only one or two workers who conduct the feeding procedure is needed in the processing results in economical labor cost.
(3)The whole process of crushing, feeding, dust eliminating and separating is carried out automatically.
(4)With the advanced dust collection device and dry separation process, the separated products that can be sold directly.
Technical Specifications | ||||||||
Model | TJ-D600 | TJ-C600 | TJ-B600 | TJ-A600 | ||||
Processing diameter | 0.2-20mm | 0.2-20mm | 0.2-40mm | 0.2-40mm | ||||
Size(LxWxH) | 4*5*2.35m | 8*5*2.35m | 5*6*2.35m | 9*5*2.35m | ||||
Machine weight | 3t | 5t | 5.5t | 6.5t | ||||
Total Motor Power | 43.23kw | 51.98kw | 65.23kw | 73.98kw | ||||
Production/h | 300-400kg/h | 300-400kg/h | 400-500kg/h | 400-500kg/h | ||||
Separating Rate | 99.9% | 5t | 6t | 7.5t | ||||
Voltage | 220V/380V(voltage can be customized by customer's requirements) | 89.48kw | 98.73kw | 111.48kw | ||||

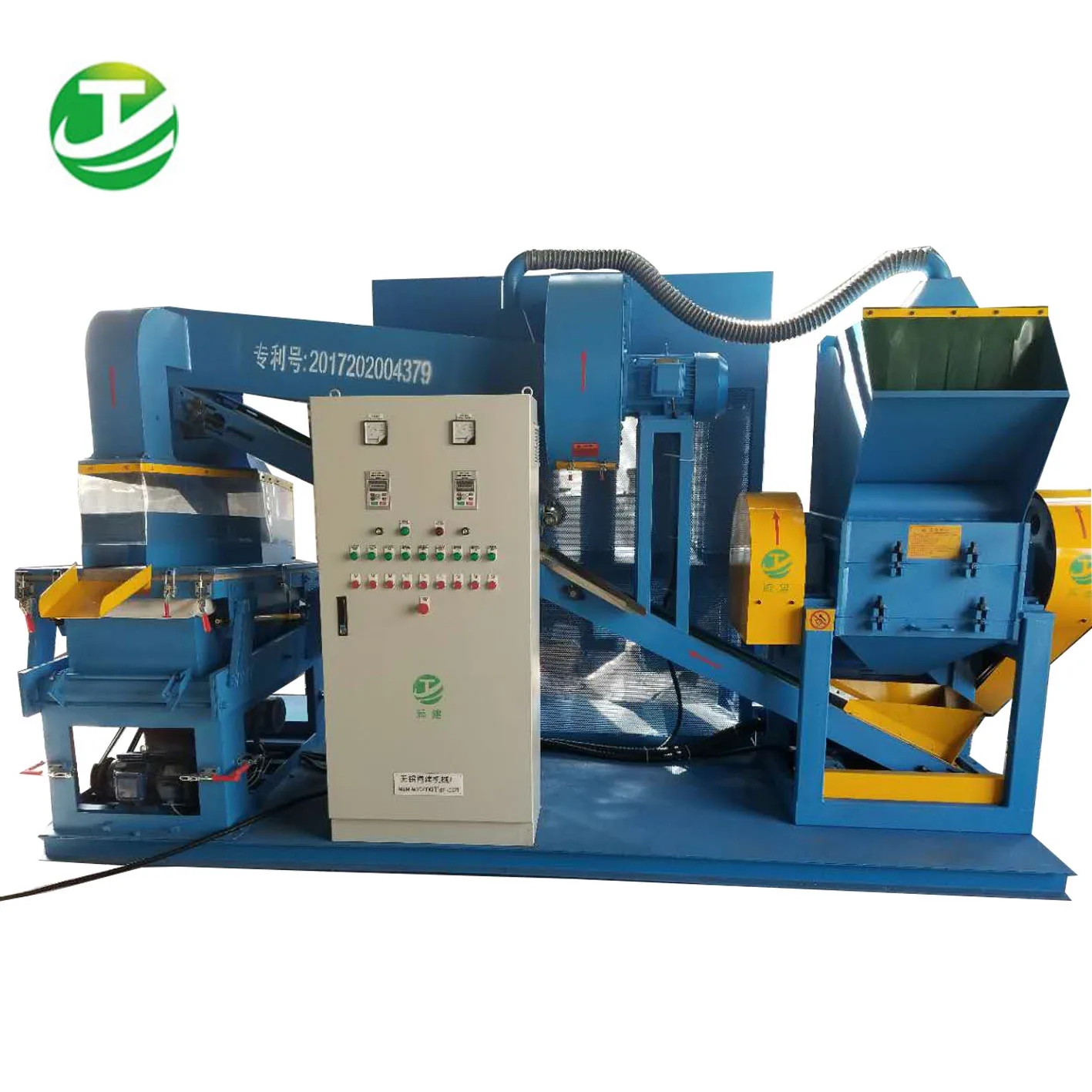

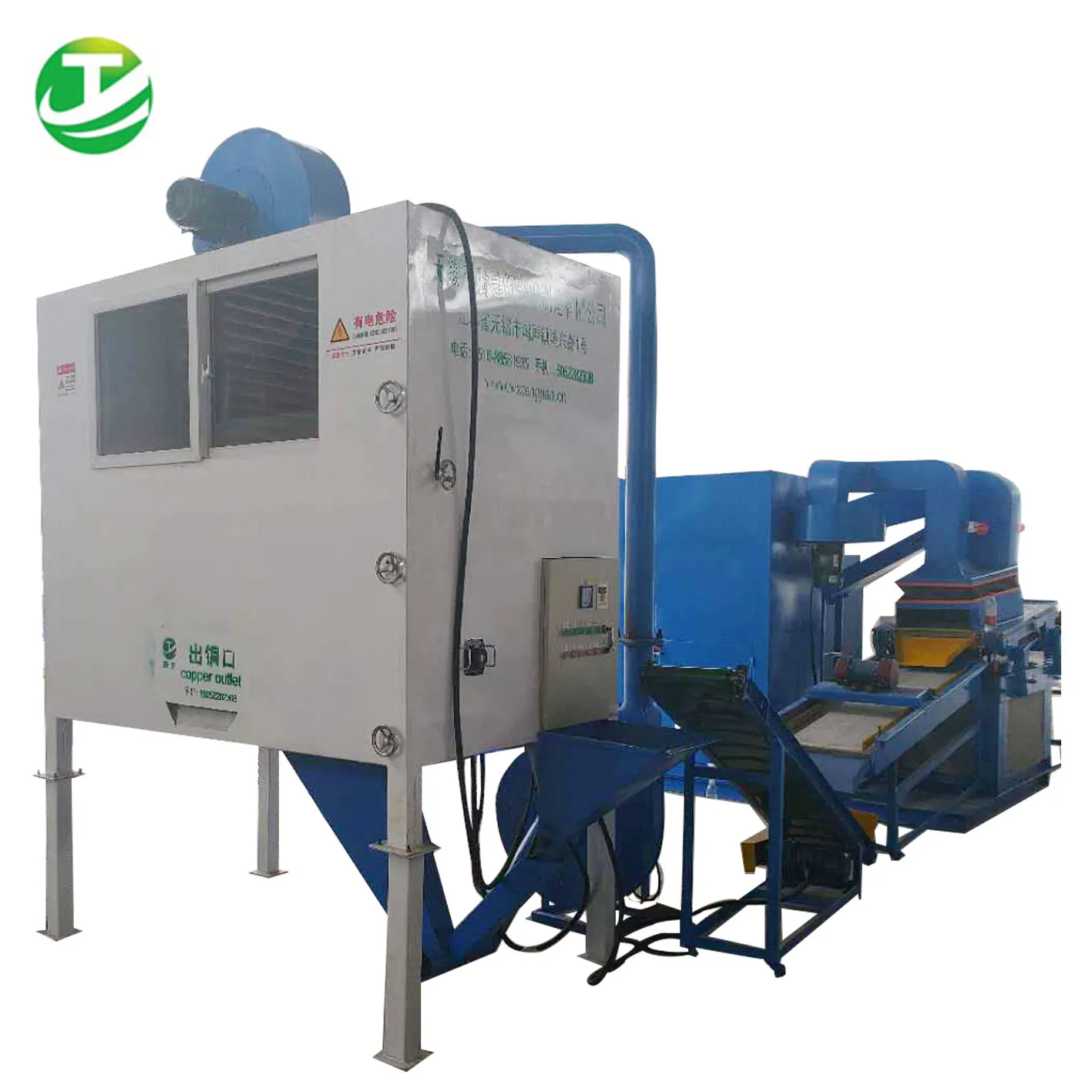

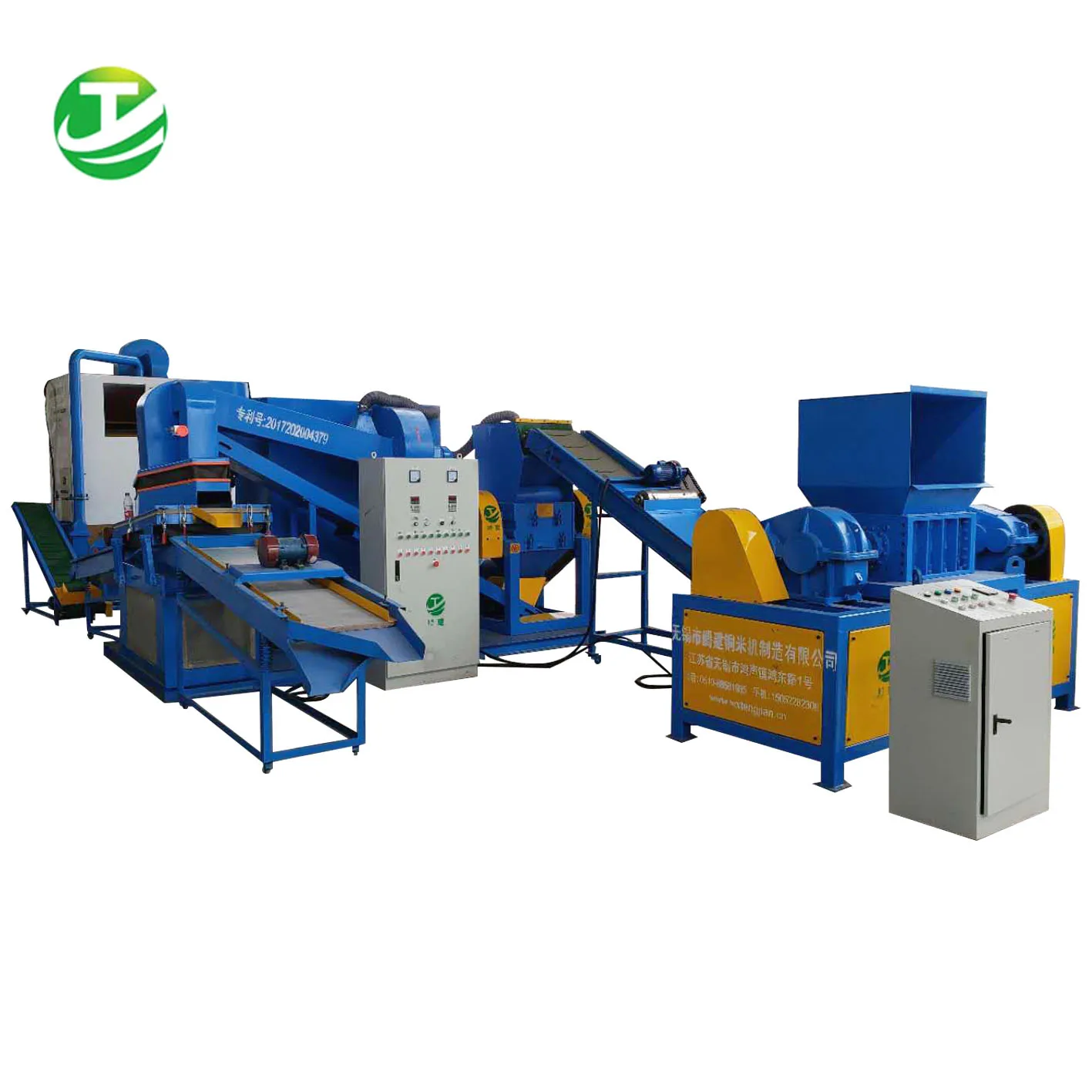

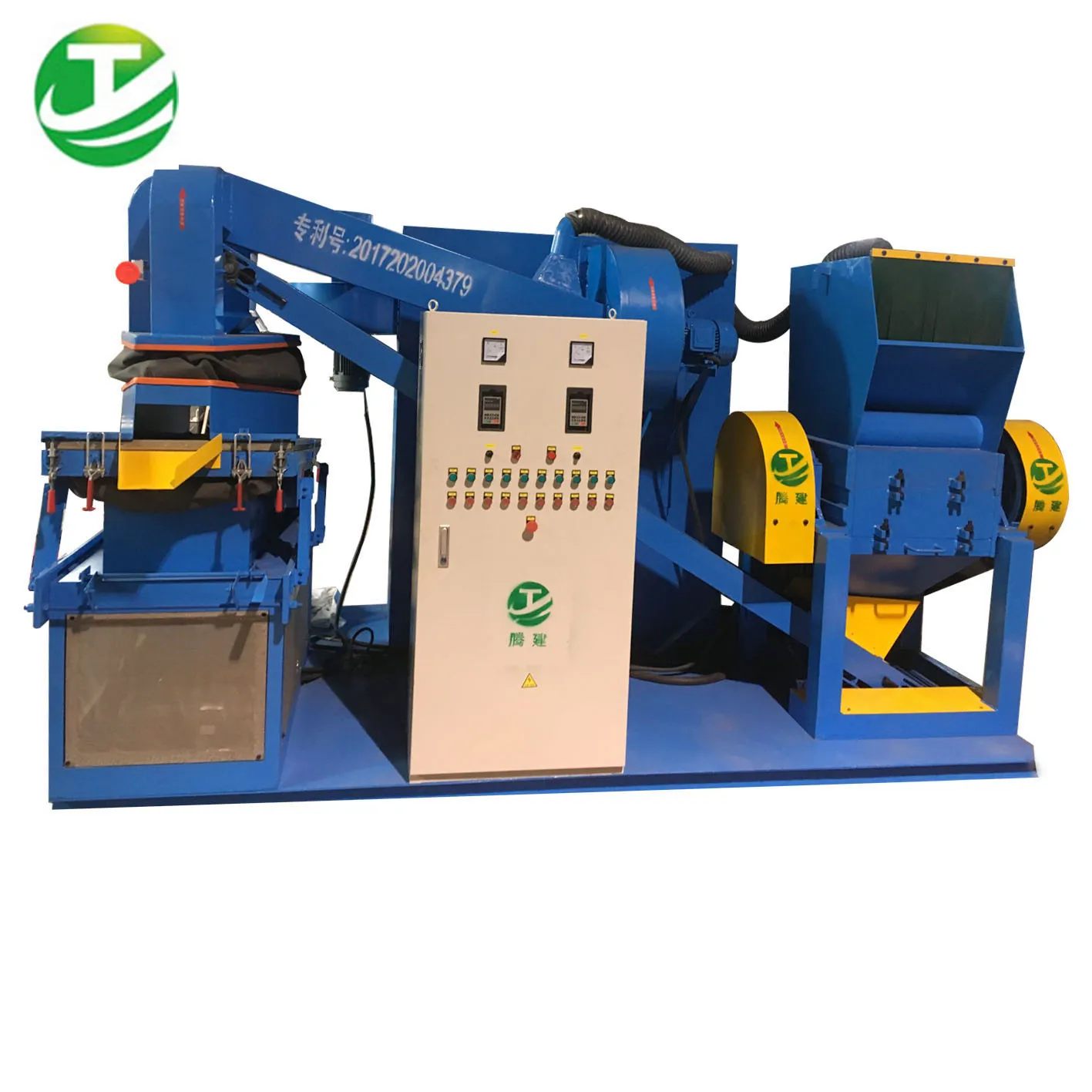

Detailed Images
Processing of the machine
(1)The shredder machine could destroy the scrap cable into small pieces 5-10cm
(2)The conveyor belt is used for feeding, and the cable cut by the shredder is fed into the crusher.
(3)The crusher machine could destroy the cable pieces into more small pieces of any sizes appointed,
2-4mm.
(4)After crushing, the sheath and core can be separated and gathered at different areas of the screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles and plastic. The dust is collected by suction.
Certifications
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing&Shipping
The normal packaging is bare.
If export to distant foreign countries, we will use pe film for packing or pack it according to customers special request.
If export to distant foreign countries, we will use pe film for packing or pack it according to customers special request.
Company Introduction
Customer Visiting
FAQ
1. Where is your factory ?
Our factory is located in Wuxi City,Jiangsu Province, nearby Shanghai.
2. How long is your after-sales service ?
We provide 1 year quality guarantee from the date of delivery.
Welcome to contact us if you have any questions.
3. How long will take it to deliver ?
Usually within 20 working days after receiving the deposit.
4. What is the Mode of transportation ?
LCL and FCL by ship.
5. What’s the payment terms ?
T/T, western union, Alibaba Trade Assurance, etc.
Our factory is located in Wuxi City,Jiangsu Province, nearby Shanghai.
2. How long is your after-sales service ?
We provide 1 year quality guarantee from the date of delivery.
Welcome to contact us if you have any questions.
3. How long will take it to deliver ?
Usually within 20 working days after receiving the deposit.
4. What is the Mode of transportation ?
LCL and FCL by ship.
5. What’s the payment terms ?
T/T, western union, Alibaba Trade Assurance, etc.
