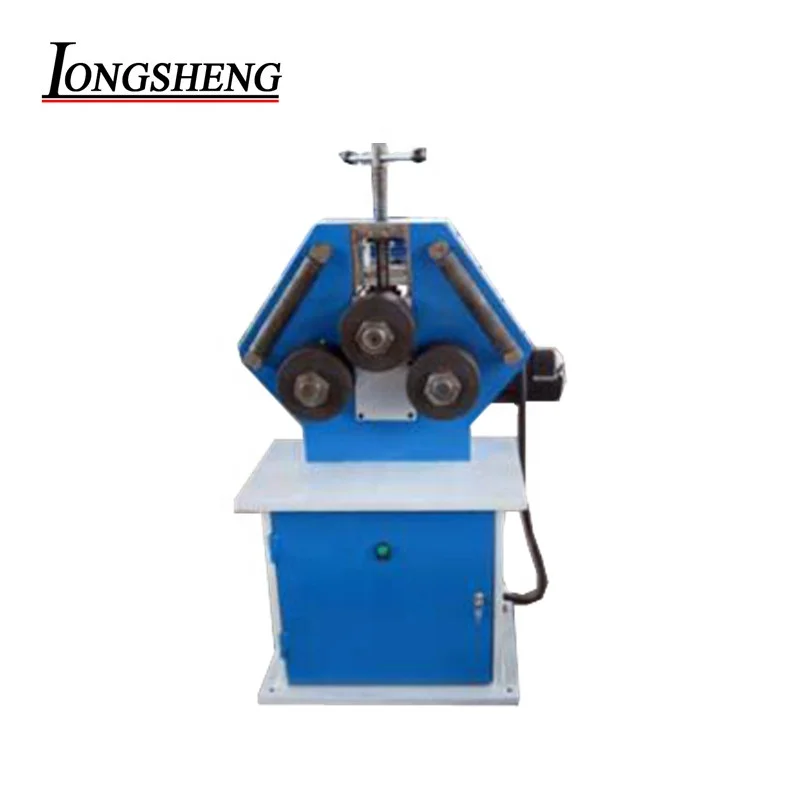

CE certificate multifunctional hydraulic pipe channel flat steel bar bender bending machine
- Category: >>>
- Supplier: Jiangsu Longsheng Machine Manufacturing Co. Ltd.
Share on (62265173458):
Product Overview
Description
Product Description
Profile tube and pipe bending machine
Product Features
1 set of standard hardened and ground rolls (special steel)
All rolls Planetary/Gear – Hydro motor Driven
Side supports are suitable for angle iron bending leg in -Leg Out
Portable control panel
Horizontal and Vertical optional
Body constructed of stress-relieved steel
Overload protection on hydraulic and electrical systems
Bottom rolls hydraulically adjustable with digital readout
Full function,various profile can be bent by replace the mold
NC or CNC can optional by customer
CE certificate
SPECIFICATIONS FOR W24S-100 PROFILE BENDING MACHINE | ||||||
Parameter | W24S-100 | |||||
Profile maximum bending section modulus | 100 | |||||
Rolling speed | 5 | |||||
Profile yield limit(mpa) | △S-250 | |||||
Angle steel inner bending | Maximum section(mm) | 120x12 | ||||
Minimum bending diameter(mm) | 2500 | |||||
Minimum section(mm) | 40x5 | |||||
Minimum bending diameter(mm) | 720 | |||||
Angle iron outer bending | Maximum section(mm) | 140x16 | ||||
Minimum bending diameter(mm) | 1800 | |||||
Minimum section(mm) | 45x5 | |||||
Minimum bending diameter(mm) | 760 | |||||
Channel steel outer bending | Channel model(mm) | 28 | ||||
Minimum bending diameter(mm) | 1700 | |||||
Channel steel inner bending | Channel model(mm) | 28 | ||||
Minimum bending diameter(mm) | 1700 | |||||
Flat bar flat bending | Maximum section(mm) | 250x40 | ||||
Minimum bending diameter(mm) | 1200 | |||||
Flat bar vertical bending | Maximum section(mm) | 120x40 | ||||
Minimum bending diameter(mm) | 1300 | |||||
Round tube bending | Maximum section(mm) | 159x5 | ||||
Minimum bending diameter(mm) | 2000 | |||||
Round bar bending | Maximum section(mm) | 90 | ||||
Minimum bending diameter(mm) | 1100 | |||||
Square bar bending | Maximum section(mm) | 100x10 | ||||
Minimum bending diameter(mm) | 2000 | |||||
Product Display

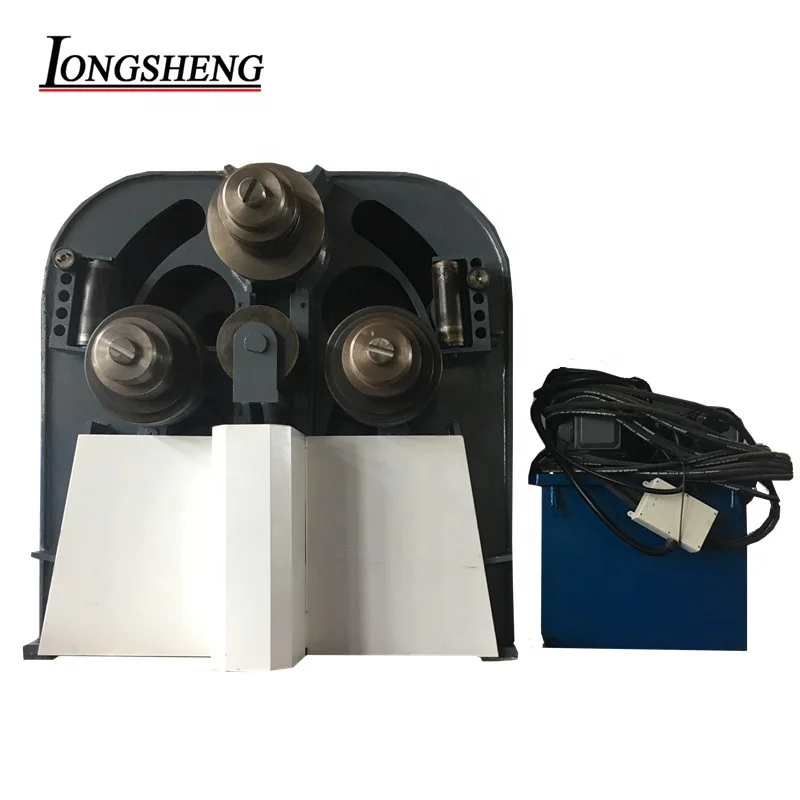

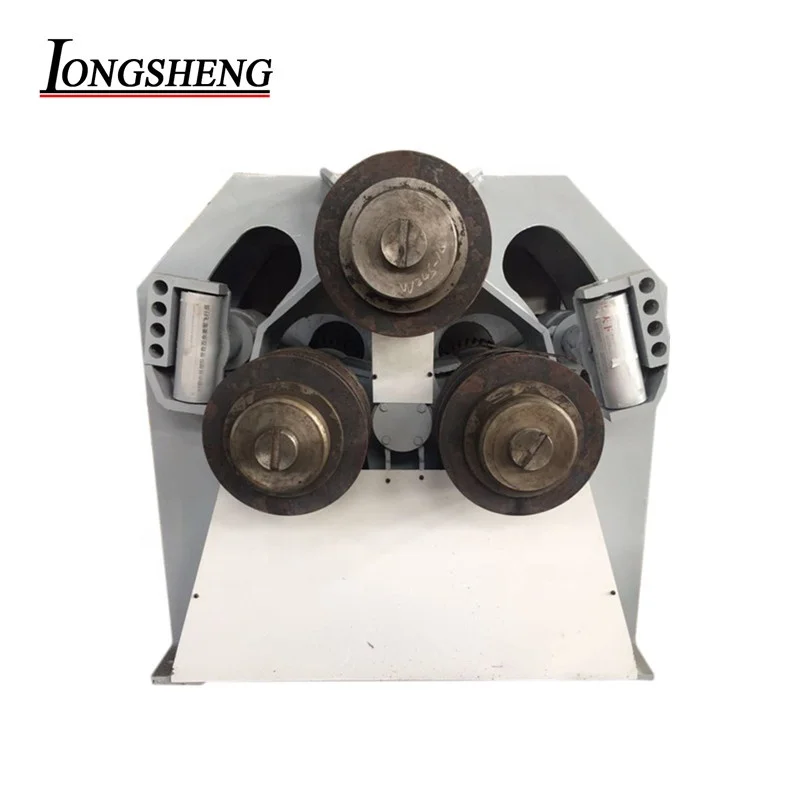

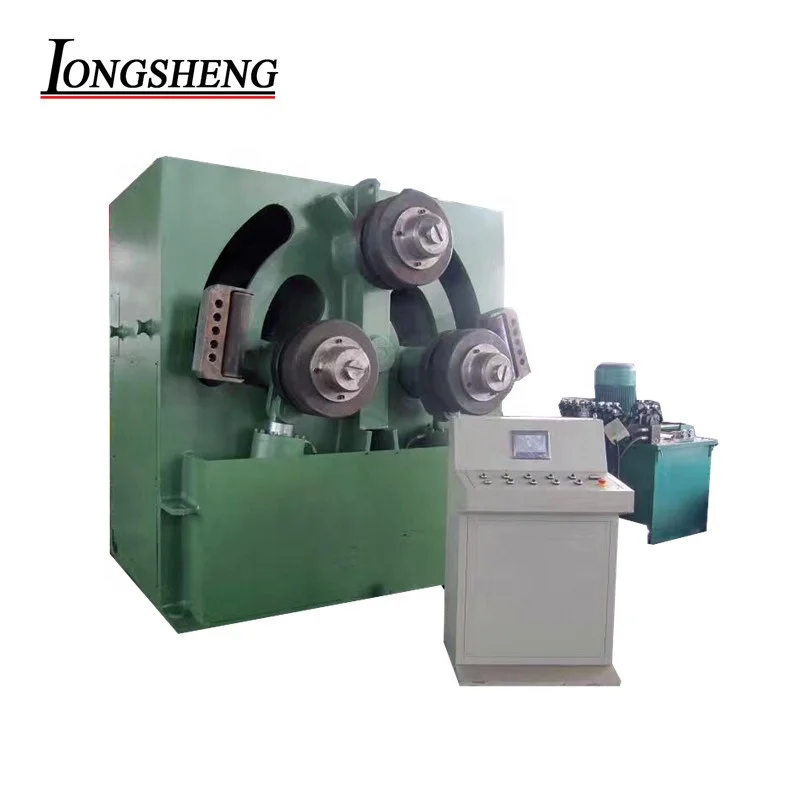

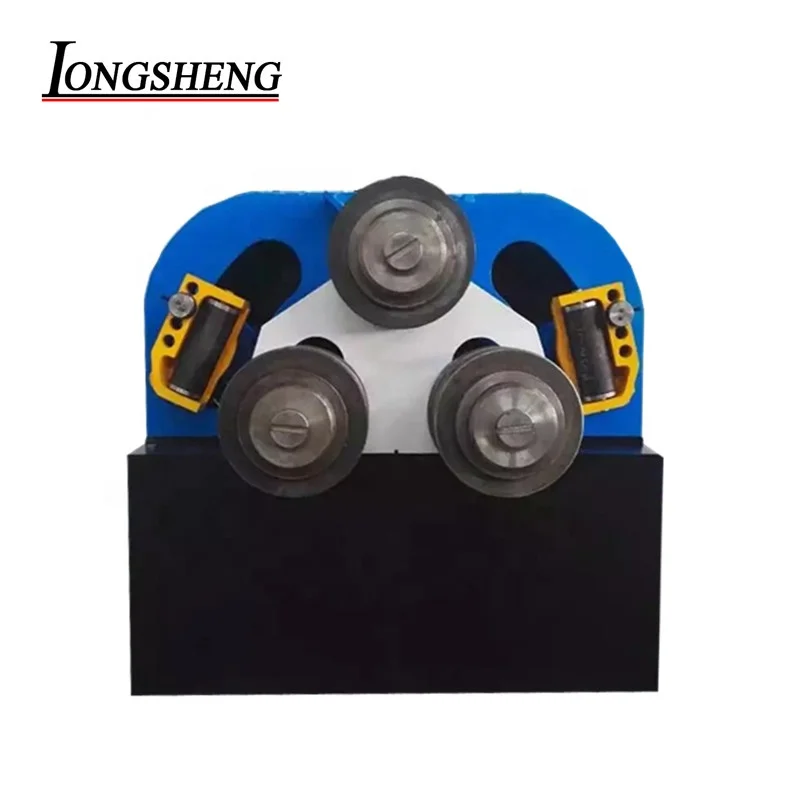

ROLLER
●Top roller fixed, two bottom roller move by arc lifting around a fixed center.
●They can rise and fall separately also can rise and fall at the same time.
Side guid rollers to ensure the high quality for asymmetrical section bending.
Three drive rolls mounted with hydraulic motor, without slipping, even for thinner material can be bent.
HYDRAULIC SYSTEM
●Full hydraulic transmission
●The machine adopts hydraulic pressing, so the pressure is large and the performance is stable.
●Hydraulic guide rolls.
MAIN MOTOR
●The main drive device includes main motor, reducer gear and etc.
CONTROL SYSTEM
●The operation table is set with indicators for each part's movement.
Product Flow
1.Flame Cutting 2.Welding 3.Polishing 4.Paint Anti-rust Paint
5.Heat Treatment 6.Gantry Milling 7.Boring Processing 8.Planer Processing
9.Drilling Processing 10.Installing 11.Painting 12.Semi-finished
13.Finished Product 14.Hydraulic Station 15.Packing 16.Shipping
Assambling
Certifications
FAQ
1.When can customers contact us?
We are available Monday through Saturday. 8AM to 12PM Beijing time.We also offer 24 hour online service for customers.
2.How do I order a pipe and tube bending machine from you?
If you have any problems occur with our pipe and tube bending machine or you are in need of assistance,please send email or call us via telephone.We will reply as quickly as possible.
We offer OEM and ODM services.
3.Terms of payment
1) T/T 30% prepayment,70% balance before shipment
2) L/C at sight
4.How about your pipe and tube bending machine quality?
Longsheng is a mature brand in China. Through our over thirteen years research in pipe and tube bending machine technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Where there are our pipe and tube bending machine, there are good reputation and terminal user satisfaction.
Packing & Delivery
Packaging | ||
Size | 2800(L) * 1700 (W) * 1780 (D) | |
Weight | 3 T | |
Packaging Details | The normal package is plastic film(Size: L*W*H). If you need wooden packaging, please check attached pictures, we can also provide it, but at an extra charge. And if export to european countries, the wooden box will be fumigated. Besides, if container is too tigher, we still recommend that the customer use a pe film package. | |
Contac Us
JIANGSU LONGSHENG MACHINE MANUFACTURING CO.,LTD
Add: Haian Libao Development Area,Jiangsu China
Tel: +86-513-88281688
Mobile: +86-15951415788
Email: lucy@ longshengmachine.com
//www.longshengmachine.com
