E90 DTU(400SL37) 5W High power sx1268 lora DTU 433mhz long range industrial modem rf transceiver
- Category: >>>
- Supplier: Chengdu Coogex Electronic Technology Co. Ltd.
Share on (62265293294):
Product Overview
Description
5W High power sx1268 lora DTU 433mhz wireless transmitter and receiver long range industrial modem rf transceiver
Product Description
[Frequency] : 410.125~493.125MHz
[Power] : 37dBm
[Distance] : 20km
[Interface] : RS232/RS485
[Introduction] : E90-DTU(400SL37) is a data transceiver with military-grade LoRa modulation technology.With multiple transmission modes, it works in the (410.125~493.125MHz) frequency band (default 433.125MHz).The transceiver provides transparent RS232/RS485 interface and supports10～36V voltage input.

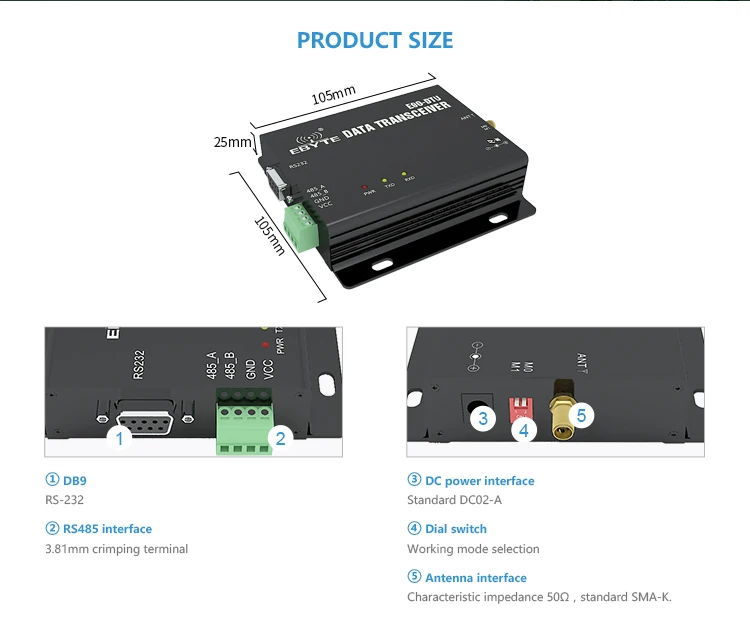

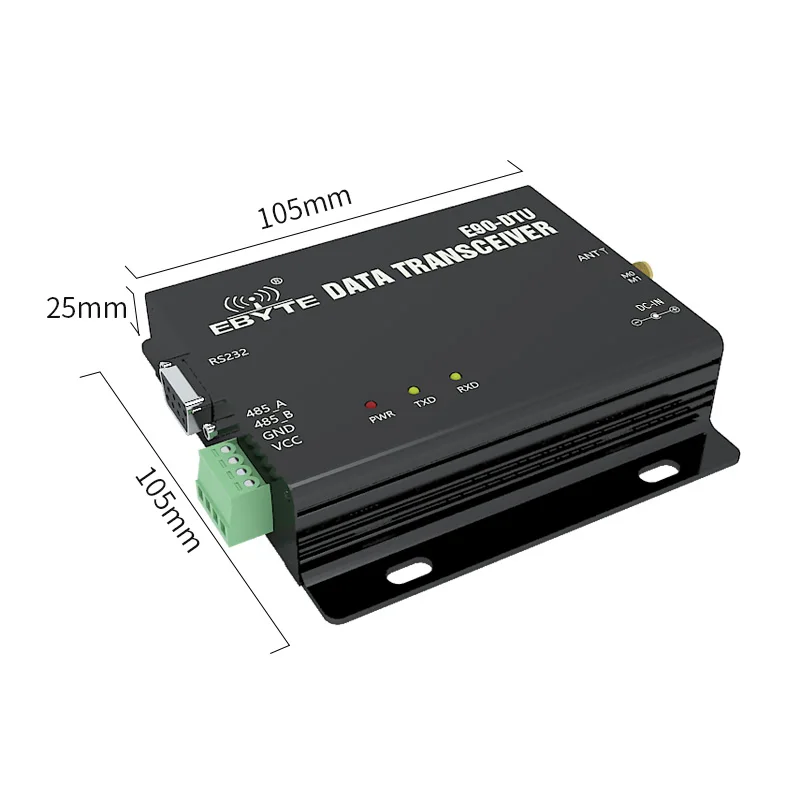

Size | 102 * 105 * 25 mm | Without interface |
Antenna type | SMA-K | - |
Communication interface | RS232 / RS485 | Standard DB9 Hole / 3.81 connecting terminal |
Air data rate | 0.3k~62.5kbps | Default: 2.4kbps |
Channel numbers | 85 | Half duplex |
Buffer | 1000 bytes | Can be sub-packed to 32/64/128/240 byte each time via command |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 10 | - | 36 | V | It is recommended to use 12V or 24V |
Transmitting current | - | 1100 | - | mA | 37dBm（5W） |
Stand-by current | - | 50 | - | mA | - |
Operating temperature | -40 | 20 | +85 | ℃ | - |
Operating humidity | 10 | 60 | 90 | % | - |
Storage temperature | -40 | 20 | +125 | ℃ | - |
User Manual Support
Related Products
Company Profile
Cojxu is a high-tech company,specializes in the developing and manufacturing wireless products such as Industrial DTU,UART Module,SPI Modul,Data Radio,PKE Module,Development Kits(Antenna,Multi-functional Adapter,Downloader and CC Debugger etc) Our company owns a number of independent research&development products and obtain unanimously approved customers.with powerful R&D team and marketing team. Cojxu always provide customers with perfect After-sales service and technical assistance. Quality is our culture,with us your money and business in safe.
Our Advantages
Packing&Shipping
1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,it will take 3-7 working days to arrive in most countries.
2.We can alsohelp you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive. 3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.
4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer. E90-DTU(400SL37) 5W High power sx1268 lora DTU 433mhz long range industrial modem rf transceiverTX2400-FPC-5015 Cojxu high sensitivity 3.0 dBi high gain PCB substrate flexible antenna FPC wifi outdoor antenna rf
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough
information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q9.Can your module be connected with Arduino board? Can you provide Sample code?
A9: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin. Sorry we don’t have the sample code to offer.
Q10.Can your module be connected with Raspberry Pi?
A10: Yes, our module can be connected with Raspberry Pi.E90-DTU(400SL37) 5W High power sx1268 lora DTU 433mhz long range industrial modem rf transceiverTX2400-FPC-5015 Cojxu high sensitivity 3.0 dBi high gain PCB substrate flexible antenna FPC wifi outdoor antenna rf
