CCS, BV, ABS Approved 600m3/h Diesel Engine Driven Fire Fighting FiFi Pump
$10,000.00-30,000.00
XHYXFire Fire Fighting Equipment Fire Water Cannon water Foam fire Monitor manufacturer
- Category: >>>
- Supplier: Xinghua Yongxing Fire Fighting Equipment Co. Ltd.
Share on (62265305207):
Product Overview
Description
Part 1:Product introduction

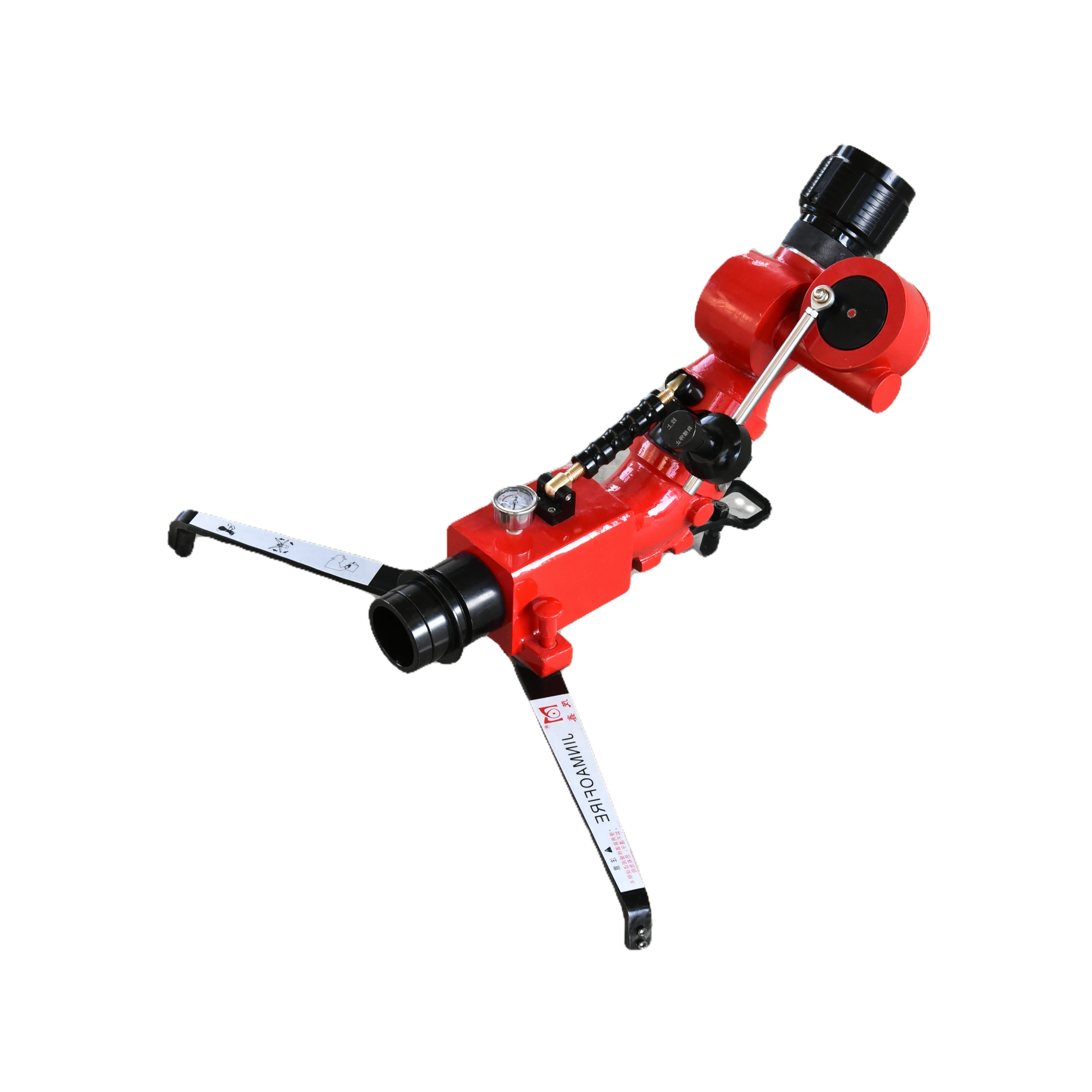

PSY40 mobile fire water cannons are fully functional and have a long range, and the gun and gun head can be operated remotely. It is helpful for the workers to stay away from the site and effectively avoid the harm to the workers. The system gun is equipped with a manual device to perform manual operation when the power is not available.
The system has the characteristics of small volume, light weight, folding support, simple operation, flexible and reliable storage and transportation. The gun is particularly suited to oil fields, oil depot, airport, terminal, large buildings, petrochemical industry, and fire is difficult to enter the old city, underground mall facilities and other poisonous and harmful flammable and explosive high-risk places, is indispensable to fire safety facilities and equipment.
Part 2:Function introduction
1. Direct current, spray: rotating gun head, and the head from 0 to 40mm scale, water flow from spray to dc.
2, the rise and fall: rotary swing handle, barrels from 30 ° ~ 70 ° rises and falls.
3. Left and right: open lock lock, manual swing in the desired direction.
Part 3:Performance parameter
PSY40 mobile fire water cannons are fully functional and have a long range, and the gun and gun head can be operated remotely. It is helpful for the workers to stay away from the site and effectively avoid the harm to the workers. The system gun is equipped with a manual device to perform manual operation when the power is not available.
The system has the characteristics of small volume, light weight, folding support, simple operation, flexible and reliable storage and transportation. The gun is particularly suited to oil fields, oil depot, airport, terminal, large buildings, petrochemical industry, and fire is difficult to enter the old city, underground mall facilities and other poisonous and harmful flammable and explosive high-risk places, is indispensable to fire safety facilities and equipment.
Part 2:Function introduction
1. Direct current, spray: rotating gun head, and the head from 0 to 40mm scale, water flow from spray to dc.
2, the rise and fall: rotary swing handle, barrels from 30 ° ~ 70 ° rises and falls.
3. Left and right: open lock lock, manual swing in the desired direction.
Part 3:Performance parameter
Model | Rated Working Pressure (Mpa) | Working Pressure Range (Mpa) | Rated Flow | Range (m) | Pitch Angle | Horizontal Angle | Spray Angle |
(L/S) | |||||||
PS 20 | 0.8 | 0.5~1.2 | 20 | ≥48 | -30°~70° | 360° | ≥100° |
PS 25 | 25 | ≥50 | |||||
PS 30 | 30 | ≥55 | |||||
PS 40 | 40 | ≥60 | |||||
PS 50 | 50 | ≥70 |
