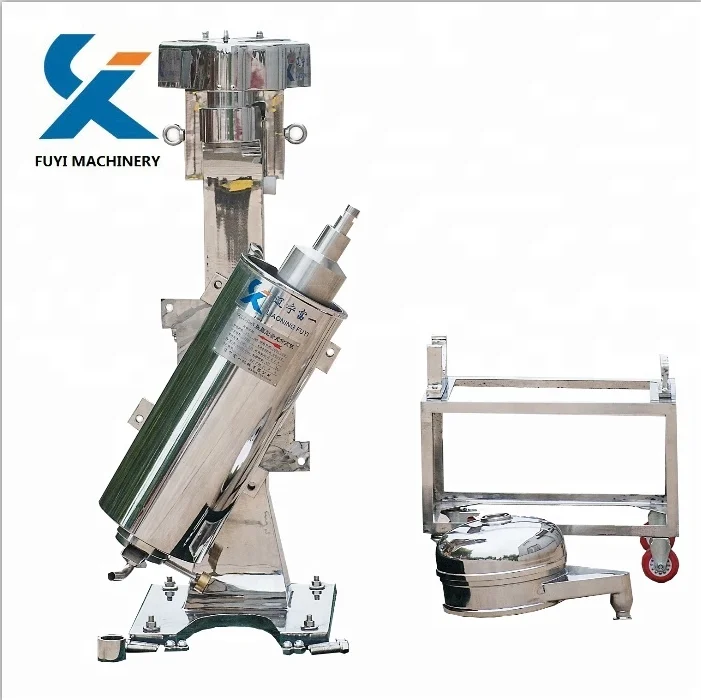

Low price tubular centrifuge to separate spirulina algea
Brief Introduction :
Our tubular bowl centrifuge is widely used in the area of chemical, food and beverage, and etc.
It is used for separating various emulsion, especially adaptable for liquid-liquid or liquid-liquid-solid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro powder, extract liquid from plants, separation of plasma and cell.
Working Principle:
The tubular bowl centrifuge is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field.
The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
Technical Parameters:
Model | Bowl Speed | Capacity | Running Load | Dimensions, Overall (mm) |
(rpm) | ( L/h ) | (Watts) | Width*Front-to-Back*Height | |
45 | 10000~28000 | 10 | 0.4 | 500*420*760 |
75 | 19000 | 50 | 1.5 | 760*450*1120 |
105 | 16300 | 100-200 | 2.2 | 840*500*1600 |
125 | 15000 | 100-300 | 3.0 | 900*550*1600 |
150 | 14000 | 200-400 | 3.0 | 1020*600*1600 |

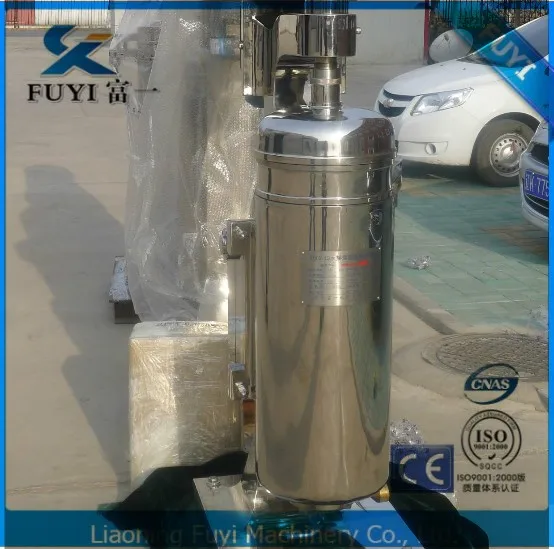

Product Display

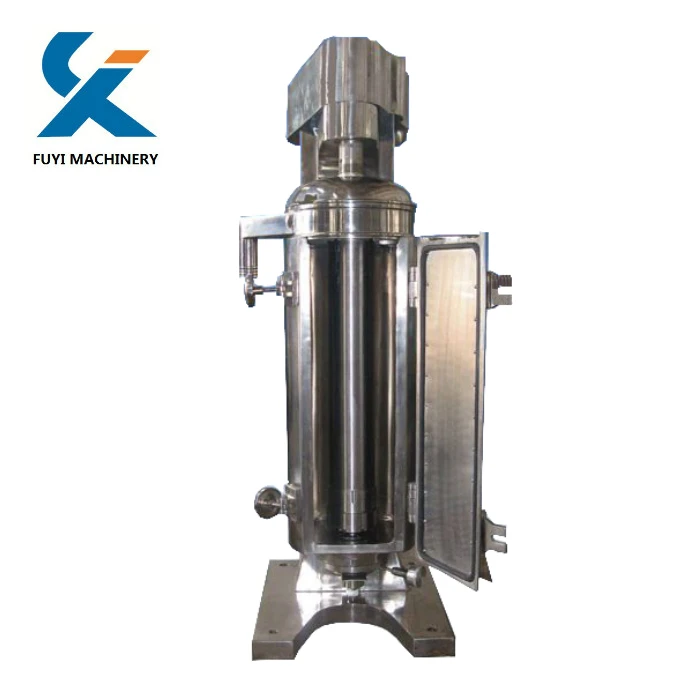

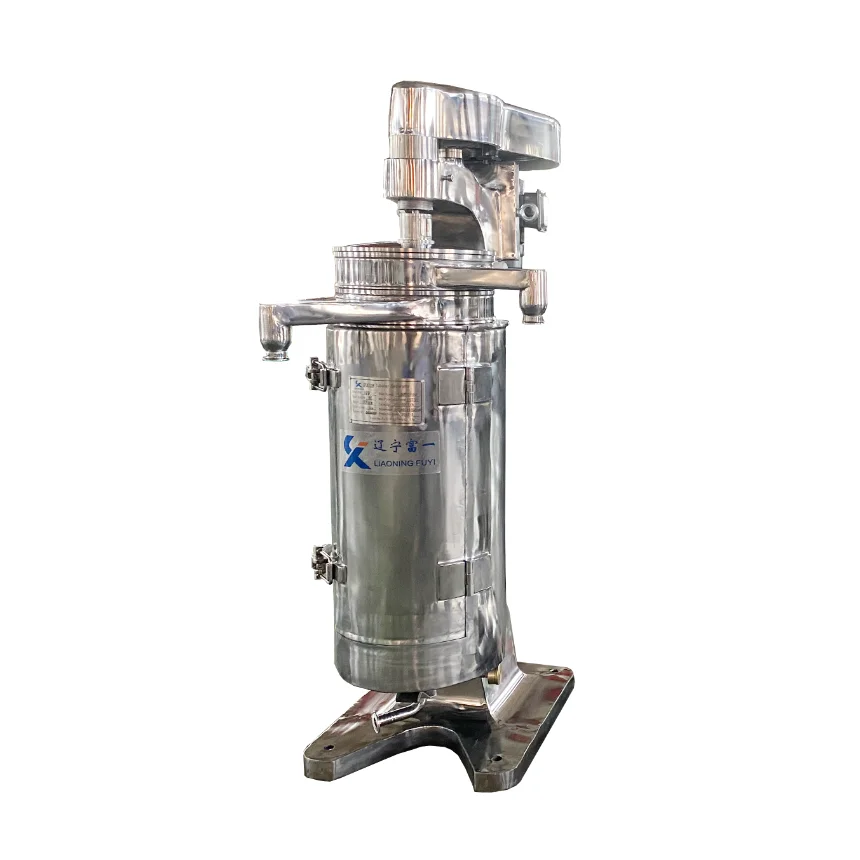

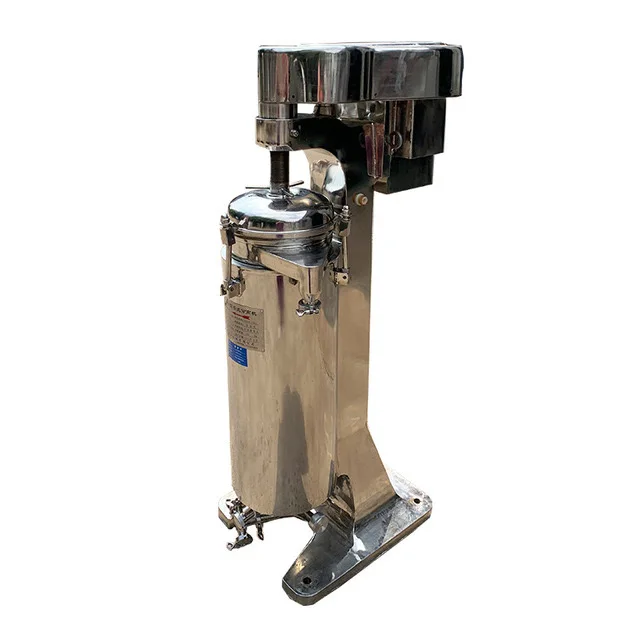

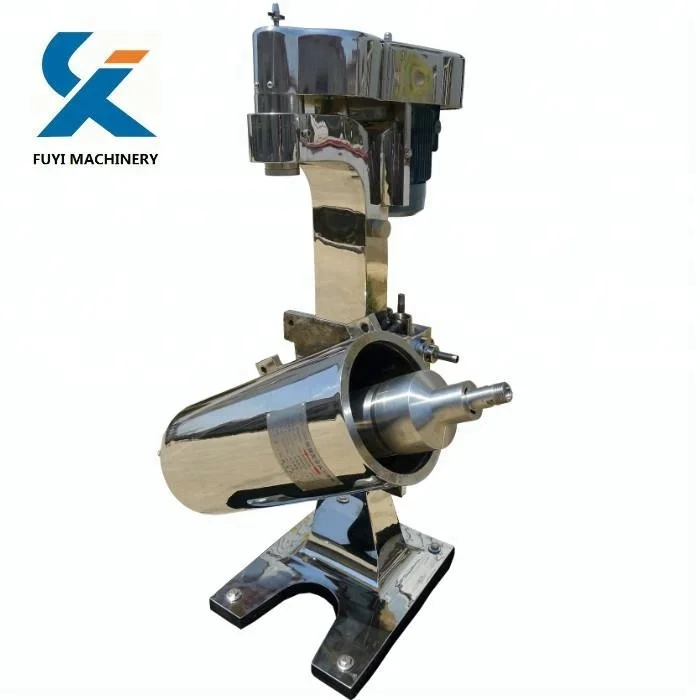

GQ TYPE GF TYPE

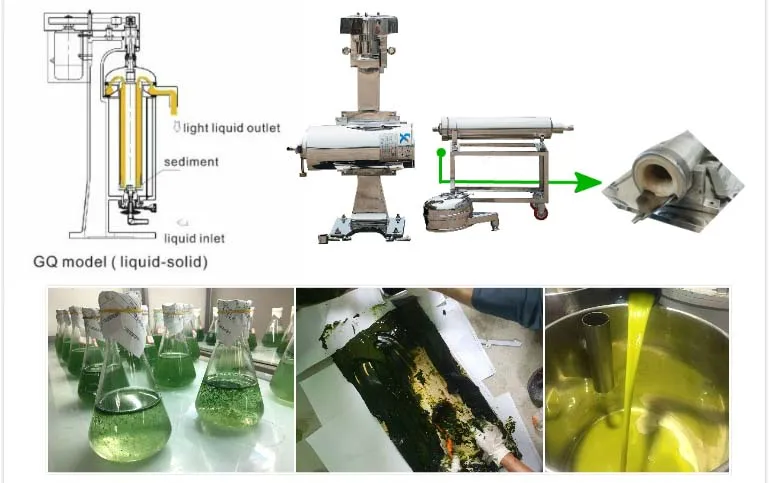

Application

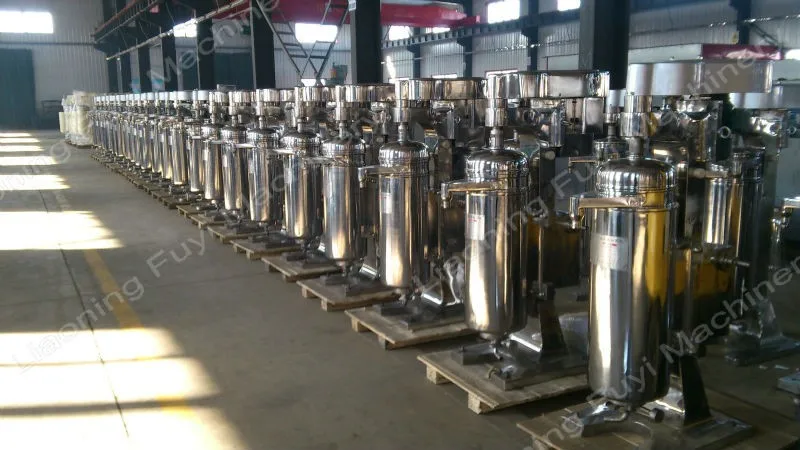

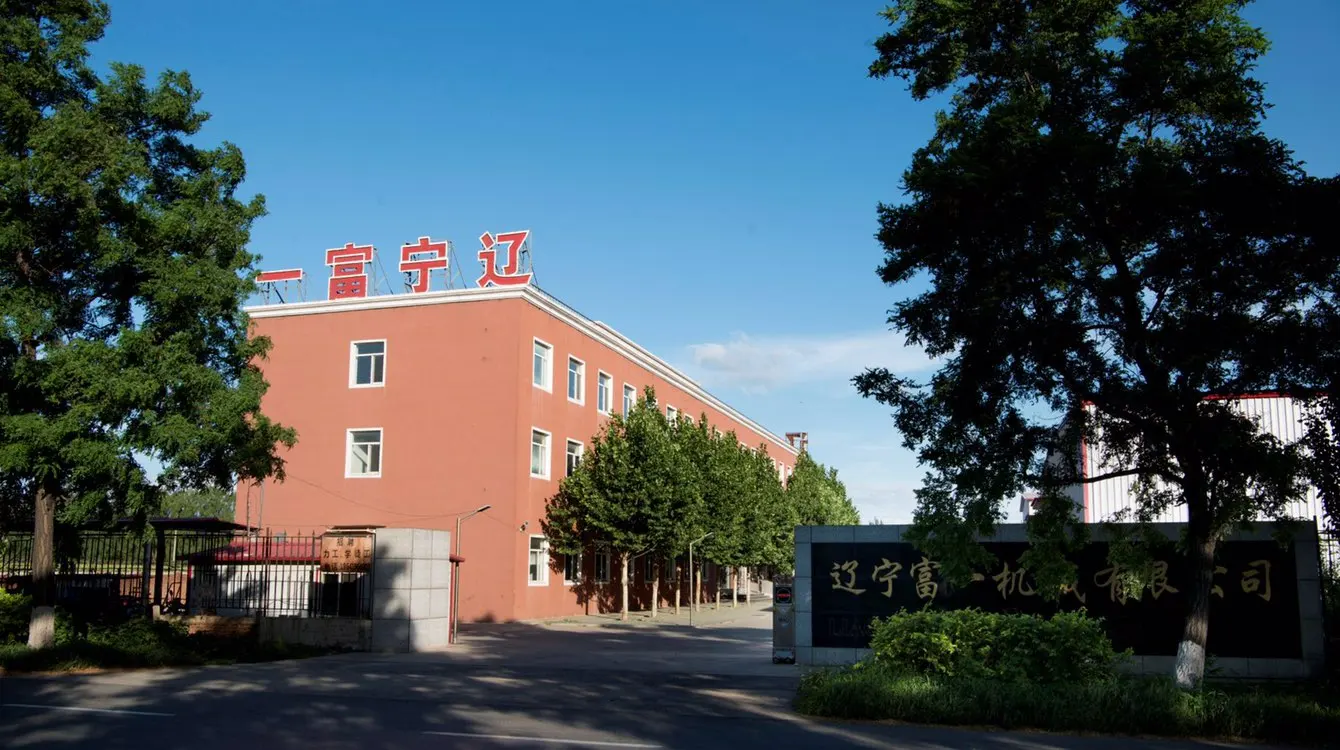

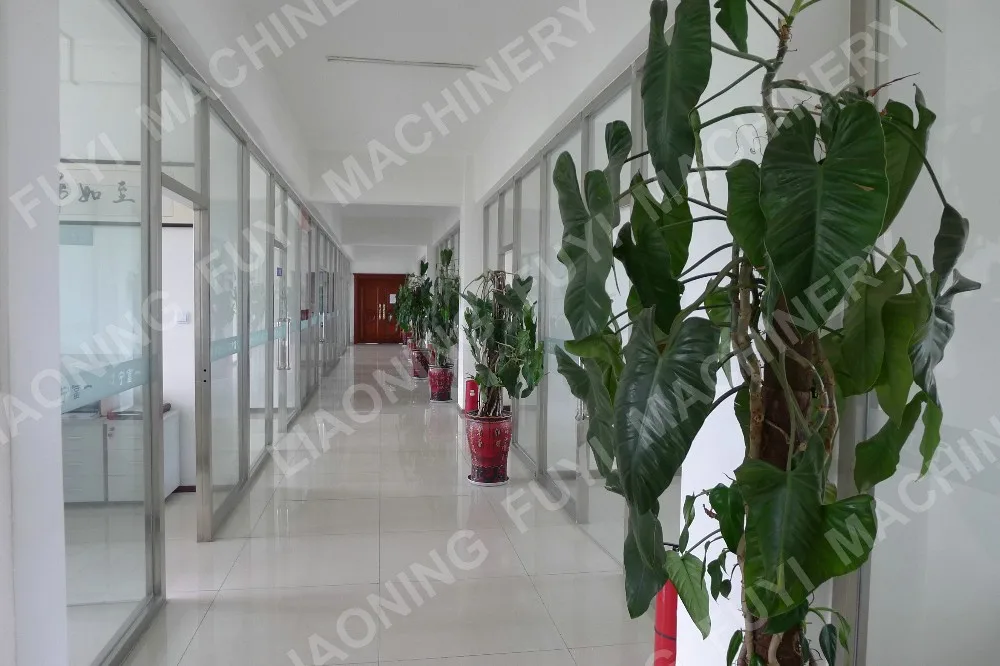

Our Company
Liaoning FUYI Machinery Co.,Ltd
1,Liaoning FUYI Machinery Co.,Ltd was established in June 2011 is Specially manufacturing centrifuge over 35 years
4, FUYI separator promise to provide the most professional technology and advanced quality product for global customers.
2.FUYI is specializing in the production and design of Disc centrifuge ,Tubular centrifuge ,Decanter centrifuge separator which are widely used in the Food and Dairy , Beverage,Plant Oil,Animal oil production.
3,FUYI Separator provide solution to all technological problems of liquid and solid with more than 30 years experience in the centrifugal separation market. For better separation result, every series products is designed and manufactured based on the different liquid materials thus customer can achieve perfect separation performance.
4, FUYI separator promise to provide the most professional technology and advanced quality product for global customers.
5,Our company stocks many kinds of trial machine for customer taking materials to test and examine .We can offer our customers free separation test, We made the Standard, we beyond it. Welcome you come to FUYI for visiting and guiding.
Factory Size: 33000 square meters
Year Established: 2011
Total Revenue : US$1 Million - US$2.5 Million
Main Markets: Central America, Mid East, Oceania, Africa, South America
Factory Size: 33000 square meters
Year Established: 2011
Total Revenue : US$1 Million - US$2.5 Million
Main Markets: Central America, Mid East, Oceania, Africa, South America
Our Service
The suggestions from our customers, and offers the all-day, all-directional and top-grade market services.
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years' service life of our products with 1 years' warranty and life maintenance.
4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Hot line: 8618104024665 (whatsapp)
Skype: live:molly3469
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years' service life of our products with 1 years' warranty and life maintenance.
4. 24-hour hot line: 86-18104024665 . Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Hot line: 8618104024665 (whatsapp)
Skype: live:molly3469

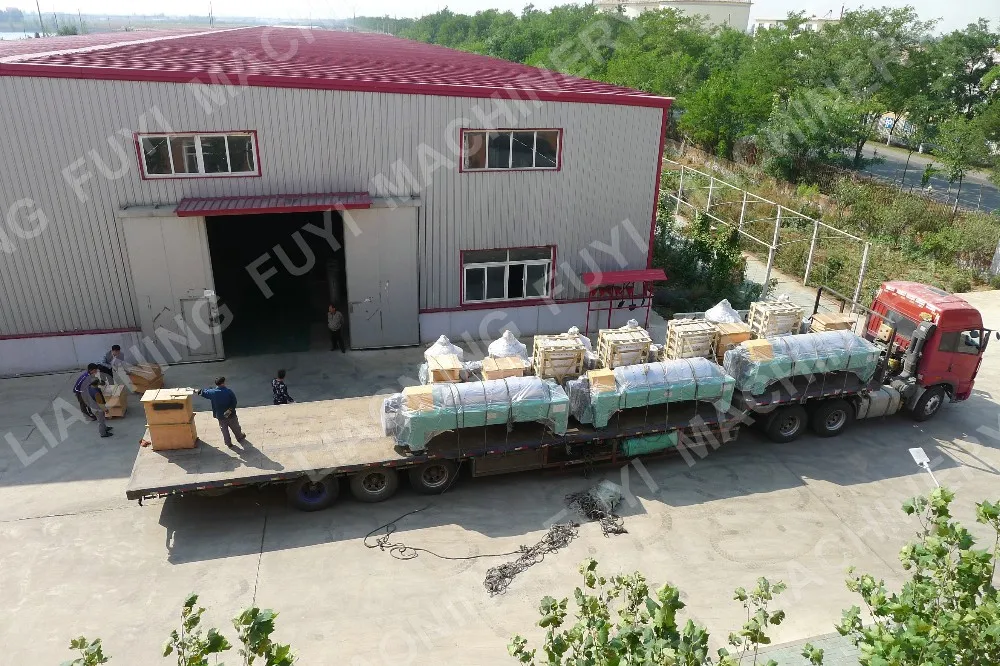

Packing & Delivery
