Product Overview

Description

Electric Fence Safety Alarm System  Tension Electric Fence Residential School Factory Electric Fence Lntrusion Alarm System



Price description:



Our main engine has single and double defense zones. The price marked above is the price of main engine of tension type fence in single defense zone and the basic configuration price of alarm system of electric fence. Prices for different configurations will vary. Please consult us for details.



Tension-type electric fence perimeter alarm system is a set of mechanical and electrical devices to prevent illegally surmounted obstacles and sensing, transmit (alarm) tension and compression, and cut obstacle information. It is a safe, reliable, economic and digital intelligent perimeter intrusion prevention alarm system.



Tension Electric Fence System

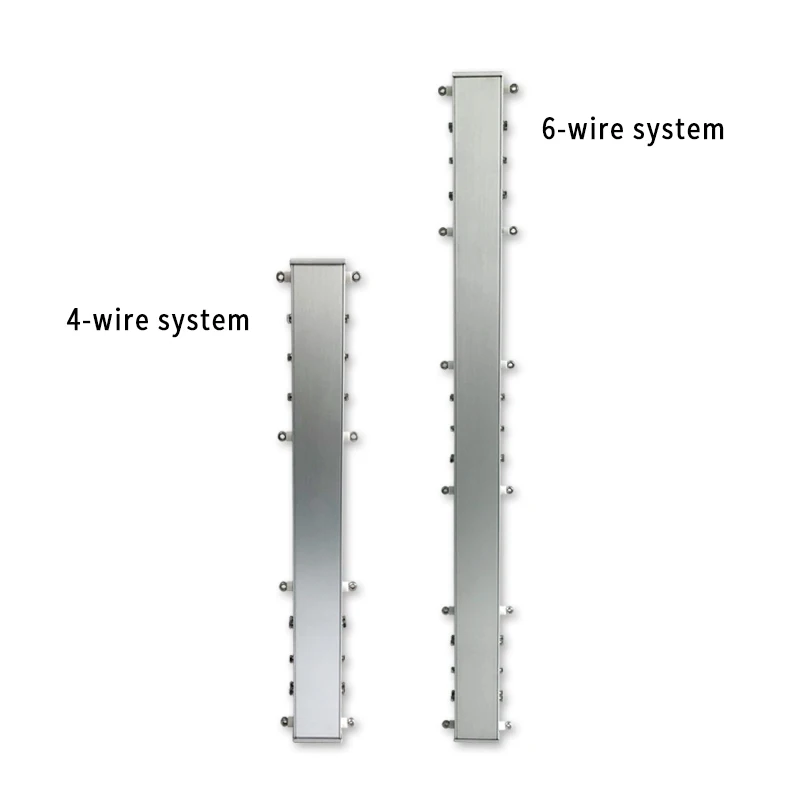

Single and double defense areas   Rs485/ same network communication    Four wire six wire

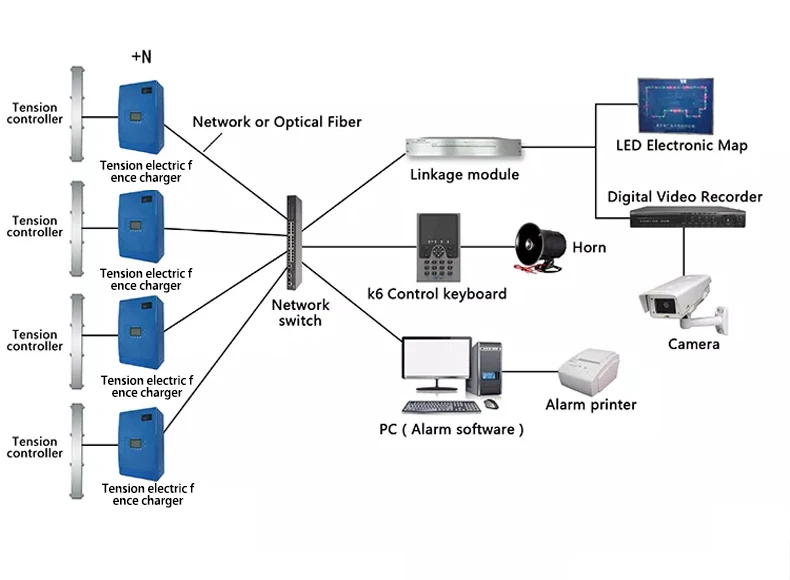

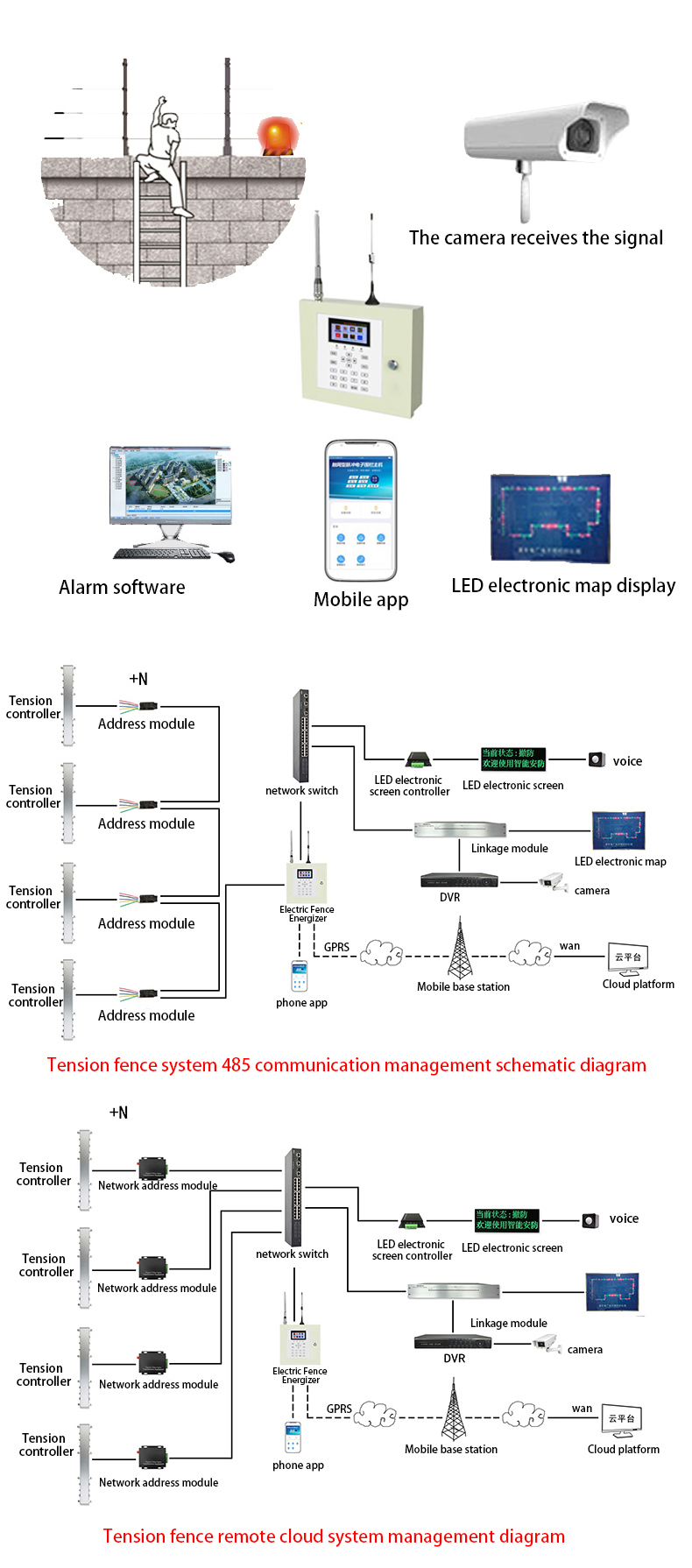

Tension electric fence charger network communication alarm diagram

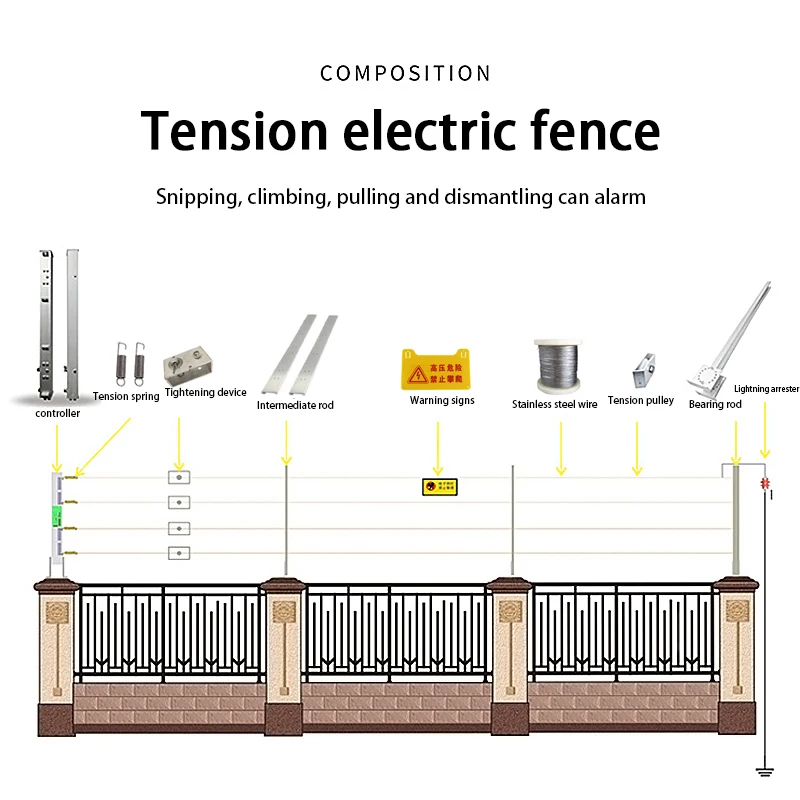

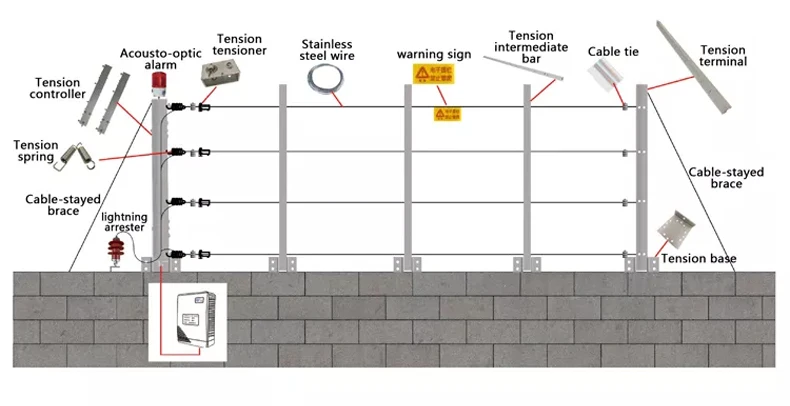

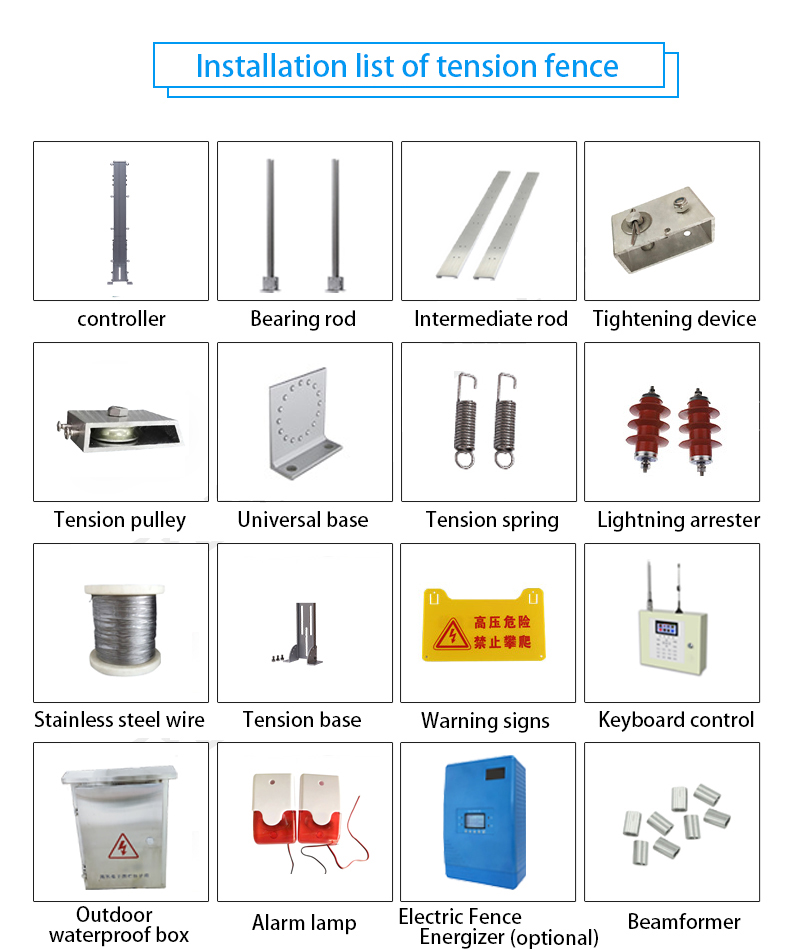

Composition of Tension Electric Fence System
The tension-type intelligent electric fence system consists of a control host , a control rod ( including a tension sensor a collection unit ) , a stress rod , a support rod a spring , and a base



Scope of application

Electric security fence is a kind of perimeter alarm system. The first line of defense of security system has three functions of deterrence, obstruction and alarm.

It can be applied to the perimeter security of ordinary residential areas and villas residential areas, as well as to enterprises and institutions, factories, warehouses, substations, water plants, power plants, schools, detention centers, prisons of the judicial system, airports, military bases, government agencies, key cultural relics protection units and other places. Tension electronic fence can be used in all places requiring perimeter security and perimeter intrusion alarm. It is especially suitable for the occasions where there are not only the need of perimeter security, but also the harmony and coordination between perimeter security facilities and surrounding environment, landscape and greening.





Tension electric fence

Tension electric fence is an intelligent fence device to prevent human body from overturning , climbing , pulling ,pressing and cutting .

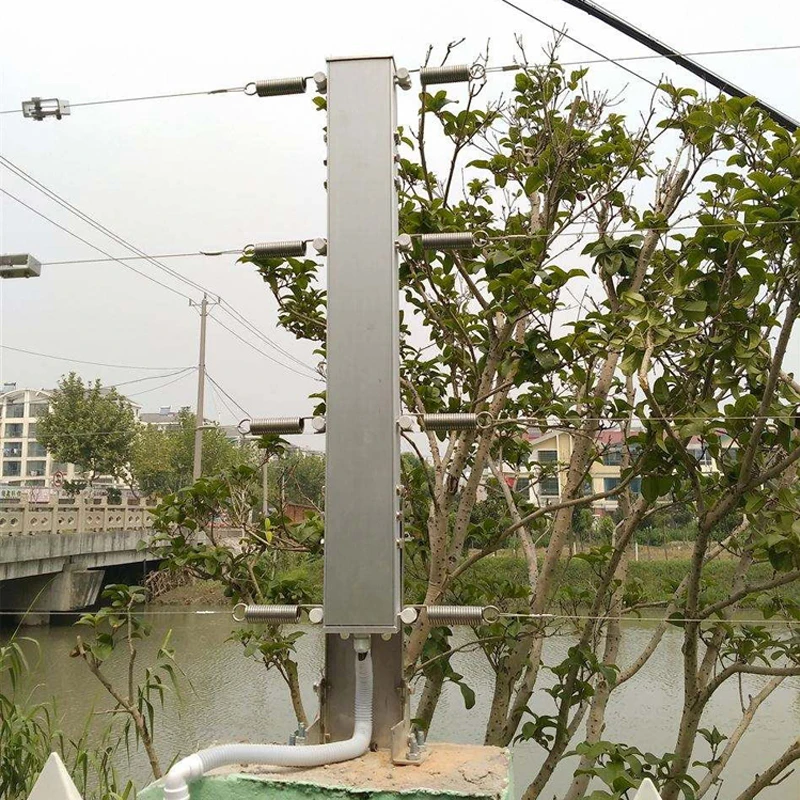

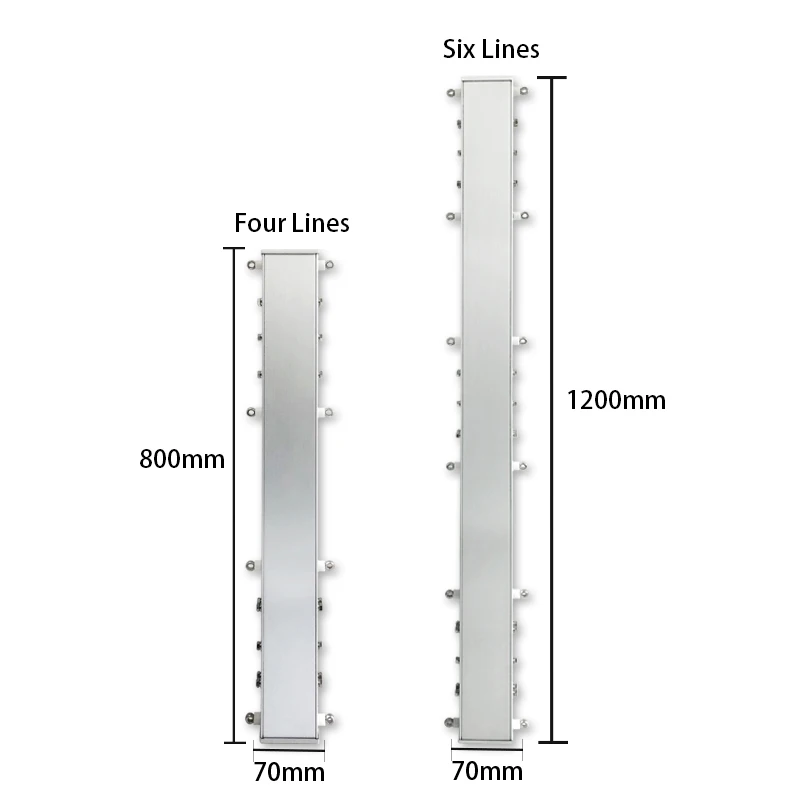

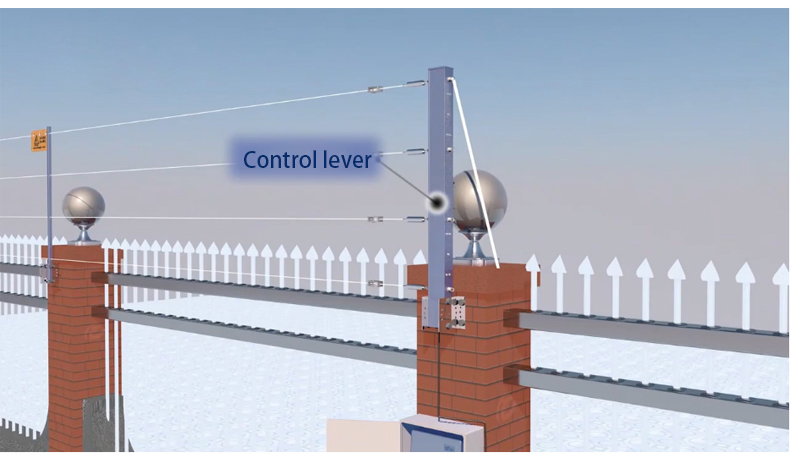

Control lever

Tension module and controller integrated design, easy to install, simple, high-precision tension sensor, can detect small tension changes.

Middle support rod

Ensure that the position of stainless steel wire rope does not change, generally 3-5 meters should be installed one

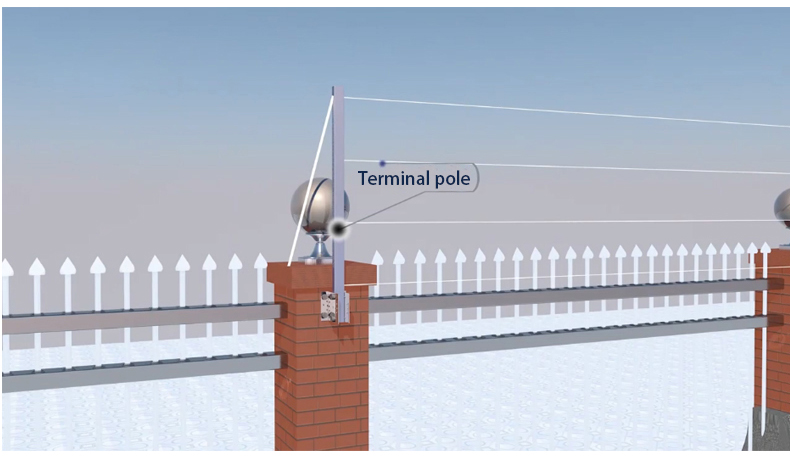

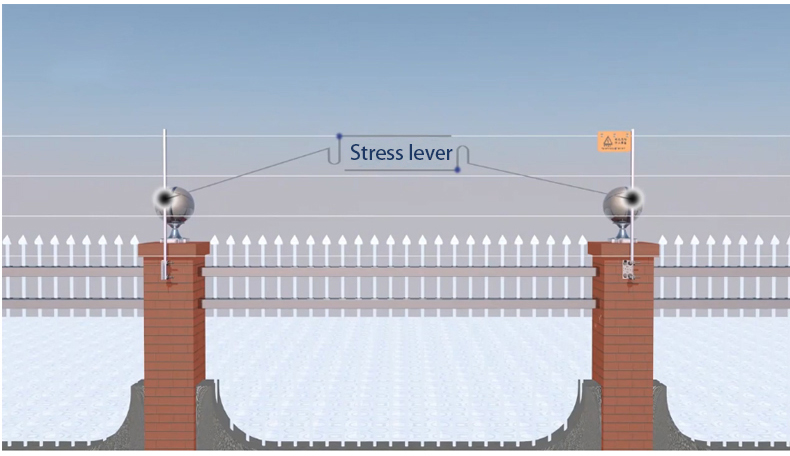

Terminal load bar

It is installed at the end of the defense area and the middle of the defense area to support and bear force. It can be installed with a steering pulley to form a steering pulley rod, which is installed at the position of angle, height difference and inclination to ensure the stable tension of the steel wire rope

Remote control , multi-level networking

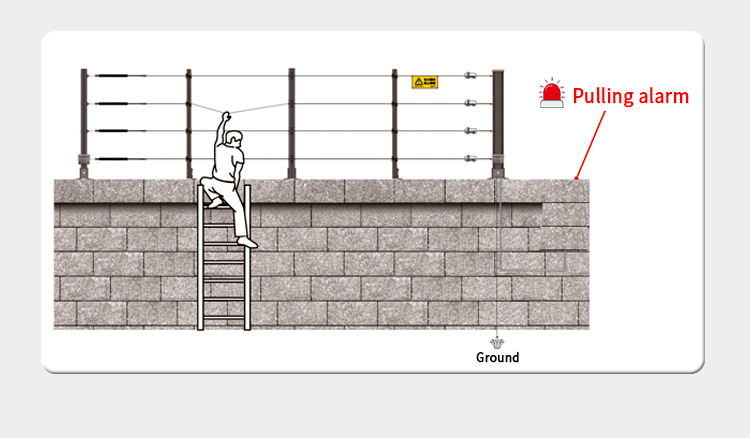

When someone tries to climb , pull , press and cut the fence , causing the chat of tension alarm value , the scene will immediately alarm and transmit the alarm signal to the control equipment

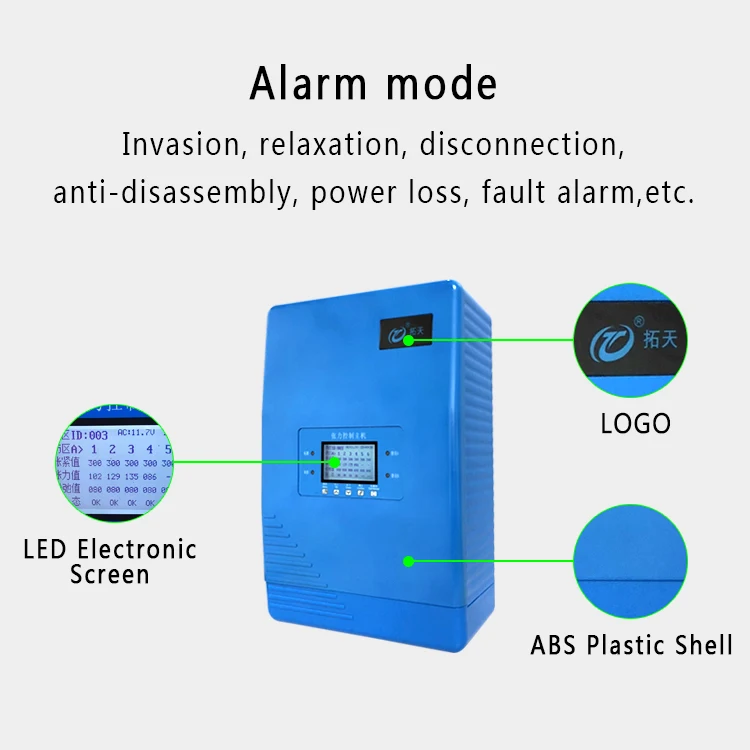

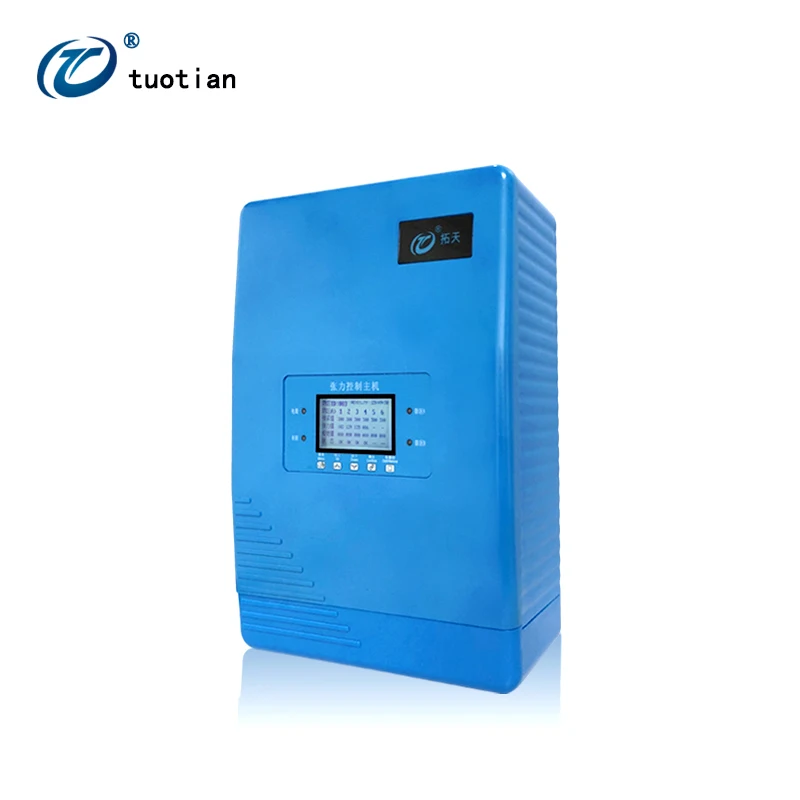

Tension fence main engine

Product specification

Equipment model: tt-x800/x900

Alarm output: output normally open and normally closed switching value signal

Alarm mode: intrusion, relaxation, disconnection, anti disassembly

Equipment power supply: dc12v2a

Equipment power: ≤ 5W

Operating environment: temperature -40 ℃ ~ +50 ℃

Relative humidity: less than 95%

Tension warning value: 100-450n

Tension alarm displacement: within 75mm

Alarm duration: 30-180 seconds

Sensitivity: two kinds of sensitivity are adjustable

Bearing capacity of tension module: above 1000N

Alarm delay: less than 3 seconds

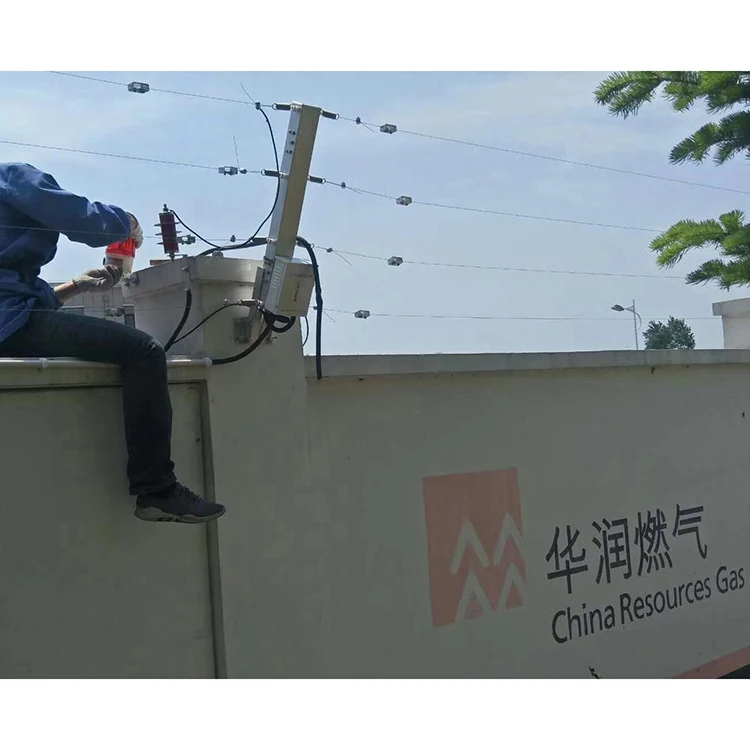

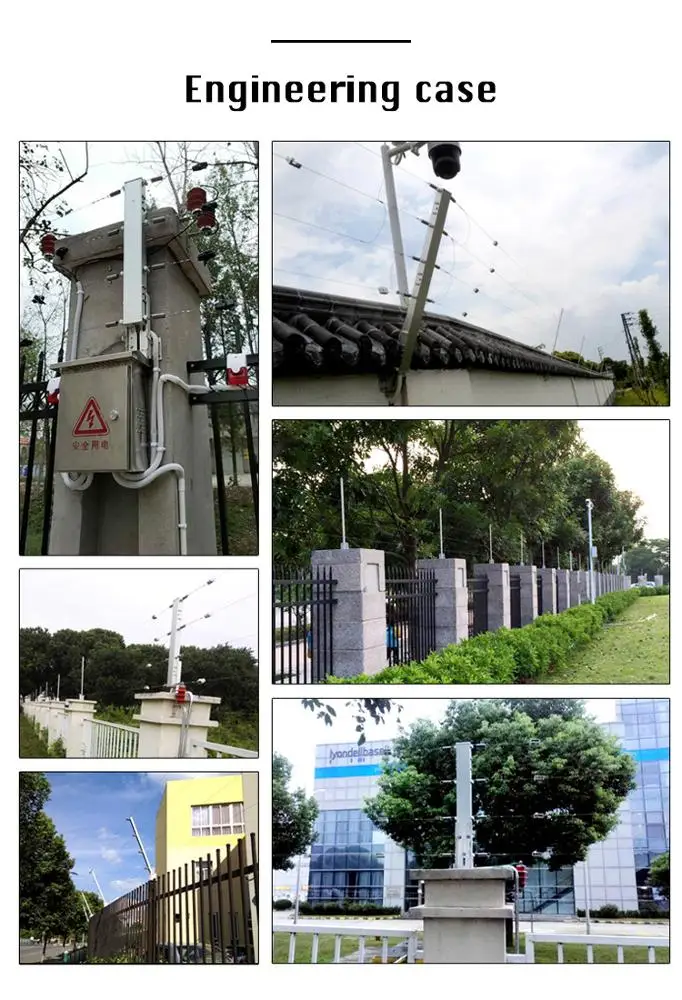

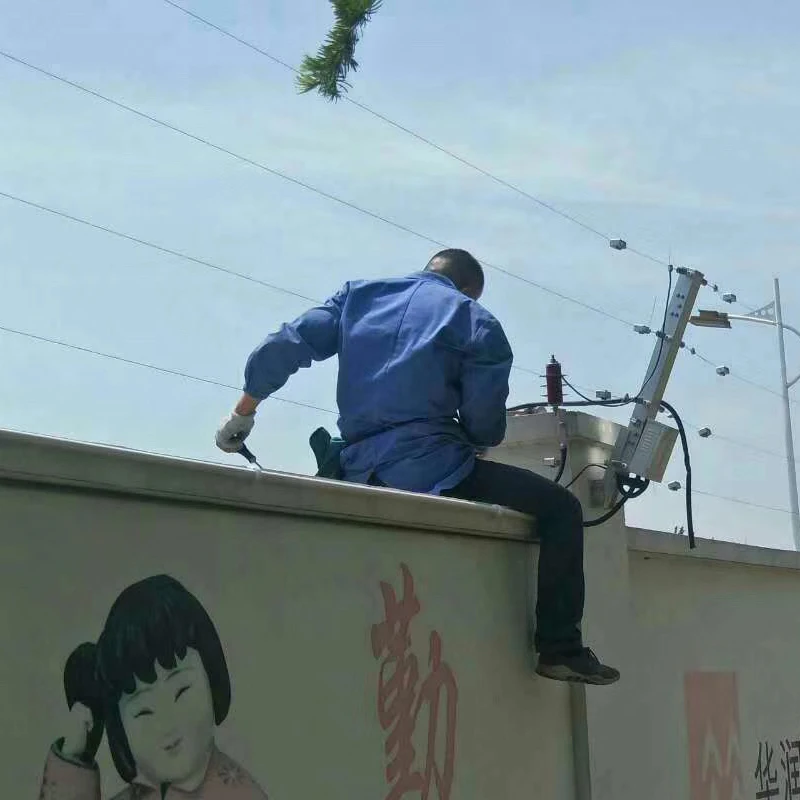

Successful cases
