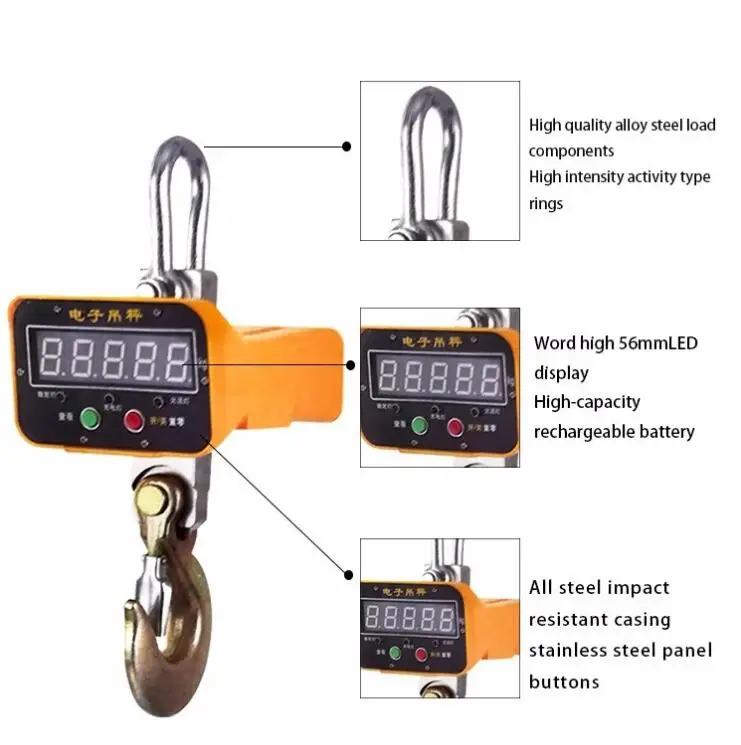

♦ Multi-weighing units: Kg, lb are selectable, kg are default unit. ♦ Multi-function operation: Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller. ♦ User-friendly design: Large red 5 digit LED display (digit height 30mm), Battery Operated with low battery indication, Automatic turn off , power-saving function. Special design load cell, threadless connection, more safety. ♦ Gravity regulation:The acceleration of gravity can be regulated through remote controller according to different places value. ♦ Multi options: RS-232-continuous or on demand data output, user-selectable. Wireless big screen 3″,5″, wireless indicator 180, 280, 380, 580 can match with the scale, user-selectable.
model
A mm
B mm
C mm
D mm
E mm
H mm
net weight
packing size cm
OCS-TY-1T
80
260
37
187
130
420
9.7
49*30*21.5
OCS-TY-2T
88
260
37
187
130
420
9.7
49*30*21.5
OCS-TY-3T
88
260
37
187
130
420
9.7
49*30*21.5
OCS-TY-5T
100
260
40
187
130
460
12.5
56*30*21.5
OCS-TY-10T
130
260
40
187
130
560
17.2
64*30*21.5

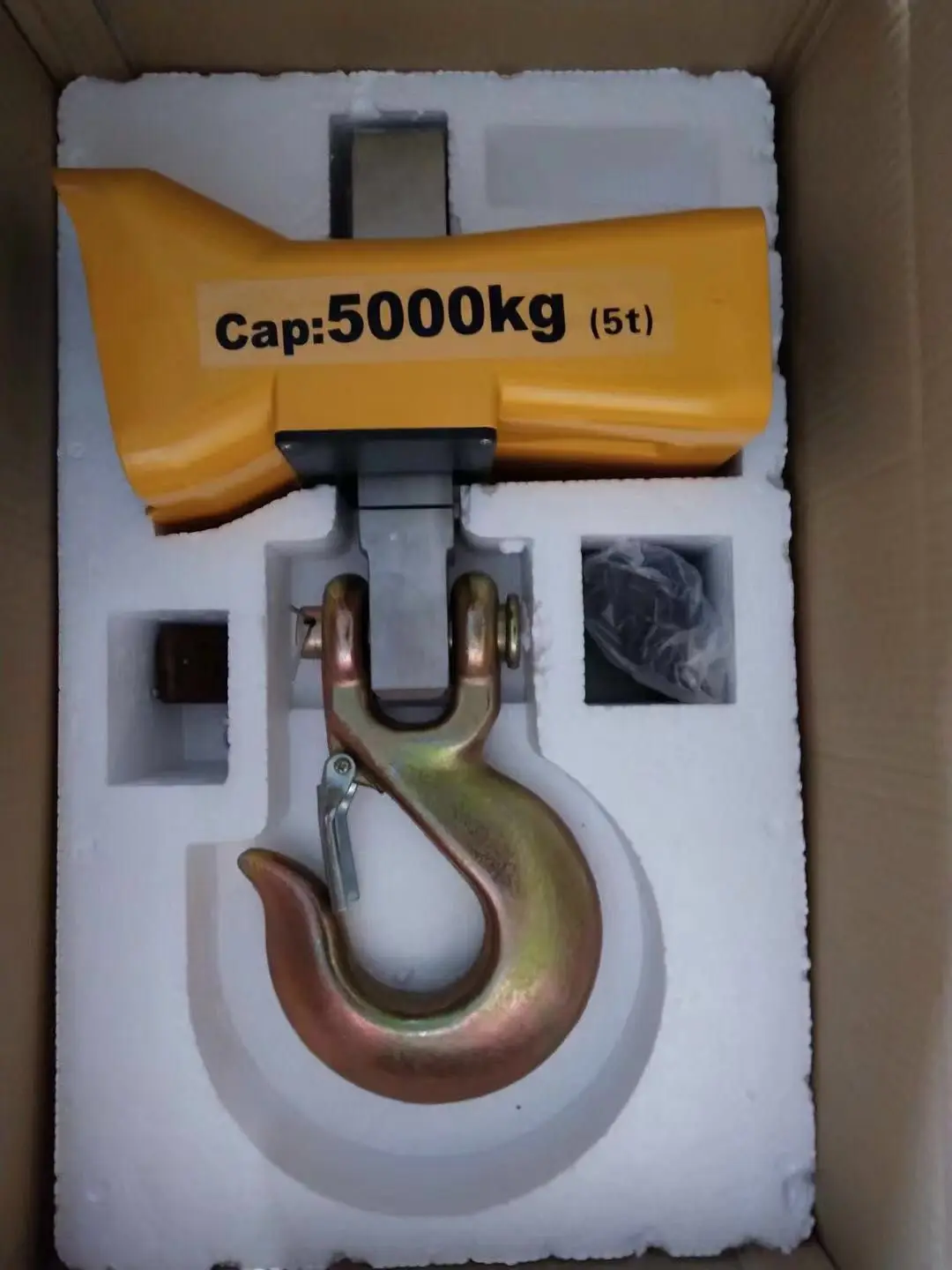

Packaging & Shipping
Our Services
The Warranty is One Year
Company Information
Hebei Juren Hoisting Machinery Co., Ltd. is located in Baoding Qingyuan District,Baoding City, Hebei Province, which is famous for hoisting. It was founded in 1992. With more than 20 years development, it has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.
We are manufacturer of hoisting machinery such as electric hoist,chain blocks, lever blocks, pallet trucks and so on. We can also produce various products or non standard hoisting machines according to customers’ samples design productive forces and carries out strict quality standards.
Our products has exported to more than 20 countries and regions such as Europe, Southeast Asia, Australia, Africa, South America and so on. The annual output value reaches 120 million yuan.
Our factory always take great care in ensuring safety and customer satisfaction are paramount in its thoughts. We followed a policy aimed at excellent in engineering and continuing involvement with the advances in technology, Make our customer can be assured of Safety, Quality, and Efficiency!
FAQ
How to use a Crane Scale or Hanging Scale?
1) Ensure that the object you are weighing has a secure handle or attachment for lifting.
2) Place the object on a level surface.
3) Using the suspension hook on the scale, hook this around the object's handle.
4) Lift the object with the hand grip at the top of the hanging scale.
5) Check the LED screen on the scale for the object's weight.
Notes:
1) Do not make lifts beyond rated load capacity of the crane scale, shackle.
2) Do not perform weighing under strong wind condition which may cause incorrect reading.
3) Remove all loads from shackle or hook when not in used.
4) Before weighing, check and make sure that all hanging /load- receiving elements / devices are in good condition.
5) Check hook, shackle, safety pins, and latches periodically. Contact us for parts replacement in case defect, deform or wearing is found.
