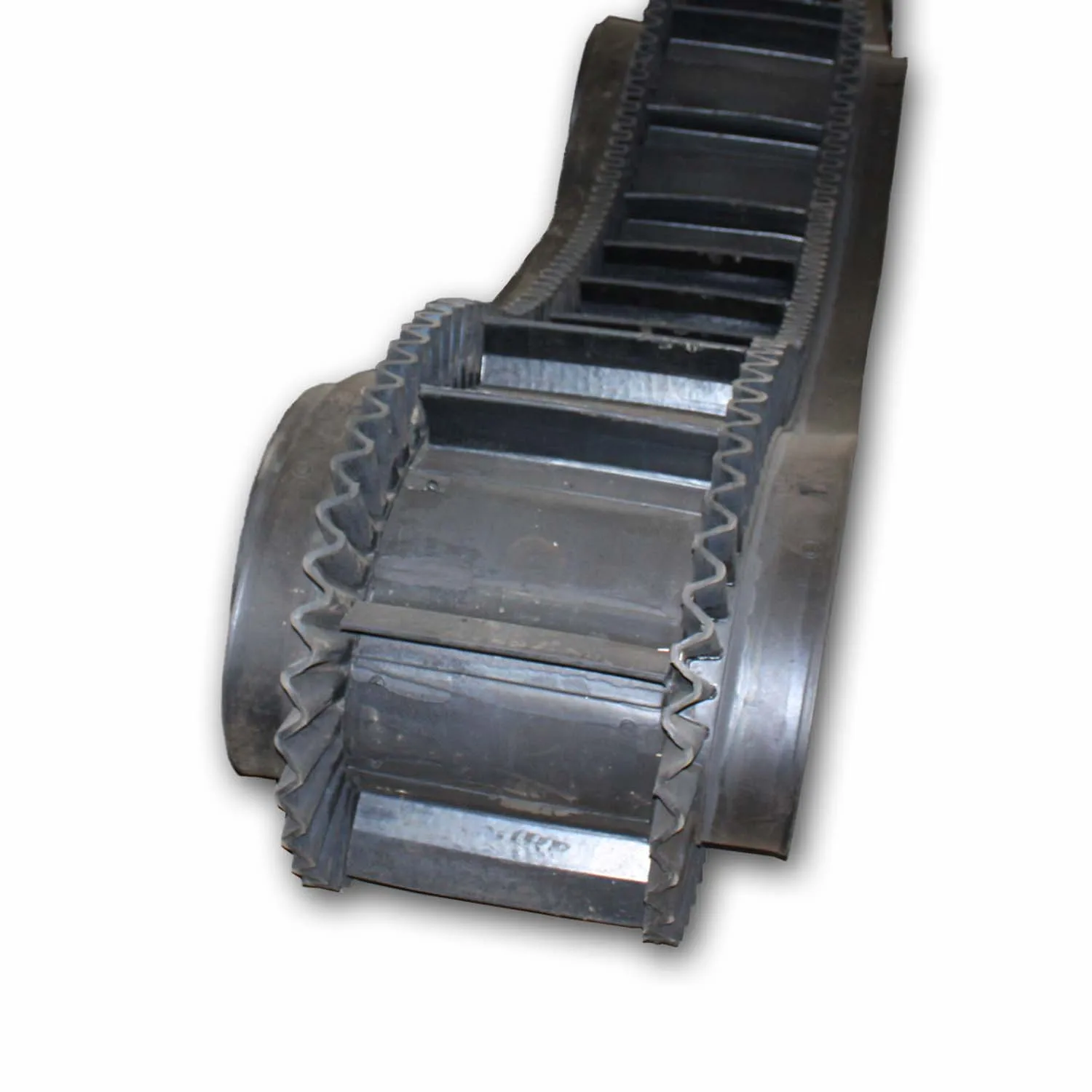

Steep angle corrugated sidewall rubber conveyor belt
- Category: >>>
- Supplier: Baoding Huayue Rubber Belts Co. Ltd.
Share on (62265610264):
Product Overview
Description
Gold supplier china rough conveyor belt and rubber conveyor belt for cement plants
Details of belt conveyor of corrugated sidewall
Sidewall conveyor belt Always works together with the corrugated transport system, normally the angle is more than 30o, it also could work together with the common use belt conveyor for the horizontal and short distance transportation (No clapboard generally).
Corrugated Sidewall Conveyor Belt Structure:
1.Base belt
Carcass: EP, NN, ST
Base belt width : 400- 1400mm
Corrugated Sidewall Conveyor Belt Sidewall:
Type: Light, Medium, Heavy, Extra heavy.
Hight: 40-400(mm)
Width: 35-110(mm)
Corrugated Sidewall Conveyor Belt Cleat:
Type: T,TC
Hight: 35-360(mm)
Width: 55-230(mm)
Corrugated Sidewall Conveyor Belt:
The parameter relationship of the base belt width and flange height (mm): | ||||||
Bandwidth B of base | sidewall high H | cleat high H1 | The wave bottom wide B1 | Effective bandwidth B2 | Empty wide B3 | Type of cleat |
| 300 | 40 | 35 | 25 | 180 | 35 | TC |
| 60 | 55 | 50 | 120 | 40 | ||
| 80 | 75 | |||||
| 400 | 60 | 55 | 50 | 180 | 60 | TC |
| 80 | 75 | |||||
| 100 | 90 | |||||
| 500 | 80 | 75 | 50 | 250 | 75 | TC |
| 100 | 90 | |||||
| 120 | 110 | |||||
| 650 | 100 | 90 | 50 | 350 | 100 | TC |
| 120 | 110 | |||||
| 160 | 140 | 75 | 300 | |||
| 800 | 120 | 110 | 50 | 460 | 120 | TC |
| 160 | 140 | 75 | 410 | |||
| 200 | 180 | |||||
| 1000 | 160 | 140 | 75 | 550 | 150 | TC |
| 200 | 180 | |||||
| 240 | 220 | |||||
| 1200 | 160 | 140 | 75 | 690 | 180 | TC |
| 200 | 180 | |||||
| 240 | 220 | 100 | 640 | |||
| 300 | 260 | |||||
| 1400 | 200 | 180 | 75 | 830 | 210 | TC |
| 240 | 220 | |||||
| 300 | 260 | 100 | 780 | |||
| 400 | 360 | |||||
Base belt specifications:
| Index Description | Strength between layers | Cover layer and fabric layer | |
Thickness of cover layer ≤1.5mm | Thickness of cover layer >1.5mm | ||
| Sample average value | 4.5N/mm | 3.2N/mm | 3.5N/mm |
Fabric Material | Fabric structure | Fabric code | No.of fabric plies | Width mm | Length m | Cover thickness mm | ||
| Warp | Weft | |||||||
| Top | Bottom | |||||||
Polyester canvas | Polyester | Nylon of Polyester | EP100 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 |
| EP150 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP200 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP250 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP300 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP400 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP500 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 | |||
| EP600 | 2-4 | 350-2000 | 10-400 | 2-12 | | |||

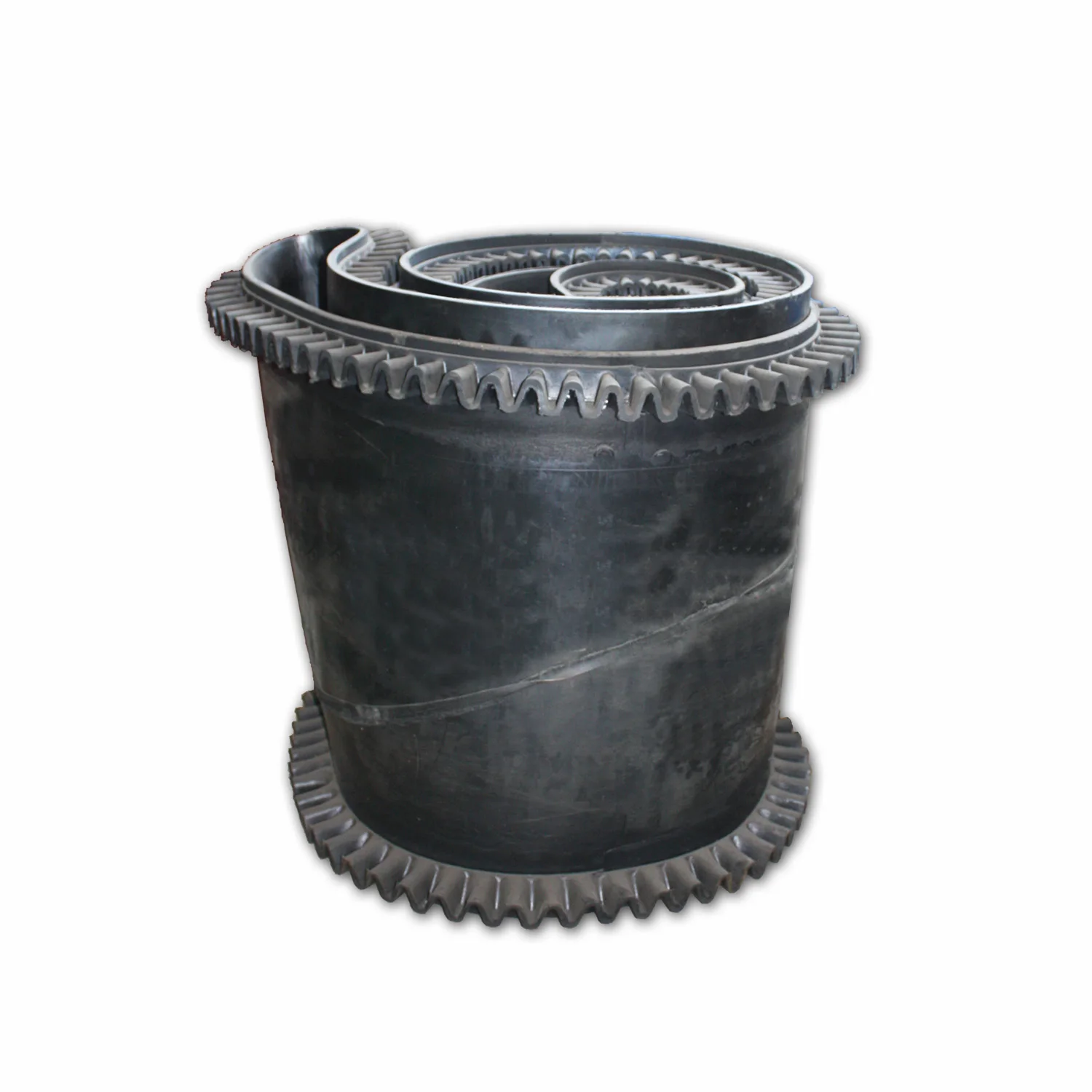

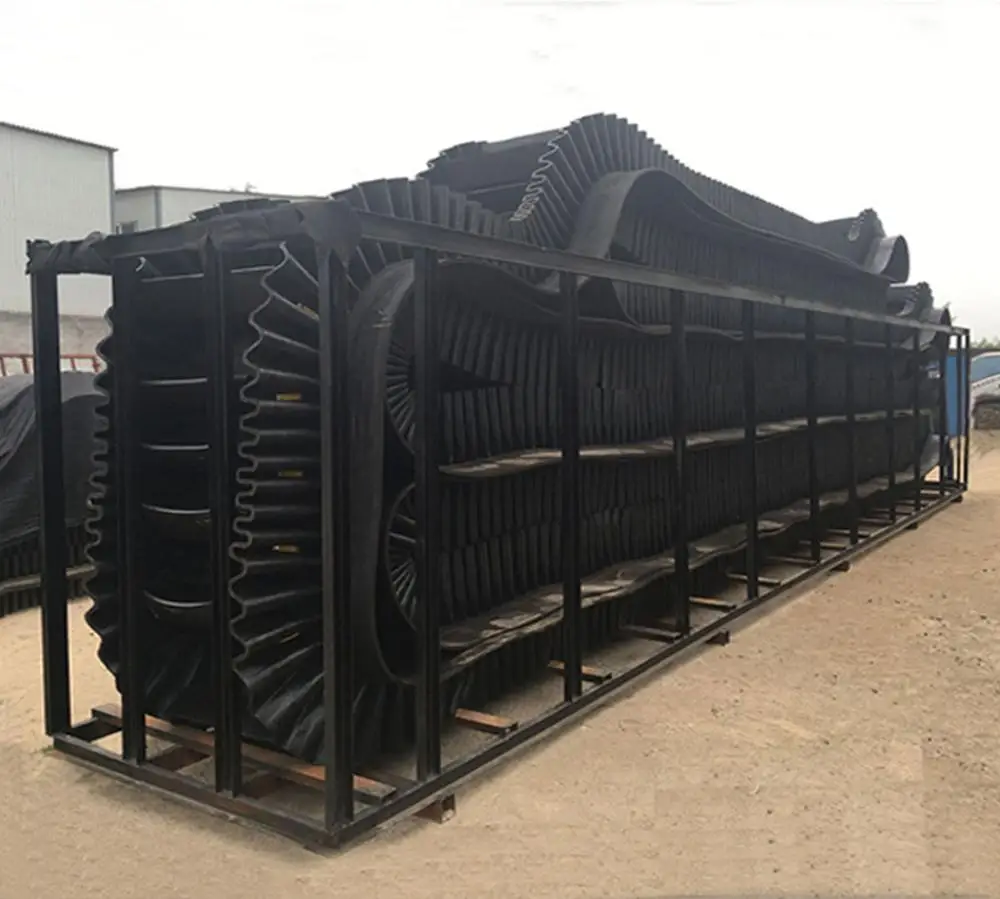

Pictures of belt conveyor of corrugated sidewall
