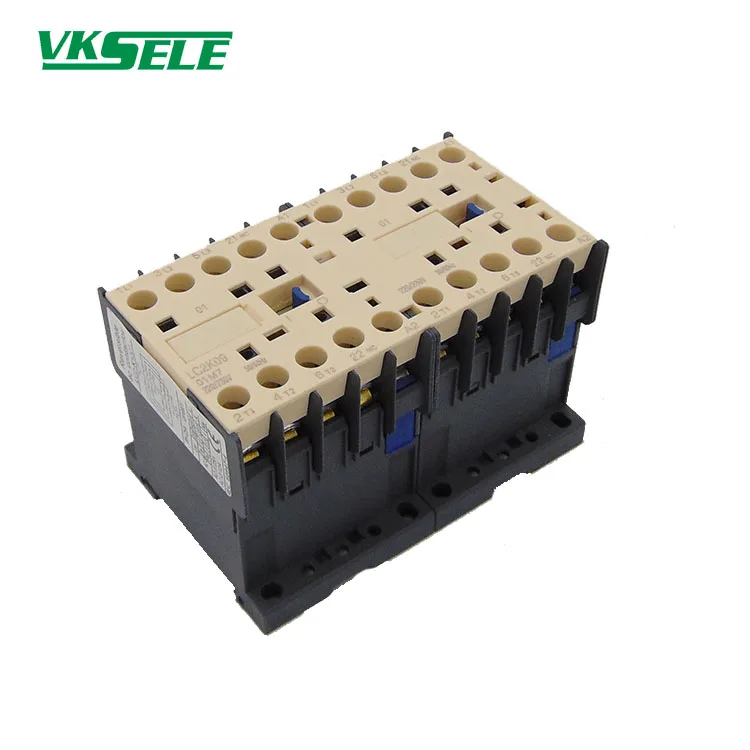

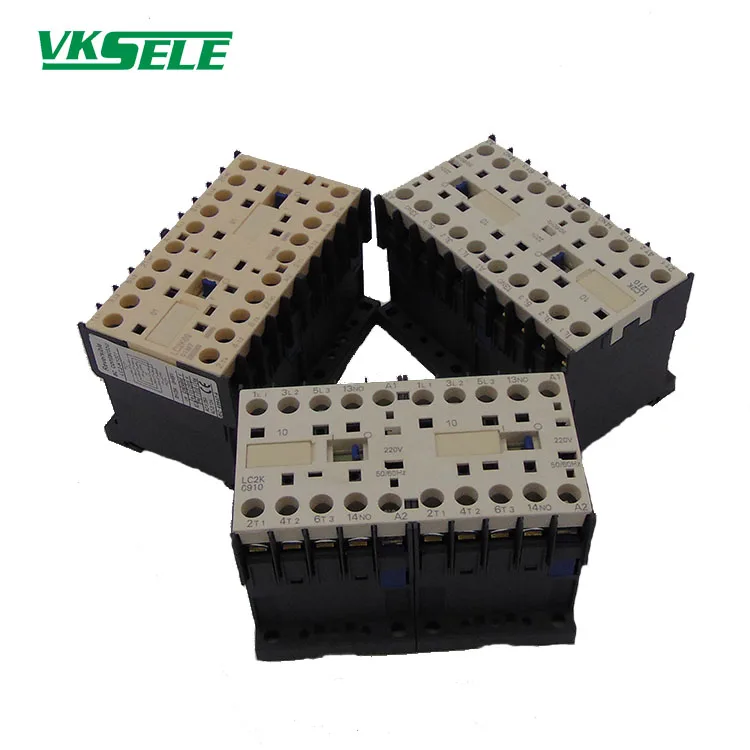

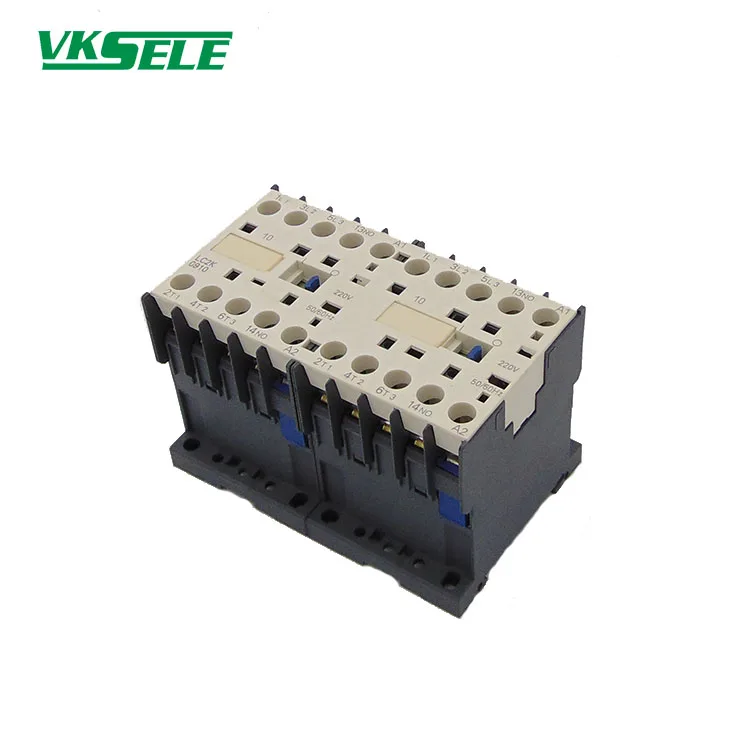

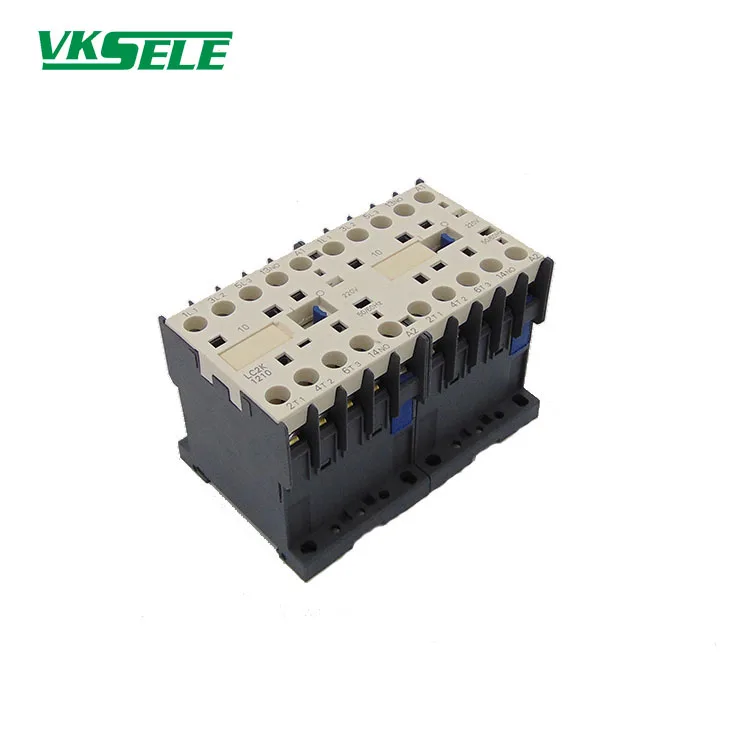

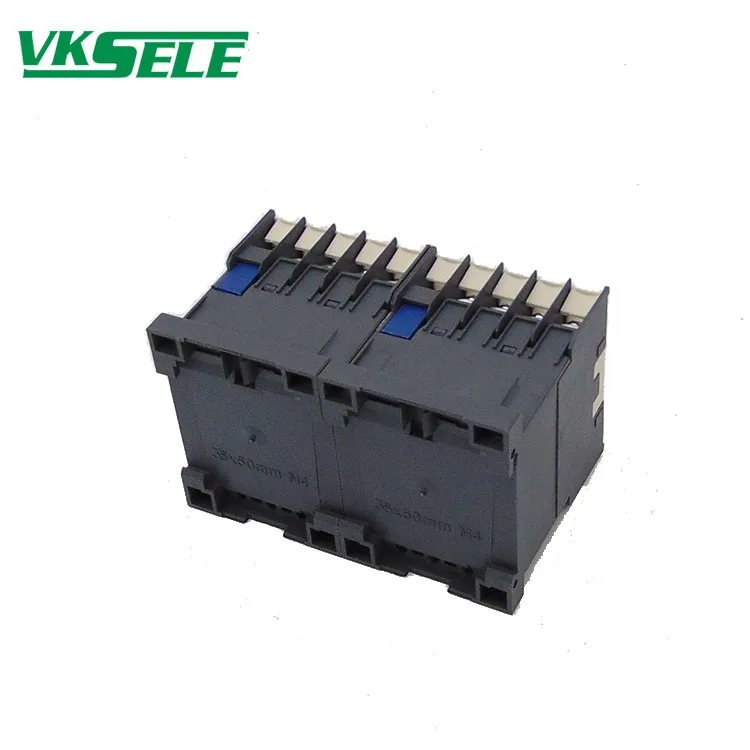

LC2 K12 Series CJX2 K1210 12A 3 pole elector mechanical interlocking reversing contactor

LC1-K / CJX2-K series AC contactor is mainly used in AC 50HZ or 60HZ, rated insulation voltage 690V, in AC-3 use category when rated voltage of 380V rated current to 12A circuit, for long-distance making and breaking circuit purposes, and with the appropriate electromagnetic thermal overload relays to protect the possible overload of the circuit operation, contactor suitable for frequent starting and controlling AC motor.It conforms to IEC60947-4-1.

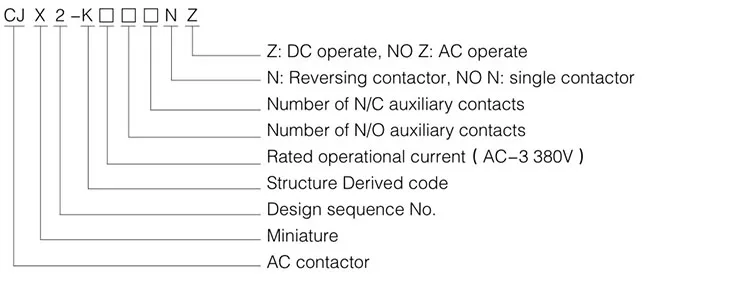

Model Explanation:

Normal Running And Installtion Conditions:

1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category: Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
7. Impact shock: Product should be installed and used in the place where often shakes and impacts.

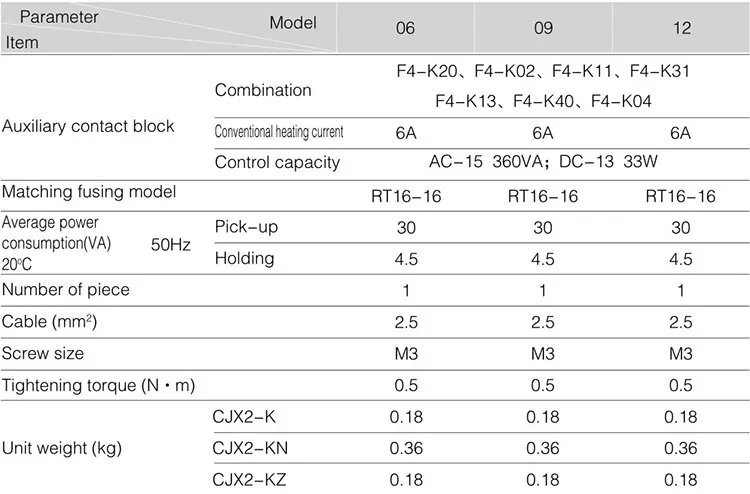

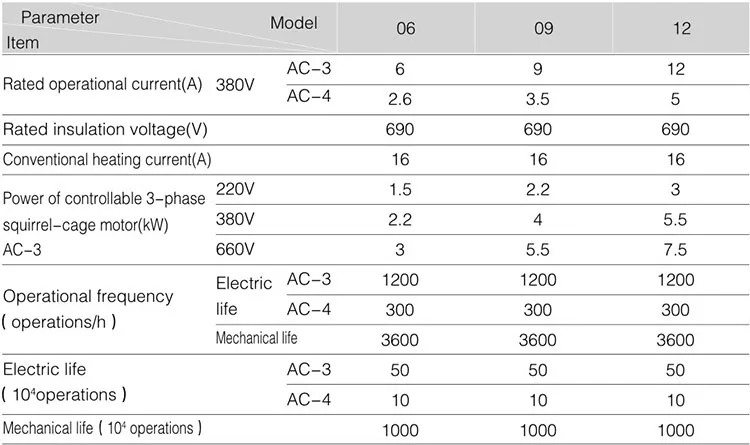

Main Technical Parameter:

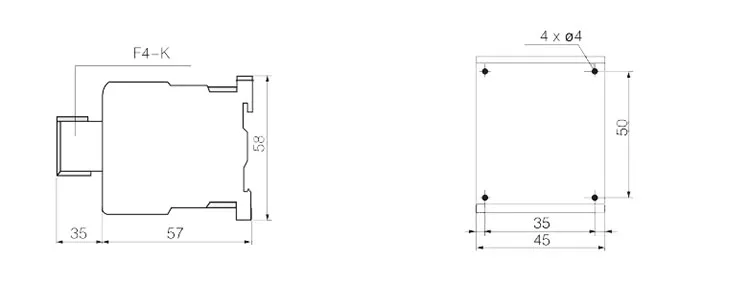

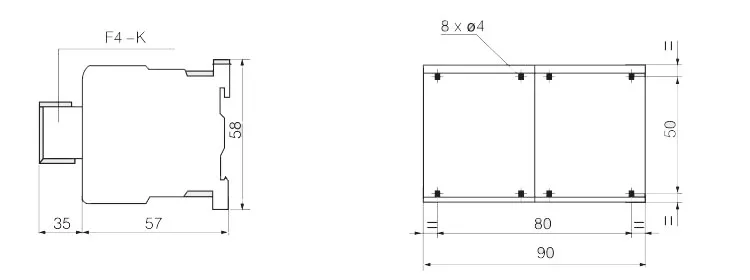

Dimensions:

LC1 (CJX2) K06-K12

LC1 (CJX2)  K06N-K12N

13.72
