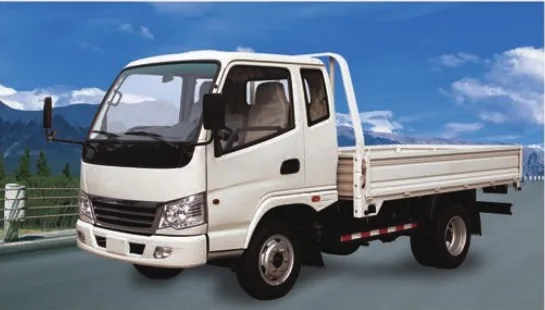

High Quality Diesel Engine LHD 3T Light Truck Kmc Mini Truck
- Category: >>>
- Supplier: Shanghai Challenway Auto Industry Co. Ltd.
Share on (62265648302):
Product Overview
Description
High Quality Disel Engine LHD Light Truck Isuzu Technology Kmc Mini Truck
Product Description
Main Parameter:
| KMC1060D3 | |
| Engin Model | JE493ZLQ3A(4JB1) |
| Bore/Stroke(mm) | 93*102 |
| Displacement(litre) | 2771 |
| Power(HP) | 101 |
| Rated Rotate speed(r/min) | 3600 |
| Cooling | water with turbo |
| Overall dimensions(LxWxH)(mm) | 6020*2100*2340 |
| Cargo Box Size(LxWxH-inner)(mm) | 4200*1920*400 |
| Cabin | ONE CAB(1900) |
| Drive Type | 4*2 |
| Seats in cabin | 3 |
| Transmission | 5T32 |
| Curb Weight(Kg) | 2600 |
| Load Weight(Kg) | 3000 |
| G.V.W | 5600 |
| Wheel Base(mm) | 3300 |
| Track(mm) front | 1680 |
| back | 1590 |
| Brake system | Air brake |
| Parking brake | cut air brake |
| Clutch model | Single plate, Dry type |
| Gearshift | 5+1 speed, manually |
| Gearshift ratio | 4.714;2.467;1.65 ;1;0.787 ;R4.505 |
| Front axle | 2T |
| Rear axle | 4T |
| Final drive | 6.167 |
| Front tire | 7.00R16 |
| Rear tire | 7.00R16 |
| Battery(V) | 12(electric start) |
| Power steering | WITH |
| A/C | WITH |
| FOB(QINGDAO) | 14300 |

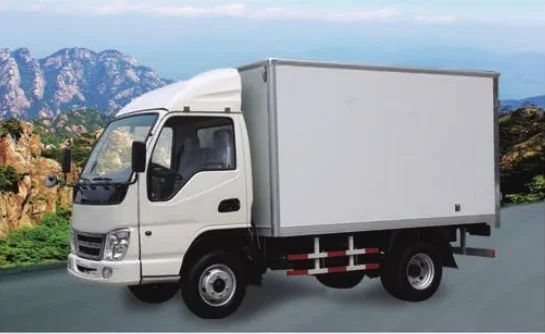

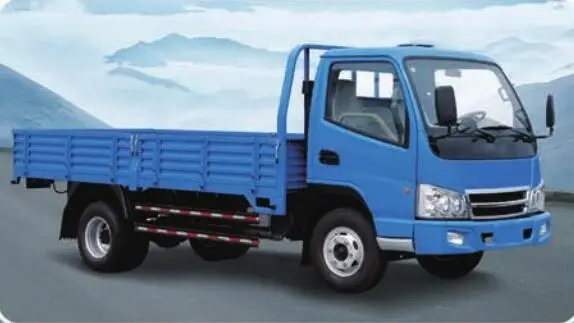

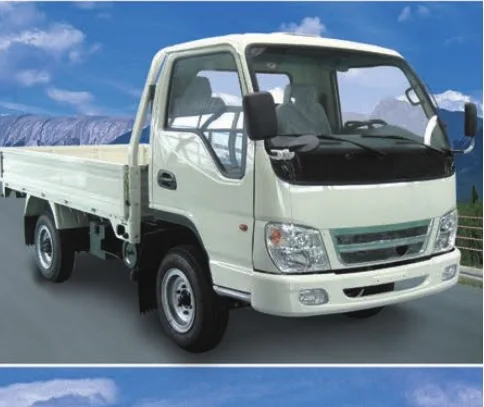

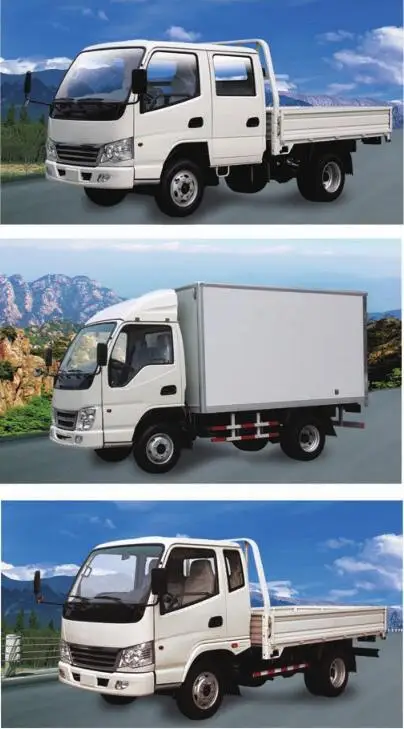

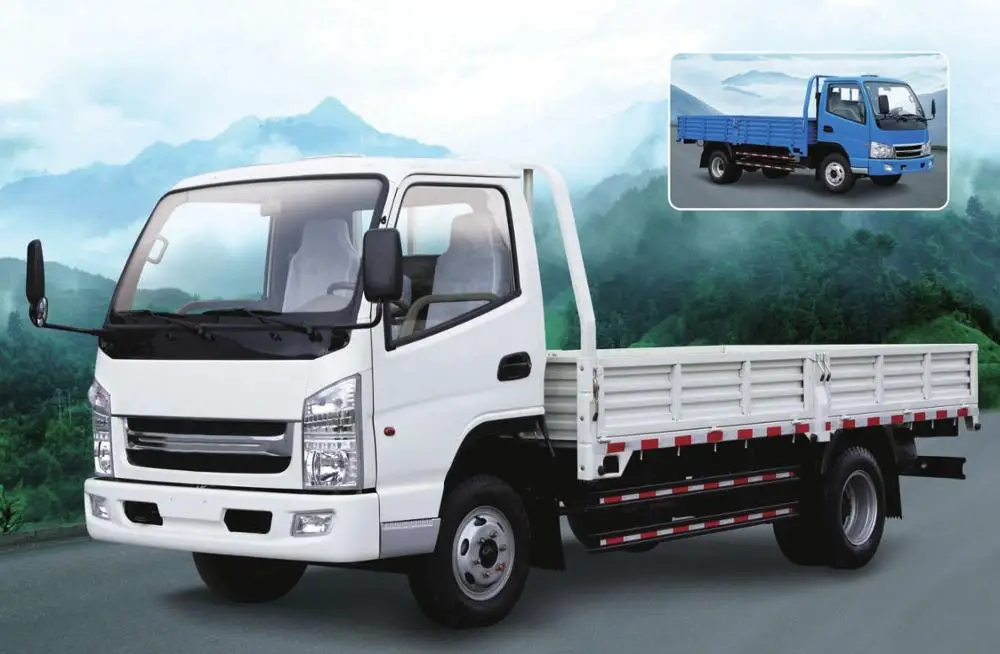

Picture Show:
