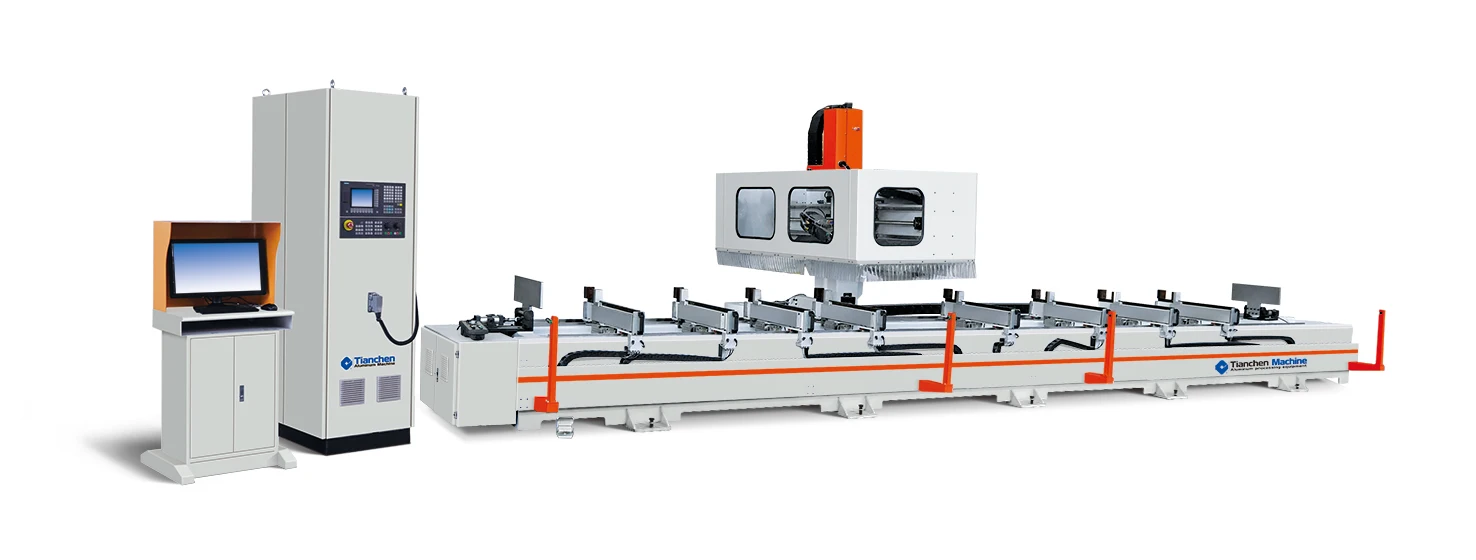

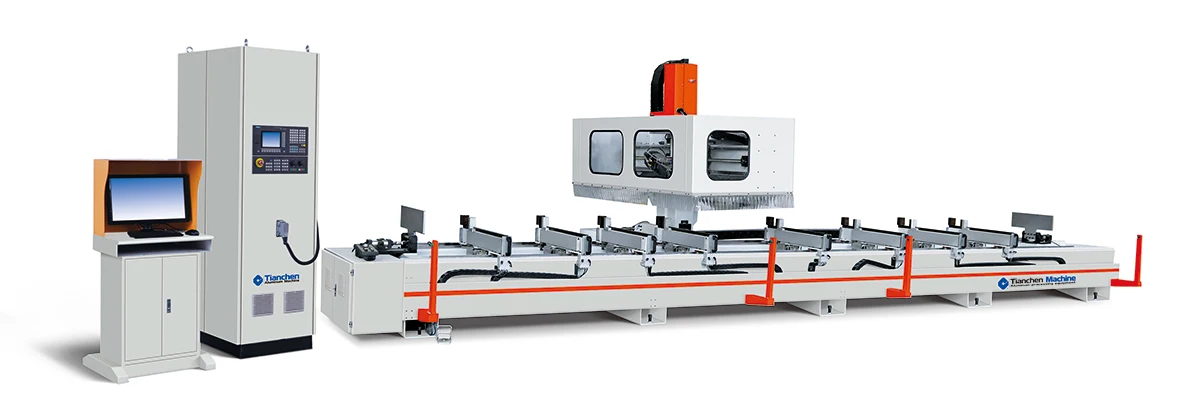

TC Aluminum CNC Gantry Machining Center For Making Windows Doors Curtain Wall
- Category: >>>
- Supplier: Jinan Tianchen Smart Machine Co. ltd.
Share on (62265653249):
Product Overview
Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Description
Application

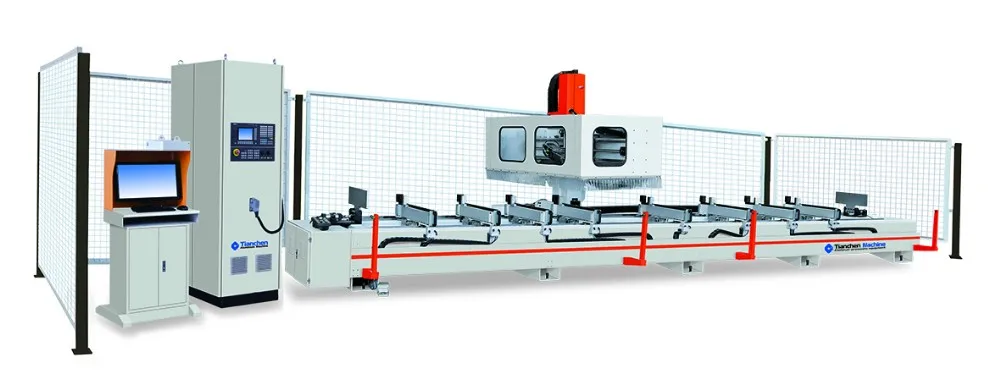

★\tApplicable for milling and cutting processing for various holes and slots of aluminum window and door curtain wall or industrial aluminum profile.
Features
★\tAdopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software, perfectly realized the milling process.
★\tAdopting original imported high quality control system, servo motor. With high quality ball screw, linear guide rail pair, bearing and other parts to make sure a high processing accuracy.
★\tThe fixture can be located freely.
★\tDouble worktable can process two pieces or two types of profile, interactive loading without interfere each other.
★\tEquipped with 12 position cutting tool, and able to automatically changing tools.

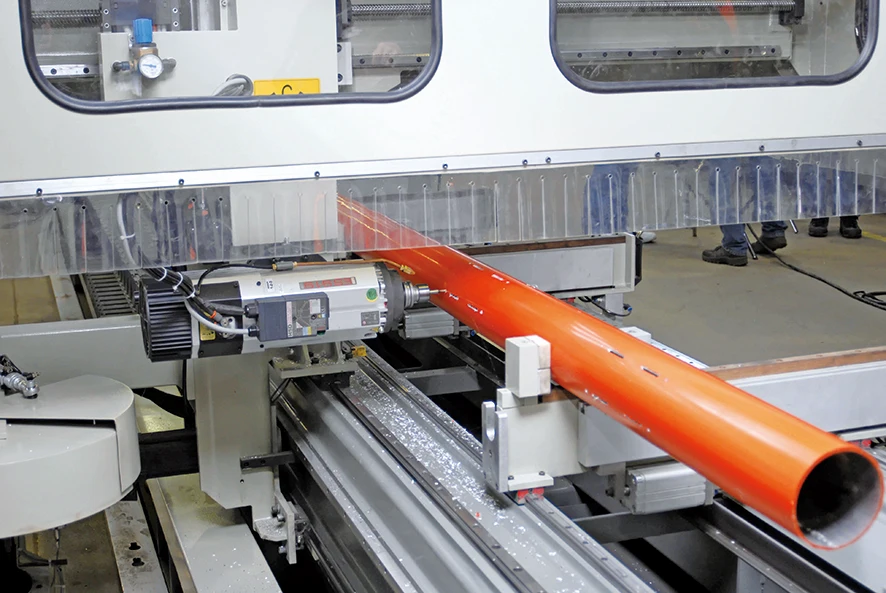

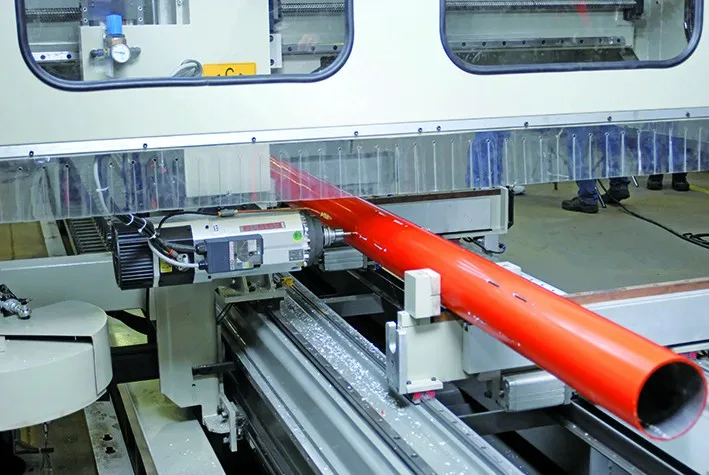

★\tAdopting high speed electrical spindle imported from Italy, able to finished the process of any angle within ±90°, with extremely high working efficiency.
★\tA 9 meter extra length model can be customized.

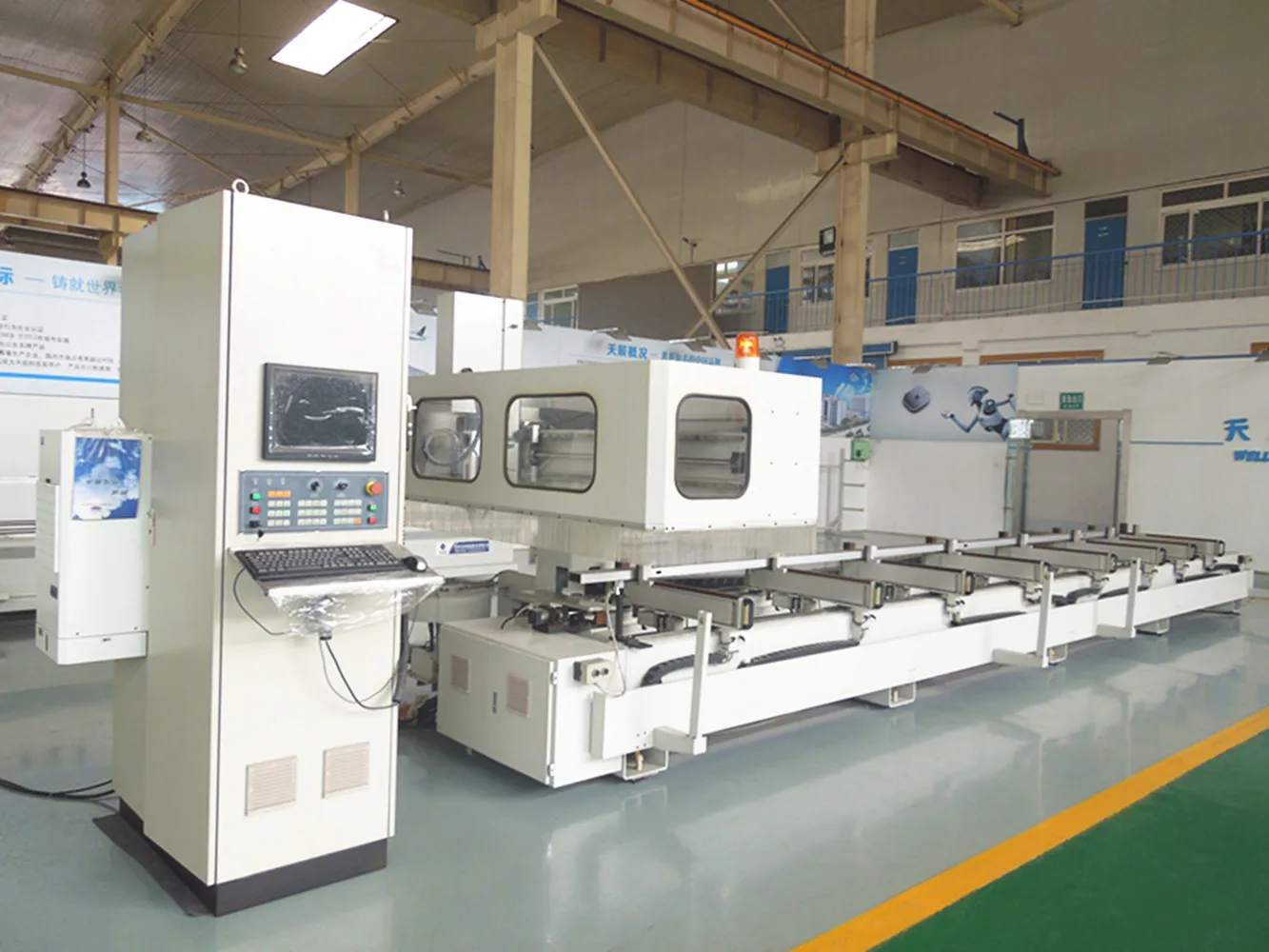

Detailed Images
★\tAdopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software, perfectly realized the milling process.

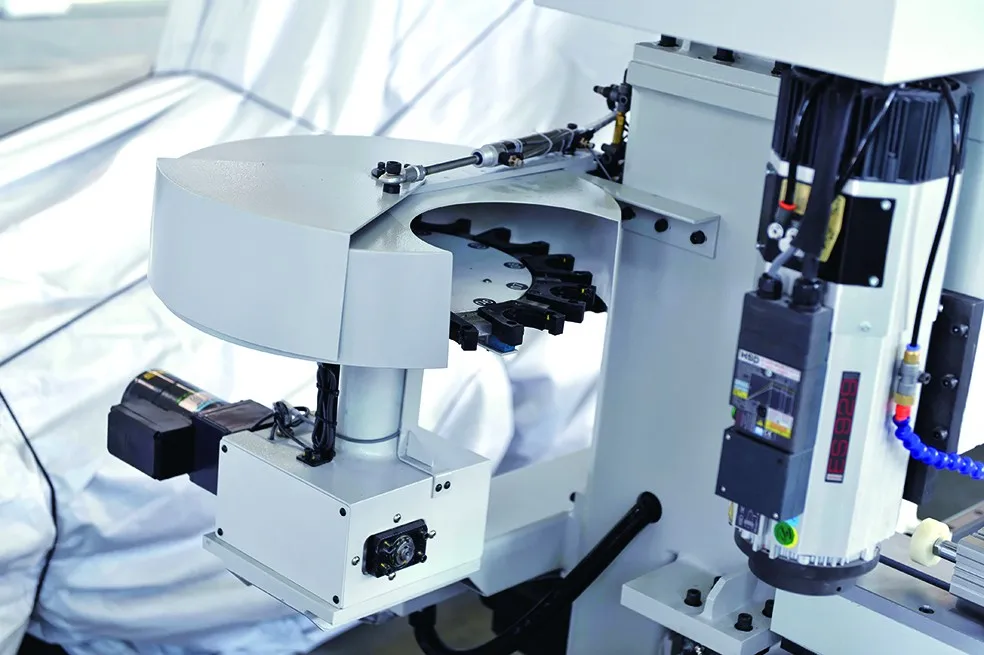

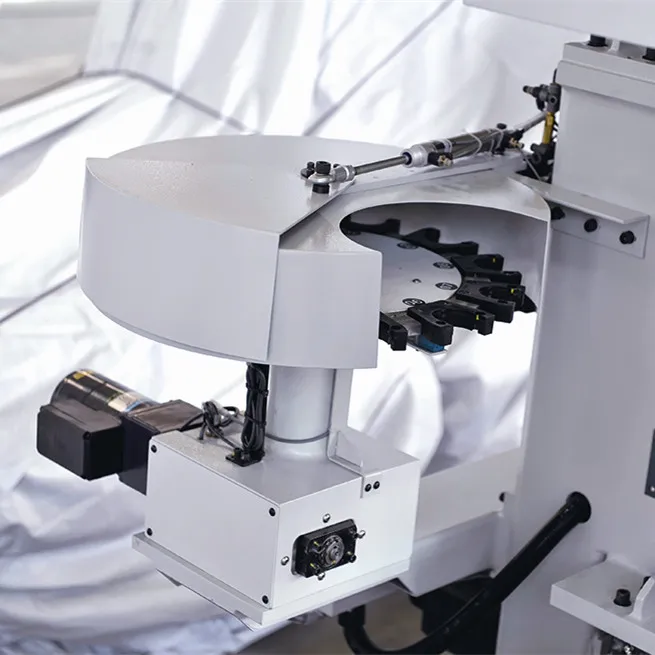

★\tEquipped with 12 position cutting tool, and able to automatically changing tools.

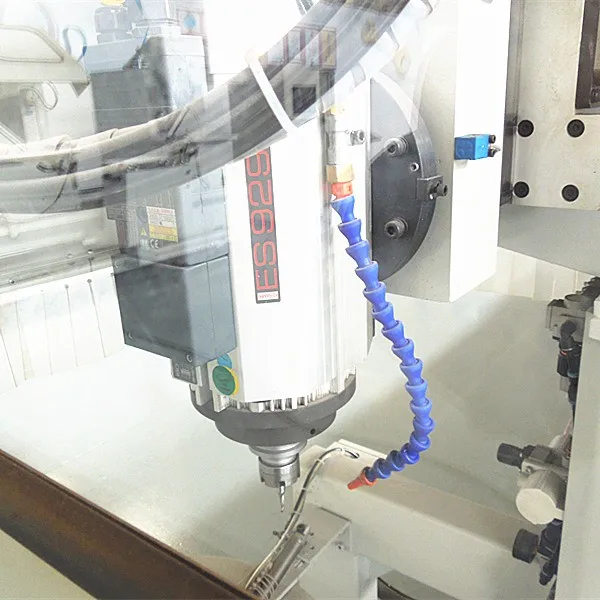

★\tAdopting high speed electrical spindle imported from Italy, able to finished the process of any angle within ±90°, with extremely high working efficiency.
★\tDouble worktable can process two pieces or two types of profile, interactive loading without interfere each other.
Technical Parameter
Item | Specification |
X-axis Range | 7000mm |
Y-axis Range | 1300mm |
Z-axis Range | 550mm |
X-axis Speed | 0~60m/min |
Y-axis Speed | 0~30m/min |
Z-axis Speed | 0~20m/min |
Main shaft Rev./power | 0~18000rpm/7.5kw |
Gyrating Range | -90°~0°~+90° |
Cutter Magazine | 12 cutter positions, cutters auto-change is available in the program |
Cutter Max length | 165mm |
Total Power | 13KW |
Clamp Station | 8 |
Work Area(W x H x L) | 650x250x7000mm(top) |
Contour Dimension (W x H x L) | 435x250x7000mm(side) |
Weight | 4500kg |
Certifications
CE certificate
ISO9001 certificate
AAAA Grade in Good Standardizing Practice Certificate (2016-2019)
The First Selected Brand of Manufacturing Equipment in 2018~2019 The 14th AL-survey Chinese Doors, Windows and Curtain Wall Industry Brand List
High-tech Enterprises of Shandong Provinces in 2017~2020
Outstanding Contribution Enterprise for Thirty Years of Chinese Building Curtain Wall Industry
Green Products of China Formwork and Scaffold Industry(2018-2019)
Key Enterprises in Shandong Construction Machinery Industry
Famous Trademark in Shandong, China
Service and Warranty
1. 24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

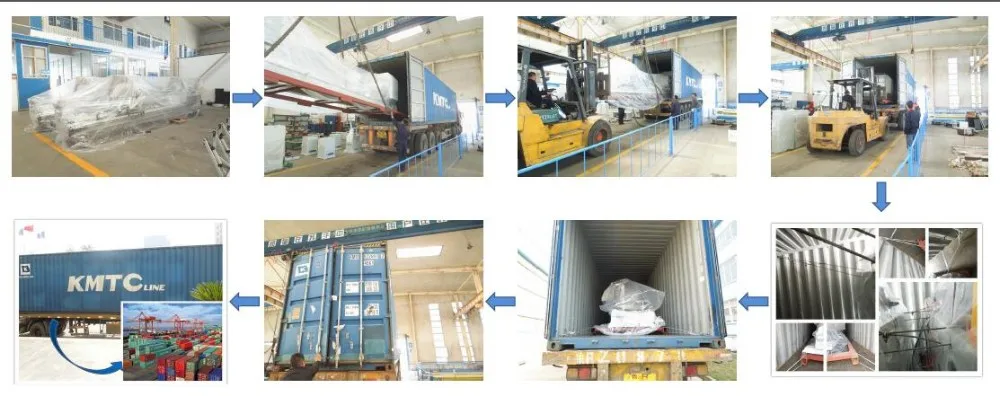

Packing & Delivery
Packing: Clean and lubricate the machine and necessary parts before delivery; carefully packed them with protective film, and stably fixed in the container.
Shipping: by sea, by air

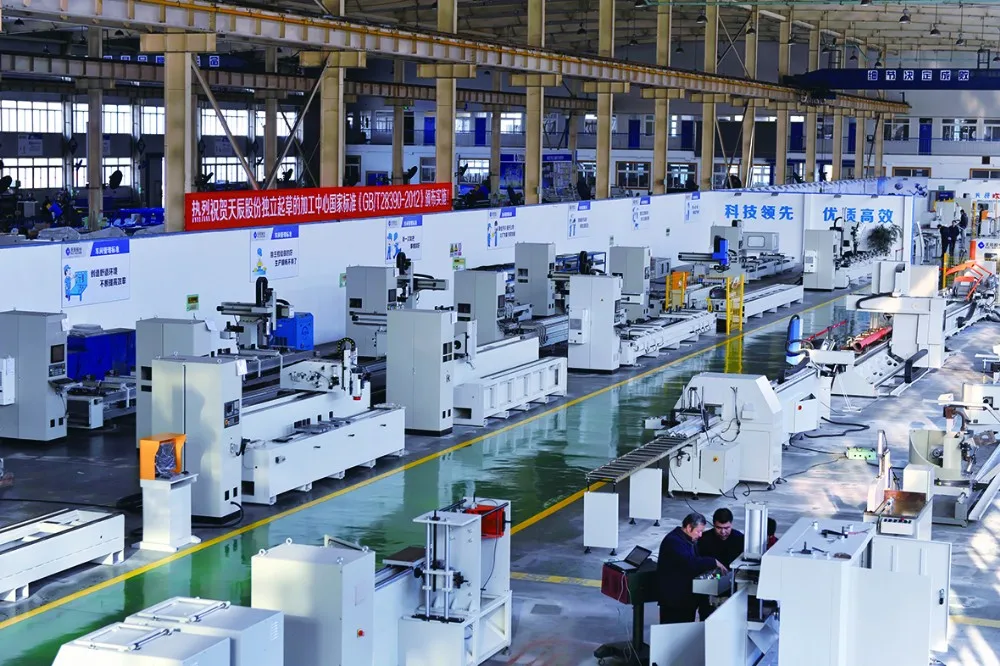

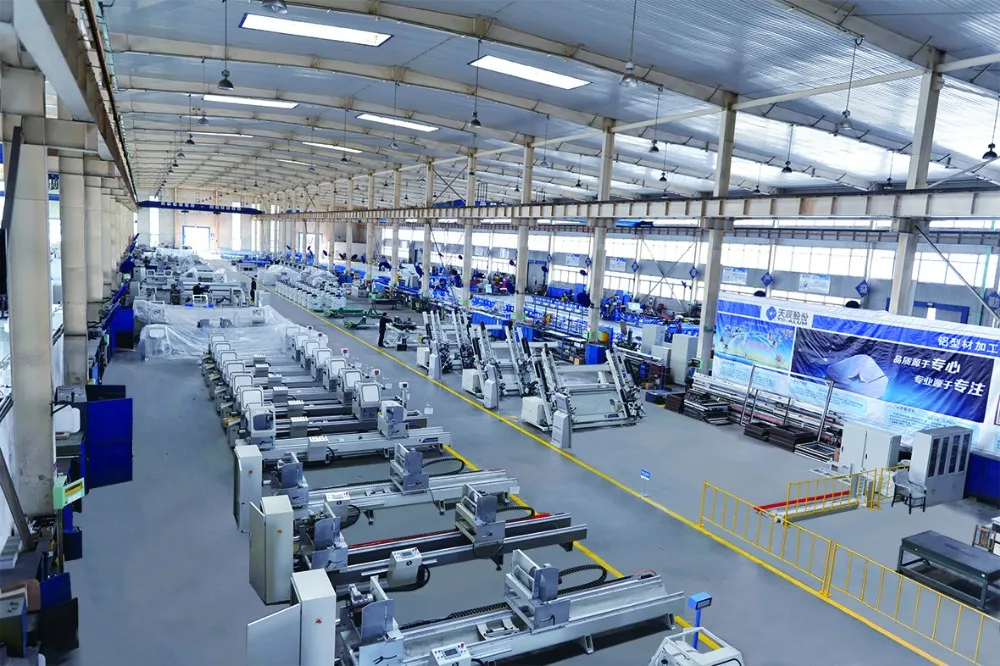

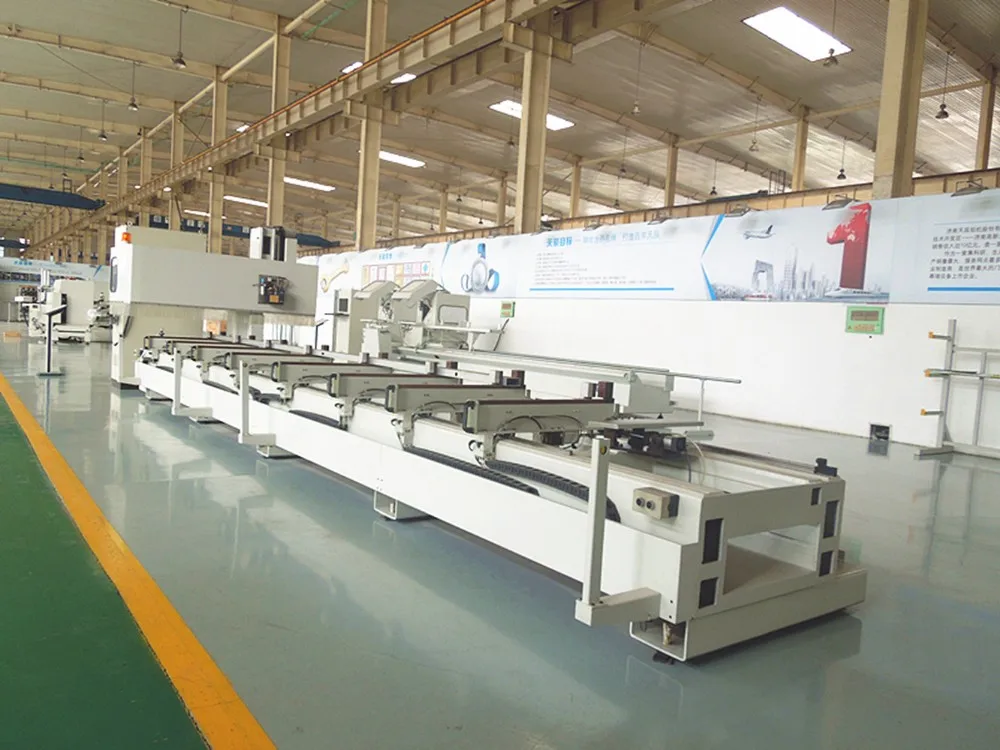

Our Company
Jinan Tianchen Aluminum Machine Corp., Ltd. is a high-tech enterprise in Shandong Province. We are honored as a key high-tech enterprise group in Jinan City, an industry base of large machinery production in China and an "AAA" grade credit enterprise. We have been named "Reliable and Credible Enterprise" for four consecutive years in Jinan City. Tianchen is a famous trademark in Jinan.
Tianchen is located in "Tianchen Industrial Garden" which is in the national development zone - High-Tech Development Zone. Since established in 1997, Tianchen has developed to cover 42 million square meters. We employ more than 1,500 people. Our annual sales are 500 million Yuan. We run the ERP management system. We have passed ISO9001 international quality system certification. We have established a provincial-level technology center, quality control centers and more than 40 sales offices worldwide. We have the right to import and export goods. Some of our products have got European CE certificate. Tianchen is a professional manufacturer of processing equipment like tower CNC production line and CNC equipment.
Our company insists on the principle of "Do the New Ones, Do the Good Ones" and the enterprise aim of "Trustworthiness, Cooperation, Study and Innovation". We rely on high-quality products, considerate services and continuous innovation to raise customer satisfaction rate. We aim to become one of the best partners of customers.
Each step of the developments of our company comes from customers' trust and support. Our company will use our professionalism to create a new world together with you in the future.
Exhibitions
FAQ
1.\tWhich machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
2.\tHow to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
3.\tWhich payment method do you accept?
A: We accept T/T, L/C and etc.
4.\tWhat is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 15-40 working days after deposit.
