low price 1325 table type sheet metal cnc plasma cutter cutting machine with huayuan power supply
- Category: >>>
- Supplier: Maanshan Longbow Machinery Manufacturing Co. Ltd.
Share on (62265904932):
Product Overview
Description
Products Description
Performance Features
Function:
It’s mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.
It’s mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.
Performance Features:

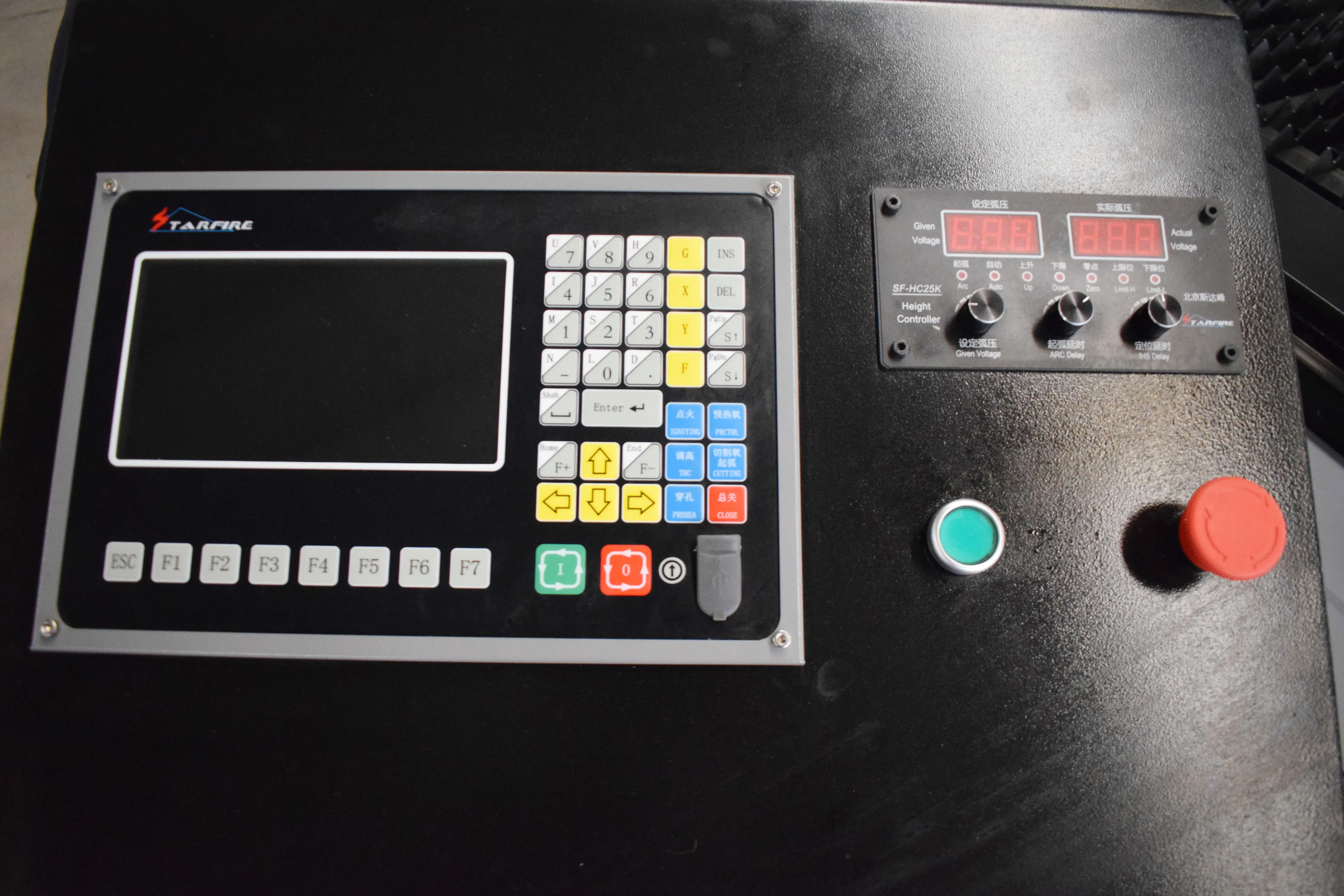

1.Vertical control cabinet with 10 inch touch screen(15 inch screen is optional)
2.New version of CAM-DUCT software from Hypertherm of United States and encrypting Chinese version.
3.Original generator of Hypertherm of United States or homemade generator of Huayuan (economy version).
1.Vertical control cabinet with 10 inch touch screen(15 inch screen is optional)
2.New version of CAM-DUCT software from Hypertherm of United States and encrypting Chinese version.
3.Original generator of Hypertherm of United States or homemade generator of Huayuan (economy version).
Main Features
1.If use the plasma cutting machine to cut the the thick meal, have to use the arc height adjust system, while our height adjust system use the high sensor, one minute can send out 12,000 signal per minute, while other height adjust system usually send out 10000 signal per minute, so our cutting quality more better than other factory and cutting speed a litter faster than the same power plasma source.
2.we equipped the two fan for take the cutting smoke out from the room, front fan will blow to back, the back fan will exhaust the smoke out from the machine and out from the room. This way, will efficiency to let the workshop in the good
environment. While other factory does not have this fan or only have one
environment. While other factory does not have this fan or only have one
3. The painting: all our machine body have been processed by professional anti-rust treatment. First, we spray 2 times anti-rust paint to ensure that all parts of the machine in a fully protected state, and then spray color. This can effectively prevent the machine rust, resulting in damage to the machine. Other manufacturers do not take anti-rust treatment or only spay 1 time rust paint.
4.we will free provide 2G processing design (USD320) and Australia professional metal cutting software for you, in the 2G processing design have thousand beautiful graphic, after you get the machine, you can let the machine do a lot of beautiful work, while no need find the engineer to help you to design.
5.Machine structure is designed by famous mechanical professor, to add many columns for each bean. So that the machine body can bear more weight for large, thick metal sheets without deforming. But some small factories will not add these parts for saving cost, their machine is easy to deform for thick metal.
5.Machine structure is designed by famous mechanical professor, to add many columns for each bean. So that the machine body can bear more weight for large, thick metal sheets without deforming. But some small factories will not add these parts for saving cost, their machine is easy to deform for thick metal.
Model | 1540 63APlasma cutting machine (high configuration) |
X,Y working area | 1500*4000mm |
Z working area | 150mm |
Packing dimension | 4800mm*2260mm*1470mm |
Lathe bed | Very thick steel structure |
Machine Power | 8.5kw |
Working voltage | 380V three phase 60hz |
Reposition precision | 0.02mm |
Processing precision | 0.1mm |
Maximum cutting speed | 12000mm/min |
Torch Height control mode | Automatic |
Cutting thickness | Max 40mm carbon steel |
Plasma power supply | LGK63A |
Control system | STARfire |
Motors | Stepper motor |
Software | Starcam |
Weight | 1600KG |
Plasma Air Pressure | Max.0.8Mpa |
Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
LCD Display Dimension | 10 inch touch screen |
Our Campany
Certifications
Packing & Delivery
Packaging | ||
Dimensions (mm) | 4950(L)*2280(W)*1850(H) | |
Weight | 1650kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 4950(L)*2280(W)*1850(H) | |
Weight | 1650kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
