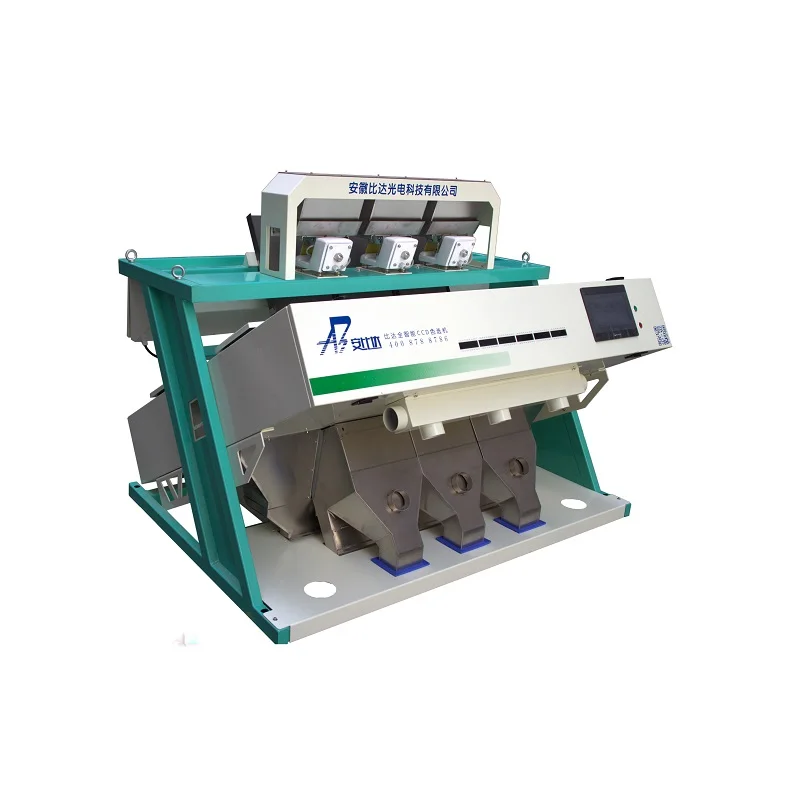

PP PET bottle flake CCD color sorter machine, waste plastic color separator, PE bottle cap plastic color sorter
- Category: >>>
- Supplier: Anhui Bida Optoelectronic Technology Co. Ltd.
Share on (62266291513):
Product Overview
Description
Color sorting machine can be applied in field of rice, grain, nut, bean, plastic, ore sorting,separating and removal of impurity.
Model | BDP1 | BDP2 | BDP3 | BDP5 | BDP7 | BDP10 |
Throughput（T/H) | 0.05-0.3 | 0.1-0.8 | 0.2-1.2 | 0.5-2 | 0.7-3 | 1-5 |
Accuracy（%） | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
Optimal Reject Rate | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 | ≥15:1 |
Weight（KG） | 340 | 500 | 640 | 940 | 1240 | 1800 |
Power（KW） | 1.0 | 1.4 | 1.6 | 2.9 | 3.8 | 5.0 |
Dimension | 1000*1500*1350 | 1280*1455*1770 | 1860*1455*1770 | 2210*1620*1760 | 2860*1600*1750 | 3810*1570*1725 |
Air Pressure（MPa） | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Air Consumption（m³/min） | 0.6 | 1.2 | 1.8 | 3.0 | 4.0 | 5.5 |
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Note: Above sorting parameters is calculated on 2% contamination plastic flakes for reference only | ||||||
Advantage of Bida color sorter:
1)5400 pixels HD industry use CCD camera, sorting accuracy up to 0.01mm²
2)Latest technology of LED system, longer lifetime, more accurate for color identification
3)One button operation, due to data synchronization system
4)Latest ejector technology makes the ejectors longer life time
5)No wearing spare part makes 0 maintenance cost
