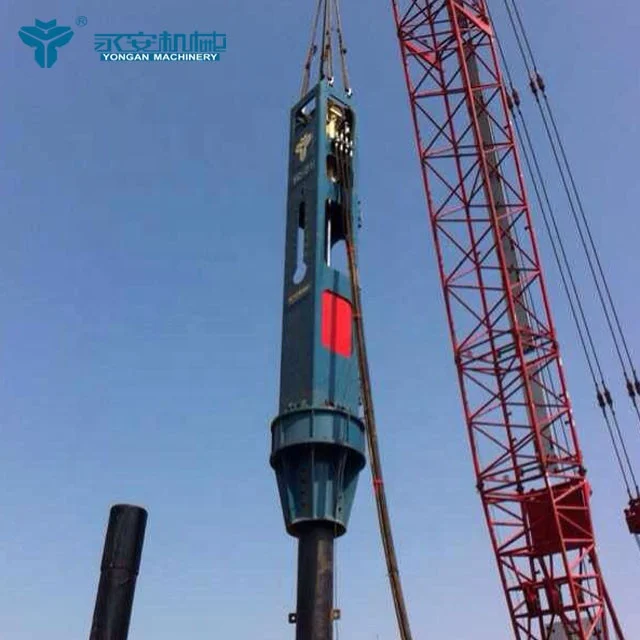

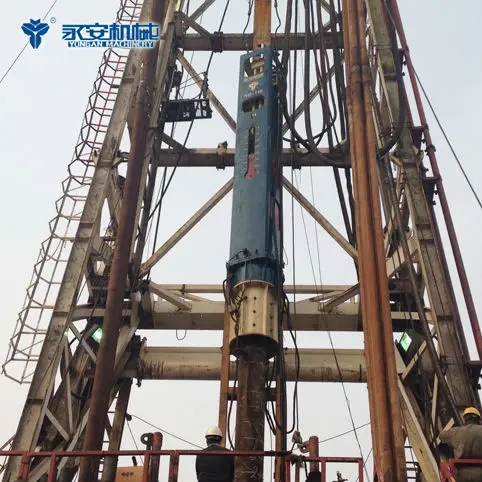

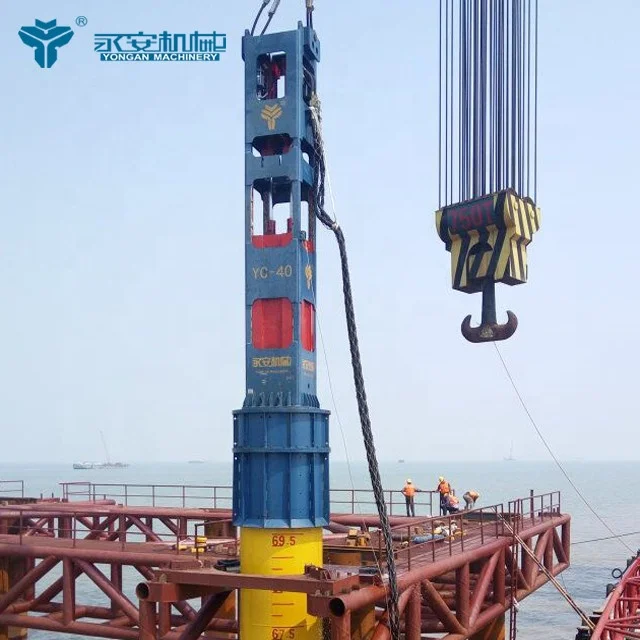

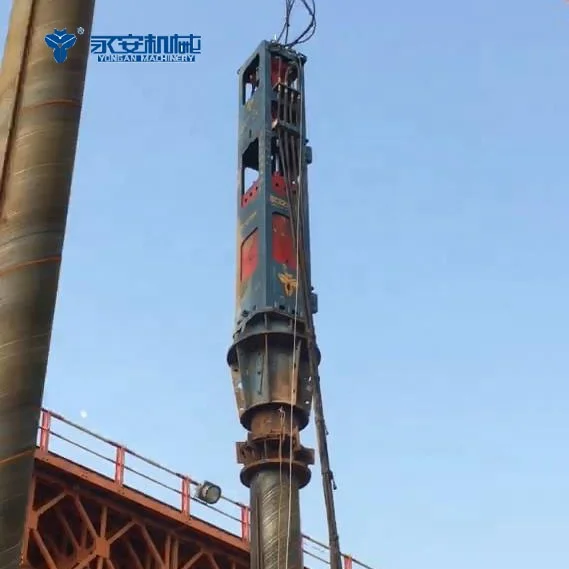

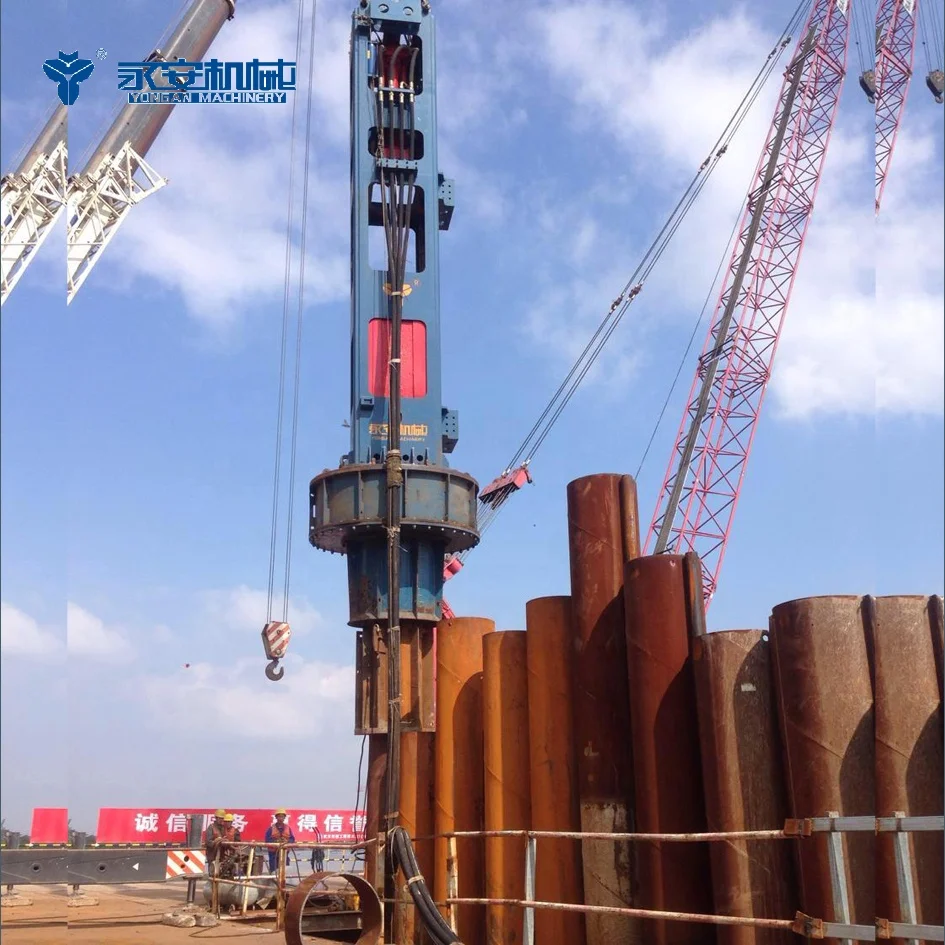

Yongan small size hydraulic impact hammer for crane frame excavator
- Category: >>>
- Supplier: Shanghai Yongan Machinery Co. Ltd.
Share on (62266430878):
Product Overview
Description
Products Description
Yongan hydraulic impact hammer can be used for fixed leader or crane suspended , the mounting type can be customized according to customer's base machine. Our machine also can be used to extract piles or modified with adoptable accessories to do rapid impaction works ,etc.
The impact hammer can be operated with an existing power source or work with yongan power pack
All electrical and hydraulic system can be managed by control panel and remote control box, the closed loop typed of hydraulic system adjusts speed and oil pressure. It is very reliable and environmental friendly
Working principle
The hydraulic power pack will supply power to the impact hammer through high pressure hydraulic hose ,lift the ram to certain height ,adjust the hydro cylinder piston to same pressure through directional valve , the ram will fall freely , impact energy will be transferred to the pile to start the pilling job.
1.Hydraulic Cylinder
2.Accumulator
It functions high and low pressure . it reduces the shock pressure ,and control the ram to drop in a speed 130% of free acceleration.
3.Piston rod
4.Ram stroke range
Operator can see ram drop height easily and can adjust ram stroke height during pile driving through remote control box
5.Ram
It is comprised of one or more ram segments and stands complicated physical and chemical tests before application
6.Drive cap
All the cushions are inserted in it. They could protect the hammer structure , components and piles ,reducing the noisy.
7. Pipe cap
Product Paramenters
Yongan hydraulic impact hammer has 21 models from YC-3 to YC-110 , impact energy vary from 24 KNm to 1360 KNm, YC-110 is the largest impact hammer in China for now, but other sizes are also can be supplied according to customer's requirement .
Power pack
Application
Yongan hydraulic impact hammer is widely applicable for most types of pilling and foundation works . Various pie material ,size and shape such as concrete pile, steel sheet pile, H beam , casing pile and shapes like round ,square , octagonal ,etc.
Why Choose Us
1.Yongan machinery - piling equipment expert, over 30 years experience
Yongan Machinery Co., Ltd, one of the most professional vibratory hammer manufacturers in China, was established in 1985. After 30 years of development, our products take up 70% of the whole Chinese market. It becomes the leading company in vibratory hammers industry.
Yongan vibratory hammer series had been applied in more than 300 large projects (such as Hongkong-Zhuhai-Macao Bridge, Zhoudai Oversea Bridge, Shenzhen-Zhongshan Bridge, Russia Ketch Bridge, Nigeria Dangote Oil Refinery Project, Bangladesh Payra Bridge) .Our products are widely used not only in China but also in oversea market such as Japan, Korea, Taiwan, Indonesia, Malaysia, Ecuador, Russia, Libya, Vietnam Ghana and Philippines, etc.
2. powerful technical team
Our technical won over 40 patents
John White - former founder of APE , father of vibro hammer join us ,works as engineer
3. Modern workshop + advanced production line ensure good quality
4.Sound service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Packing & Delivery
Packaging | ||
Packaging Details: | 1.Hammer in shrink film 2.Pile cap on wooden pallets 3. Accessories in wooden cases 4. All been reinforced in the container | |
