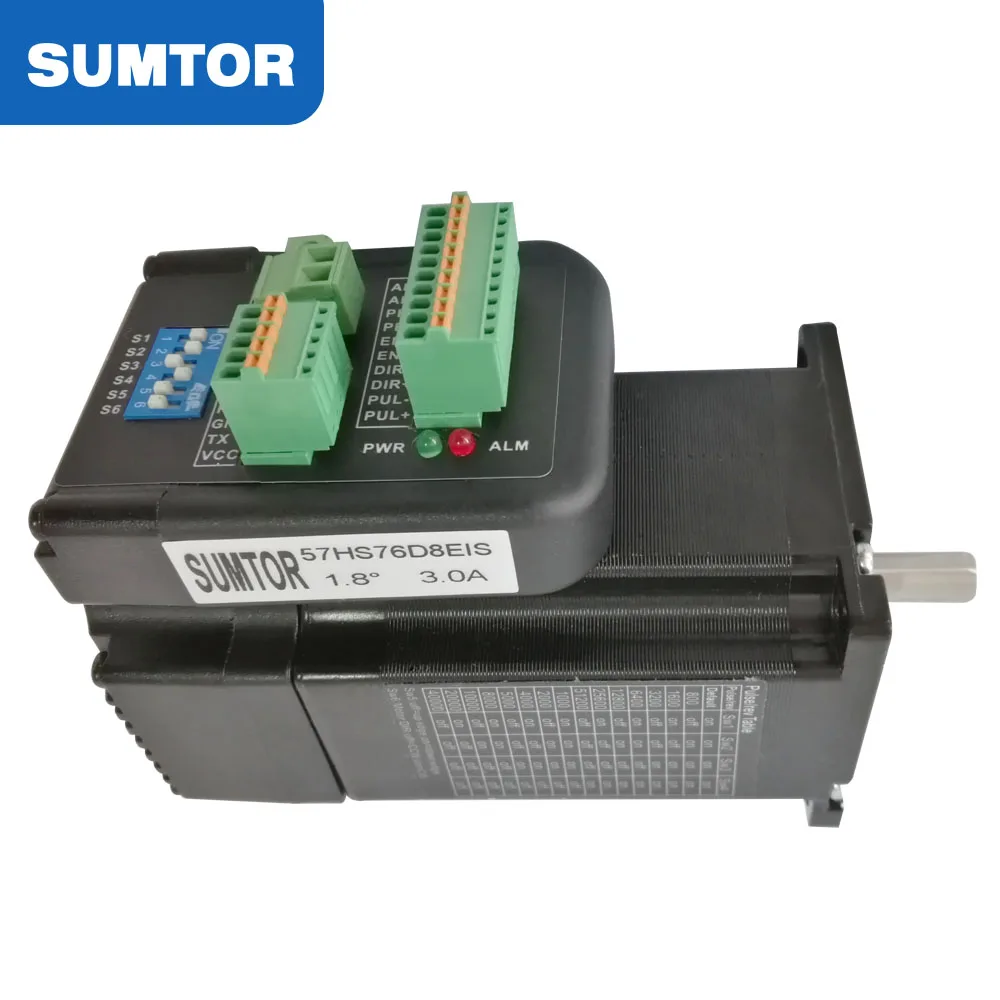

57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
nema23 servo closed loop stepper motor driver close loop 2N.m
- Category: Stepper Motor >>>
- Supplier: Sumtor,(wuxi),Electric,Co.,Ltd.
Share on:
Product Overview
Description
5% discount on all products
If you follow our shop(Sumtor (Wuxi) Electric CO., Ltd ), we wil give you a 95% discount(all products) as our part of the bargain.
Click the picture above to reach the shop
Click the picture above to reach the shop
Title
nema23 servo closed loop stepper motor driver close loop 2N.m
Details Images
Products Description

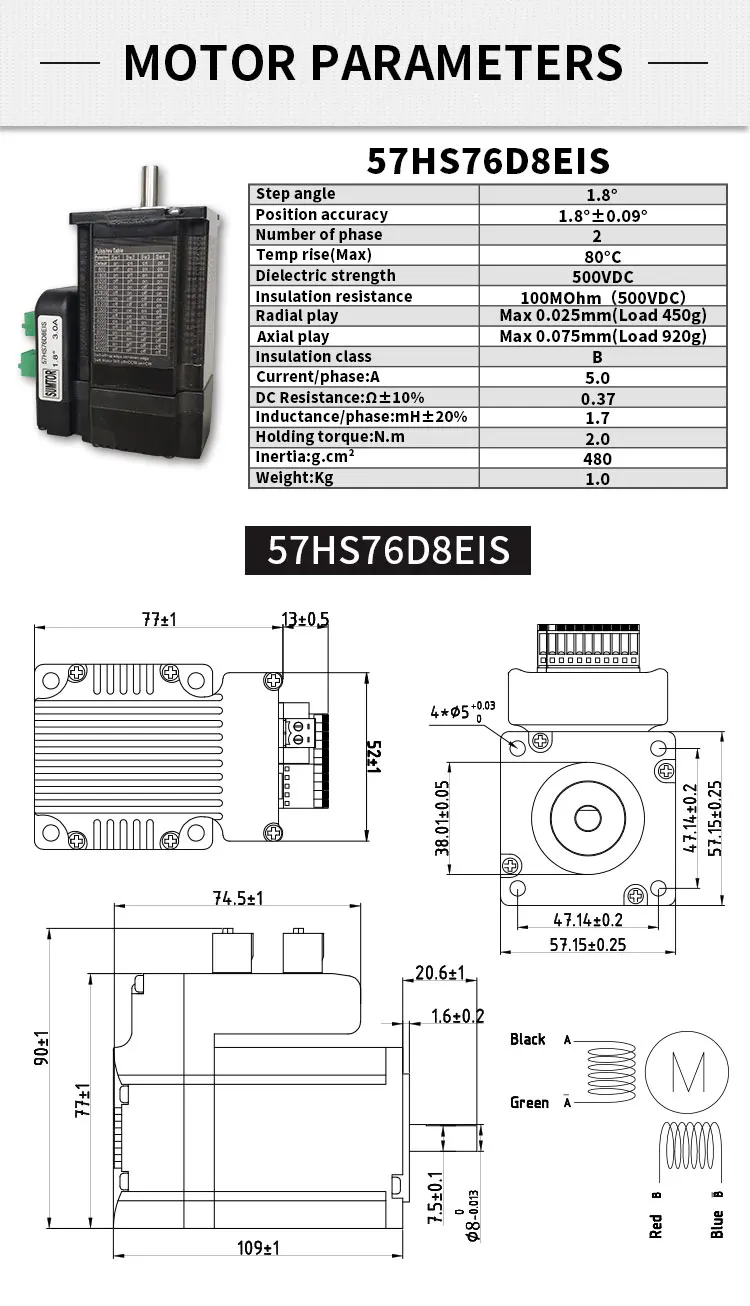

57HS56D8EIS | 57HS56D8EIS | ||||
Inductance/phase | 1.4mH±20% | Inductance/phase | 1.7mH±20% | ||
Holding torque | 1.2N.m | Holding torque | 2N.m | ||
Current | 4A | Current | 5A | ||
Intertia | 280g.cm2 | Intertia | 480g.cm2 | ||
DC Resistance | 0.44Ω±10% | DC Resistance | 0.37Ω±10% | ||
Product features
Application areas
Packing and Delivery
