RF coaxial connector 7/16 DIN male to N female right angle adapter

Share on (62266550752):


Price:$3.00 - $3.50

Quantity:


Product Overview

Description

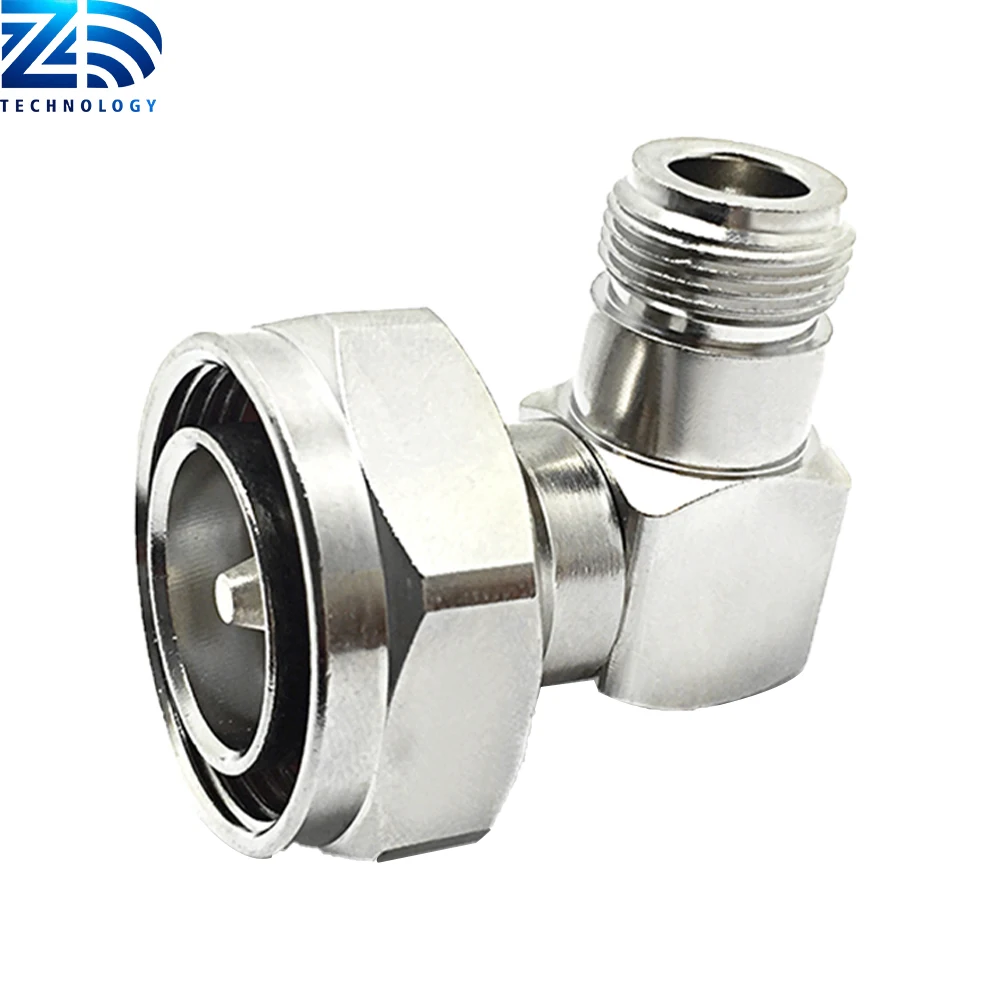

RF coaxial connector 7/16 DIN male to N female right angle  coaxial adapter


.jpg


The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.










































































































 DIN Male to N Female right angle rf adaptor



Center contact


Tin Bronze / Silver Plating


Body & Outer Conductor


Brass / Trimetal Plating


Dielectric


PTFE


Gasket


Silicon Rubber


Characteristics Impedance


50 Ohm


Frequency Range


DC~11GHz


Insulation Resistance


≥5000MΩ


Contact resistance



Type


N type female


DIN type male


Center contact


≤1.5mΩ


≤0.4mΩ


Outer contact


≤1.0mΩ


≤0.2mΩ


Dielectric Strength


2500V rms


Working voltage


1000V rms


Insertion Loss


@3 GHz


≤0.10dB


VSWR


≤1.10@DC~3.0GHz


Durability (matings)


≥500 cycles


Mechanical Shock Test Method


MIL-STD-202F, Method 107G, Test Condition B


Vibration Test Method


MIL-STD-202, Meth. 204, Cond. B


Temperature Range


-65~+165℃


RoHS


Compliant

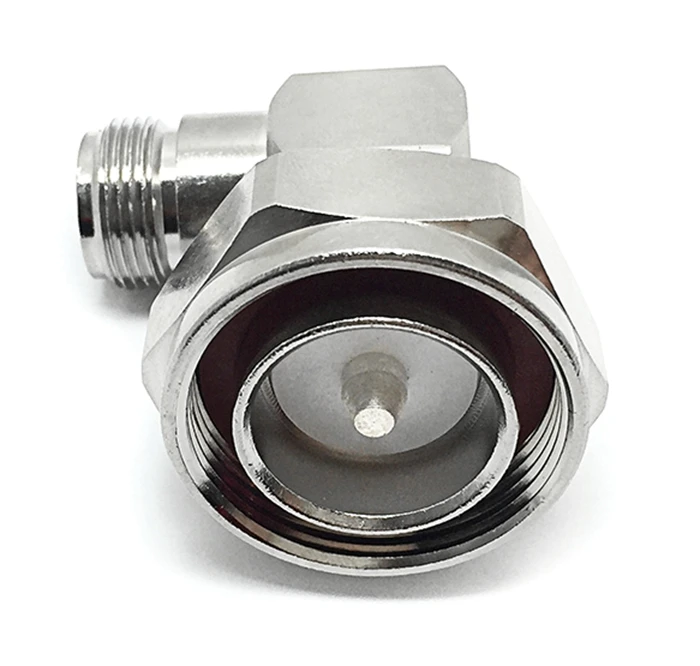

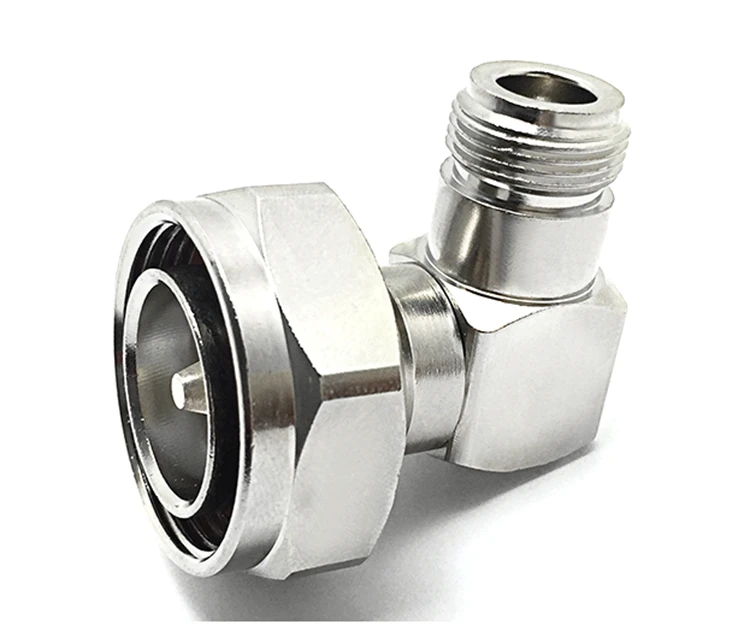

din male-and- n female.jpgdin male-n emale.jpg
