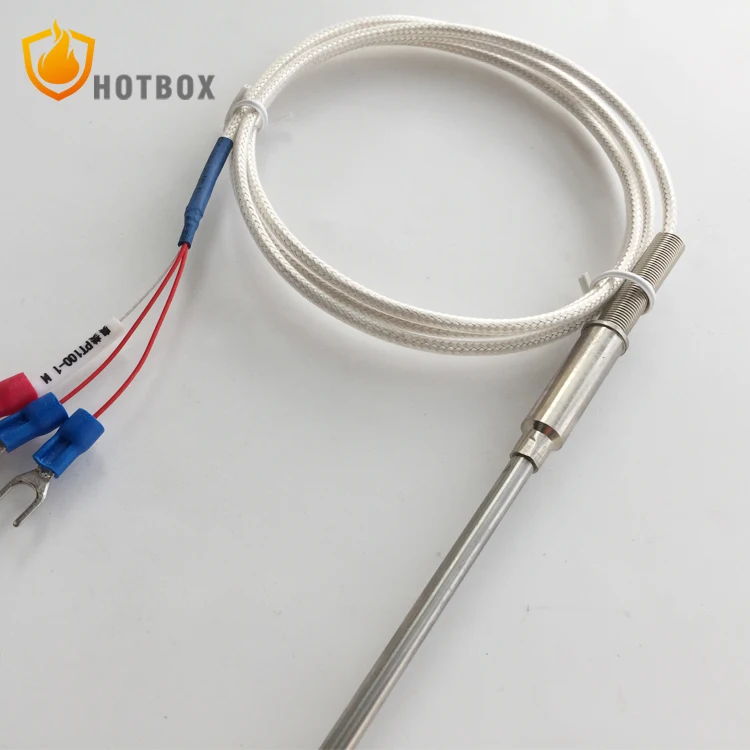

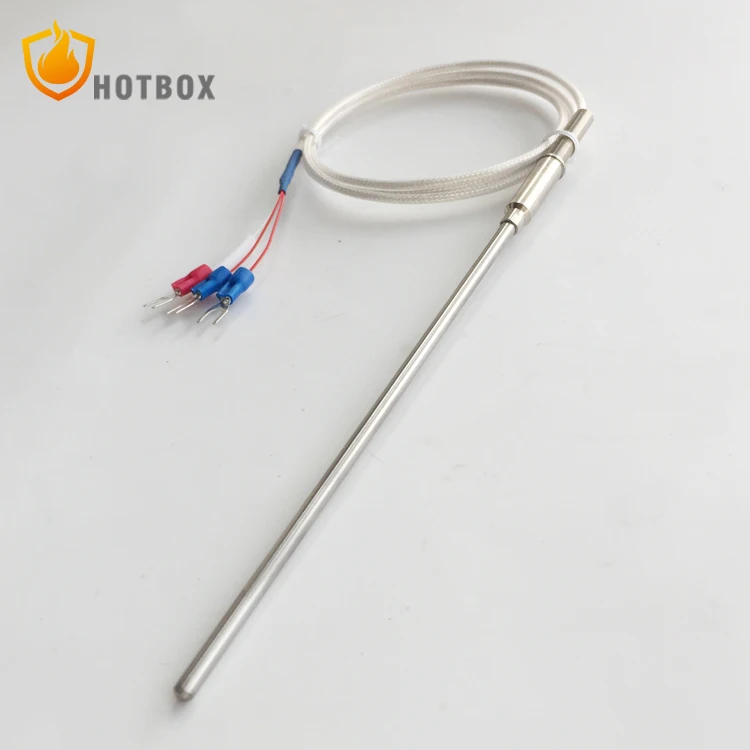

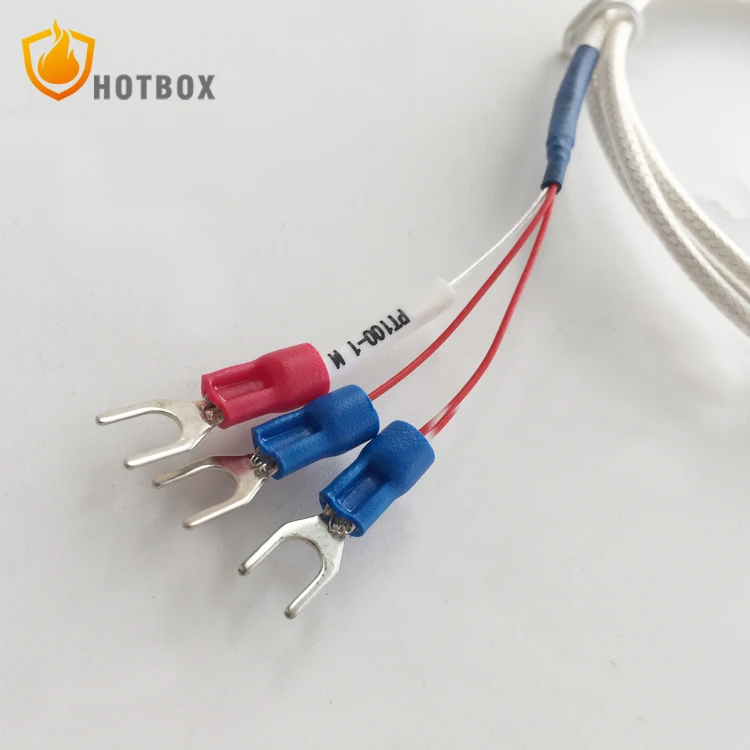

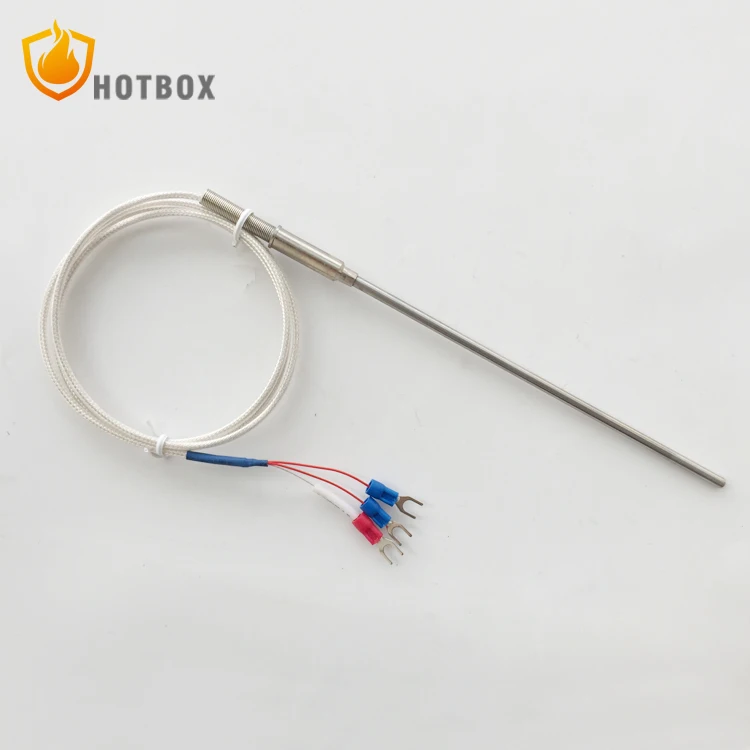

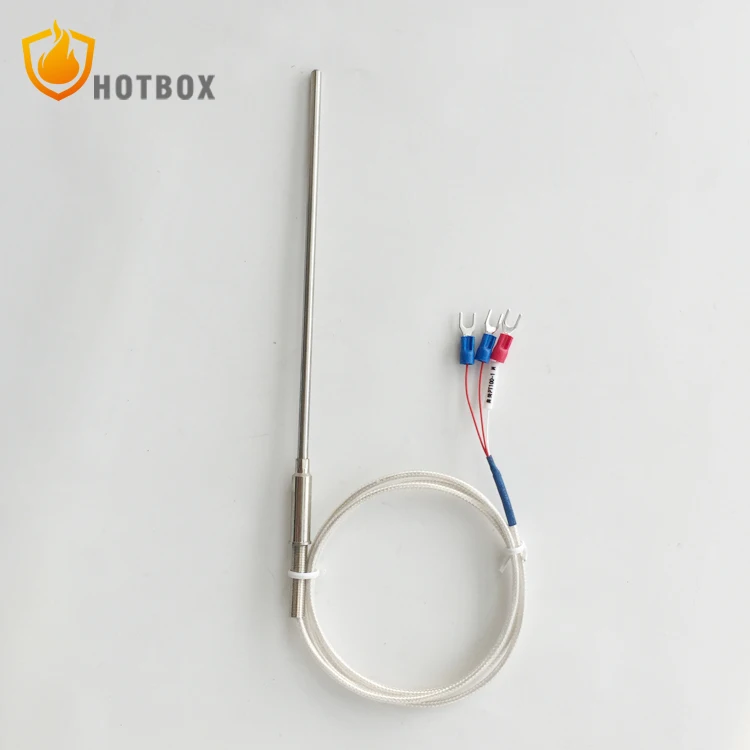

Thermocouples are used in industry for measuring the temperature of gases,liquids or solid surfaces etc.,It's usually assembled with indicators,recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end.When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K,N,E,J,T,S,R,B.Each calibration has a different temperature range.
Working Principle:
Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.
Features:
Easy assembly and convenient for replacement;
Spring thermal element with good shock-proof performance;
Wide mesuring range (0~1600 degree Celsius);
High mechanical strength and good pressure-resistant performance
Measuring junction structure & advantages:
Grounded
1 rapid response
2 no suitable in case with interference
Ungrounded
1 It responses more slowly than that of the case-connected type.
2 Long service life
3 Resistance to electric interference
Exposed
1 rapid response
2 suitable to measure the temperature of gas
3 poor mechanical strength in contact with other measuring structures
Model:
Ref No.
WR
Temp
Thermal element materials
B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi
0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C
Ref No.
WZP
Temp
PT100
PT1000
CU50
-200~+650C
-200~+650C
-200~+650C
Pairs quantity of sensor wire
Simplex
Duplex
Ways of Mounting & Fixing
1: without fixing device
2: fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6: fixed thread in wimble shape protection tube
Types of connections box
2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55)
Types of sensor end
G: variable section
K: sheathed elements
T: flexible sheathed elements
Measuring Range and Accuracy:
Conductor
material
Calibration
Accuracy
ClassⅠ
ClassⅡ
Accuracy
Temperature range( °C )
Accuracy
Temperature range( °C )
NiCr-NiSi
K
±1.5°C
Or
±0.4%|t|
-40-1000
±2.5°C
or
±0.75%|t|
-40-1000
NiCr Si-NiSi
N
-40-1100
-40-1200
NiCr-Konstantan
E
-40-800
-40-800
Fe-Konstantan
J
-40-750
-40-750
Cu-Konstantan
T
±0.5°C or
±0.4%|t|
-40-350
±1°C or
0.75%|t|
-40-350
PtRh10-Pt
S
±1°C or
±[1+ ( t-1100 ) × 0.003]
0-1600
±1.5°C
Or
±0.25%|t|
0-1400
PtRh13-Pt
R
0-1600
PtRh30-PtRh6
B
——
——
600-1700
