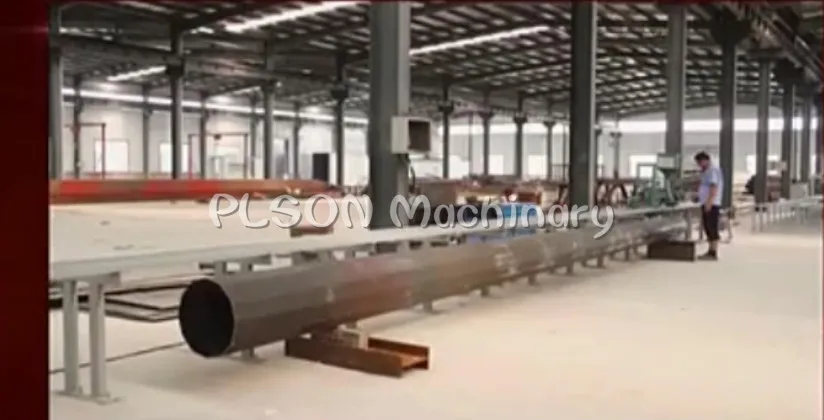

PLSON 8m 10m high quality street light pole production line

Machine tool overview

The coil leveling machine mostly used in coil leveling industry, please check drawing as followed for your reference, the leveling and cutting line including uncoil machine, guiding device, leveling machine, cutting machine, sheet metal store platform and electrical system.

Steel Bevel Shearing Production Line

The bevel shearing machine production line is for light pole,mainly used as cutting for longer plate .
►Working procedures are controlled automatically by electrical system except feeding plate manually .
►The speed of double disk slitting roller of main machine is same with the feeding speed of movable working table to ensure the cutting quality and cutting life reliably .
►The above two speed is displayed on the operating panel.
►The holding down device on the movable working table holds the plate reliably during cutting .
►The pneumatic clamper is set on the fixed and movable out feeding frame to ensure the cutting smoothly for different sizes of plates.
►The over-loading protective device is set on the machine.

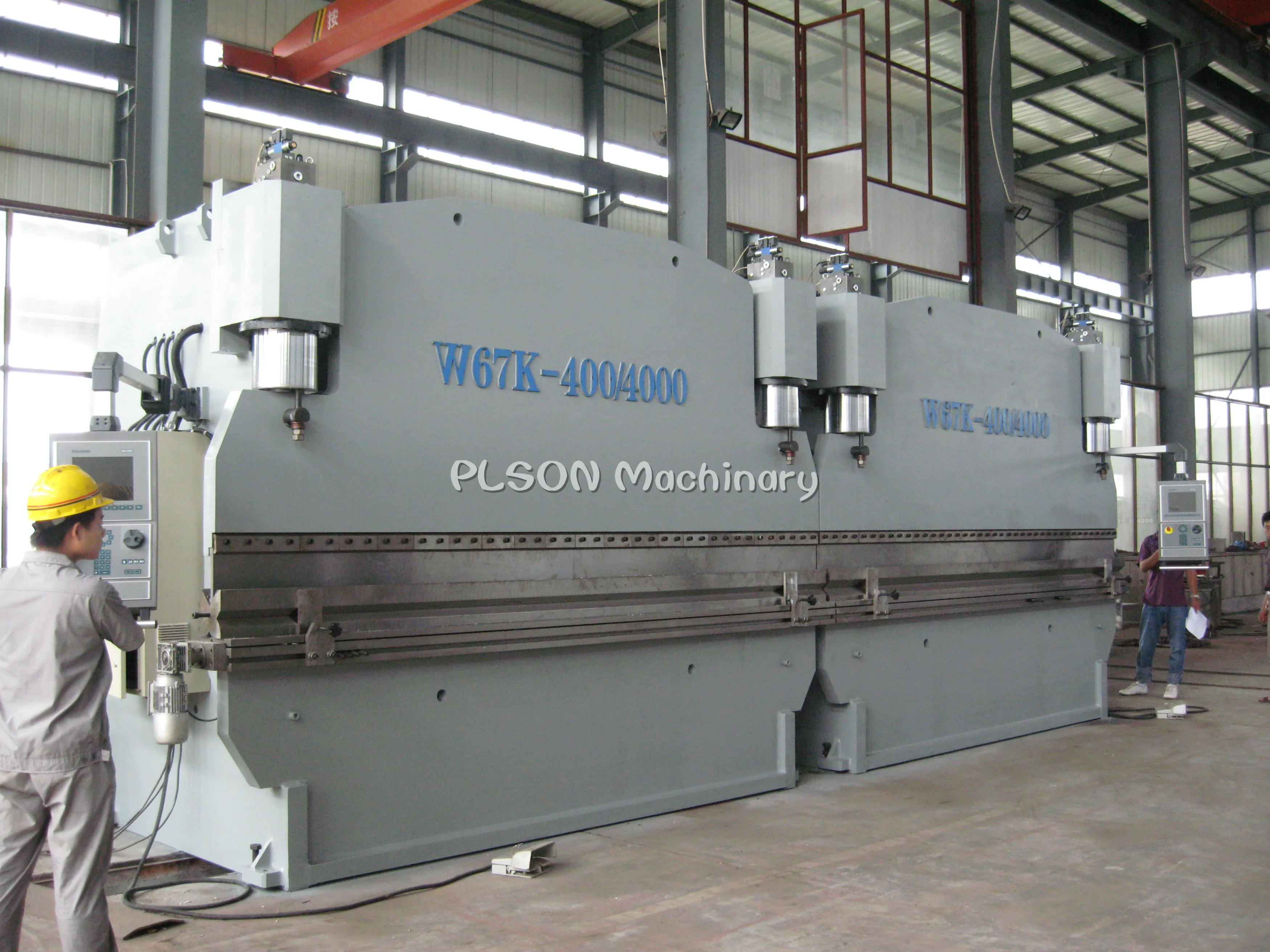

WE67K-2X500T/8000 CNC Press Brake

► The frame is organized by the right upright, left upright, working table and cross ties. All the components are mutually welded for improved frame stability.

► Using large ground boring and milling machine, with a whole processing method, precision machining, to ensure that the machine tool machining precision.

► Through two oil cylinder to control the slider up and down movement .

► Electro-hydraulic servo synchronization control Slider synchronous, stable and reliable.

► Using DELEM CNC system to control the Y axis (slider up and down movement)
Manual, semi-automatic and fully automatic operating mode.

► Back gauge device has the function of automatic retreat and delay action.

► Back gauge device adopts high performance servo motor and precise ball return and linear guideway, guarantee the X axis transmission positioning accuracy and repeat positioning accuracy.

► Europe advanced CNC control, automatic adjustment of mechanical rod type deflection compensation table and V axes ,ensure the machining accuracy.
