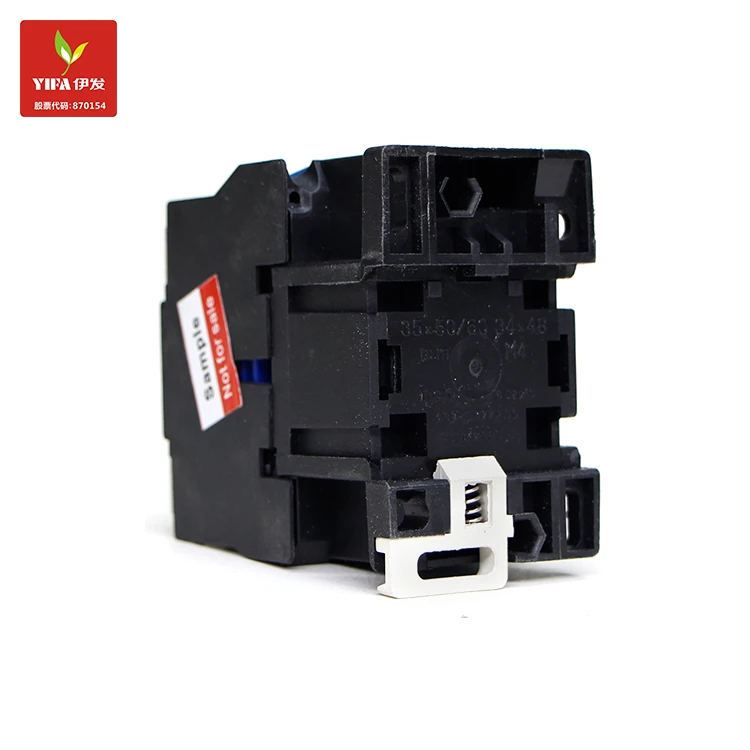

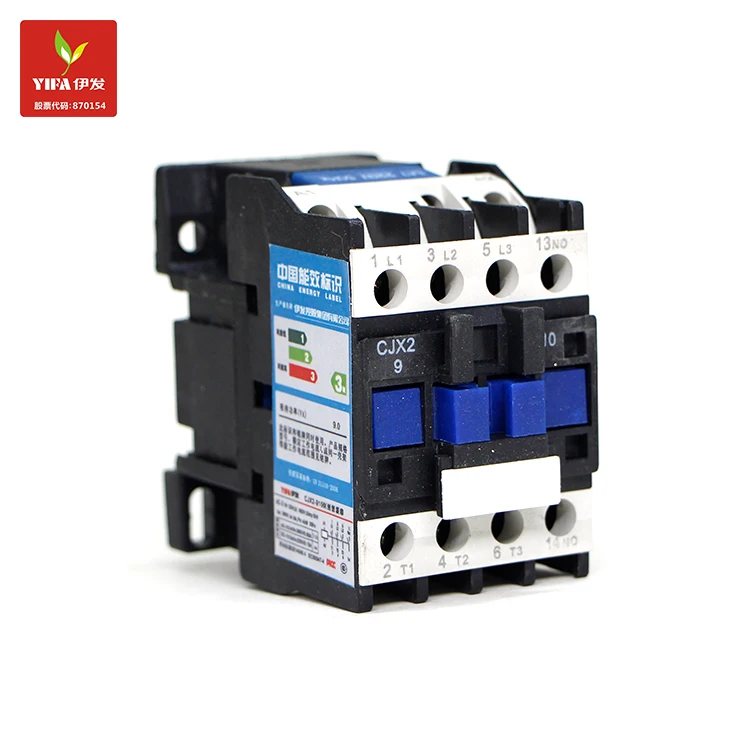

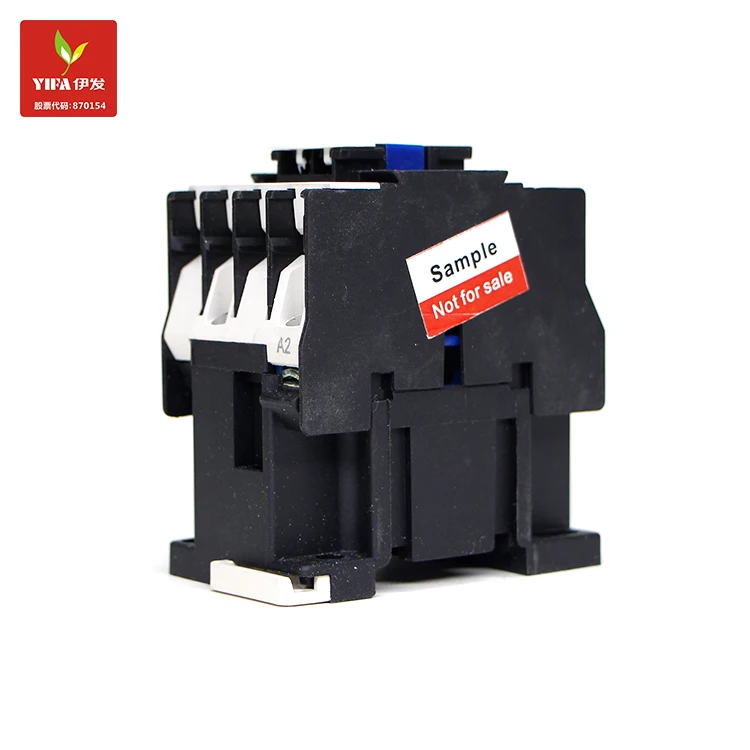

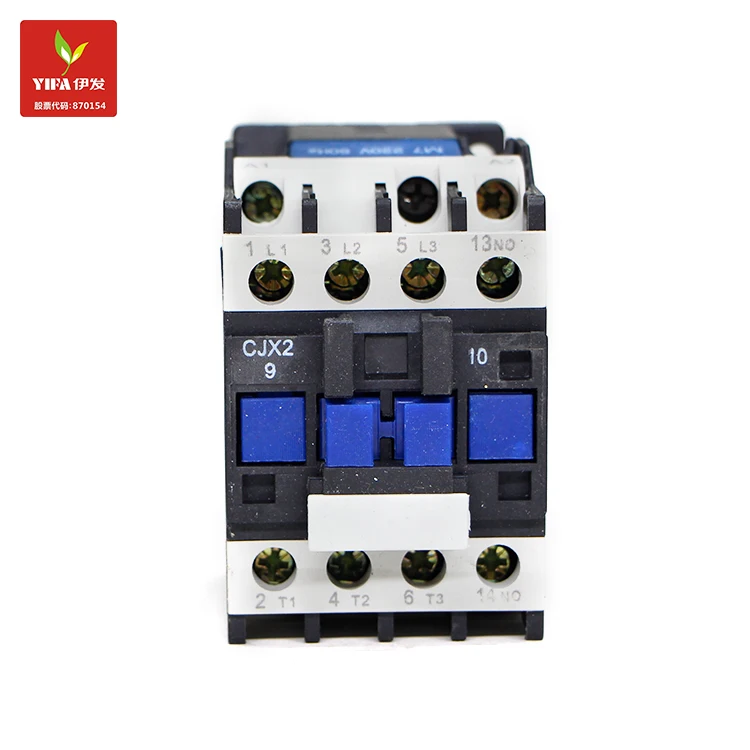

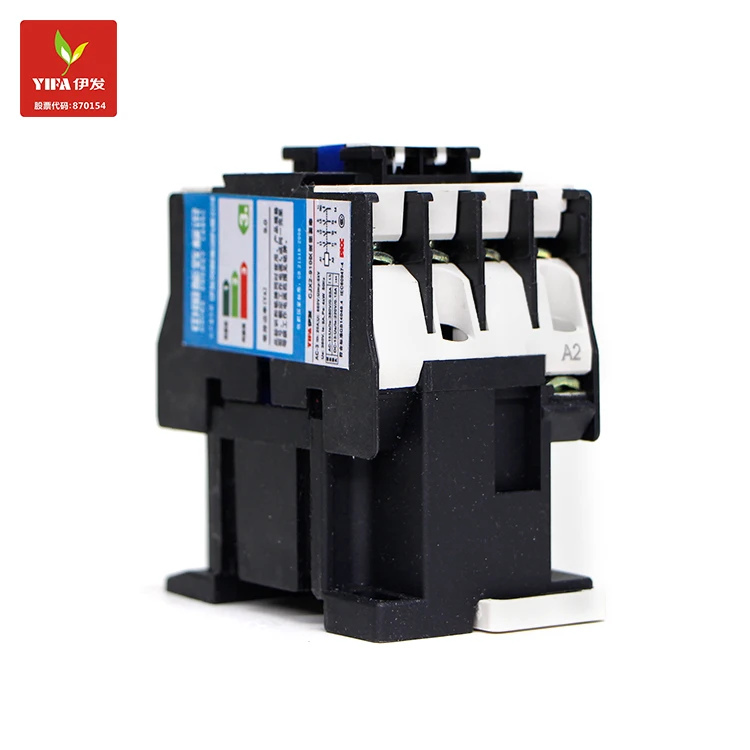

CJX2 series AC contactor (hereinafter referred to as contactor), maily used for AC 50Hz(or 60Hz), rated working voltage to 660V, rated current from 6A to 630A in rated operating voltage of 380V under AC-3 use category. It can be used to connect and disconnect circuits at a long distance, and can form an electromagnetic starter with an appropriate thermal overload relay to protect the circuit from which an operational overload may occur. The contactor is suitable for frequently atarting and controling the AC motor.

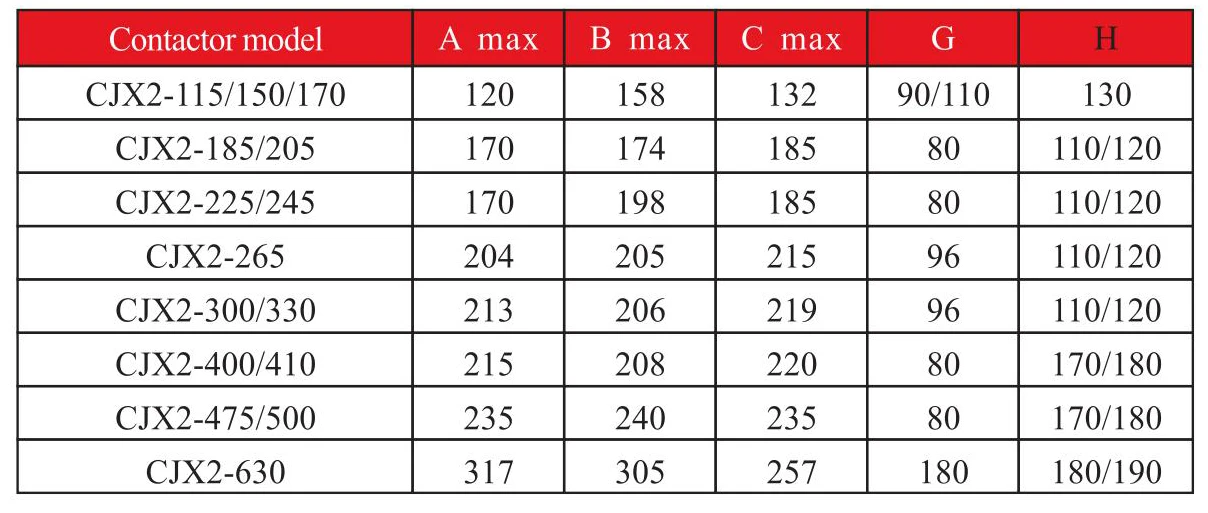

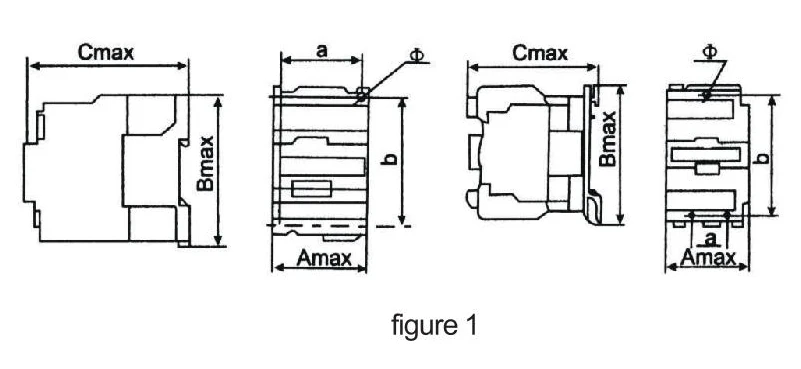

Contactor model
A max
B max
C max
a
b
Φ
remarks
CJX2-06
46
58
58
34/35
50/60
4.5
In addition to screw mounting, it can also be installed with TH35 mounting rail

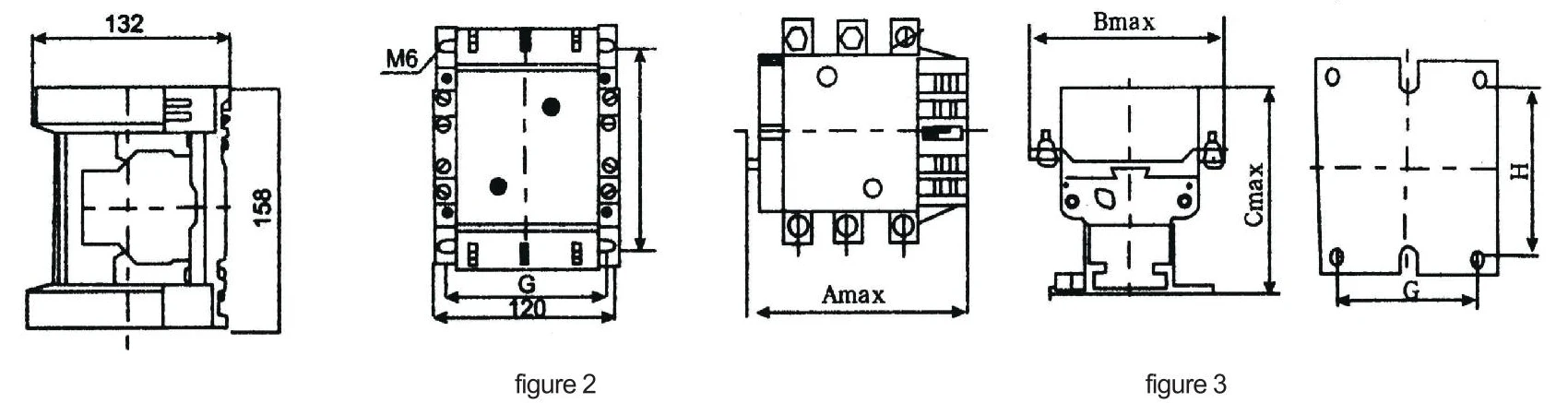

Installed with TH75 mounting rail in addition ro screw mounting
