1080P 4ch AHD bullet/dome HD наружная/Внутренняя система безопасности для дома h264/h265 Мониторинг DVR kit
- Category: >>>
- Supplier: Shenzhen Litianshiji Security Technology Co. Ltd.
Share on (62266836151):
Product Overview
Description
1080P 4ch AHD bullet/dome HD Outdoor/indoor Home Security Camera System h264/h265 Monitoring DVR kit
Online Demo
New products
Product Description
1080P 4ch AHD bullet/dome HD Outdoor/indoor Home Security Camera System h264/h265 Monitoring DVR kit
Camera Specifications:
Sensor | 1/3 inch SC2135 sensor
| |
Minimum Illumination | Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR | |
Black & White:0.01Lux,(F1.2,AGC ON),0Lux with IR
| ||
Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage | |
Shutter | 1/50(1/60) seconds to 1/10,000 seconds | |
Day and Night Function | Support IR-CUT | |
Infrared light | 24pcs IR Leds(bullet)/18pcs IR leds(dome) | |
Lens | 3.6mm | |
Synchronous Mode | inter-sync | |
Noise-signal Ratio | >58dB | |
Temperature and Humidity | - 10’C ~ 60’C, humidity is less than 90% (no condensation) | |
Power | DC12V±10% | |
Consumption | <5W | |
Housing material | Metal |
Dvr Specifications:
| Systems | Main Processor | Hi3520DV200 |
| Operating System | Embedded LINUX operating system | |
| System Resource | Multiplex realtime recording & playback, multiplex multi-user operation, USB backup. | |
| Interface | Operation Interface | 16bit real color GUI interface support mouse operation |
| Display Screen | 1/4/8/9 screen | |
| Video | Video Standard | PAL/NTSC |
| Image Decoding | H.264(High Profile), JPEG snapshot | |
| Resolution | 1920*1080, 1280*720, 1440*900, 1280*1024, 1024*768, 800*600 | |
| Playback | 4ch | |
| Coding | 4*1080N, 4*720P, 4*960H | |
| Encoding | 4*1080N, 4*720P, 4*960H, 2*720P | |
| Multi-mode Input | Analog: 4*1080N 4*720P / 4*720P@12fps / 4*960H Network: 8*1080P / 8*720P / 4*1080P / 4*720P / 1*1080P Mixed: 2*720P (analog) + 2*720P (network) | |
| Motion Detection | Each channel can set 192(16*12) detection area, multi-level flexibility | |
| Audio | Audio Encode Standard | G.711 |
| Voice Talk | Yes | |
| Recording Management | Recording Mode | Schedule (all of regular, detect, alarm), manual, stop |
| Video Search | Time, data, event, channel search | |
| Storage & Backup | Hard Disk Space(each channel per day) | 1080P: 40GB / 720P: 20GB / 960H: 12~20GB / audio: 691MB |
| Storage | HDD / Network | |
| Backup | USB portable HDD, network backup, USB recording, SATA recording | |
| Interface | Video Input | 4ch BNC |
| Video Output | 1ch VGA | |
| Audio I/O | 1ch / 1ch RCA | |
| Alarm I/O | 0/0 | |
| Network Interface | RJ45 10M/100M adaptive ethernet port | |
| PTZ Control | 1*RS485, support mutilple PTZ protocol | |
| USD Port | 2*USB port | |
| HDD Port | 1*SATA (Max 6TB for each) | |
| WIFI Interface | / | |
| Others | Power Supply | DC12V/2A |
| Power Consumption | <10W ( HDD NOT included ) | |
| Working Temp. | 0°C~55°C | |
| Working Humidity | 10%-90% RH | |
| Dimensions | 255x225x45mm |

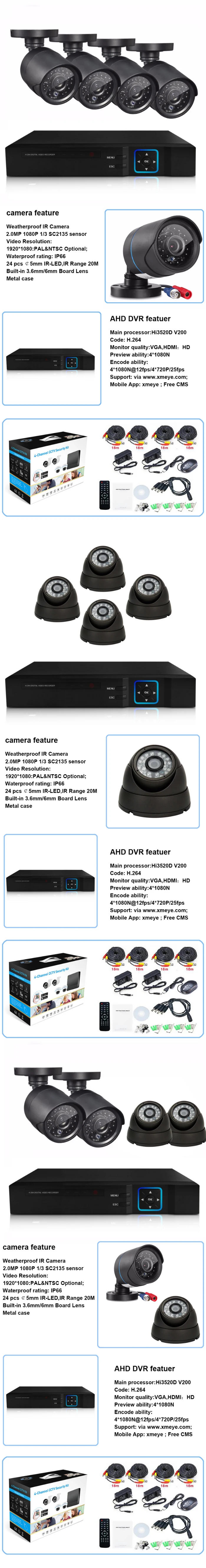

Product Overviews
1080P 4ch AHD bullet/dome HD Outdoor/indoor Home Security Camera System h264/h265 Monitoring DVR kit
OEM Service
1080P 4ch AHD bullet/dome HD Outdoor/indoor Home Security Camera System h264/h265 Monitoring DVR kit
ODM/ OEM Services
1. Logo
- Please offer us your own high resolution logo in JPG format;
- There should be two colors at most in the logo;
- There should be no gradient effect in the logo
2. Label
- Please offer us your own model numbers and relative requirements.
3. Manual
- Please offer us the finished manual file that can be printed directly.
4. Packing Box
- We will offer you the demension and the design file;
- Please design your own style based on this file then send it back to us;
- We will print some samples for your checking;
5. Housing
- Please offer us the housing design file then we will offer you a sample for your checking;
FAQ
Q: How long is the warranty?
A: 2-year warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sample, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: What is the payment term?
A: We support Alibaba Trade Assurance, T/T ,Paypal , West Union ,L/C.
