Factory price li ion 18650 battery packs rechargeable DC lithium battery 12v 100ah

Product Overview

Description

Whatever cylindrical lifepo4 cell or prismatic lifepo4 cell, punch lifepo4 cells to be used to assemble 12V lifepo4 battery packs, it is very importan to test all the cells to have similar characters to be assembled together.

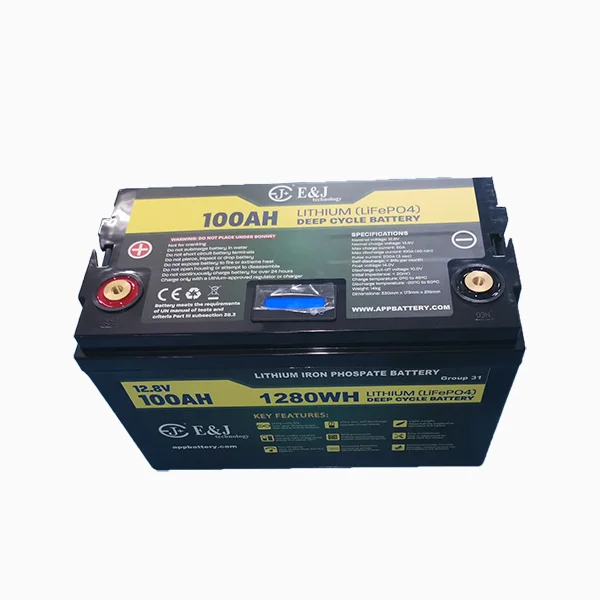

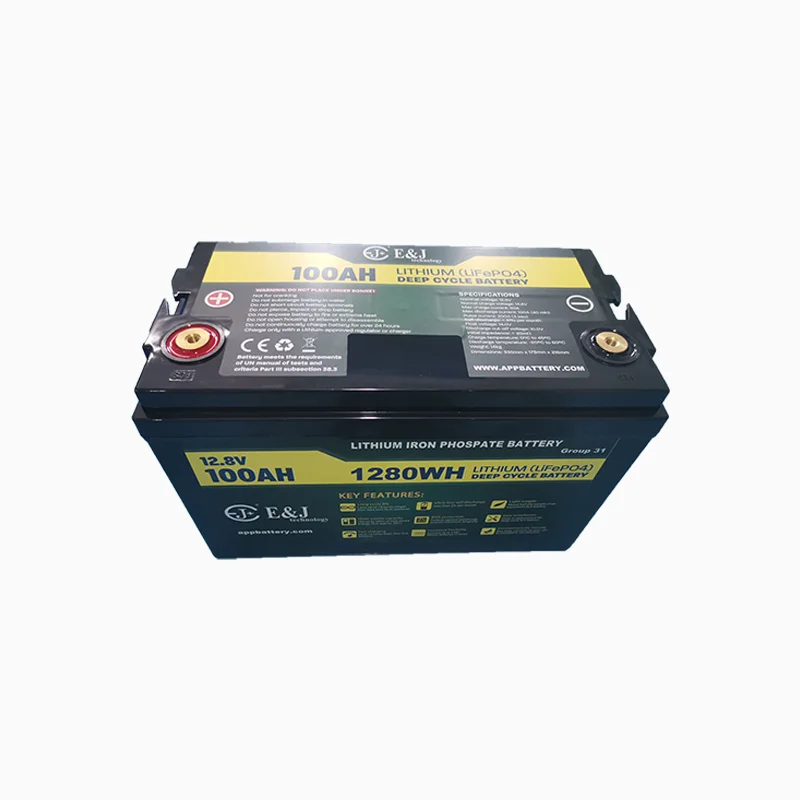

High quality lithium battery pack 12V 100Ah, 12V lifepo4 battery packs build with BMS and metal housing/SLA cases to replacement for traditional lead acid batteries.



Using A grade top quality cylindrical or prismatic lifepo4 cells which have similar characters on the resitence/capacity/voltage, high quality BMS.



We made 12V series lifepo4 batteries with or without bluetooth, CAN485, RS485, RS232, SMBus for optional according different applications.







Features

1. Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead-acid batteries helping to minimize replacement cost and reduce total cost of ownership.

LiFePO4 batteries are designed for 10,000 cycles at 50% DOD, and 6,000 cycles at 80% DOD, and 2,000 cycles at 100% DOD.
2. More Energy: Delivers significantly more energy than lead acid batteries, even at high discharge rate while maintaining high energy capacity.
3. Advanced BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
4. Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.

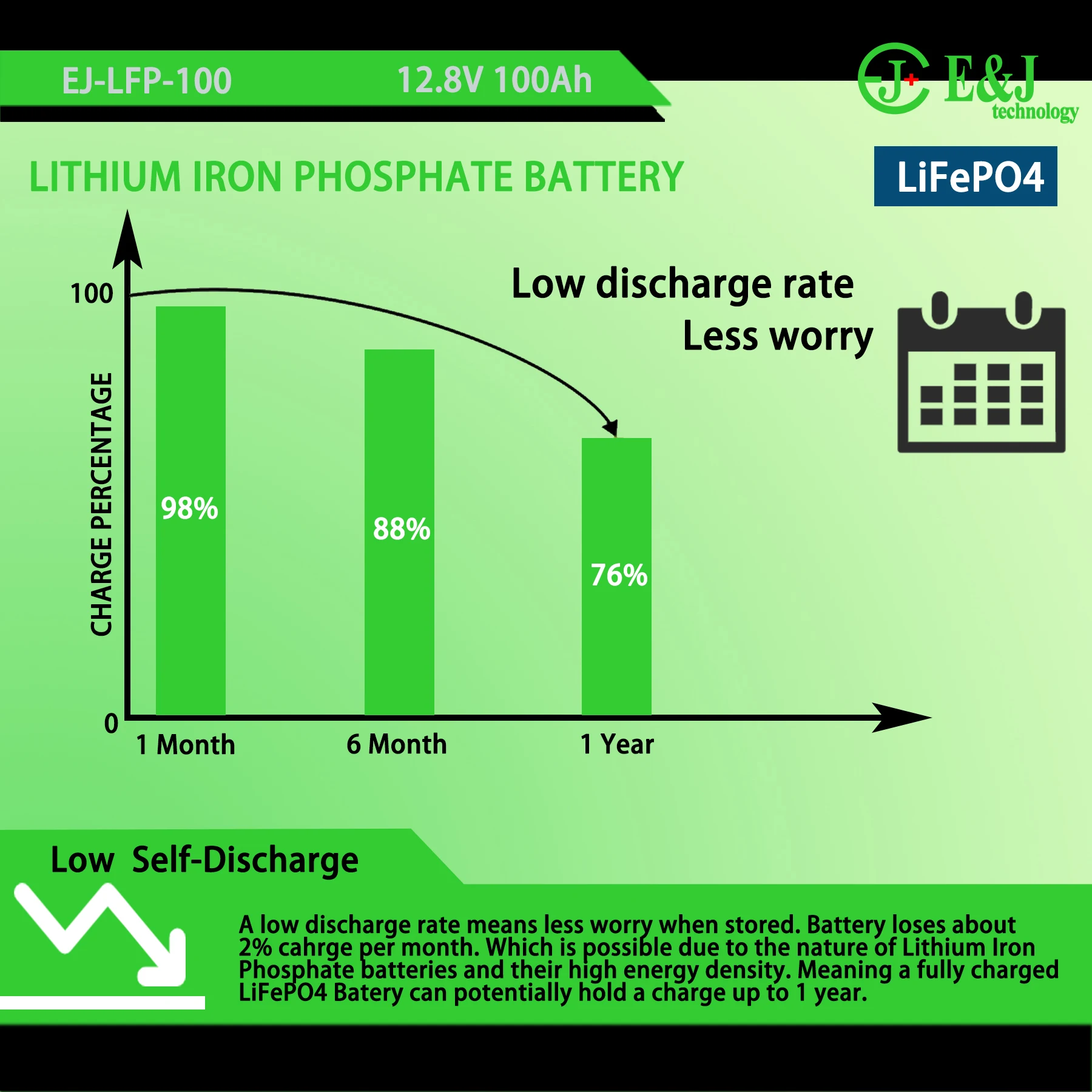

5. SOC Meter: Standard LED Display Ultra Low Self Discharge Curve: <1% per month

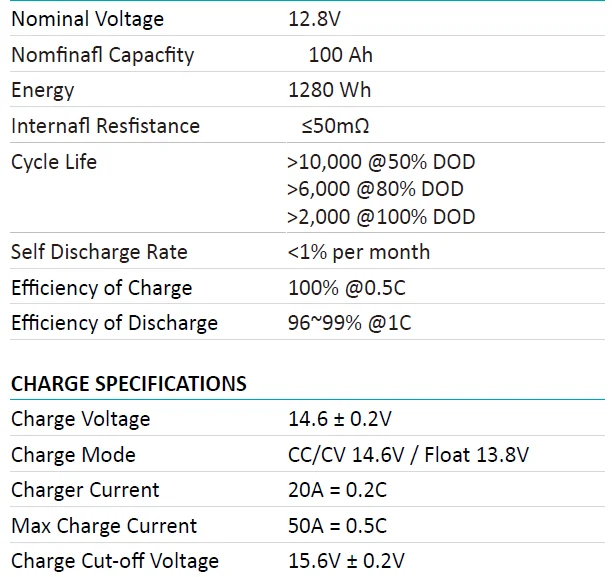

PERFORMANCE SPECIFICATIONS

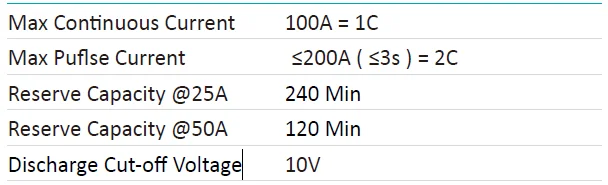

DISCHARGE SPECIFICATIONS

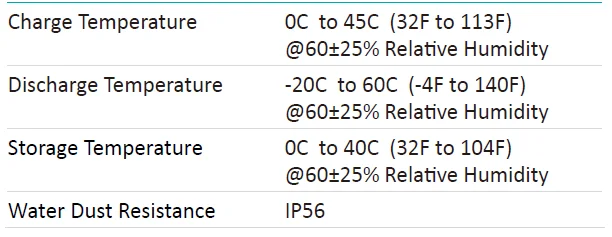

ENVIRONMENTAL SPECIFICATIONS

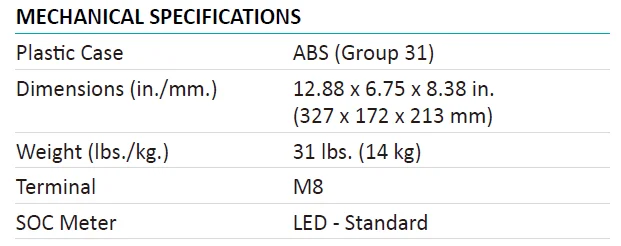

We provide ABS or Metal housing for optional

We provide standard version or bluetooth communication version or other communication version like RS485/RS232/CANBUS/SMBus for optional.
