Hober со слежением за максимальной точкой мощности, 24v 36v солнечных водонагревательных объектов питания 200w насос шнекового типа
- Category: >>>
- Supplier: Shenzhen Hober Technology Electronics Ltd.
Share on (62267016188):
Product Overview
Description

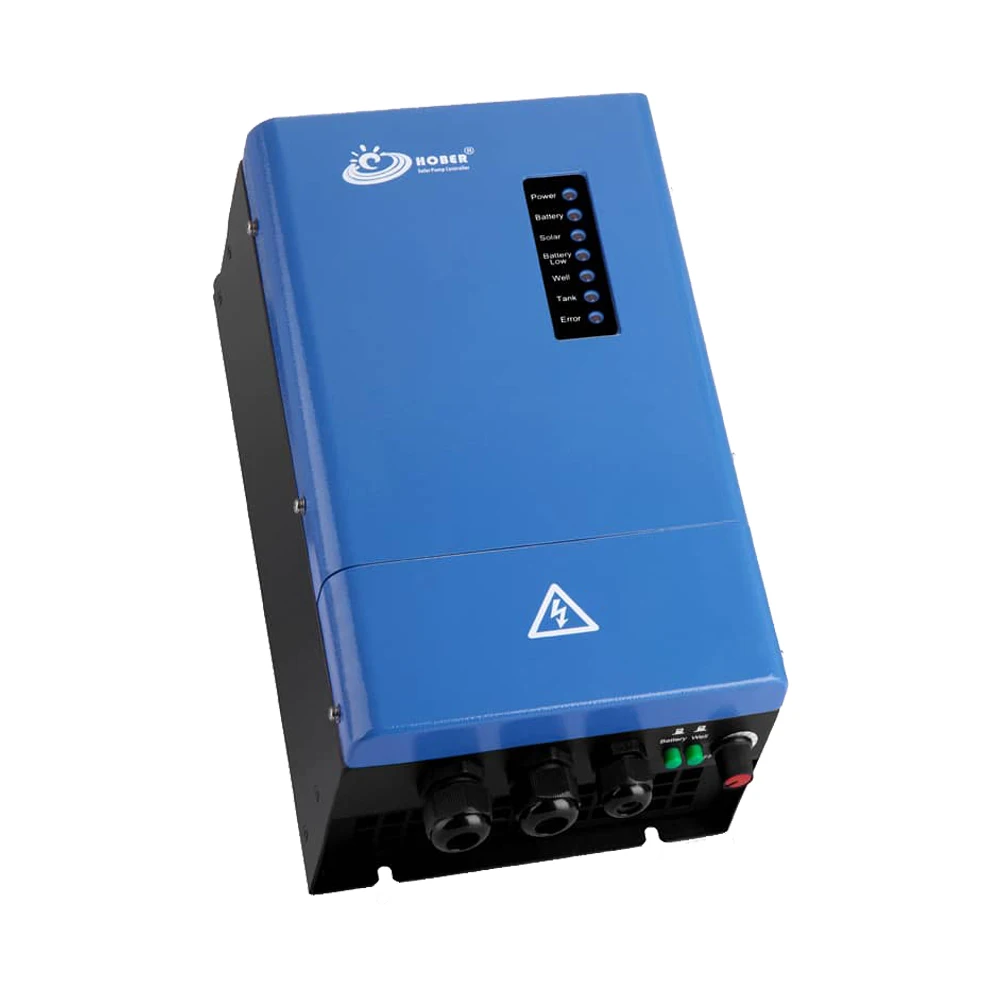

Solar Pump Controller Description
The Solar Comes, The Water Comes
Solar Water Pump Systems Manufactured by Hober,

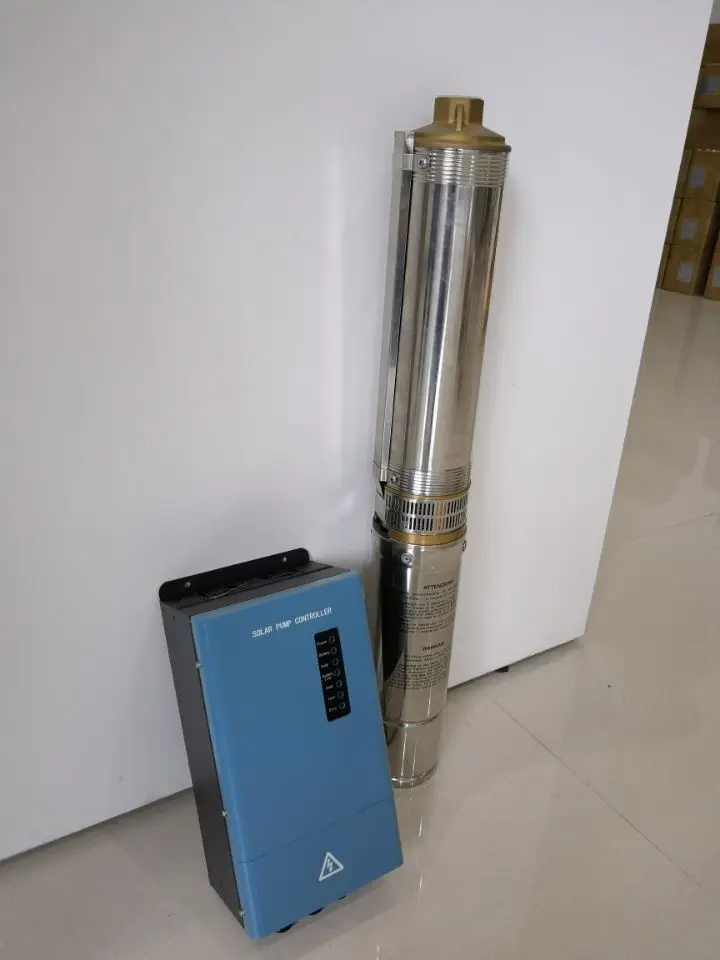

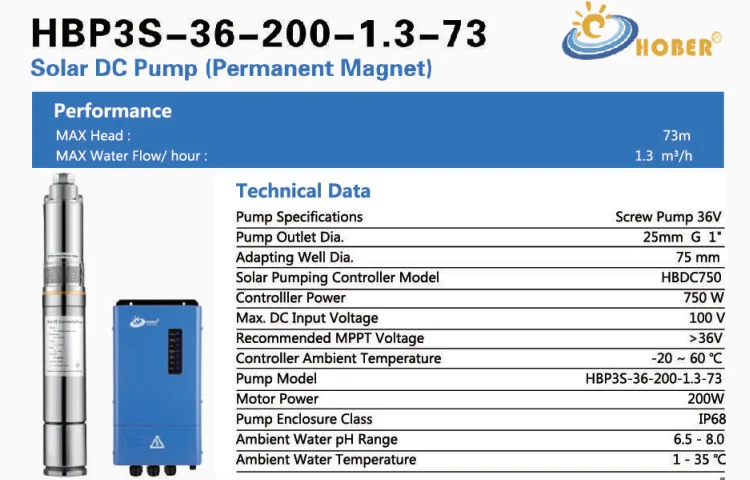

HBP3S-36-200-1.3-73 series is designed to be a complete dc solar water pumping system comprising of a pump controller (HBDC) and a matched pumps.
HBDC is the latest generation of high efficiency solar water pumping controller. The matched pump use a unique DC brushless and sensorless motor. The motor is a perfect match for solar applications as it has a very high efficiecny.
It covers a wide power range form 200W to 2000W with a wide range of pumps for submersible, surface or others.
Solar Pump Controller Parameters
Hober Solar Pump Inverter Model | HBDC750 | HSPH7500H | |||
Solar Panel DC Input | Max Voc Voltage | 100V | |||
Min Vmp Voltage | 20V | ||||
Recommend Vmp Voltage | > Motor Voltage | ||||
Max MPPT efficiency | 98% | ||||
Max Input Current | 25A | 20A | |||
Number of Strings | 1( +, - ) | 2 | |||
Note | Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel, without Programming | ||||
Battery Input | Voltage | 24 / 36 / 48 / 96 /110 Vdc depend on the Pump Voltage | |||
Max Input Current | 25A | 19A | |||
Battery protection Voltage Min, Recovery, Max | 21.3V, 23V, 30V for 24vdc 32.5V, 35V, 40V for 36vdc 42.6V, 46V, 52V for 48vdc | ||||
DC Output Parameters | Max Adapted DC Pump HP | 1HP | 10HP | ||
Max Adapted DC Pump Power | 750W | 7.5kW | |||
Drive Mode | Variable Speed Drive 3 Phase | ||||
Output Voltage | 24 / 36 / 48V | ||||
Output Current | 25A | 18A | |||
Water Level Sensor ( well / tank ) | Yes | ||||

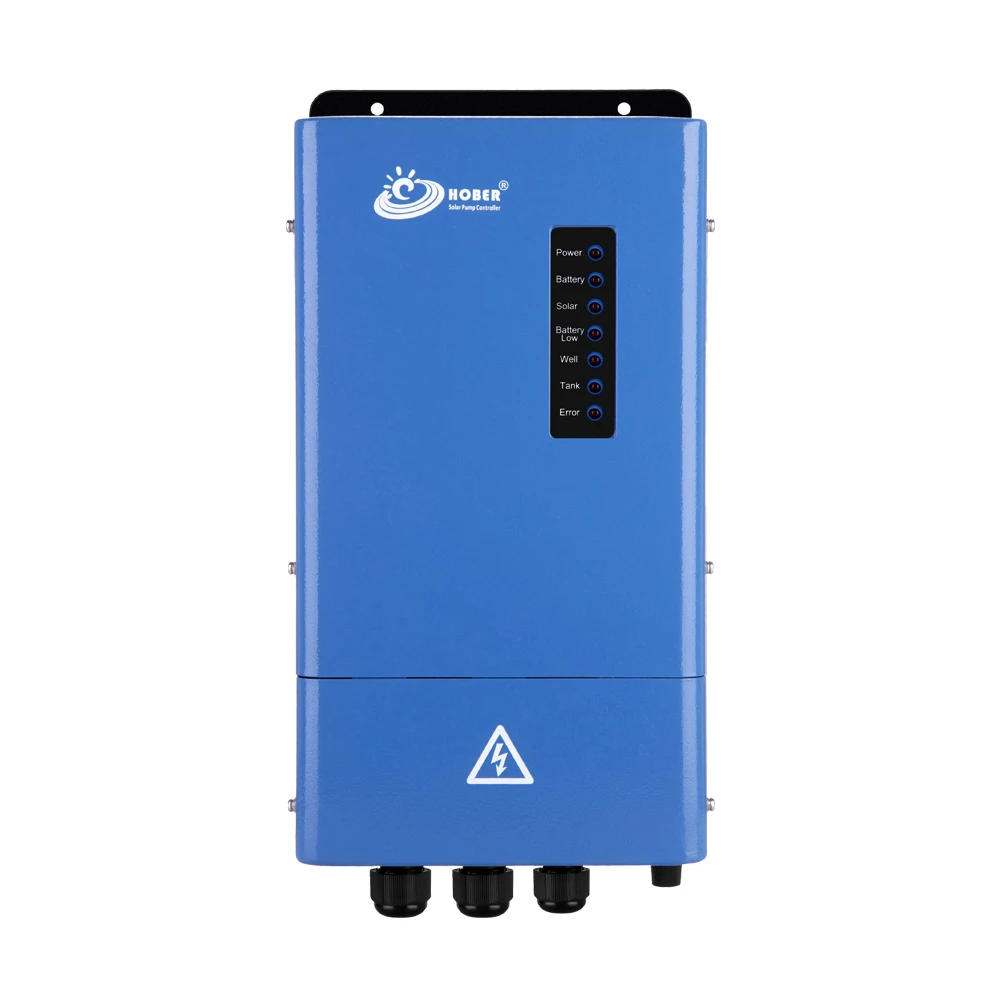

Display | LED display ( Power, Solar, Battery, Battery Low, Tank, Well, Error status) | ||||
Waterproof | N | ||||
Noise | <50dB | ||||
Cooling Method | Natural Cooling | ||||
Protection | Solar DC Input Over Voltage; Solar DC input Reverse Polarity; Battery Protection; DC output Short-circuit; DC Output Phase Lose ( 3 Phase ); Over Temperature; Over Flow of Tank; Water Empty of Well | ||||
Operating Environment | Operating Evironment Temperature | -10 to 60℃, Above 60℃ need to derate load | |||
Max Humudity | 95%RH | ||||
Using Altitude | <3000m, Above 300m need to derate load | ||||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid. etc | ||||
Package | Size | 300*160*110MM | |||
Weight | 4.5kgs | 16Kg | |||
Solar Pump Controller Features
1. High quality, high efficiency, low cost running
Automatic MPPT function,HBP series solar dc pump controller drives brushless DC motors for maximum efficiency, the efficiency results is in a lower unit cost of water pumped.
2. Install almost anywhere
HBDC is designed to be a complete solar water pumping system comprising of a specialized pump controller and carefully matched pumps. It uses solar power, no need power infrastructure, so it can be installed almost anywhere.
3. Easy to operate and maintain
Fully automatical operation, no need setting parameters.
4. Perfect protection functions
solar dc input over-voltage, anti-reverse, dc output phase lost, short circuit, over temperature, water over flow of tank(by sensor), well water empty(by sensor)
5. Support 24/36/48/96/110V DC Motor.
System Configuration
