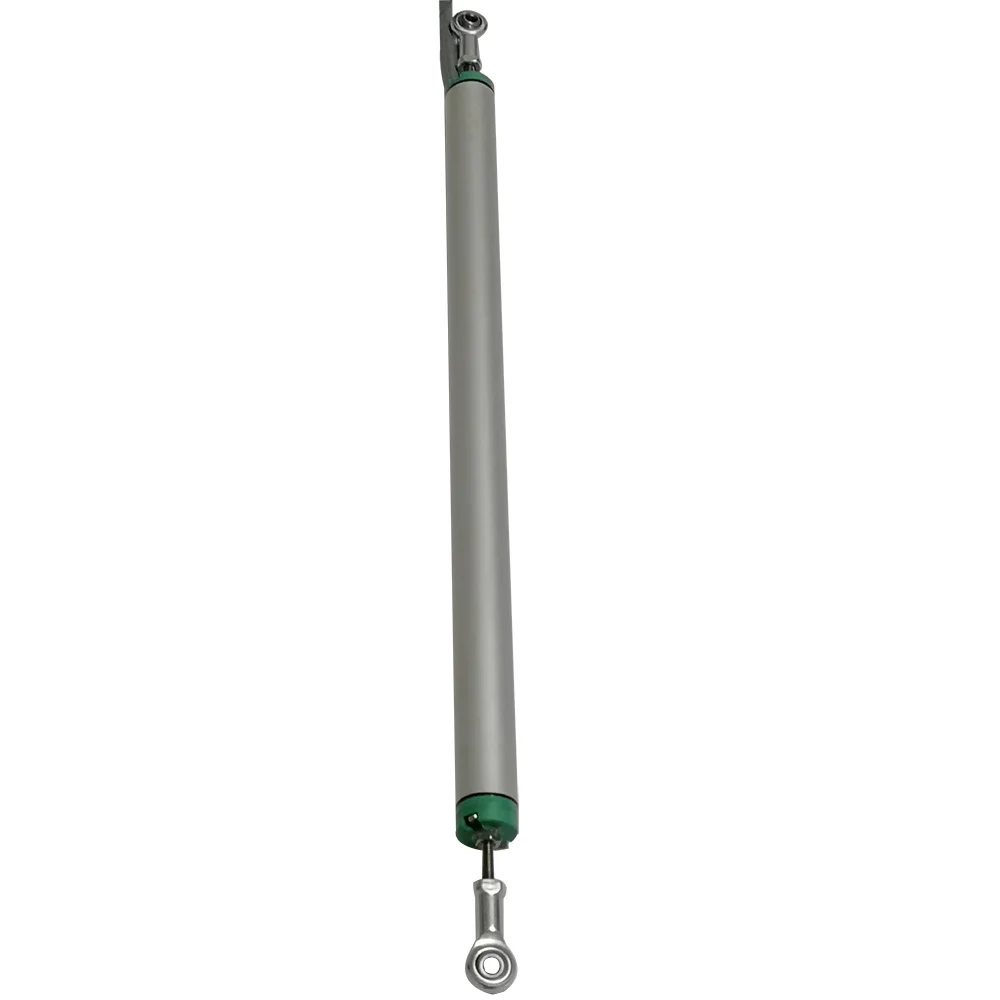

KPM Shock Absorber Mini Hinge Articulated Length Measurement Resistive Linear Displacement Transducer Position Travel Sensor

Product Overview

Description

Description:

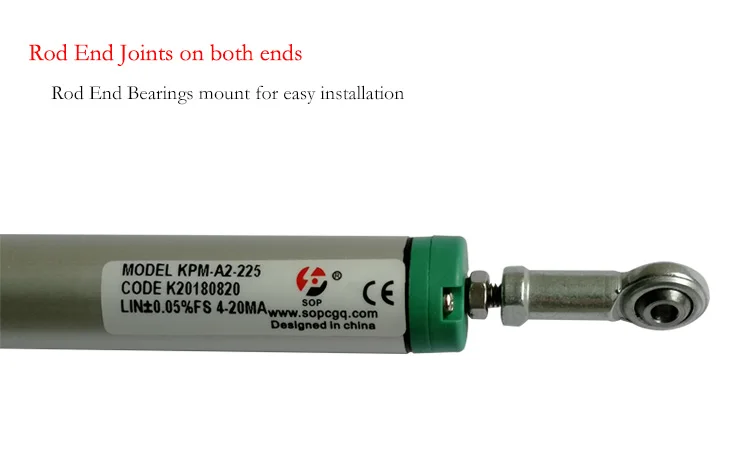

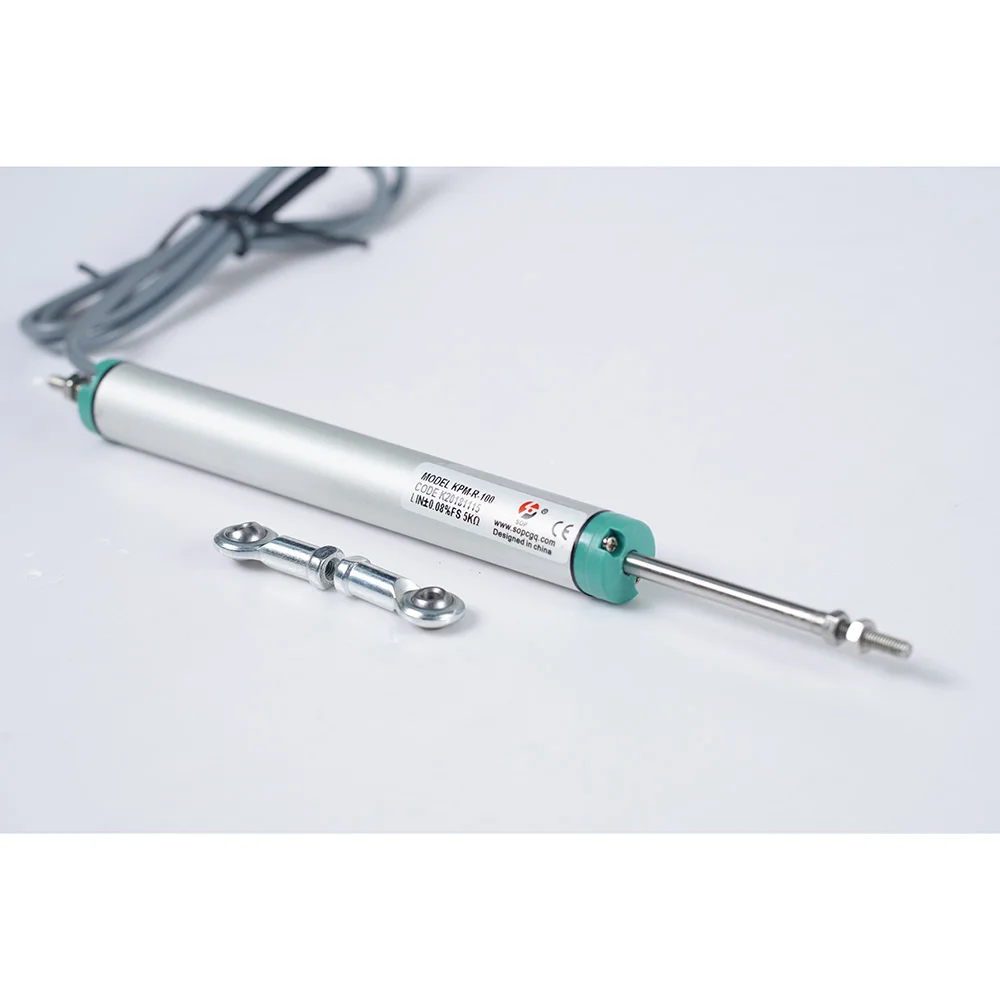

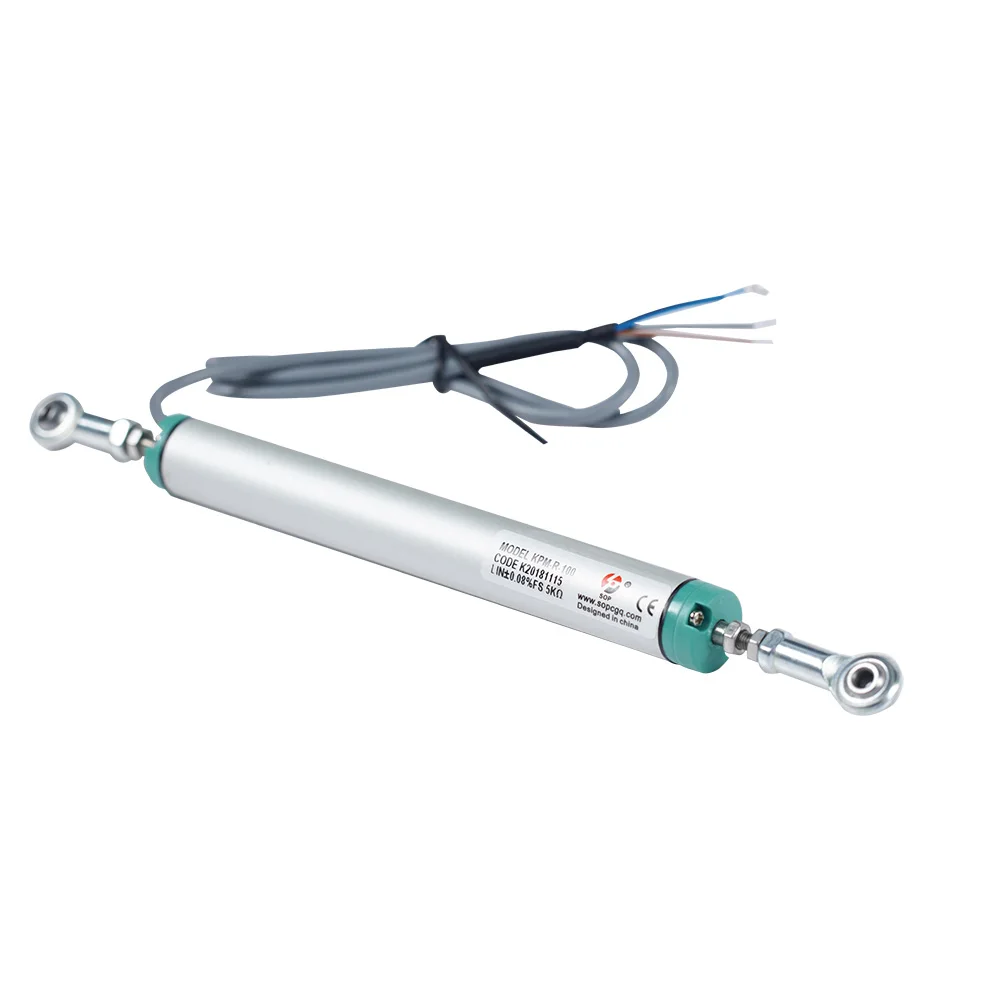

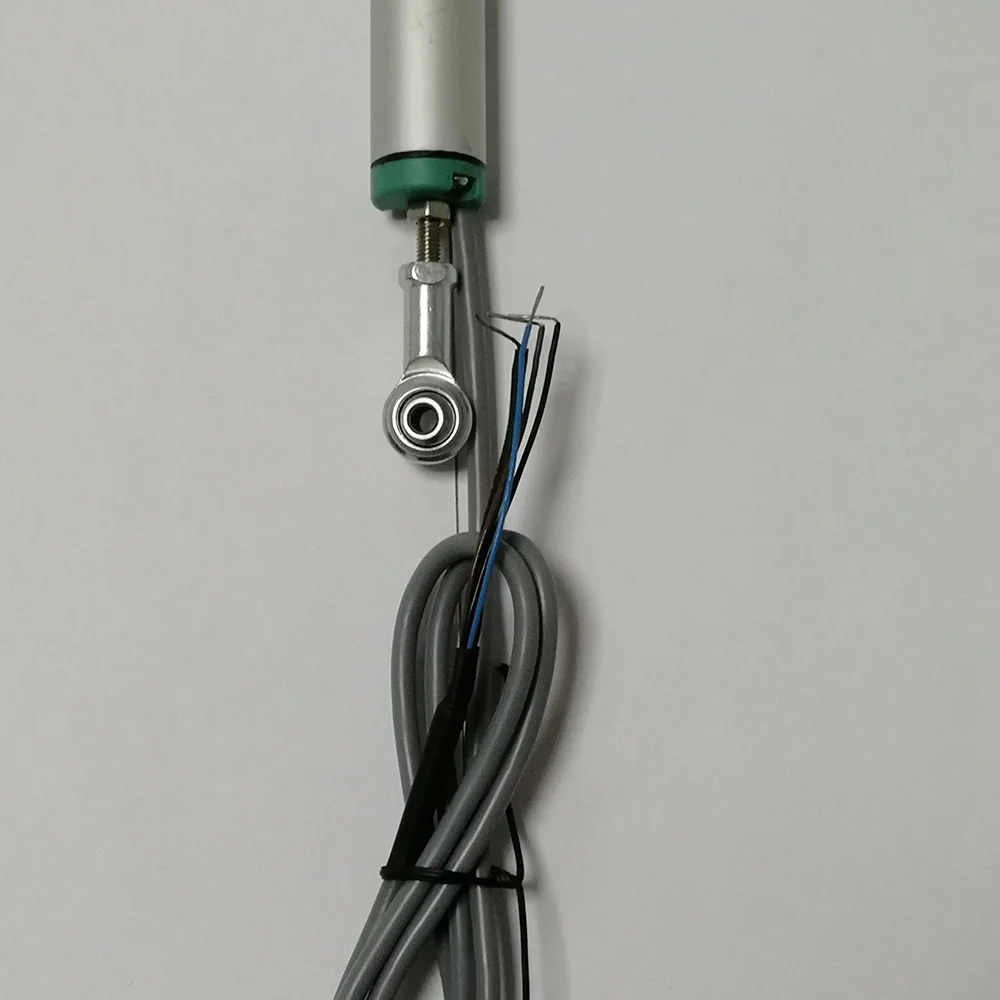

The KPM linear transducer with Rod Ends Joints is used to measure and track the linear motion or position of a target. The potentiometer position sensor is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity.



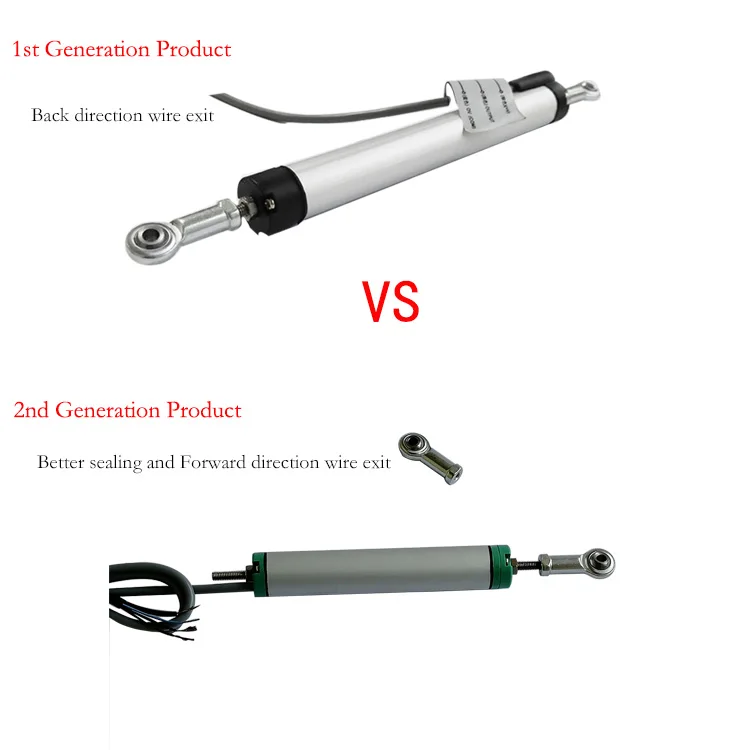

The compact linear transducers are designed for applications with harsh environmental conditions. The transducer with ball joints compensates movements transversely to the push rod, so that non-linear movements can also be coupled simply and without stress. The mechanical detection of linear movement is done by a front guided push rod.



Applicaitons:

Ideal for short ranges measurement and swinging movements, such as: robots, brick machines, ceramic machines,sluice gate, footwear machines and so on.



Features:

• Compact displacement sensor

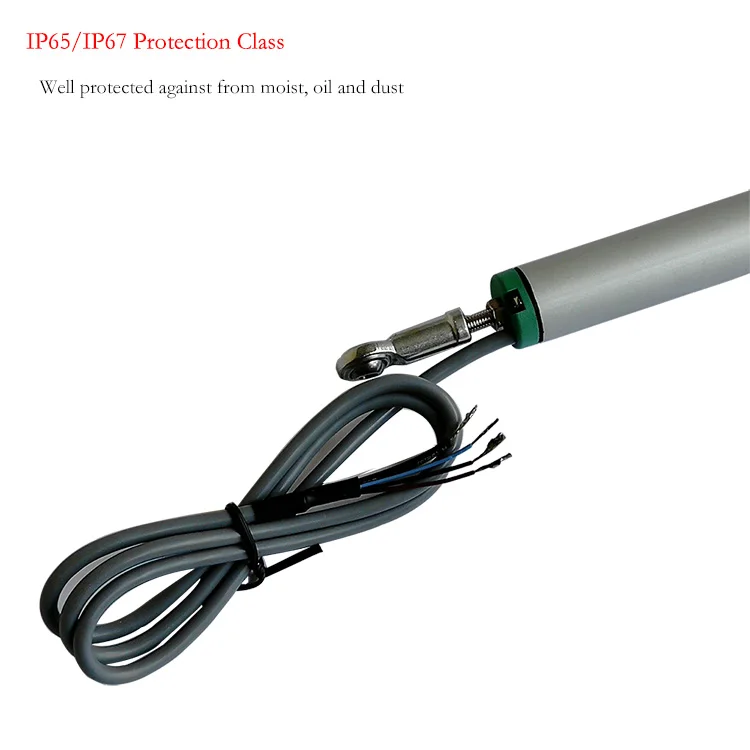

• For harsh environmental conditions - protection class IP65

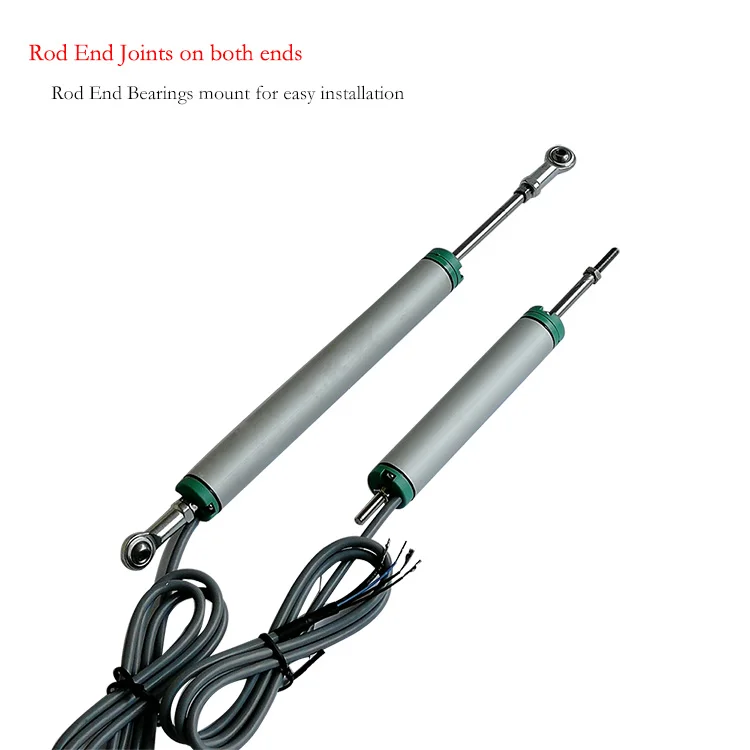

• Mounting by ball joints, mounting brackets


• Long lifetime and high accuracy


• Measuring lengths from 10 mm to 300 mm

Specifications:

KPM Series	300
Strokes	300mm
Electrical Stroke	302mm
Resistance ±5%	5k ohm
Linearity	±0.05%
Mechanical Stroke	307±2mm
Length (A)	355±2mm
Resolution	infinite
Repeatability	0.01
Working speed	≤5m/s (vertical direction)
Movement	±12.5° Angular deviation
Protection class	IP65 DIN405000/IEC529 (Max)
Lifetime	> 20 x 106
Vibration	5~2000, Amax=0.75, amax=20
Working current	≤1uA
Max Current	10mA
Max Voltage	24V
Input Voltage & Output Voltage Temperature Rate	5  (Typical)ppm/k
Insulation Resistance	≥10 @ 500V, 1bar, 2s
Insulation Intension	≤100 @ 500VDC,50Hz, 2s,1bar
Temperature Range	-40 ~ 120℃

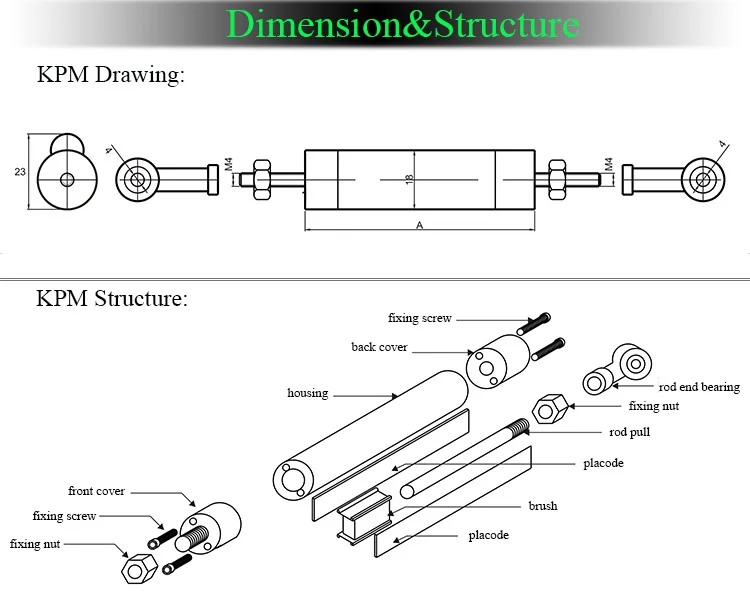

Dimensions:



Packing details:

♦ Standard package: paper tube

♦ Tube dimension: 550mm x 55mm x 55mm

♦ Packing methods: each to be wrapped with poly film then to a paper tube



Accessories:

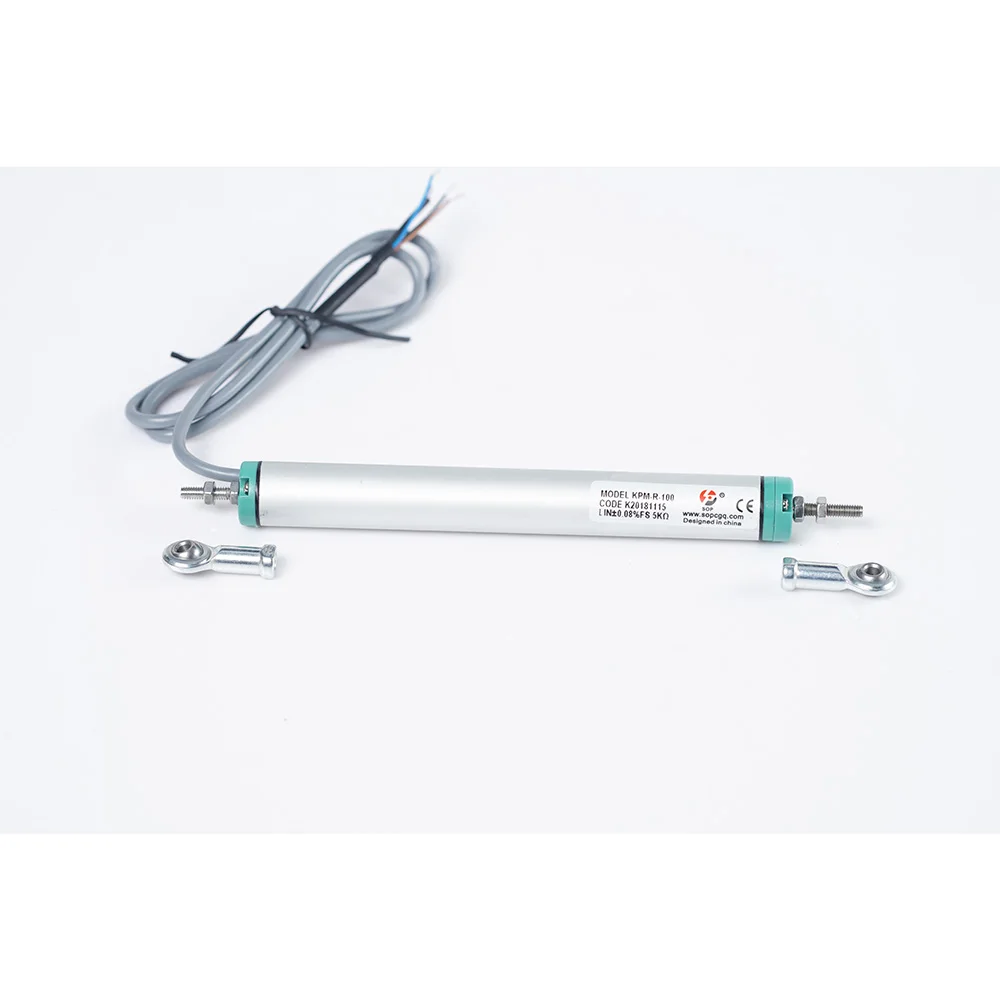

♦ 2 rod ends joints





Shipping details:

♦ Air cargo with fast delivery time, such as DHL, FedEx IP, UPS etc; approx 2-7 working days

♦ Special line with economic cost, such as ARAMEX, FedEx IE, UPS Expedited etc; approx 4-9 working days

♦ Sea trasportation with cheap freight; approx 45 days



Payment details:

♦ Credit Card

♦ T/T

♦ E-checking

♦ Boleto

♦ Pay Later

Trade Assurance Order is highly recommended for buyers through the world.



Note: The bank charges through the payment should be borne by the buyers.

About Us:

Established in 2007, Dongguan Sop Mechanical And Electrical Co., Ltd. is a manufacturer and trading company specialized in the research, development, production and sales of ring blowers and position sensors. All of products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customers stisfaction. Besides, we have passed ISO9001:2008, ISO14001, CE, SGS, Rohs.



If you are interested in any of our products or you have special requirements of our products, please feel free to contact us. We are looking forward to building a win-win relations with you.



Our workshop:



Finished Products:



Our trade shows:

Why Choose Us:

Quality control; 100% QC inspection before shipment
Prompt reply; Any inquiry or question will be replied within 24 hours
Rapid production time; Goods will be shipped out within 7 working days
After-sale service; A professional team is always ready to solve your problems

Q: Can I have a sample to test?

A: Sure. As a leading sensor factory, samples are welcome and acceptable.



Q: Can you offer 4-20mA output sensor?

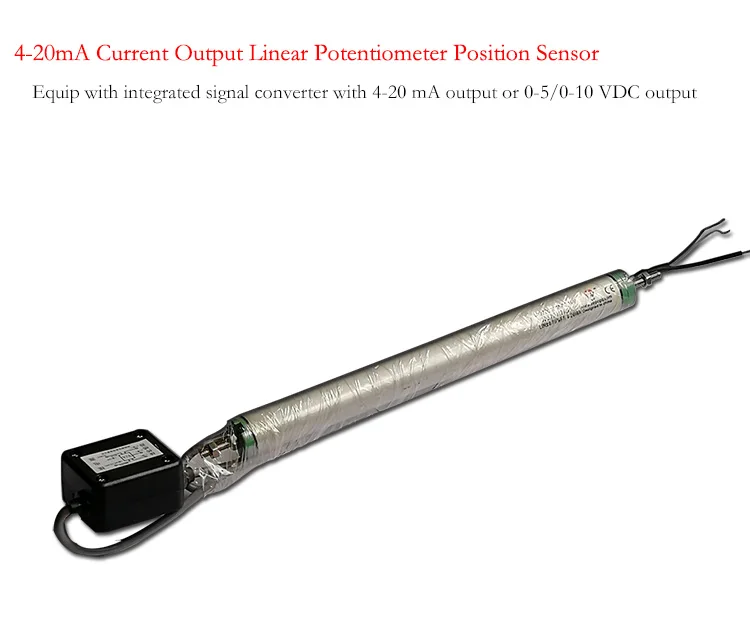

A: Yes. Apart from resistance output, the sensor is also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output
