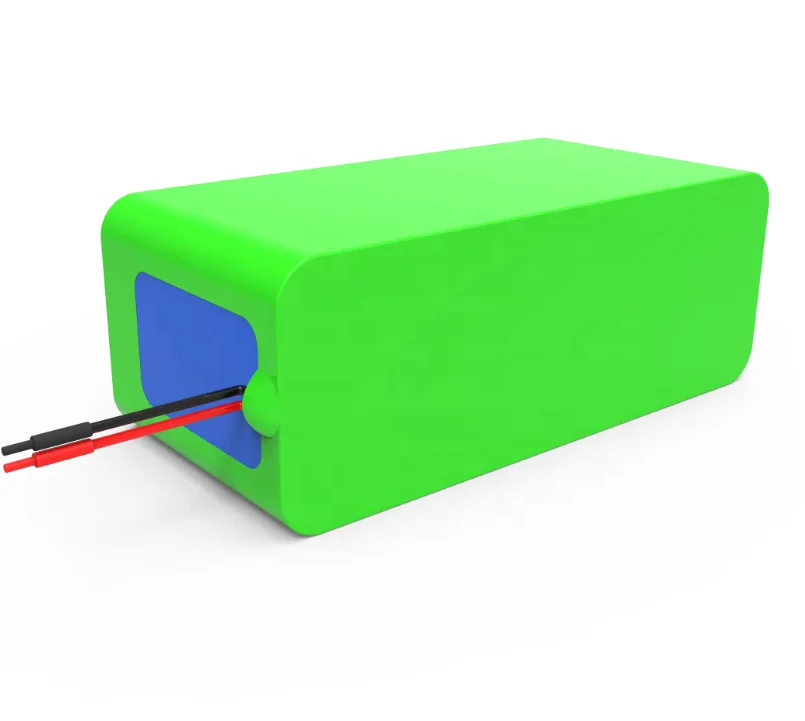

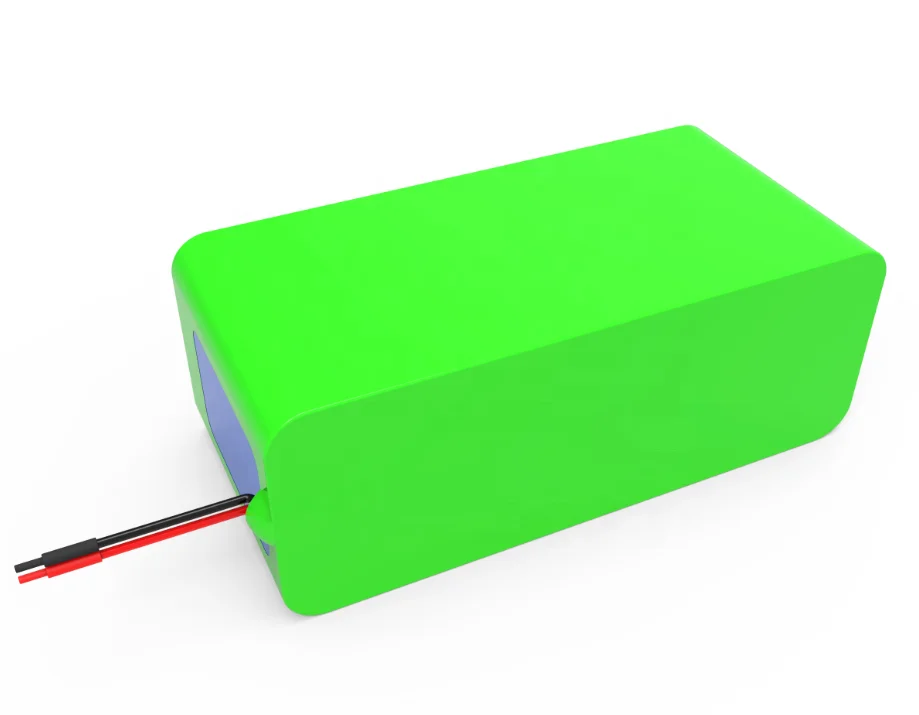

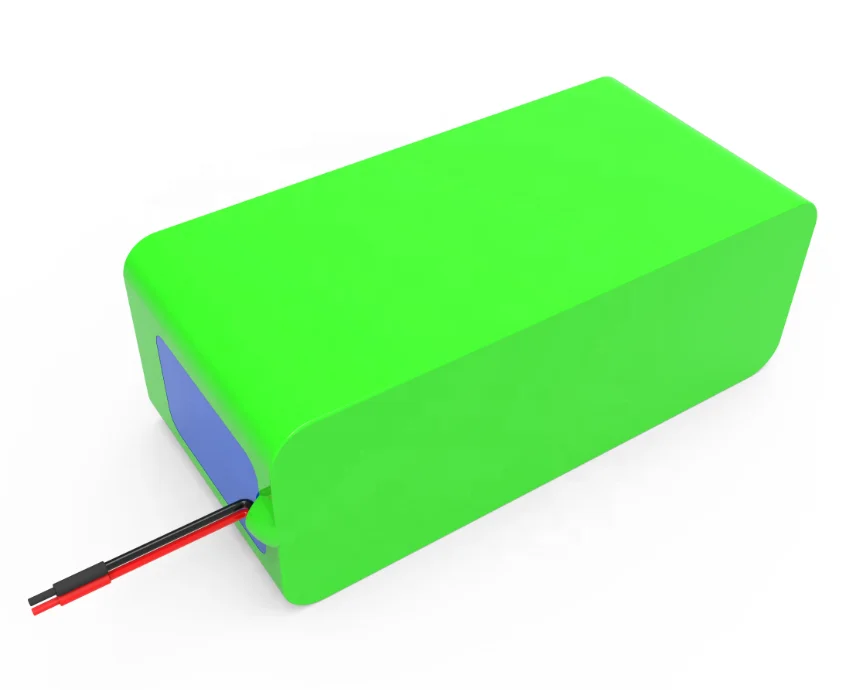

High Capacity Voltage Good Quality 11.1V Series Parallel Li Ion 2600mAh 18650 3S8P Battery Pack for E scooter/e bike

Share on (62267136769):


Price:RUB 2,274.54 - RUB 3,032.72

Quantity:


Product Overview

Description

High Capacity Voltage Good Quality 11.1V Series Parallel Li Ion 2600mAh 18650 3S8P Battery Pack for E scooter/e bike
Details Images
18650 2500mah 2600mah li ion battery pack

Nominal Voltage

 11.10V

Internal impedance

 ≤ 130mΩ

Discharge Cut-off Voltage

 8.40V

Max Charge Voltage

 12.60V

Max. Continuous Charge Current

 2.0A

Max. Continuous Discharge Current

5A-100A

Max. Discharge Peak Current

5A-100A

Protections

All protections adopted, please check Specs. of the PCM as below

Weight

 1106g ± 4g

Max. Dimension

10*10*10



PCM Parameters:

Item

Content

Criterion

1

over charge protection voltage

4.28V ± 25mV

2

over charge recovery voltage

4.08V ± 50mV

3

over charge protection delay time

80ms - 120ms

4

over discharge protection voltage

2.8V ± 50mV

5

over discharge recovery voltage

2.8V ± 100mV

6

over discharge protection delay time

40ms-100ms

7

over current protection current

40A ± 10A

8

short protection delay time

10ms - 20ms

9

static self-consumption current

I < 6.0uA

10

PCB internal resistance

R < 65mΩ

18650 cells battery pack 11.1v 20.8ah battery sample prics
Recommend Products

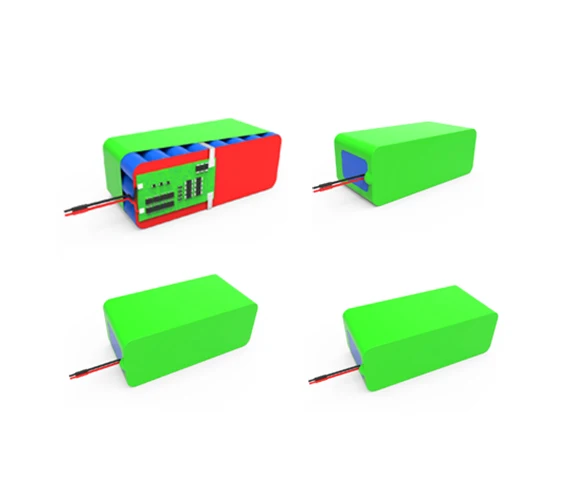

18650 2500mah 2600mah and 3000mah battery pack photos.
Certificates
QSPOWER have CE BIS MSDS UL for batteries customers
Company Profile

QSPOWER (zhuhai) Co.,LTD was founded on 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products production since 2012.

QSPOWER have the strong technique support group which have the well-known expert form America and Taiwan. QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.

QSPOWER are focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.

QSPOWER has the experience and resources to help design engineers ensure a smooth design process and project management meet delivery schedules. We are willing to invest together for potential good project and business partner. New developing requirements are welcome always.

Here are some general categories of markets we are in.

Vehicle battery

Energy Storage

Power bank

Power tool battery

Portable Medical battery

Customized batteries

.
Our Show
FAQ

1,Q: What’s the main rechargeable batteries product in QSPOWER?
A: Rechargeable battery. Li-ion, Lipo battery for solar storage and electric vehicles .

2,Q: What is lithium ion battery overcharge?
A: After charge, tested the batteries’ initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.

3,Q: What is the rechargebale lithium iron phosphate battery over discharge?
A: After charge, test the batteries’ initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance

4,Q: Can I have a sample battery order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5,Q: Do you have MOQ limit for the lifepo4 cells or battery pack?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.for examples .for
completely battery pack the moq is 1 sample is fine for order;for 18650 cylinderical cells moq is 100pcs for order.

6,Q: How about the lead time for both sample order battery 18650 and mass order batteries?
A: Samples will takes 10-15 business days. Mass production will takes 20-25 days. It depends on how many battery quantity you will
placed.

7,Q: How about shipping and delivery time for the battery sample and batteries mass order ?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 4-8 business days.for sample
and mass order Or DDP service, delivery time is 15-20 business days. Airline and sea shipping also available.

8,Q: What about after-sale service for lipo battery customers ?
A: We will offer you 3-5 year guarantee(based on your battery materials). If there are any problems, please inform us, we will
offer you positive solutions.
