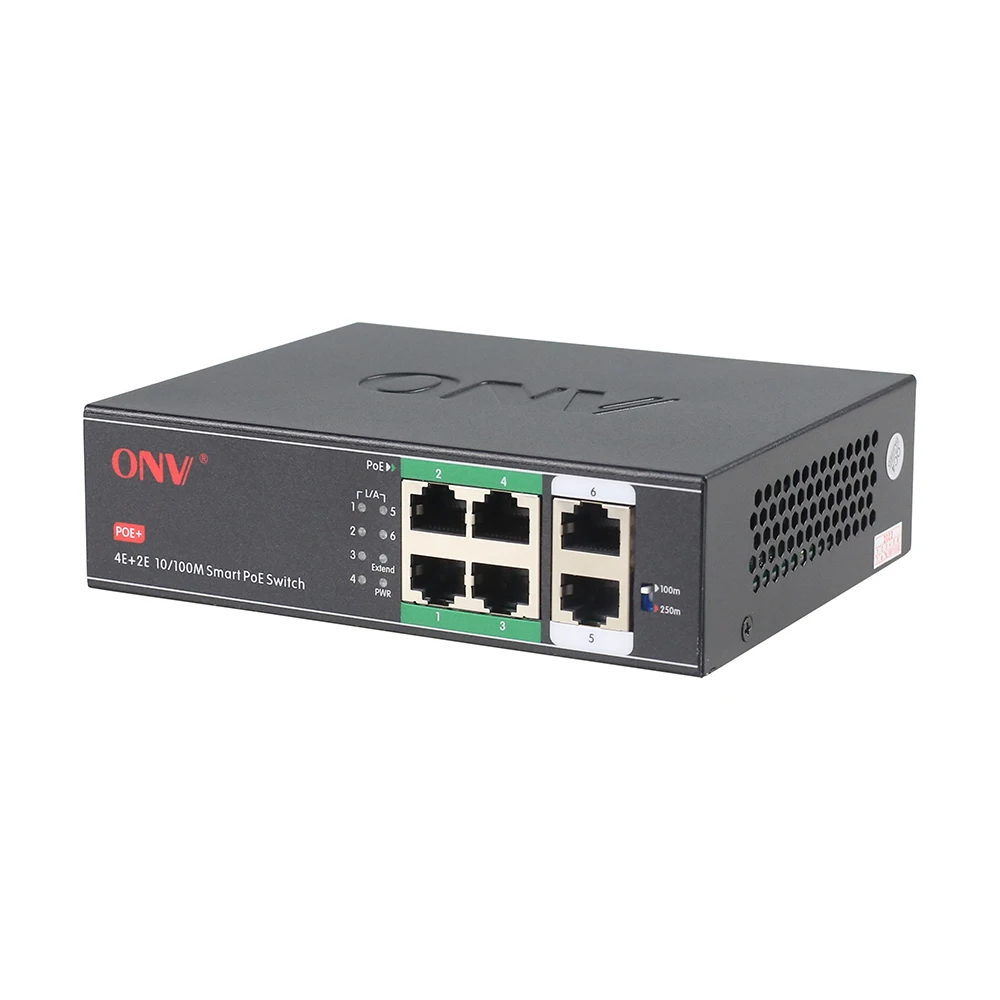

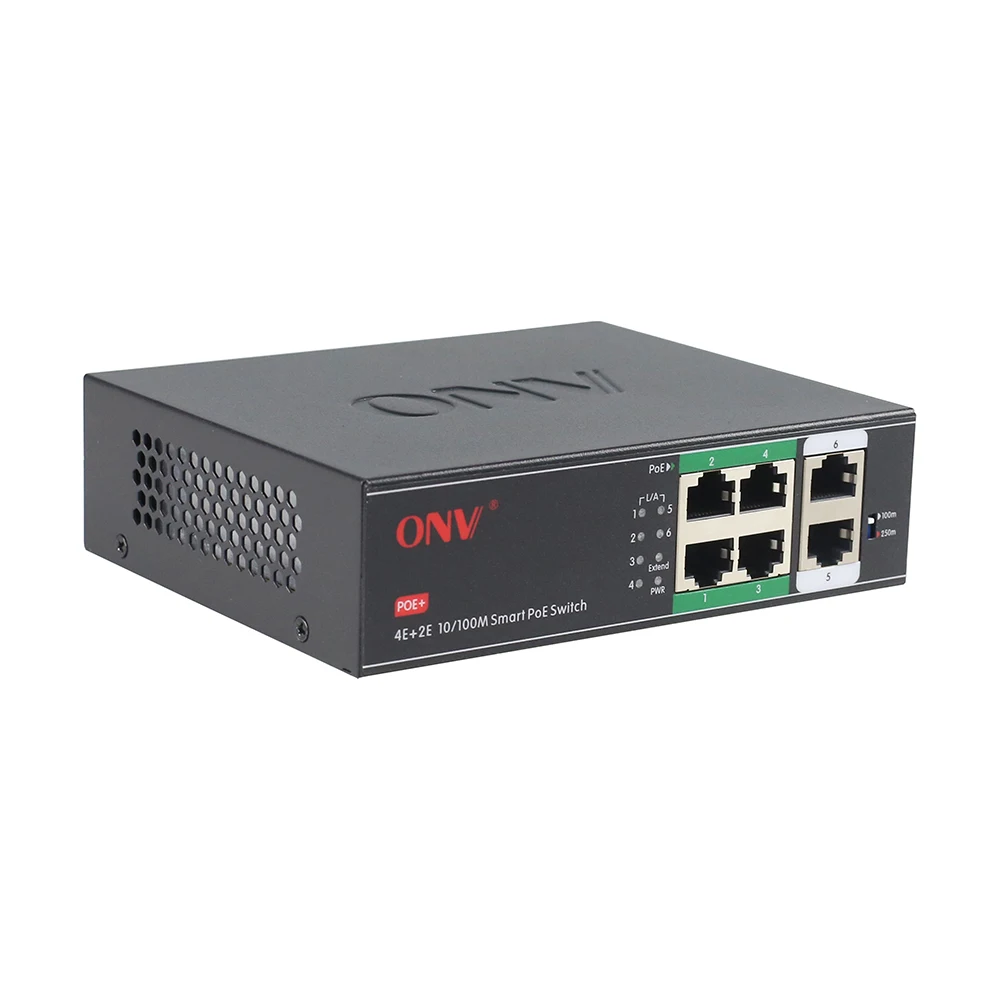

Hot Selling Cheap Price 10/100M 4 port Ethernet Switch Poe Switch Oem

Product Name

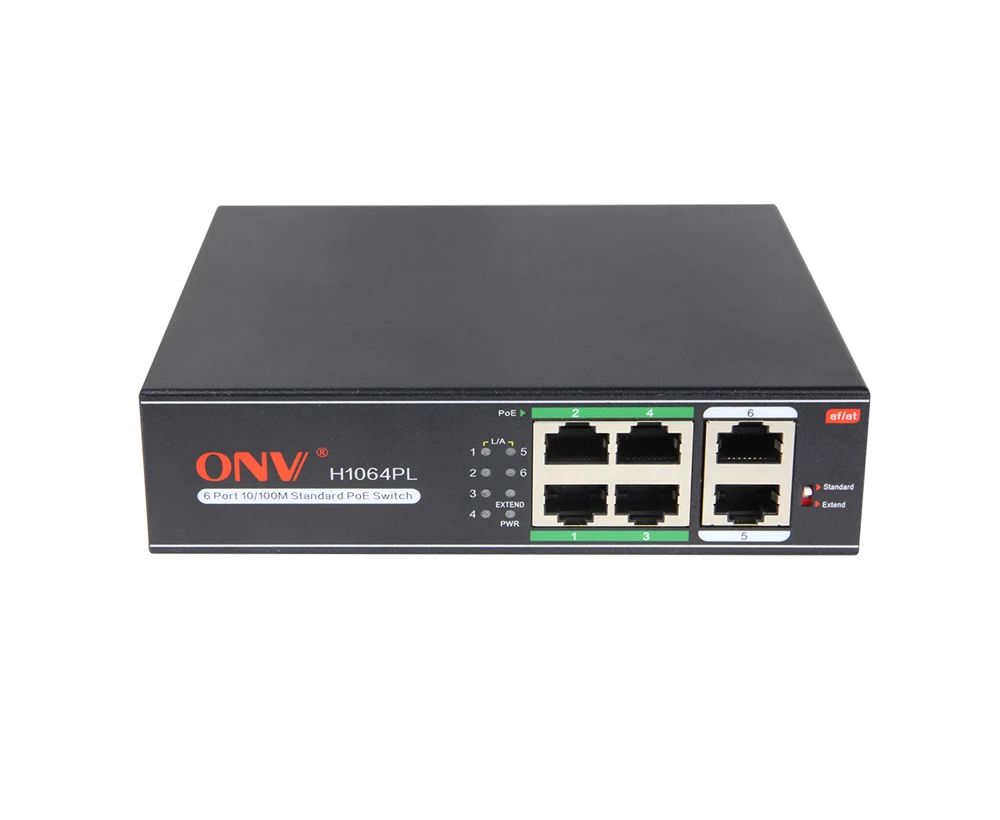

10/100M 6-Port Long Transmission Distance standard PoE Switch

Product Model

H1064PL

Connector

6x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing)

Port 1-4: PoE port, max PoE output for each port is 30W.

Transmission Distance: 250 Meters @10M, 100 Meters @ 100M

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meters);

100BASE-TX: Cat5 or later UTP(≤100 meters);

Performance Specification

Bandwidth: 1.6G

Network Latency (100 to 100Mbps): maximum delay less than 20 microseconds

Buffer Memory: 1M
MAC Size: 1K

MTBF: 100,000hours

Network Protocols and Standards

IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control

IEEE 802.3af/at

Switch Mode Definition

Mode 1: Port 1-6: 10/100M auto-sensing. @100 meters.

Mode 2: Port 1-4: 10M @ 250 meters

        Port 5-6: 100M @ 100 meters

LEDs Status

PWR

L/A

Power

Total Power: 60 W

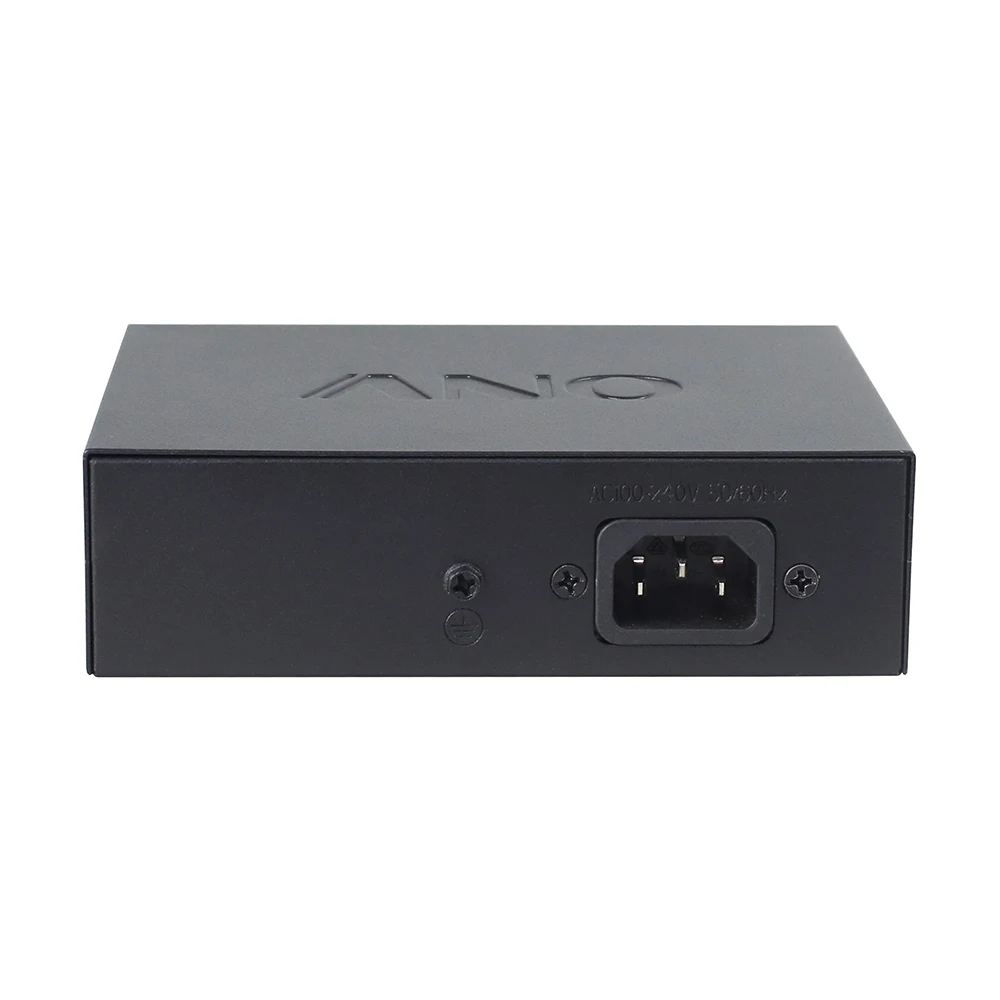

Input: AC100-240V, 50-60Hz

PoE Power Supply:  1,2(+)/3,6(-) (Default) ; 45(+),78(-) (Option)

Dimension

142 * 113 * 40mm

Working Environment

Operating Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);

Storage Altitude: 3,000 m (10,000 ft)

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950

Warranty

1 year warranty

Packing List

10/100M 6-Port Long Transmission Distance Standard PoE Switch

Power Cable

Mounting Kits

User Guide

Warranty Card
