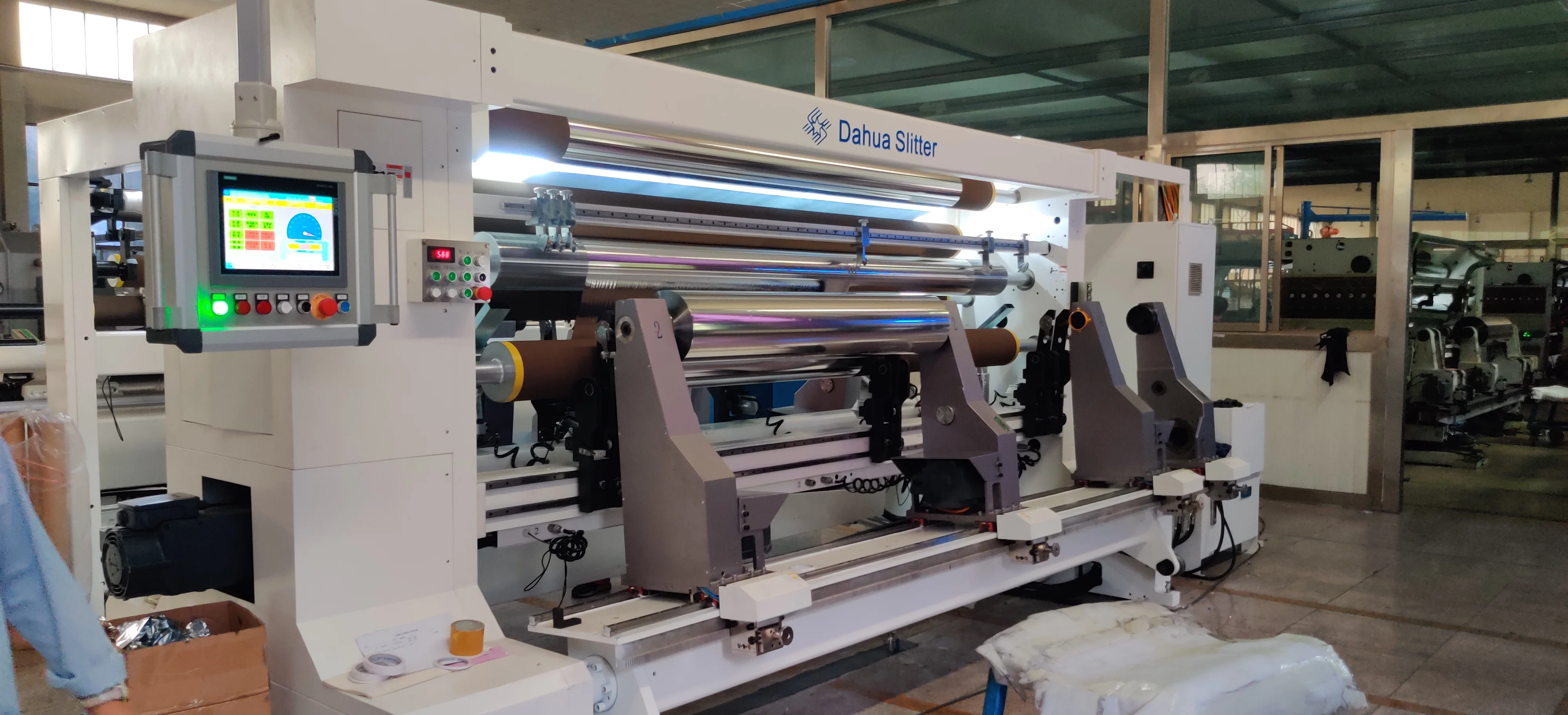

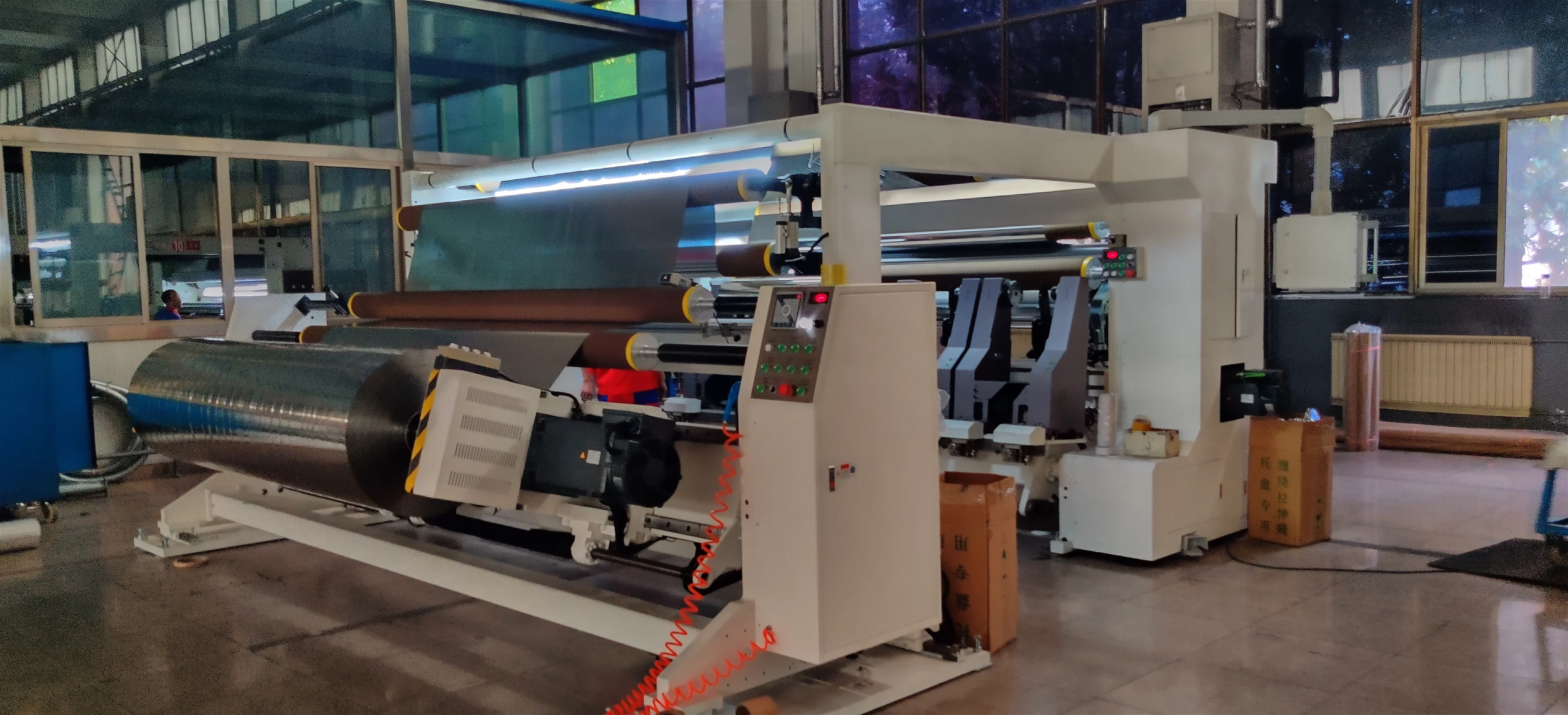

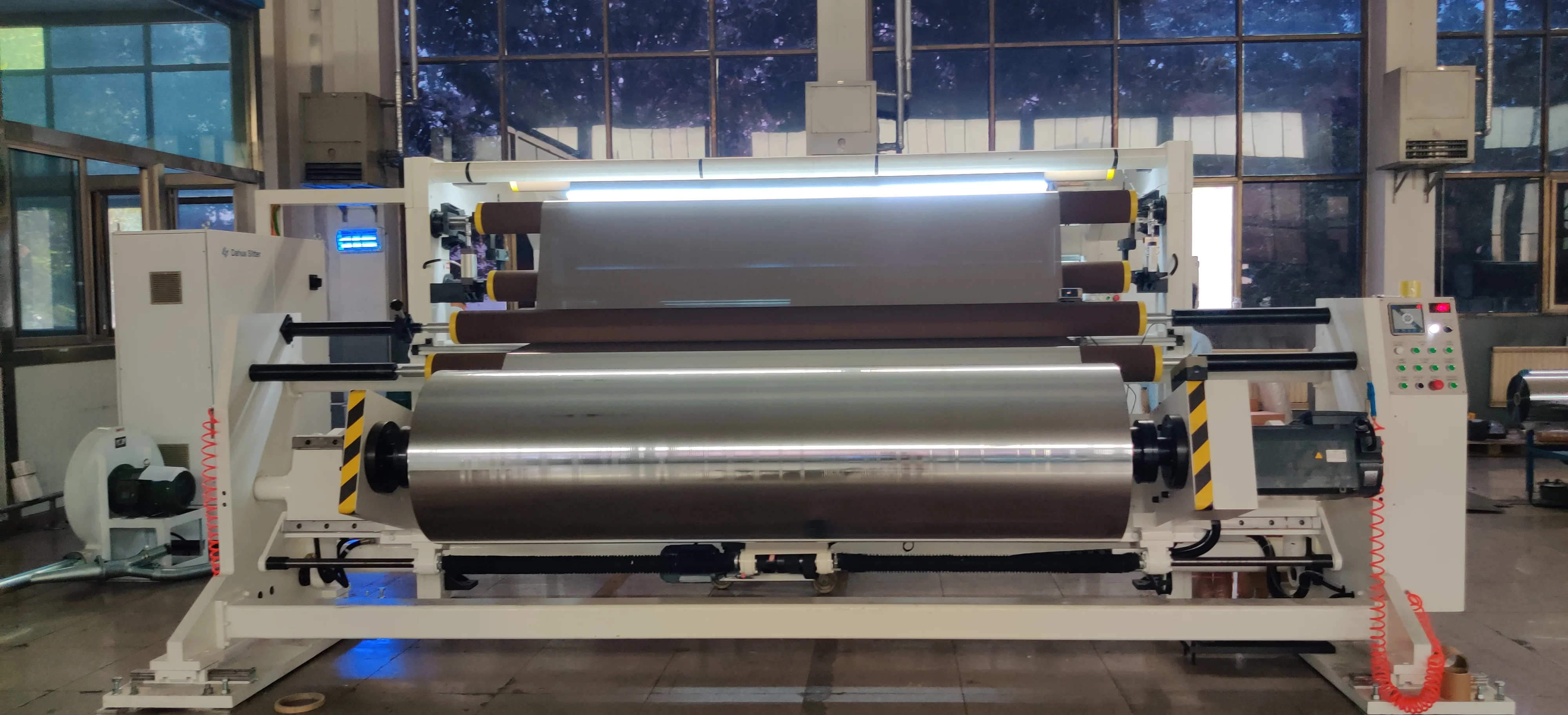

Dahua slitter 1.0 version 2700mm web width slitter for metallized CPP film individual station type slitting machine film slitter
- Category: Paper Processing Machinery >>>
- Supplier: Hangzhou Dahua Industry Control Technology Co. Ltd.
Share on (62267385790):
Product Overview
Description
Product Description
Product Brief Introduction
Individual station type slitting machine could meet the customer needs for the secondary slitting treatment and direct matching of the medium width and large diameter coil.
This series of slitter machine with advanced digital control technology and mechatronics applications technology is a special high speed intelligent slitting machine.Also,it uses the global advanced servo system bus control technology,applying high-precision and high-sensitivity adaptive tension control system.
The full range of equipment control systems has been upgraded with expert features to reduce customer concerns about usage,maintenance and process parameter settings, greatly, reducing reliance on people.
The equipment design concept is advanced, stable and reliable, and can meet the multi-material and multi-process requirements of customers. It is a comprehensive high-performance slitting.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS | ||
Slitting Material | OPP、PET、CPP metallized films | |
Material Thickness | 12-40um | |
Material Tension | 30-80N/m | |
Machanical Speed | 600m/min | |
Slitting Way | Razor | |
Unwinding Way | Unwinding arm fixed,3,6 air mechanical chuck (Hydraulic lift optional) | |
Unwinding Width | 500mm-2500mm | |
Unwinding Diameter | Max.1000mm | |
Unwinding Core Size | Steel Core, Paper core | |
Edge guide Way | Edge guide system (Germany E+L),Ultrasonic edge（EPC） | |
Rewinding Way | Central shafeless rewinding | |
Rewinding Width | 500mm-2500mm（Outside two stations mix350mm） | |
Rewinding Diameter | 1000mm | |
Rewinding Core Size | 3″Paper core, 6″ Paper core | |
Rewinding Station quality(if any) | 4 | |
Unloading Way | Hydraulic swing type with trolley unloading | |
Edge Trim Way | Vacuum suction system | |
Equipment Power | Around 60KW | |
Equipment Size | Around Length 6100mm×Width 5300 mm×Height 2300mm | |
Control System | Germany Siemens | |

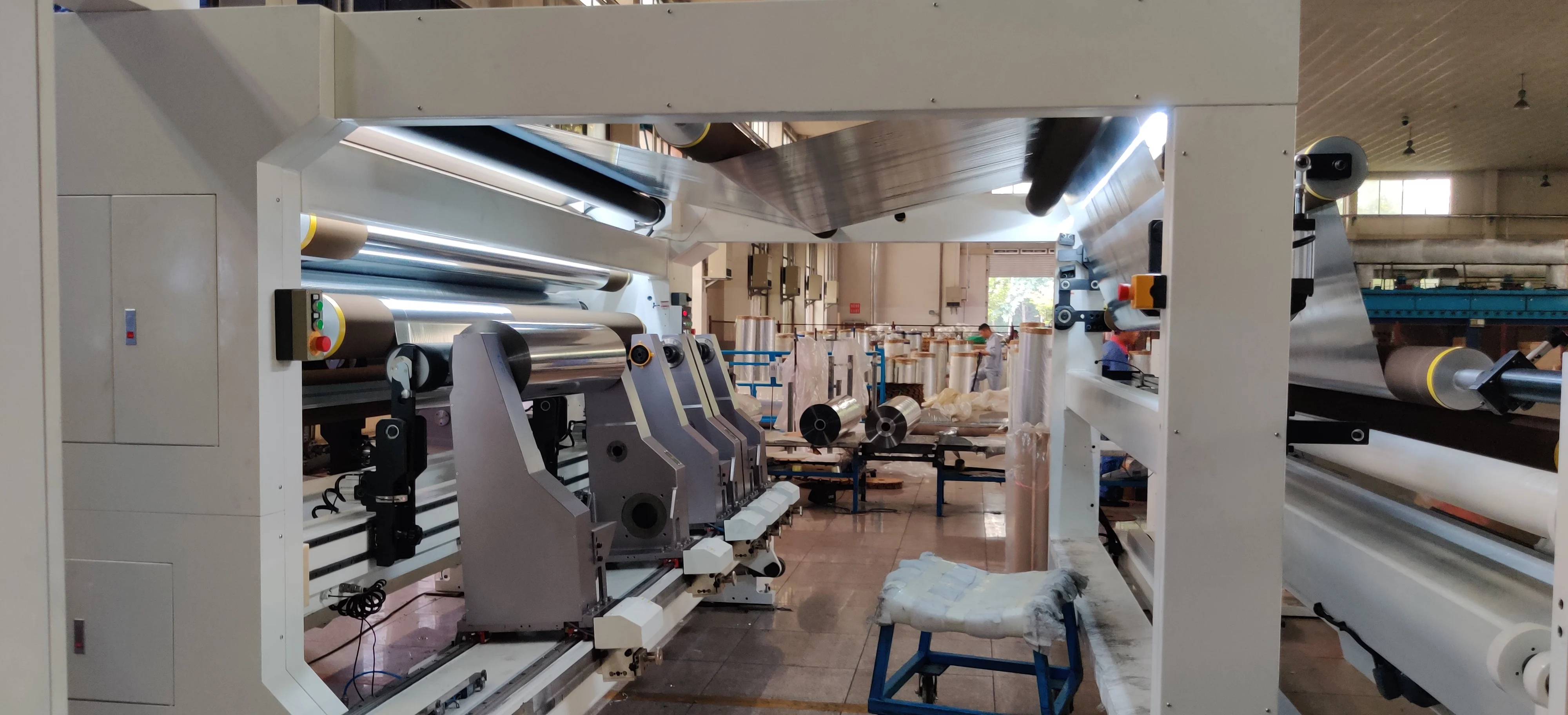

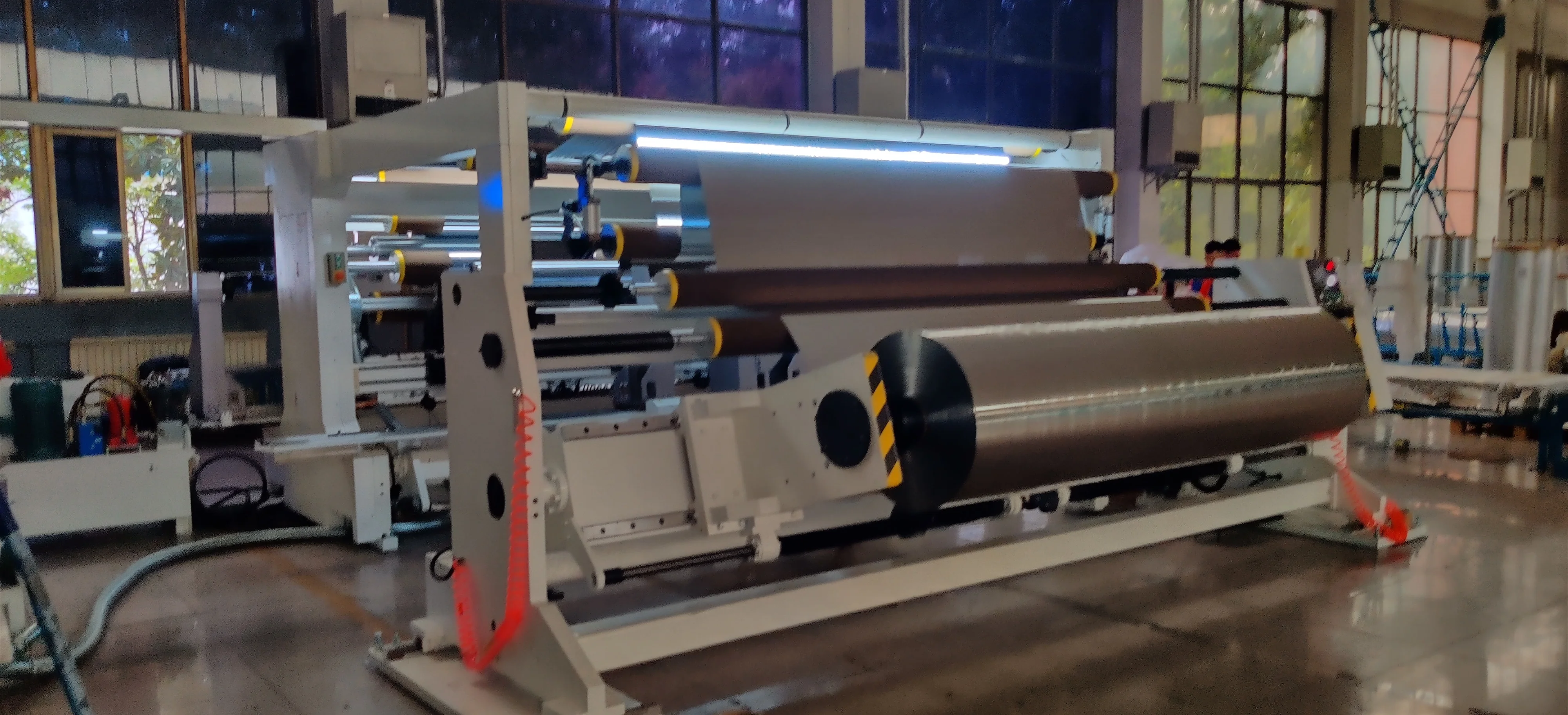

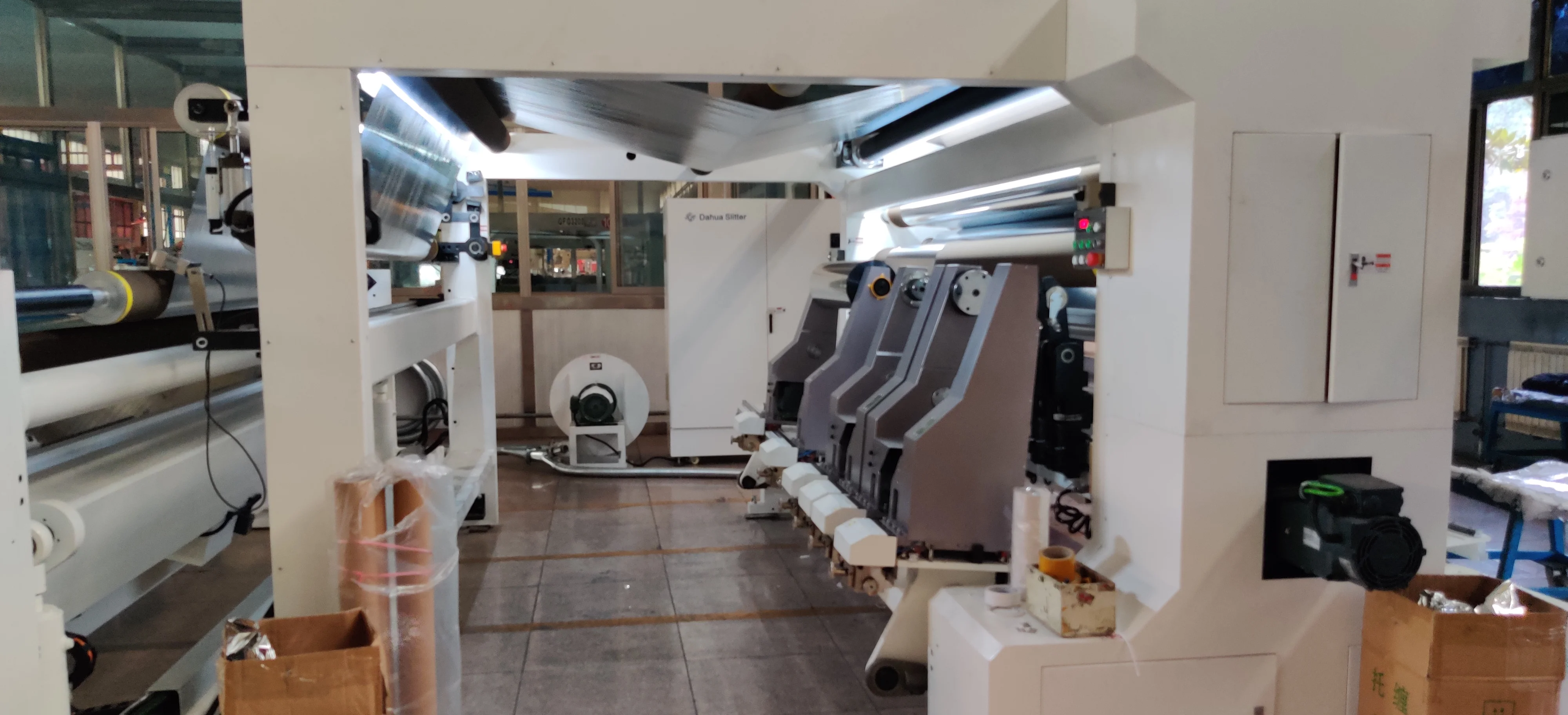

Detail Images
Equipment Main Feature
1、Intelligent control mode, one button works. |
2、Advanced structure, good adaptability, High precision of parts processing and assembly |
3、Double floating roller control, small tension fluctuation, within 1% |
4、energy-saving, common DC bus power supply of siemens system，energy-saving effect is remarkable |
Acceptance index
1、600m/min(20μmCPP) The width of the material is over than 1500mm Deceleration acceptance. |
2、Uniformity of slitting end face（Qualified material）: ±0.5mm。 |
3、Adjustable hardness, even tension. Falt the film surface of the finished product, and no wrinkle, scratch and film surface damage in the slitting and rewinding process. |
Special instructions of Equipment
1、Rewinding end face neat, flat film surface, no wrinkle |
2、Advanced double floating rolls system |
3、High speed operation of equipment |
4、Overall design with reasonable structure |
