Water Based Glue Laminating Machine for Leather/foam/Non woven fabric
- Category: >>>
- Supplier: Yancheng Jeakar International Trade Co. Ltd.
Share on (62267402699):
Product Overview
Description
PRODUCT DESCRIPTION
1.With glue as the bonding agent, the vertical net belt laminating machine uses high temperature-resistant net belt as pressing material to ensure the laminating material completely contacts with the cylinder dryer, which improves drying effect, and ensures that the laminated material feels soft and has excellent fastness and superb resistance to water washing.
2. The net belt is equipped with an automatic infrared deviation-adjusting device to effectively prevent the running deviation of net belt and prolong the service life of the net belt.
3. The heating system consists of two groups of heaters, so users can select heating mode (one group or two groups of heaters) according to their requirements to effectively save energy and reduce production cost.
4. Users can select DC motor or variable frequency drive with linkage control system according to their requirements to provide more excellent operability.
2. The net belt is equipped with an automatic infrared deviation-adjusting device to effectively prevent the running deviation of net belt and prolong the service life of the net belt.
3. The heating system consists of two groups of heaters, so users can select heating mode (one group or two groups of heaters) according to their requirements to effectively save energy and reduce production cost.
4. Users can select DC motor or variable frequency drive with linkage control system according to their requirements to provide more excellent operability.
--Glue type: Water-based;
--Equipped with high quality heat resistance net belt and Use the water-based glue, it makes the laminated materials contact with the drying cylinder closely, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness.
--It has two sets of heating systems, user can select one or two according to your need, to save energy and reduce production cost;
--Teflon, coated on the surface of heating roller, can efficaciously prevent the hot melt adhesive against sticking on the surface of roller and carbonization;
--The net belt is equipped with automatic infrared deviation adjusting device, which can effectively prevent the deviation, and extend its service life;
--For clamp roller, both hand wheel adjustment and the pneumatic control are available;
--Vertical structure, lower breakdown rate and longer service time;
--Improve the quality of the products greatly, save cost;
--Low maintenance cost and simple to maintain;
--Customized is welcome;

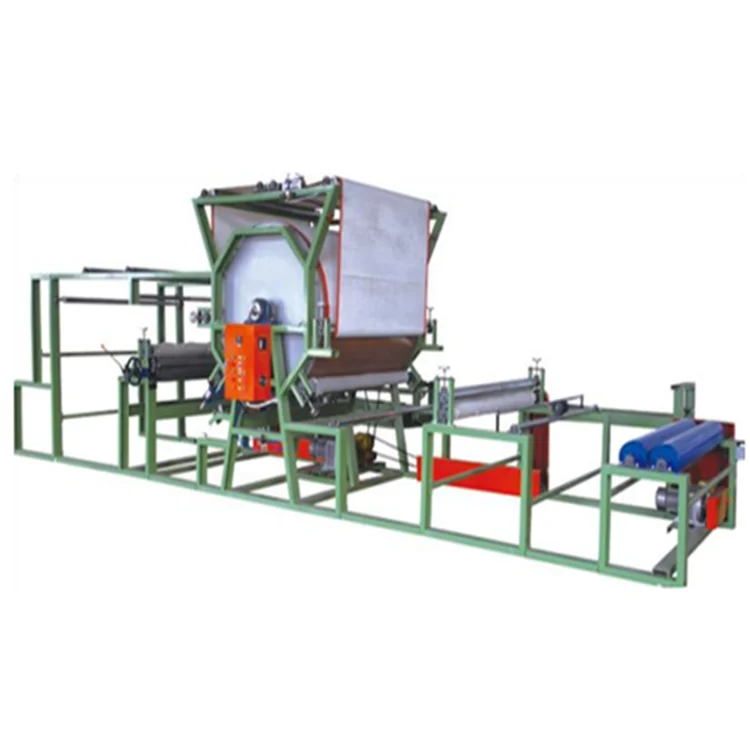

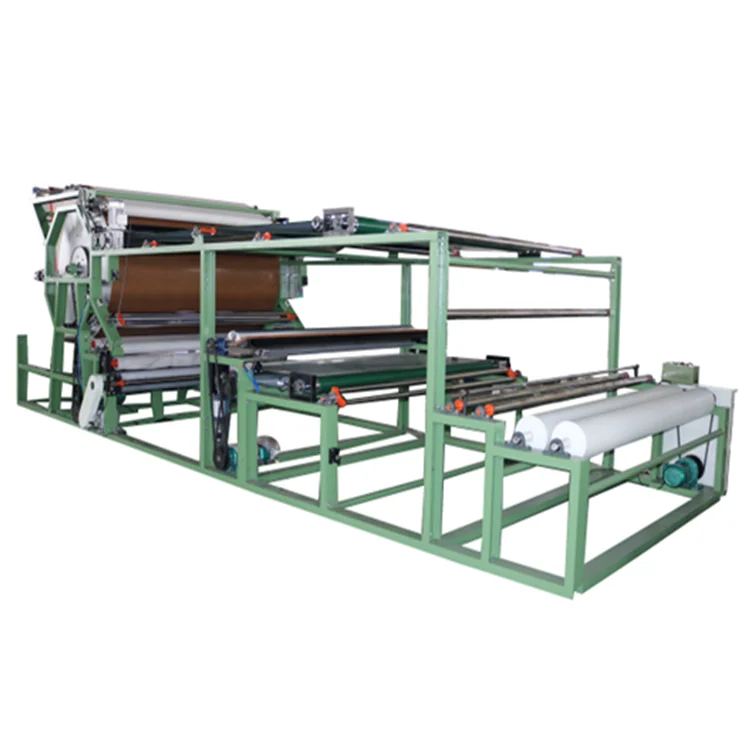

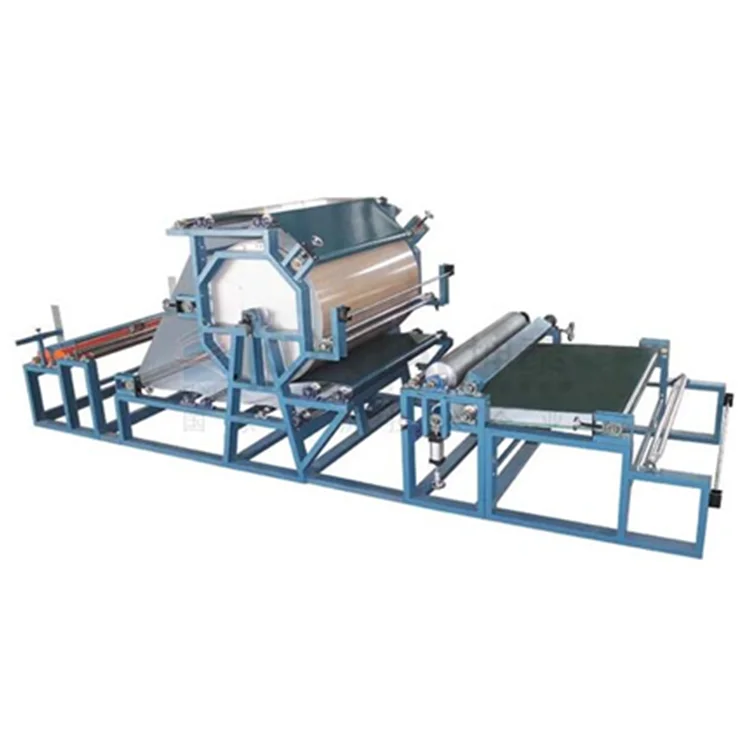

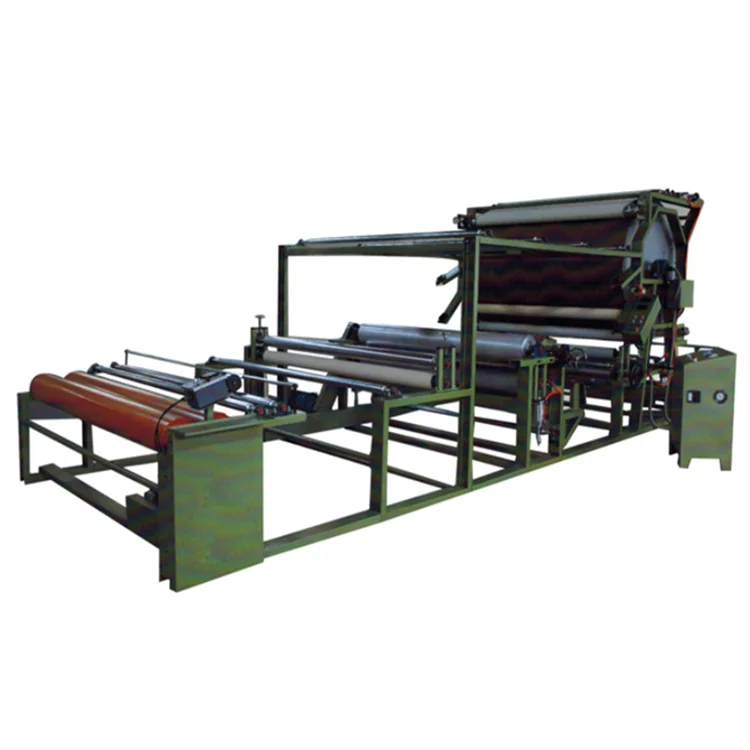

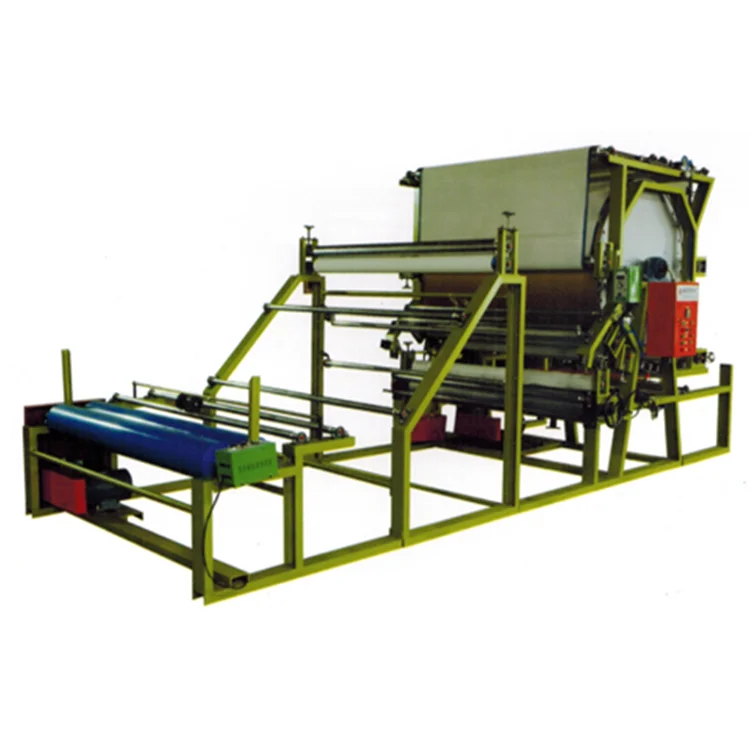

MACHINE PICTURE
DETAIL IMAGES
TECHNICAL PARAMETER
Valid width | 1600mm |
Glue way | Coating |
Heating roller diameter | 1200mm |
Heating roller width | 1800mm |
Heating method | Electric heating |
Electric Power | about 60kva |
Laminating speed | 0-30m/min |
Dimension | 6500*2400*1800mm |
HOT SALE PRODUCT
VIDEO LINK IN YOUTUBE FOR SOME MACHINE:
1.Swing Arm Cutting Machine (cut foam): https://youtu.be/frHKNooVxYs
2.Four Column Cutting Machine(cut foam): https://youtu.be/ywcFgwKTQbQ
3.Single Side Automatic Feeding Cutting Machine(cut leather): https://youtu.be/dNr7voyYPwk
4.Double side Automatic Feeding Cutting Machine(cut leather): https://youtu.be/4466SPiX1SI
5.Automatic Traveling Head Cutting Machine(cut shoe sole): https://youtu.be/7RJYiucv7-E
Established in 2008, Yancheng Jeakar International Trade Co., Ltd. is located in Yancheng of Jiangsu Province, a beautiful coastal city. The company integrates purchase, sales and OEM products processing and is a foreign trade enterprise with import and export licenses. The company is mainly engaged in the import and export of laminating machine ,hydraulic cutting machine.embossing machine .slitting and rewinding machine ,sponge making machine etc.which is widely used for garment,shoemaking ,leather ,sponge ,luggage and baggage ,automobile decoration,hats ,woods ,plastic packing ,packing ,toys ,stationery ,plyurethane preocessing and air conditioner refrigeration etc
We will persevere in creating boundless markets and providing perfect service for customers in China and overseas by providing various innovative products and working with a highly educated professional team.Our machine is sold very well in domestic china and have been sold as far as to more than 35 countries ,such as USA ,canada ,UK ,Italy ,Pakistan ,india ,brazil etc .We win good reputation among our customer depend on high quality ,competitive price and good after-sale service .We are looking forward to working with all customers and manufacturers for a brilliant future.
PACKING AND SHIPPING
YOU MAY LIKE
VIDEO LINK IN YOUTUBE FOR SOME MACHINE:
1.Water Based Glue Laminating Machine:https://youtu.be/mdKzuDADECE
2.Flame Laminating Machine:https://youtu.be/x3k7dwylzk0
3.PU glue Laminating Machine:https://youtu.be/kCiO0jQk8dI
4.Embossing machine :https://youtu.be/jMt-70BzWm0
.............................
FAQ
1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us
2.Q:Where is your factory located?
A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All clients, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer`s requirements.
4.Q: What is your MOQ of this item?
A: 1 set per style
5.Q: What is the lead time?
A: It depends on your order quantity. Normal size laminating machine costs 20 days,and large sizes asks for 2 months.
6.Q: Is it all right to make customer's own brand name?
A: That’s all right to make your own brand name.
